Product Info
- Manufacturer:Telemecanique
- Sub-Category:Limit Switch
Description
9007MS01S0200

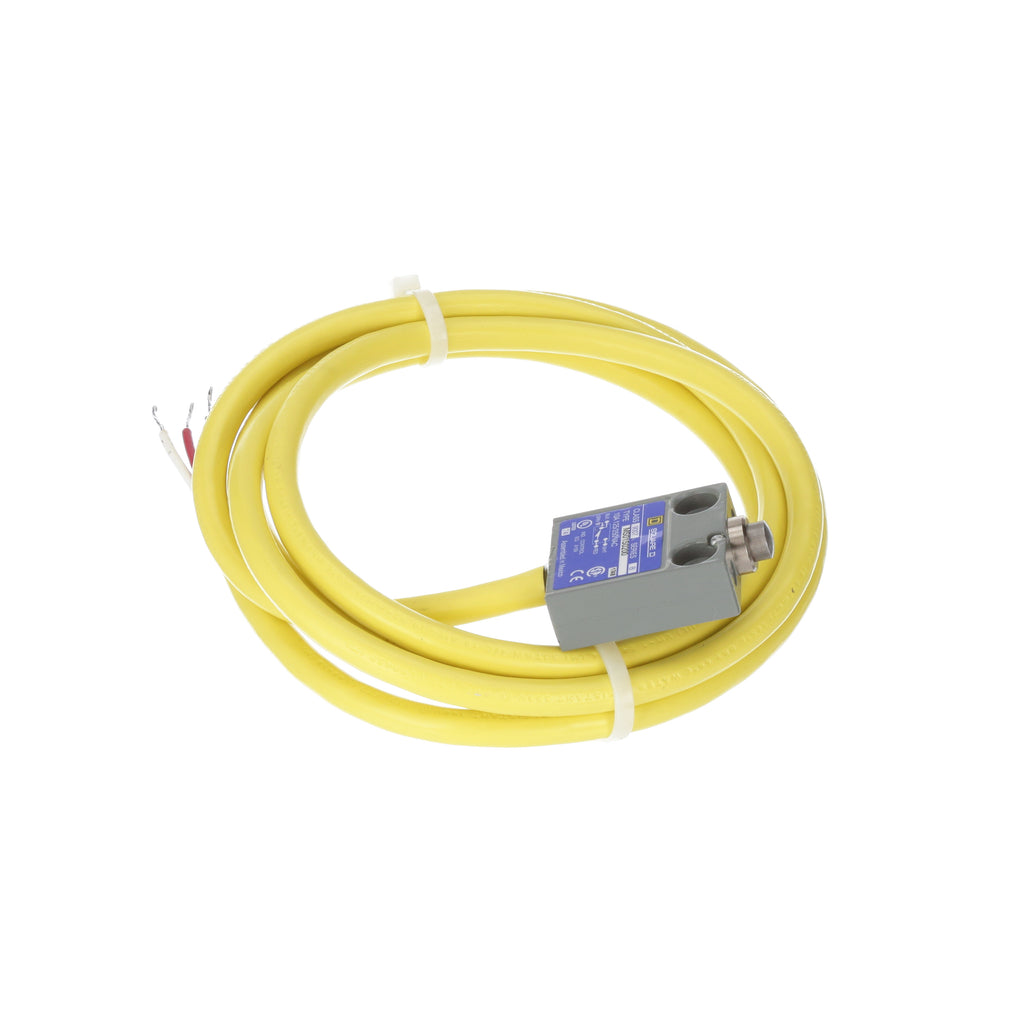

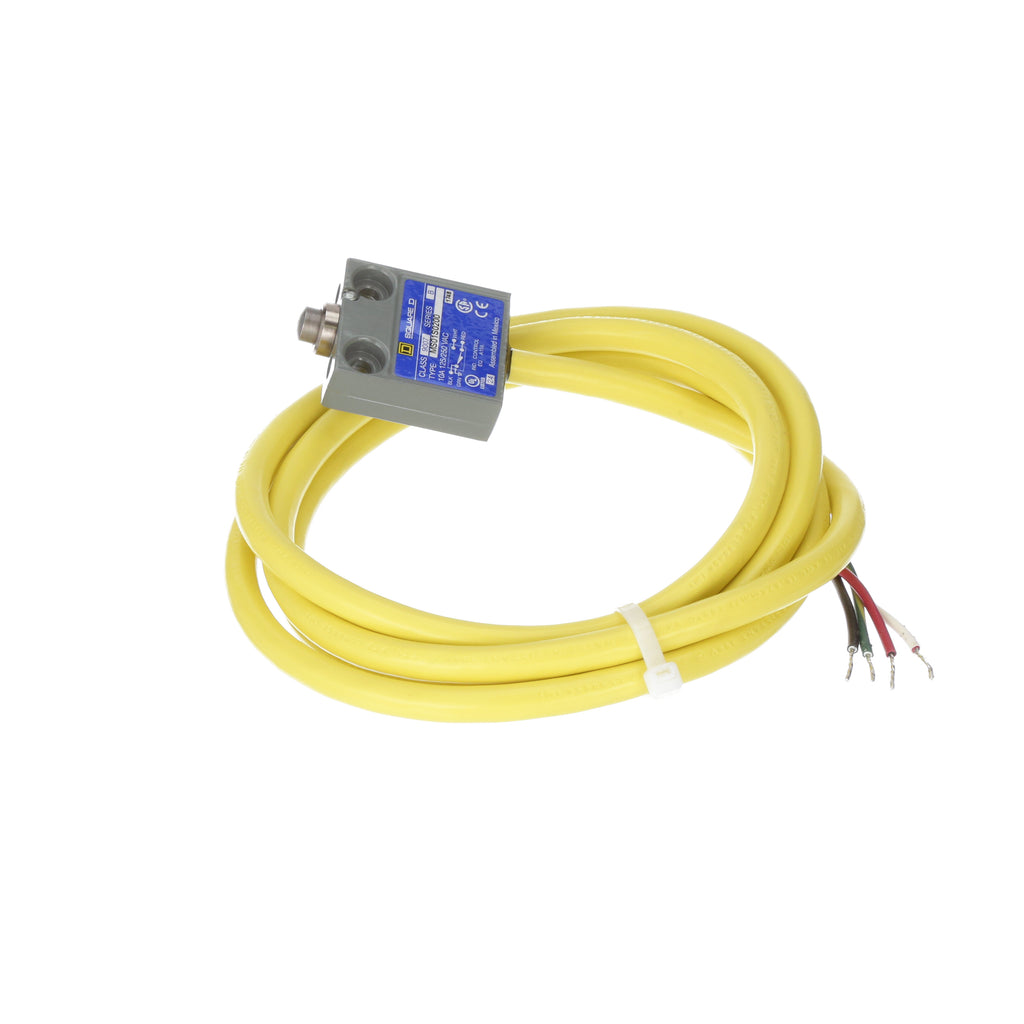

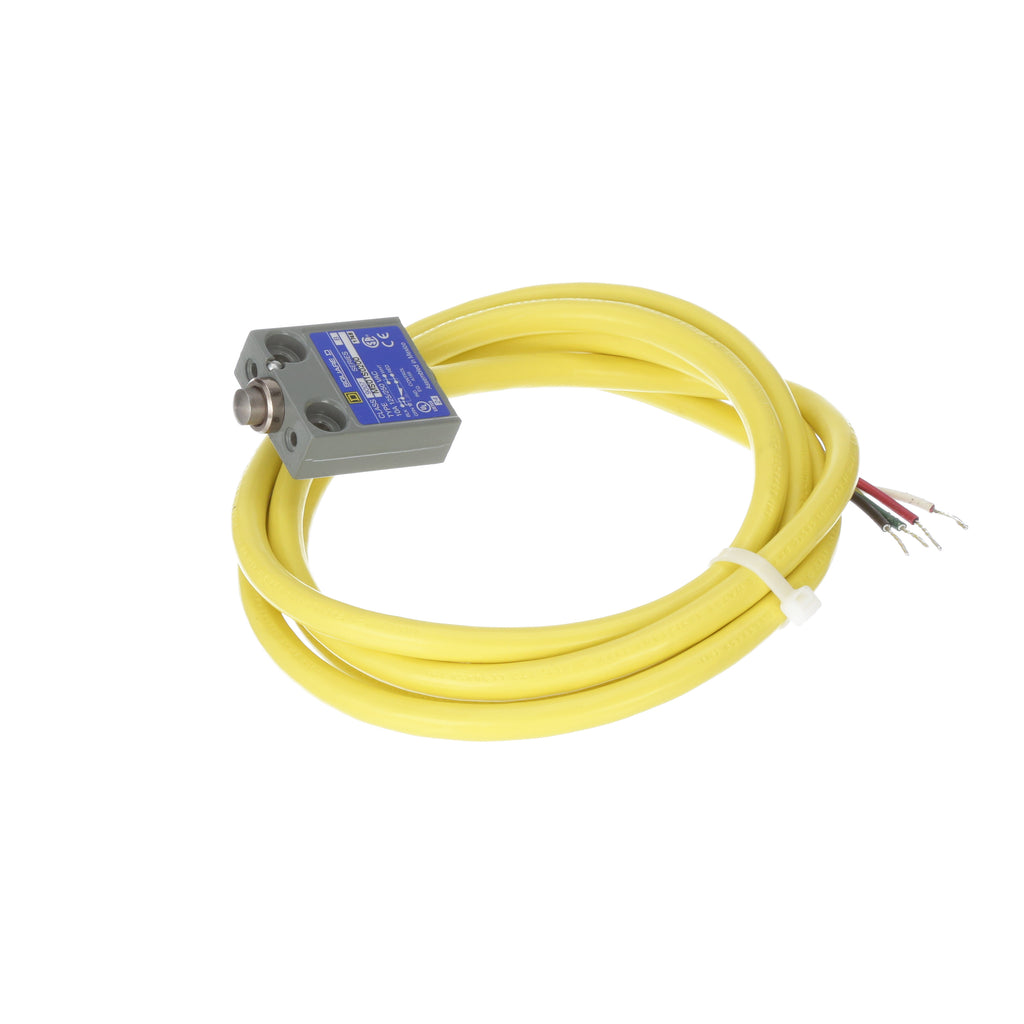

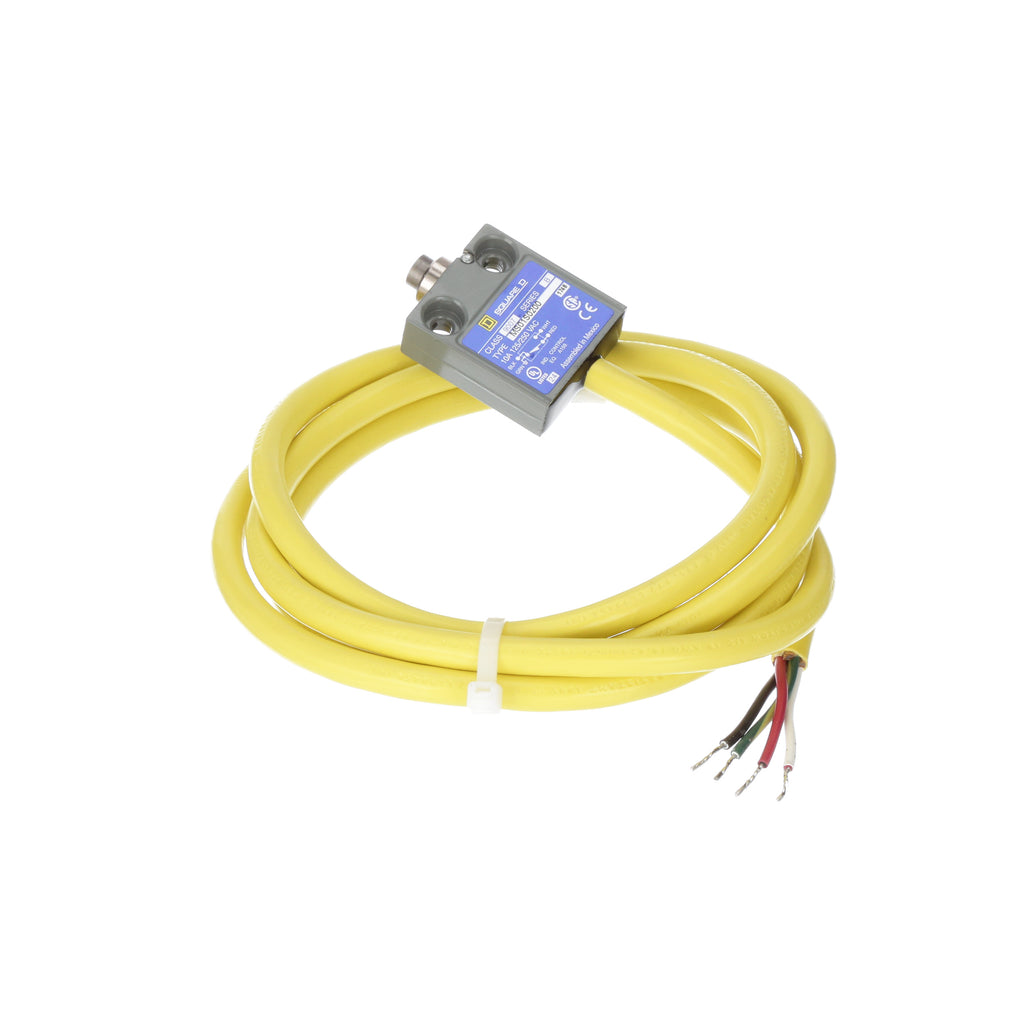

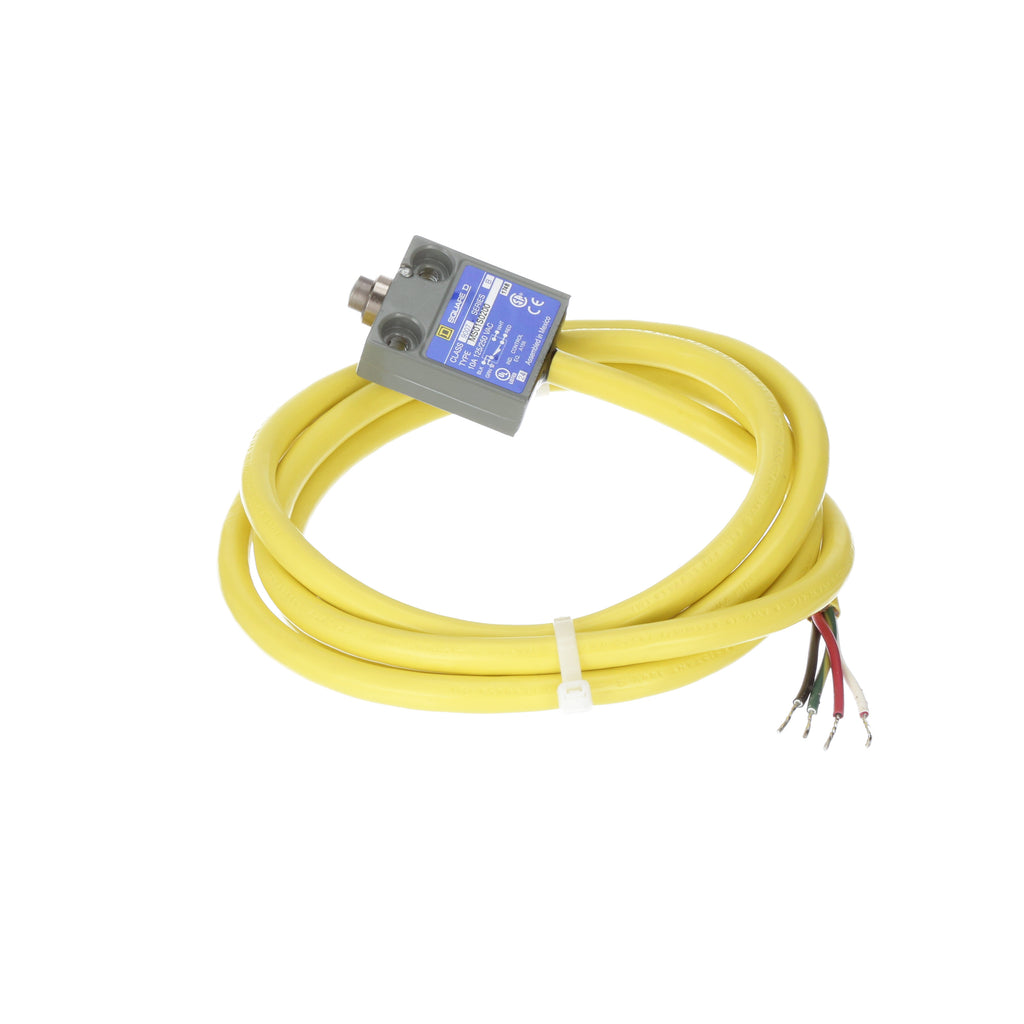

9007MS01S0200 is a Telemecanique Sensors 9007 Series plunger limit switch designed for reliable industrial sensing applications.This limit switch features a plunger actuator style with snap action SPDT contacts, rated for 10 amps at 240 VAC. It has a robust die-cast zinc metal housing with IP67 protection, suitable for harsh environments. The switch supports NO/NC contacts and is designed for body mounting. It complies with RoHS and withstands shock resistance of 35 gn for 9 ms per IEC 60068-2-27.
- Series: 9007
- Actuator Style: Plunger
- Contact Configuration: SPDT (Single Pole Double Throw)
- Voltage Rating: 240 VAC max
- Current Rating: 10 A max
- Housing Material: Die-cast zinc metal
- Ingress Protection: IP67
- Mounting Type: By the body
- Operating Temperature: -40 to 104°C
- Shock Resistance: 35 gn for 9 ms (IEC 60068-2-27)
- Certifications: RoHS compliant
Specifications
- Part Number: 9007MS01S0200
- Manufacturer : Telemecanique
- Brand : Telemecanique
- Category : Sensors
- Item Subcategory : Limit Switch
- Family : 9007MS 9007MS/ML
- Voltage : 240 , 28 DC 240 /28 DC
Product Data
- UPC : 785901550532
- Country of Origin : Mexico
- Dimensions : 1.56 in
- Weight : 1.03 lb
- Certification : LR 25490 Class 32 11 03 || E78403; UL || CSA || CE
