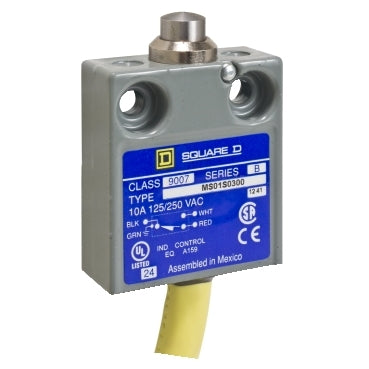

9007MS01S0100 - Telemecanique 9007 Series Limit Switch, Plunger Actuator, 10A 240VAC, SPDT, Top Mount

9007MS01S0100

9007MS01S0100 is a Telemecanique 9007 Series limit switch featuring a plunger actuator with top mounting and a 10 ampere rating at 240 VAC.

This miniature limit switch offers a spring return plunger actuator with a 0.7 inch actuator length. It provides single-pole double-throw (SPDT) contacts with an AC contact rating of 10 A at 240 VAC and a DC rating of 5 A at 28 VDC. The switch is designed for robust operation with mechanical durability up to 10 million cycles and electrical durability of 100,000 cycles. It is rated for insulation voltage up to 300 V and meets UL 508, CSA C22.2 No 14, and CE certifications. The device is suitable for environments requiring shock resistance of 35 gn and vibration resistance of 10 gn, conforming to IEC standards. Mounting is by the body, and the switch is NEMA 1 rated.

• Series: 9007
• Actuator Type: Plunger, Spring Return
• Contact Configuration: SPDT (1NO/1NC)
• AC Contact Rating: 10 A @ 240 VAC
• DC Contact Rating: 5 A @ 28 VDC
• Rated Insulation Voltage: 300 V
• Mechanical Durability: 10,000,000 cycles
• Electrical Durability: 100,000 cycles
• Mounting Type: By the body (top mount)
• Shock Resistance: 35 gn IEC 60068-2-27
• Vibration Resistance: 10 gn IEC 60068-2-6
• Certifications: UL 508, CSA C22.2 No 14, CE

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 9007MS01S0100
• Manufacturer : Telemecanique
• Brand : Telemecanique
• Category : Sensors
• Item Subcategory : Limit Switch
• Family : 9007MS/ML
• Voltage : 120/240 , 28 DC 240 /28 DC

Product Data

• UPC : 785901550600
• GTIN : 00785902000000
• Country of Origin : Mexico
• Dimensions : 1.56" x 2.14"
• Weight : 1
• Certification : CE, CSA, UL
