Product Info
- Manufacturer:Square D
- Sub-Category:Automation Switch
Description
9007HA1

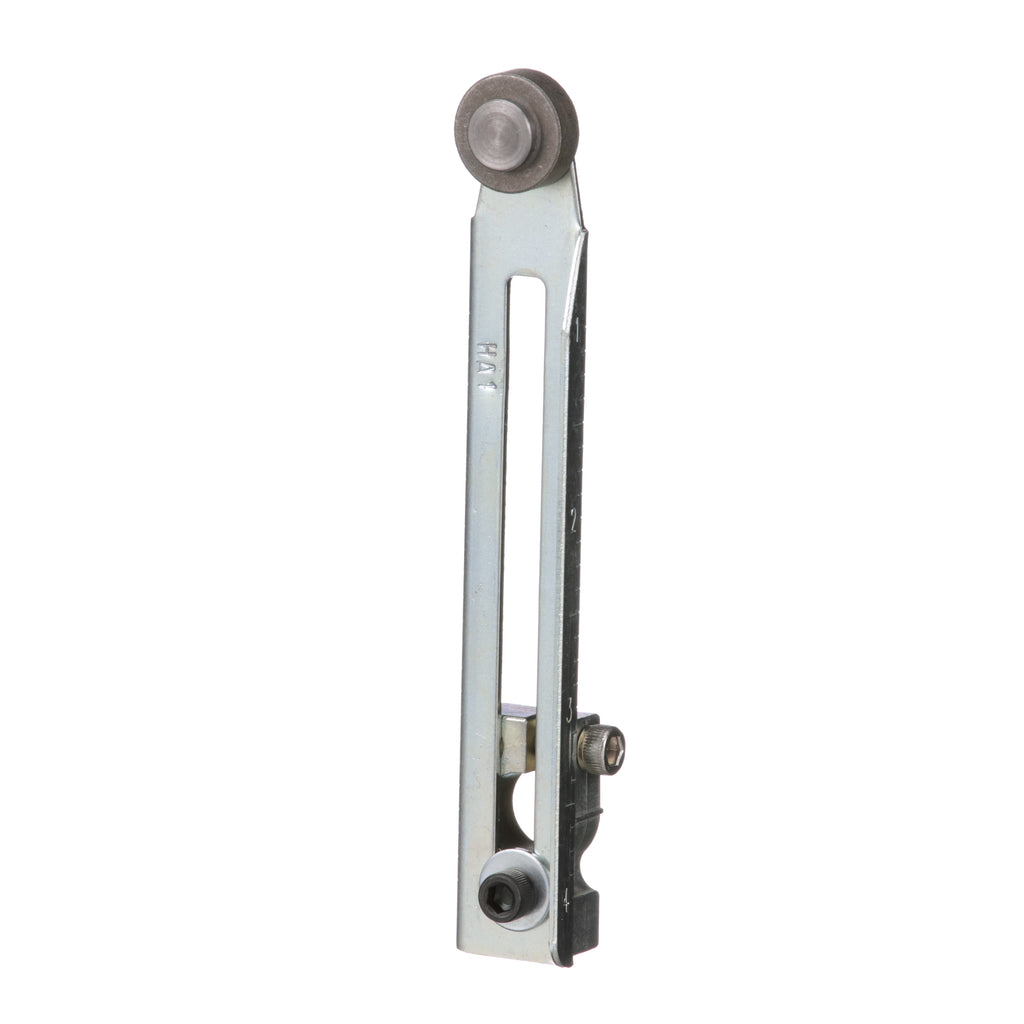

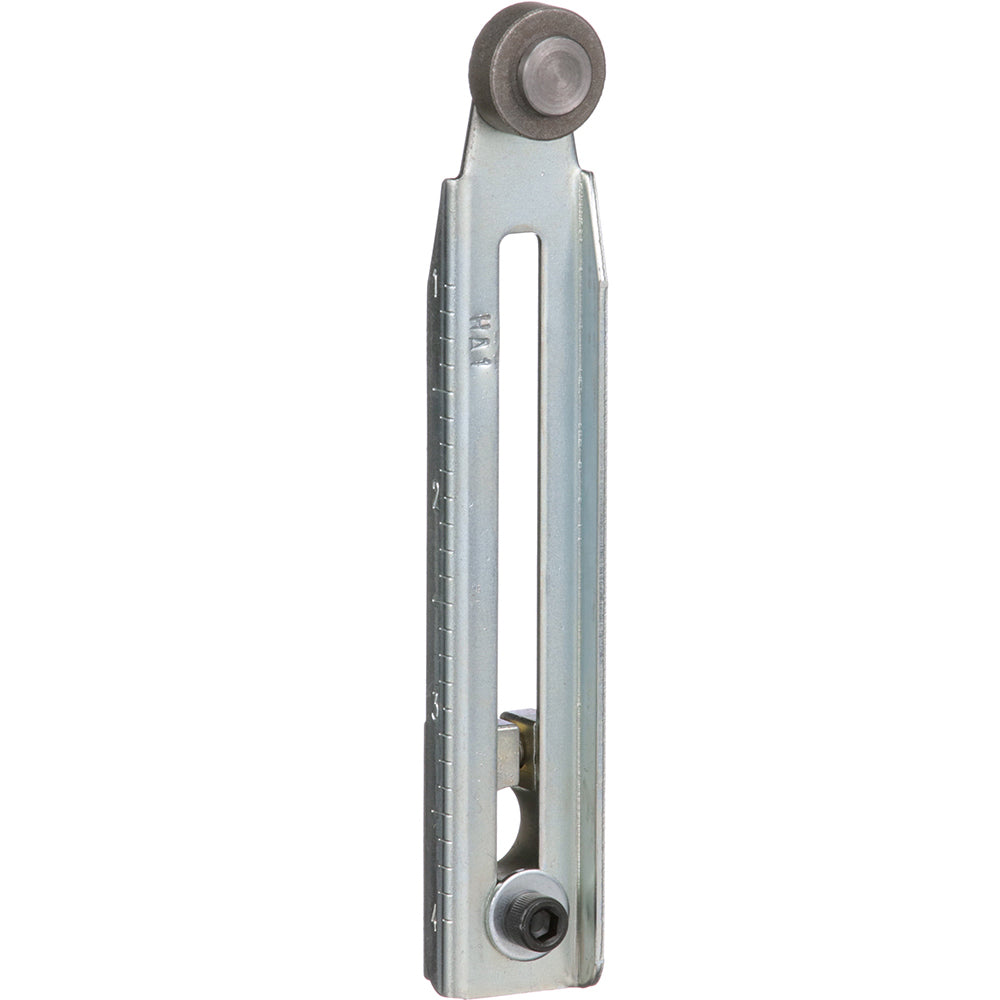

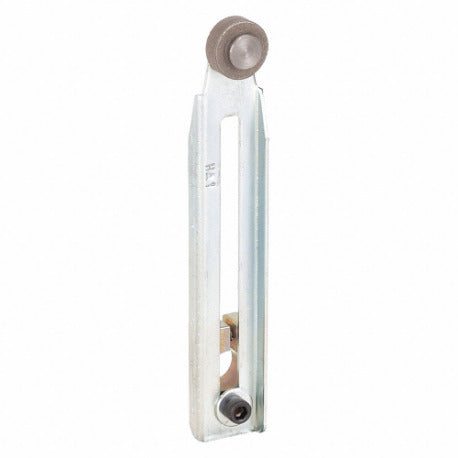

9007HA1 is a heavy duty limit switch lever arm from Square D designed for reliable motor control applications.This adjustable roller lever arm features a cast zinc spring return design with a steel outside roller measuring 0.625 inch diameter and 0.25 inch width. The lever arm length is adjustable from 22.35 mm to 101.60 mm, providing flexibility for various installation needs. It is compatible with 9007 series limit switches and operates by a 30° cam actuation. The product is rated for standard environmental conditions with an operating temperature range of -29 to 85 °C and is RoHS compliant.
- Key Specifications
- Manufacturer: Square D
- Part Number: 9007HA1
- Series: 9007 Heavy Duty
- Product Type: Limit Switch Lever Arm
- Actuator Type: Adjustable Roller Lever
- Roller Diameter: 0.625 inch (16 mm)
- Roller Width: 0.25 inch (6.35 mm)
- Lever Arm Length: Adjustable 22.35 mm to 101.60 mm
- Material: Cast Zinc Lever, Steel Roller
- Switch Actuation: By 30° cam
- Operating Temperature: -29 to 85 °C
- Environmental Rating: Standard Environment
- Compliance: RoHS, Mercury Free
Specifications
- Part Number: 9007HA1
- Manufacturer : Square D
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Automation Switch
Product Data
- UPC : 078590174372
- GTIN : 00785901743729
- Country of Origin : Mexico
- Weight : 1
- Certification : CSA, UL Listed
