Product Info
- Manufacturer:Telemecanique
- Sub-Category:Limit Switch
Description
9007FTUB4

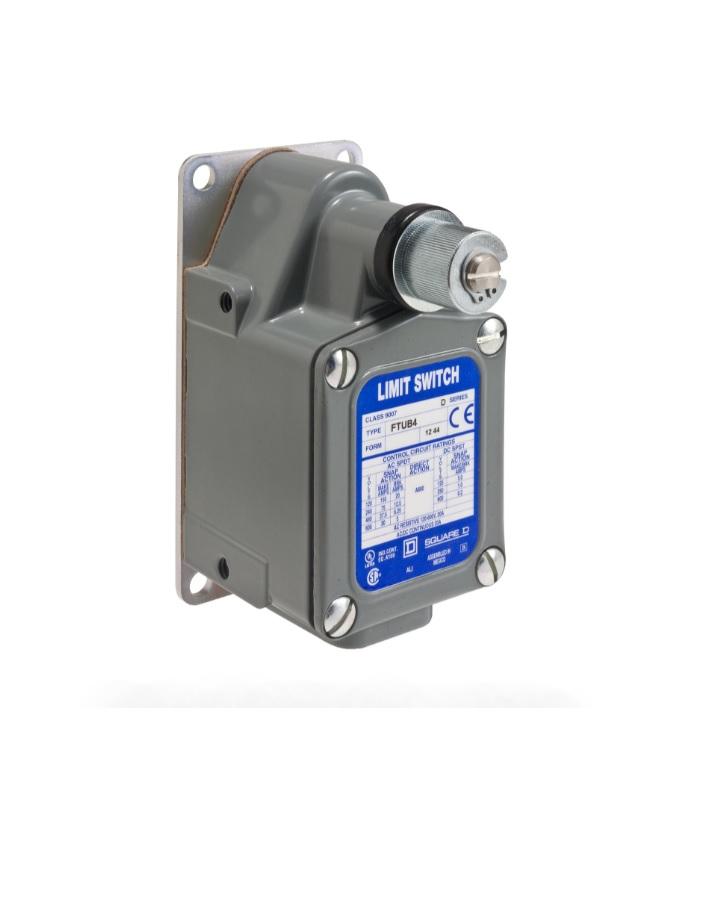

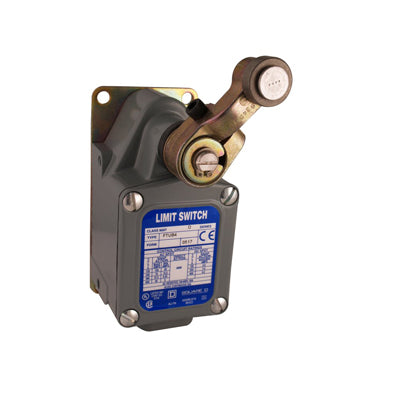

9007FTUB4 is a heavy-duty rotary actuated limit switch from Telemecanique designed for severe duty applications with snap action SPDT contacts.This limit switch features a corrosion-resistant metal body with a spring return lever arm and screw clamp terminals. It supports clockwise and counterclockwise actuation with a 6-degree tripping angle and is rated for 20 amps at up to 600 VAC. The switch has a fixed body mounting type and is suitable for harsh environments with a temperature range of -23 to 85°C.
- Part Number: 9007FTUB4
- Manufacturer: Telemecanique
- Type: Rotary Actuated Limit Switch
- Contact Configuration: SPDT (Form Z) Snap Action Silver Contacts
- Amperage Rating: 20 A
- Voltage Rating: Up to 600 VAC
- Mounting Type: Fixed Body with Base Plate and End Mounting Holes
- Actuator: Spring Return Lever Arm
- Tripping Angle: 6 degrees
- Connection Type: Screw Clamp Terminals (22 to 12 AWG)
- Operating Temperature: -23 to 85°C
- Body Material: Corrosion Resistant Metal with Gray Paint
Specifications
- Part Number: 9007FTUB4
- Manufacturer : Telemecanique
- Brand : Telemecanique
- Category : Sensors
- Item Subcategory : Limit Switch
- Family : 9007 9007T
- Voltage : 600 600
Product Data
- UPC : 785901904014
- GTIN : 00785901904014
- Country of Origin : Mexico
- Dimensions : 2.25" x 4.66"
- Weight : 2.5 lb
- Certification : CE, CSA, UL
