9007CR61B2 - Telemecanique 10A 600VAC 2-Pole DPDT-DB Rotary Actuated Limit Switch NEMA 2/4/6P/7/9/13

9007CR61B2

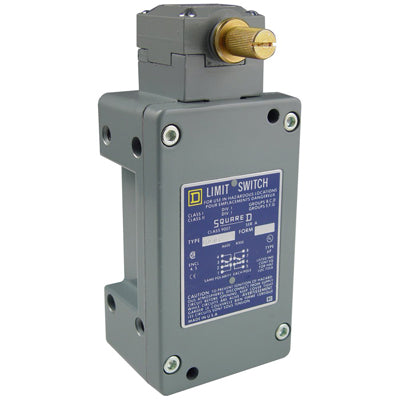

9007CR61B2 is a heavy-duty rotary actuated limit switch from Telemecanique designed for hazardous locations with a 10 amp, 600 VAC rating.This limit switch features a fixed heavy-duty rotary head with snap action and spring return lever arm actuator. It has a 2-pole DPDT-DB contact configuration with 2 normally open and 2 normally closed contacts. The enclosure is rated for NEMA 2/4/6P/7/9/13, made of epoxy powder coated aluminum for durability. It supports screw clamp connections and operates reliably in temperatures from -20 to 185 degrees Fahrenheit. The switch is rated for 1,000,000 operating cycles and is suitable for both clockwise and counterclockwise actuation from left or right.

• Amperage Rating: 10 A
• Voltage Rating: 600 VAC
• Number of Poles: 2
• Contact Configuration: DPDT-DB (2NO-2NC)
• Actuator: Spring Return Lever Arm
• Connection Type: Screw Clamp
• Enclosure Type: NEMA 2/4/6P/7/9/13
• Material: Aluminum with Epoxy Powder Coating
• Operating Temperature: -20 to 185 °F
• Operating Cycles: 1,000,000
• Series: 9007CR
• Mounting Type: Fixed Heavy Duty Rotary Head

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 9007CR61B2
• Manufacturer : Telemecanique
• Brand : Telemecanique
• Category : Sensors
• Item Subcategory : Limit Switch
• Family : 9007CR
• Voltage : 600 600

Product Data

• UPC : 785901783695
• GTIN : 00785901783695
• Country of Origin : Mexico
• Dimensions : 2.72" x 6.10"
• Weight : 3 lb
• Certification : CSA, UL
