Product Info
- Manufacturer:Telemecanique
- Sub-Category:Limit Switch
Description
9007CO62

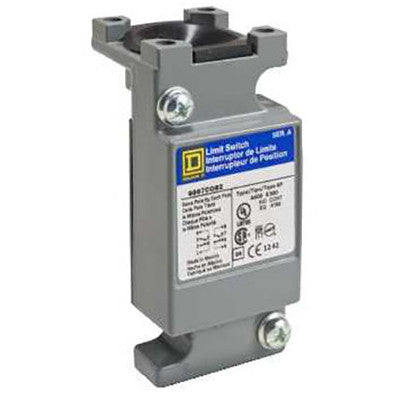

9007CO62 is a Telemecanique limit switch body featuring 2 normally open (NO) and 2 normally closed (NC) contacts rated for 10A at 600VAC with a zinc body and EN50041 mounting style.This heavy-duty semi-modular limit switch body is designed for standard environments with snap action contact operation. It has a compact metal body measuring approximately 39 mm width and is shock resistant to 60 gn for 9 ms, compliant with IEC 60068-2-27. The switch is certified by UL, CSA, and CE and meets UL 508 standards.
- Contact configuration: 2NO/2NC
- Current rating: 10A at 600VAC
- Body material: Zinc
- Mounting type: EN50041 standard
- Dimensions: Approx. 39 mm width, 45 mm depth, 80 mm height
- Shock resistance: 60 gn for 9 ms (IEC 60068-2-27)
- Certifications: UL, CSA, CE
- Compliance: UL 508
- Heavy-duty semi-modular design
- Snap action contact operation
Specifications
- Part Number: 9007CO62
- Manufacturer : Telemecanique
- Brand : Telemecanique
- Category : Sensors
- Item Subcategory : Limit Switch
- Family : 9007
Product Data
- UPC : 785901500858
- GTIN : 00785901500858
- Dimensions : 1.55 in W x 1.79 in D x 3.14 in H 3.14 in H x 1.55 in W x 1.79 in D
- Weight : 1 lb
