Product Info
- Manufacturer:Telemecanique
- Sub-Category:Limit Switch
Description
9007C62G

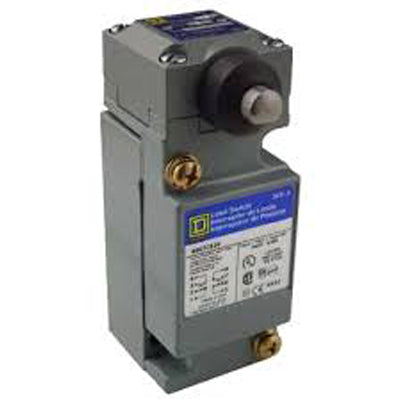

9007C62G is a heavy duty limit switch from Telemecanique featuring a plunger actuator with side mounting for reliable linear movement detection.This limit switch offers a 10 ampere contact rating at 600 volts AC, with 2 normally open (NO) and 2 normally closed (NC) contacts. It has a zinc housing and an IP67 rating for dust-tight and water immersion protection. The device includes screw clamp terminals for secure electrical connections and is designed for spring return operation.
- Contact Rating: 10A @ 600V AC
- Contact Configuration: 2NO / 2NC (DPDT)
- Actuator Type: Plunger, Side Mount
- Housing Material: Zinc
- Ingress Protection: IP67
- Mounting Type: Side
- Operation: Spring Return
- Electrical Connection: Screw Clamp Terminals
- Series: Heavy Duty
- Certifications: NEMA 1, 2, 4, 6 compliant
Specifications
- Part Number: 9007C62G
- Manufacturer : Telemecanique
- Brand : Telemecanique
- Category : Sensors
- Item Subcategory : Limit Switch
- Family : 9007C
- Voltage : 120/240/480/600 , 125/250 DC 600 /DC
- Temp Rating : -13–158 °F (-25–70 °C)
Product Data
- UPC : 785901530824
- GTIN : 00785901530824
- Country of Origin : Mexico
- Dimensions : 1.55" x 4.02"
- Weight : 0.3
- Temp Rating : -13–158 °F (-25–70 °C)
- Certification : CE, CSA, UL
