9007C62C - Telemecanique Heavy Duty Limit Switch 2NO-2NC DPDT 10A 600V Rotary Actuator Side Mount

9007C62C

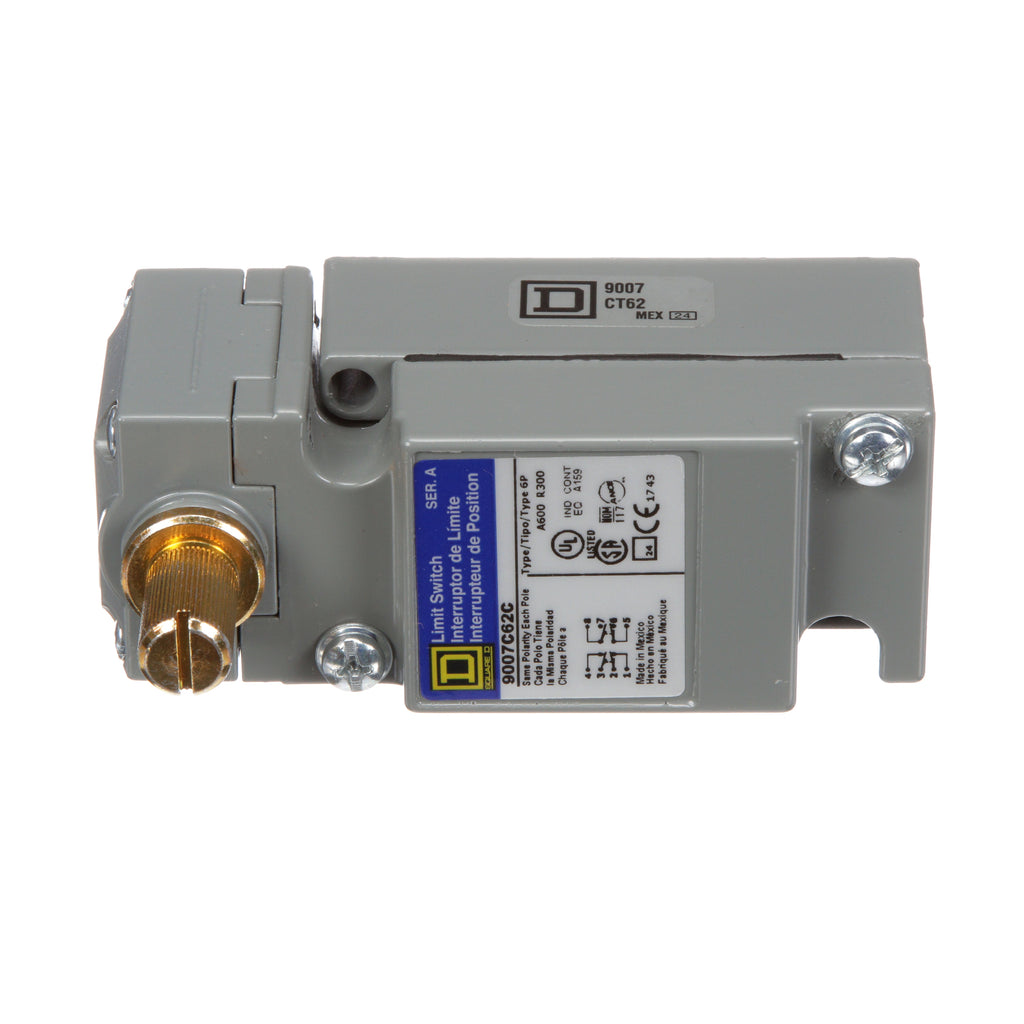

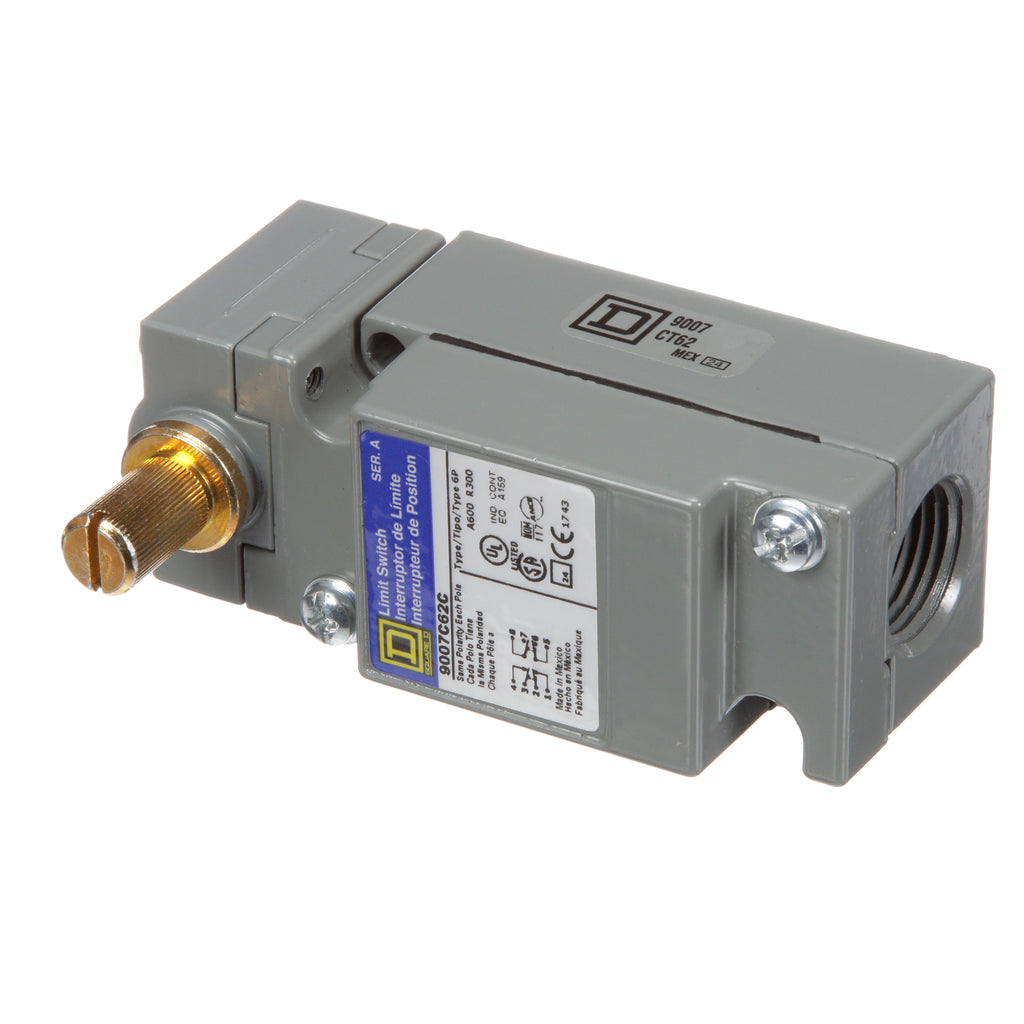

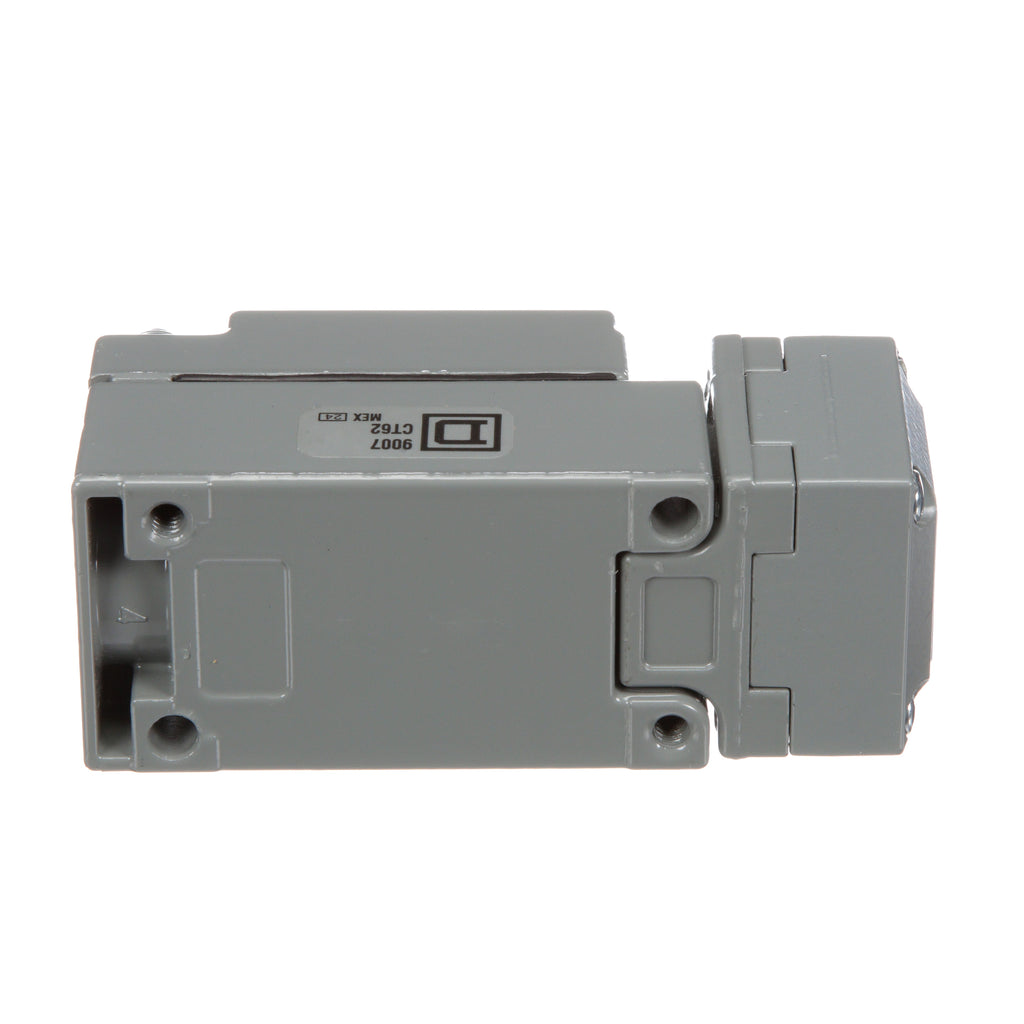

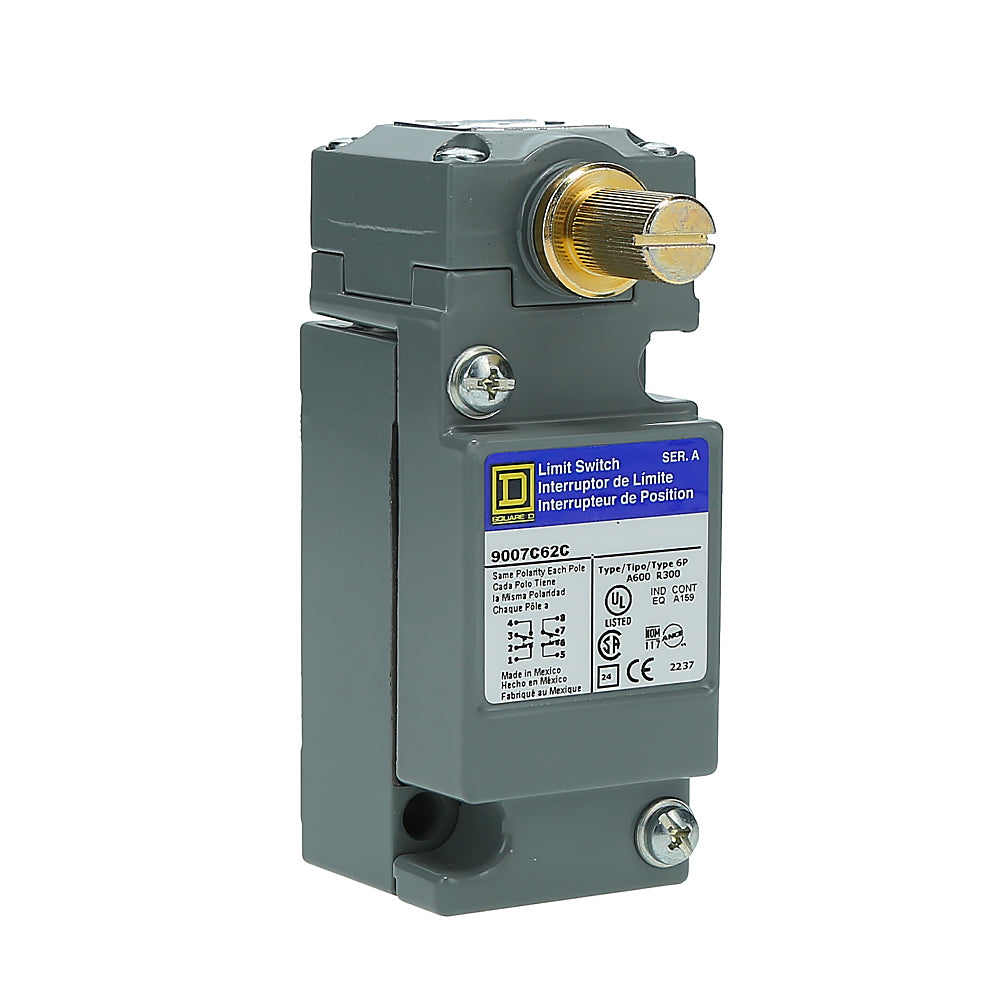

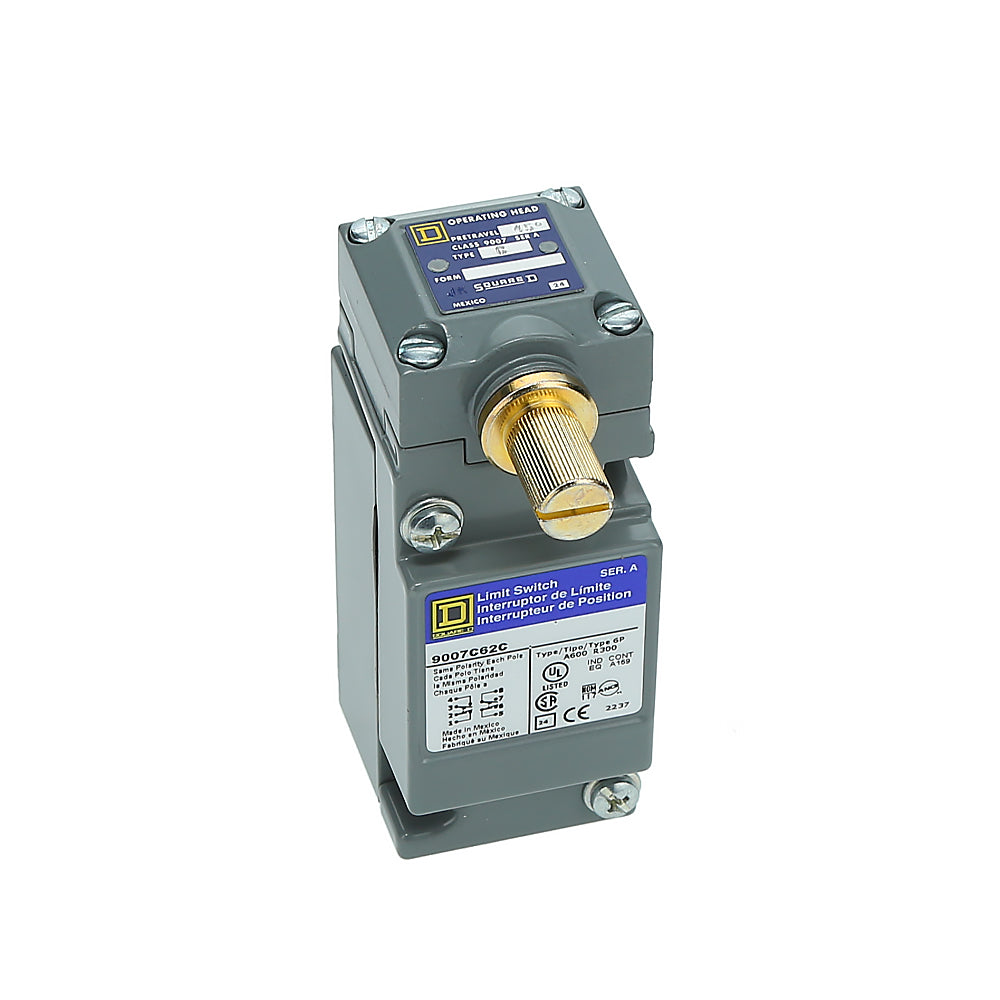

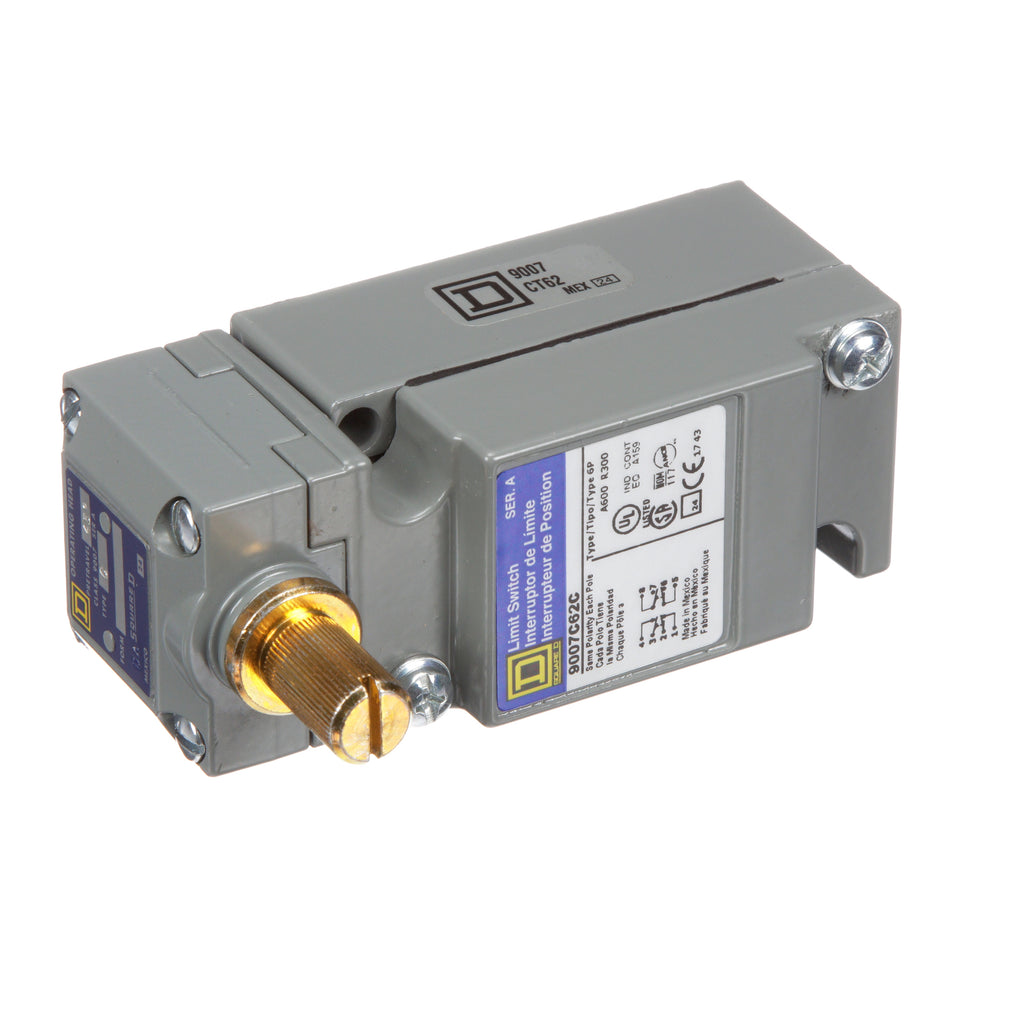

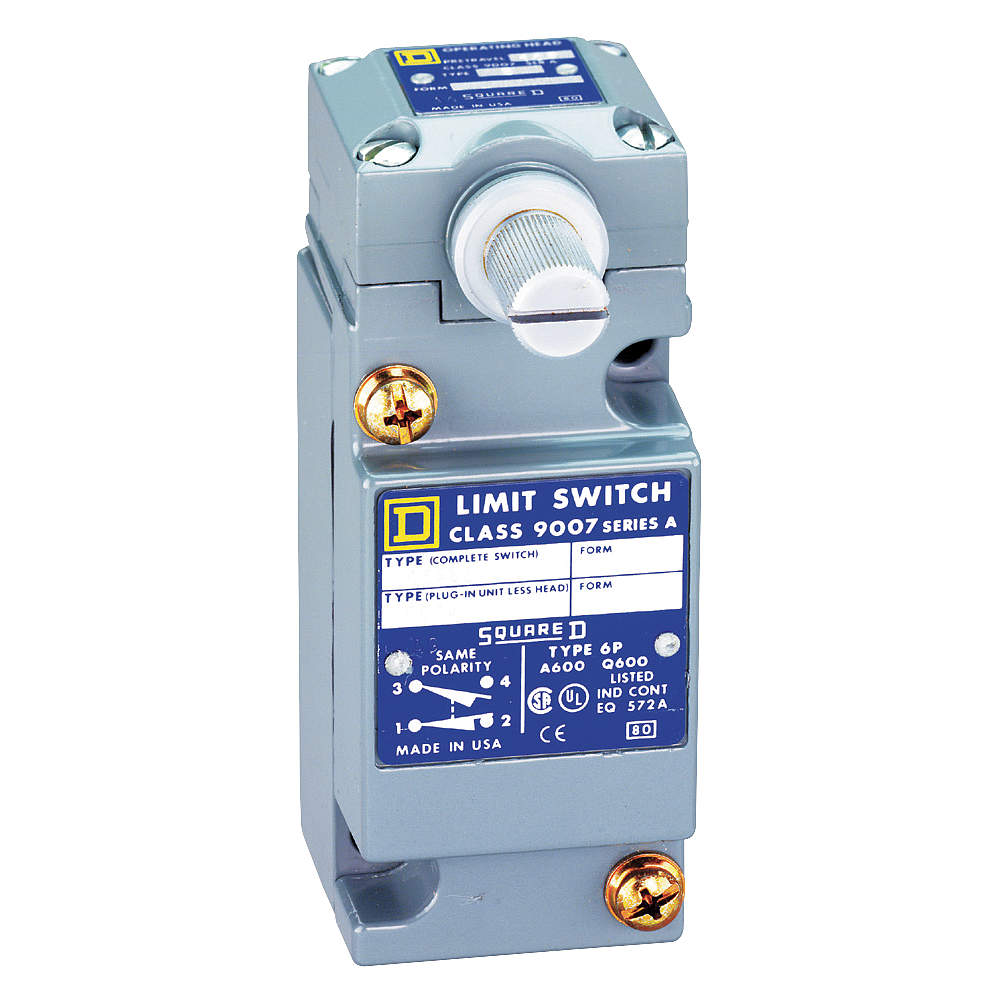

9007C62C is a heavy duty limit switch from Telemecanique designed for industrial applications with rotary actuator and side mounting.

This limit switch features a 2NO-2NC (DPDT-DB) contact configuration rated for 10 A at 600 VAC and 0.11 A at 250 VDC. It has a durable zinc epoxy powder coated enclosure rated NEMA 2/4/6/6P/12/13 and IP67, suitable for harsh environments. The switch supports rotary actuation clockwise and counterclockwise from left and right, with a robust design offering 1,000,000 operating cycles and shock resistance of 60 gn for 9 ms. Mounting is by the body, and connection is via plug-in or screw clamp terminals. Dimensions are approximately 1.55 in W x 2.5 in D x 4.02 in H.

Key Specifications
• Contact Configuration: 2NO-2NC (DPDT-DB)
• Amperage Rating: 10 A at 600 VAC, 0.11 A at 250 VDC
• Voltage Rating: 600 V AC
• Actuator Style: Rotary, no lever
• Mounting Type: By the body, side actuator location
• Enclosure Type: NEMA 2/4/6/6P/12/13, IP67
• Material: Zinc with epoxy powder coating
• Operating Temperature: -20 to 185 °F
• Operating Cycles: 1,000,000
• Shock Resistance: 60 gn for 9 ms
• Dimensions: 1.55 in W x 2.5 in D x 4.02 in H
• Series: 9007

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 9007C62C
• Manufacturer : Telemecanique
• Brand : Telemecanique
• Category : Sensors
• Item Subcategory : Limit Switch
• Family : 9007
• Voltage : 600 600

Product Data

• UPC : 785901783886
• GTIN : 785901783886
• Weight : 1.3 lb
