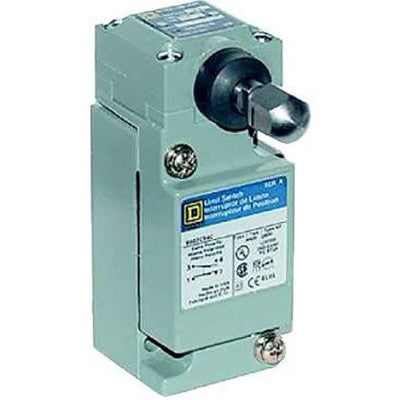

9007C54GD - Telemecanique Heavy Duty Limit Switch 10A 600V AC Adjustable Stainless Steel Spring Return Side Plunger

9007C54GD

This limit switch features a zinc body with a stainless steel spring return side plunger actuator that is adjustable. It provides a single-pole double-throw (SPDT) contact form with silver contacts and screw-clamp terminals compatible with AWG 22 to AWG 12 wiring. Rated for 10 amps conventional enclosed thermal current and 600 V insulation voltage, it supports a maximum operational current of 1.2 A at 600 V AC and 0.1 A at 600 V DC. The switch offers high mechanical durability of 10 million cycles and electrical durability of 1 million cycles. It is designed to withstand shock resistance of 60 gn for 9 ms and vibration resistance of 25 gn from 10 to 150 Hz, conforming to IEC standards. The compact zinc head and body provide robust protection for demanding environments.

Key Specifications
• Series: 9007 Heavy Duty
• Actuator: Adjustable stainless steel spring return side plunger
• Contact Form: SPDT (Form Z)
• Contact Material: Silver
• Rated Operational Current: 1.2 A at 600 V AC, 0.1 A at 600 V DC
• Conventional Enclosed Thermal Current: 10 A
• Rated Insulation Voltage: 600 V
• Electrical Durability: 1,000,000 cycles
• Mechanical Durability: 10,000,000 cycles
• Shock Resistance: 60 gn for 9 ms (IEC 60068-2-27)
• Vibration Resistance: 25 gn (10-150 Hz) (IEC 60068-2-6)
• Electrical Connection: Screw-clamp terminals (AWG 22 to AWG 12)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: 9007C54GD
• Manufacturer : Telemecanique
• Brand : Telemecanique
• Category : Sensors
• Item Subcategory : Limit Switch
• Family : 9007C
• Voltage : 600 600 /DC



Product Data

• UPC : 785901540540
• GTIN : 785901500704
• Country of Origin : Mexico
• Dimensions : 1.55" x 4.02"
• Weight : 1.26 lb
• Certification : CE, CSA, UL
