Product Info
- Manufacturer:Telemecanique
- Sub-Category:Limit Switch
Description
9007C54C

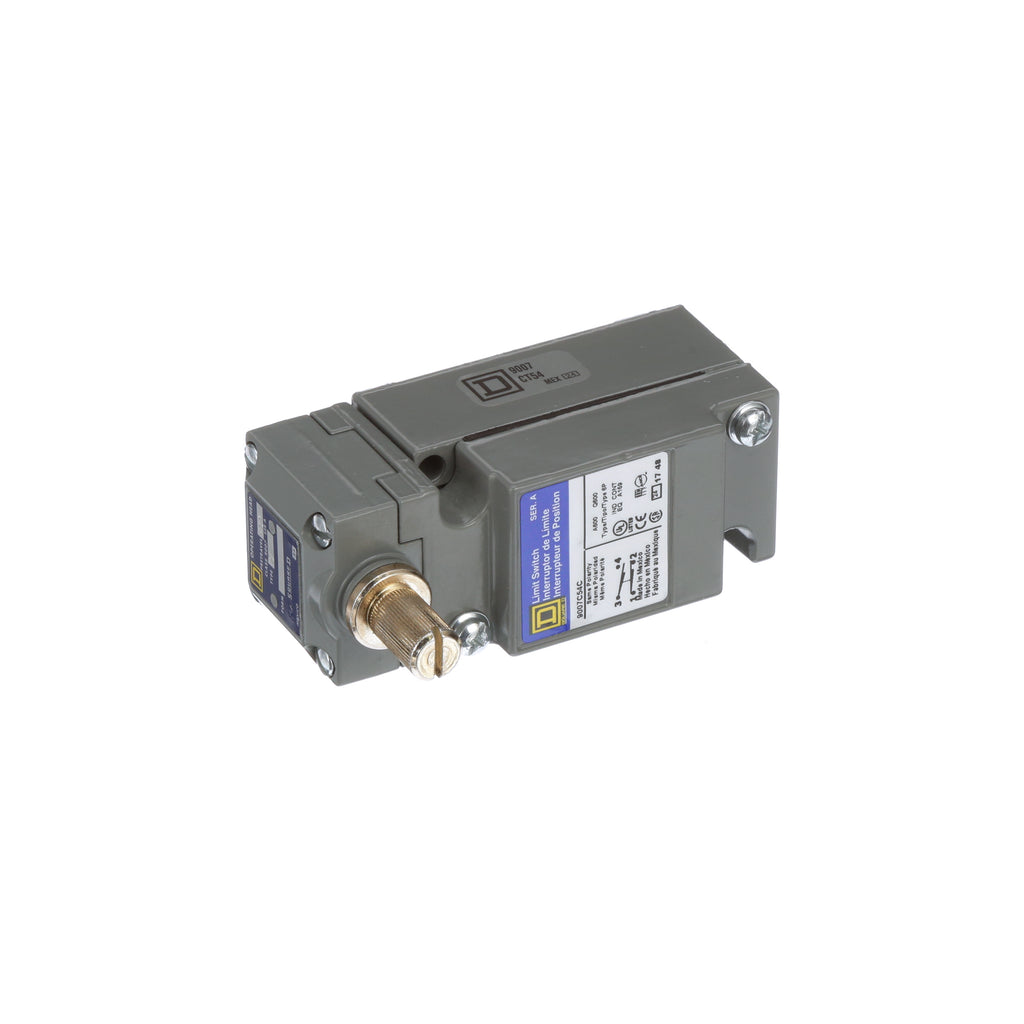

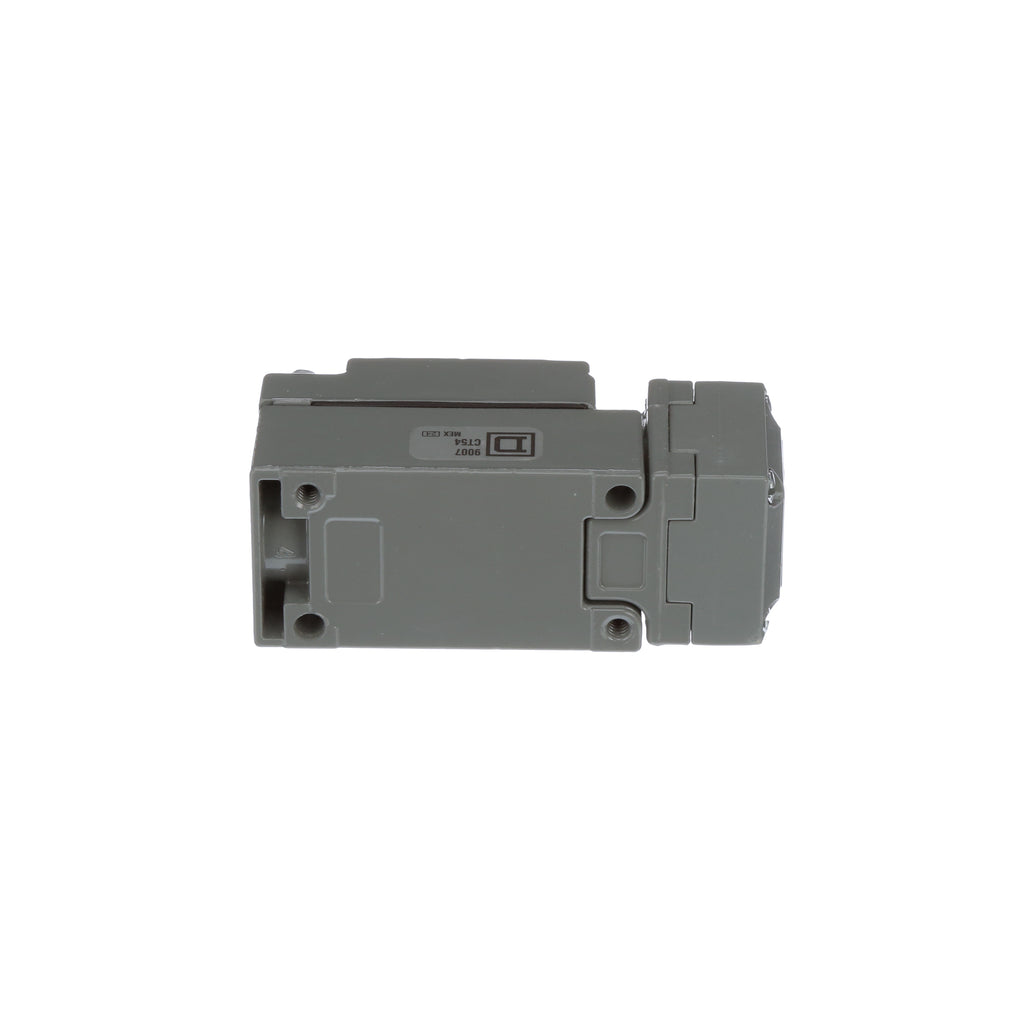

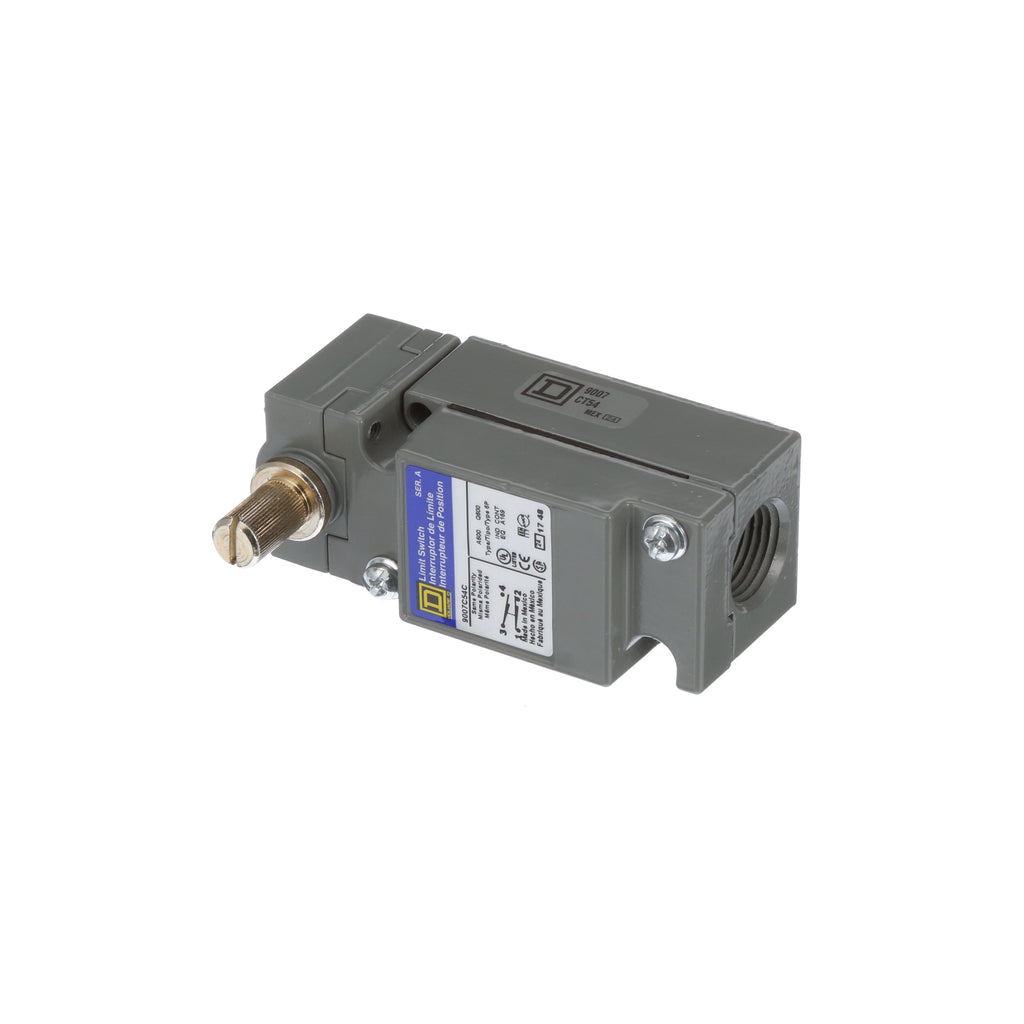

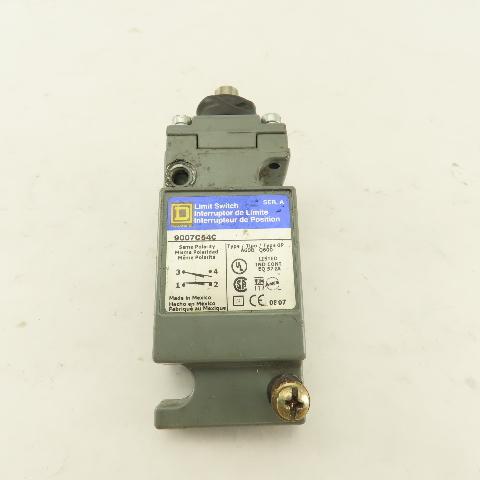

9007C54C is a Telemecanique 9007 Series Side Rotary Limit Switch designed for heavy-duty industrial applications.This limit switch features a side rotary actuator with a 1NC/1NO (SPDT-DB) contact configuration, rated for 10 amps at 600 volts AC. It is built for reliable operation with a robust metallic plug-in design and side actuator location. The switch supports mounting by the body and is suitable for use in demanding environments requiring precise position detection.
- Manufacturer: Telemecanique Sensors
- Series: 9007
- Actuator Style: Side Rotary, No Lever
- Contact Configuration: 1NC/1NO (SPDT-DB)
- AC Contact Rating: 10A at 600V
- Mounting Type: By the body
- Material: Metallic plug-in housing
- Country of Origin: Mexico
- Operating Temperature Range: -29°C to 85°C
- Electrical Life: 1,000,000 cycles
- Dimensions: Approx. 4.02" H x 1.55" W x 2.5" D
- Certifications: RoHS Compliant
Specifications
- Part Number: 9007C54C
- Manufacturer : Telemecanique
- Brand : Telemecanique
- Category : Sensors
- Item Subcategory : Limit Switch
- Family : 9007
- Voltage : 600 600
Product Data
- UPC : 785901783893
- GTIN : 00785901783893
- Country of Origin : Mexico
- Dimensions : 1.55" x 4.02"
- Weight : 1.25
- Certification : CE, CSA, UL
