Product Info
- Manufacturer:Telemecanique
- Sub-Category:Automation Switch
Description
9007C54B

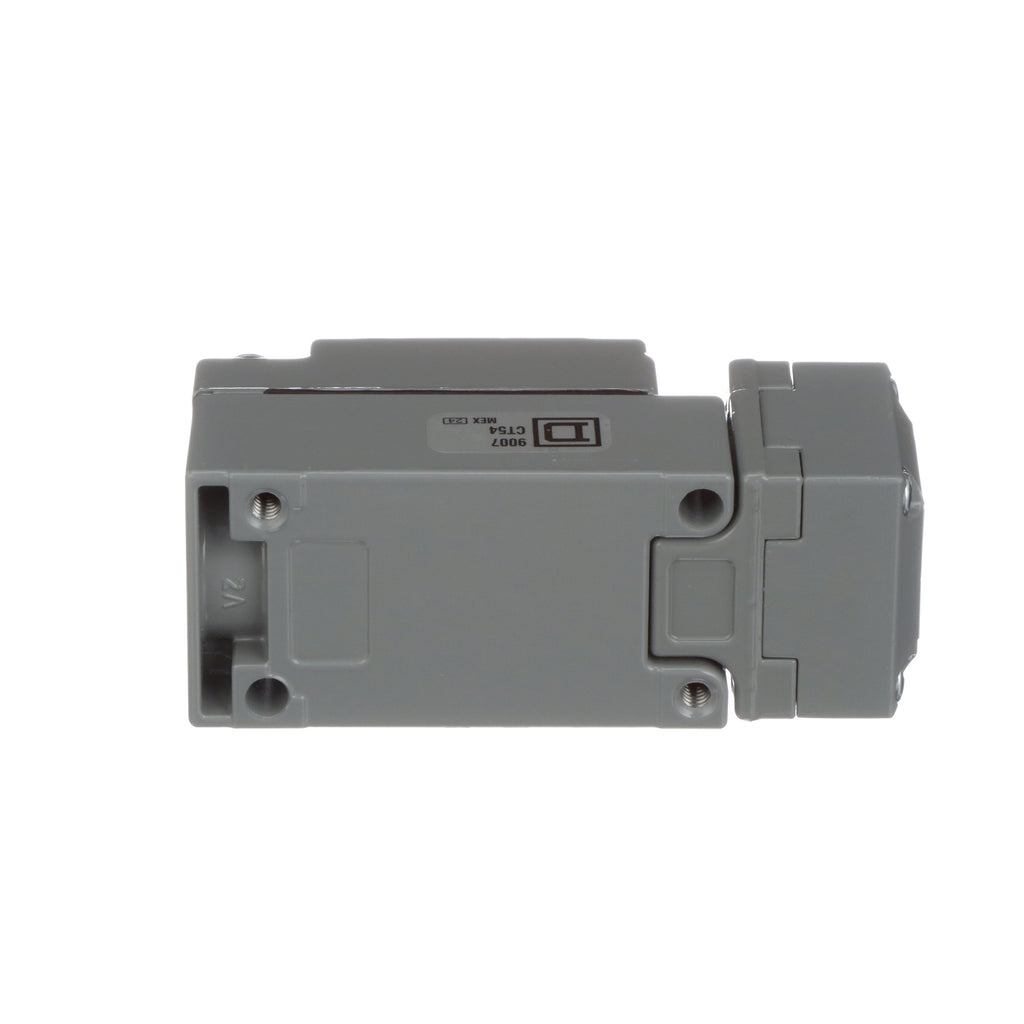

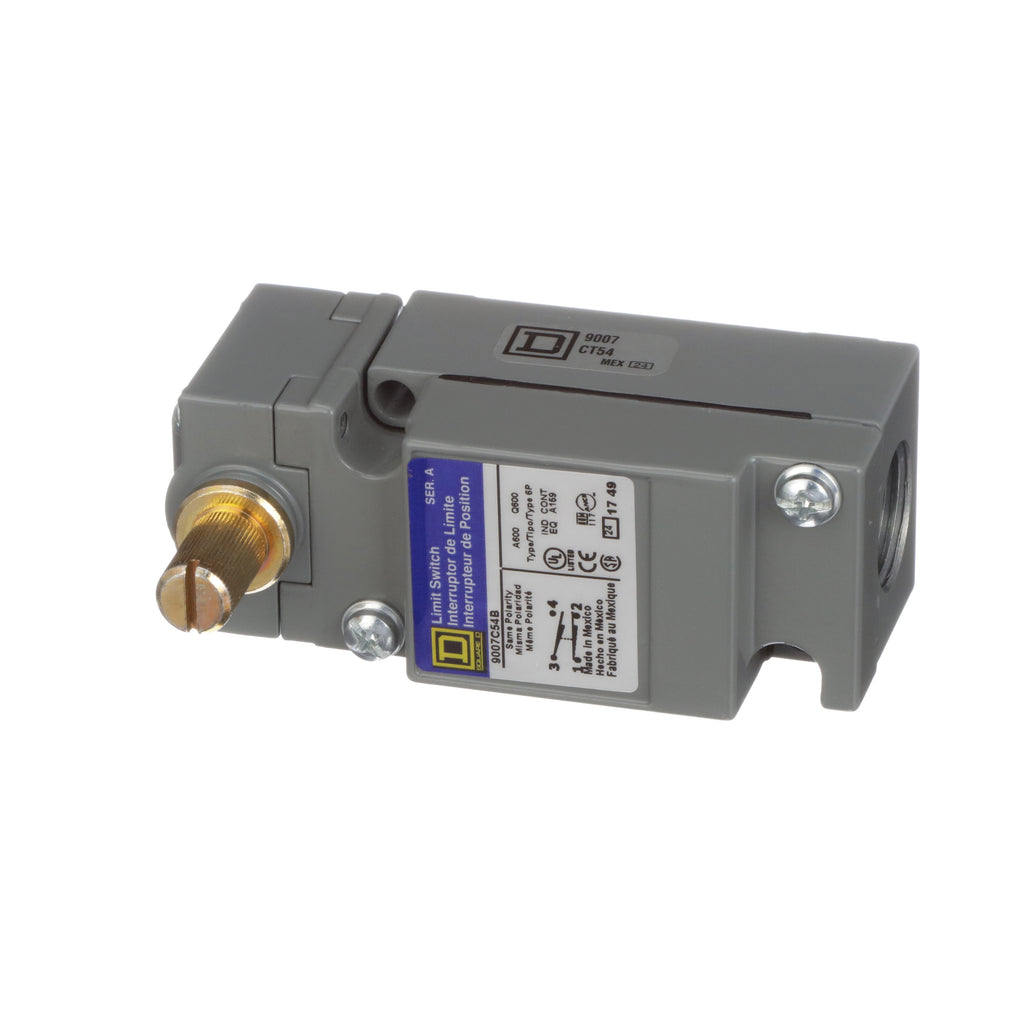

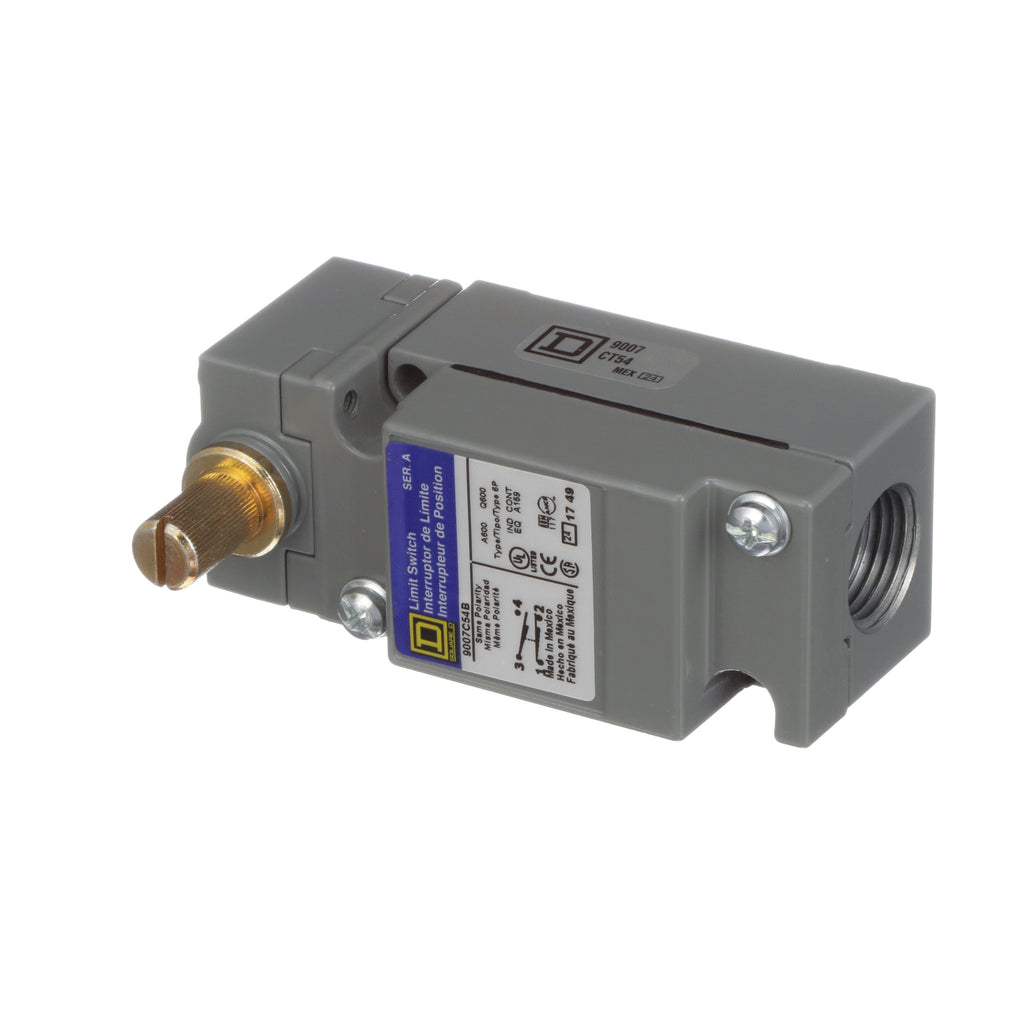

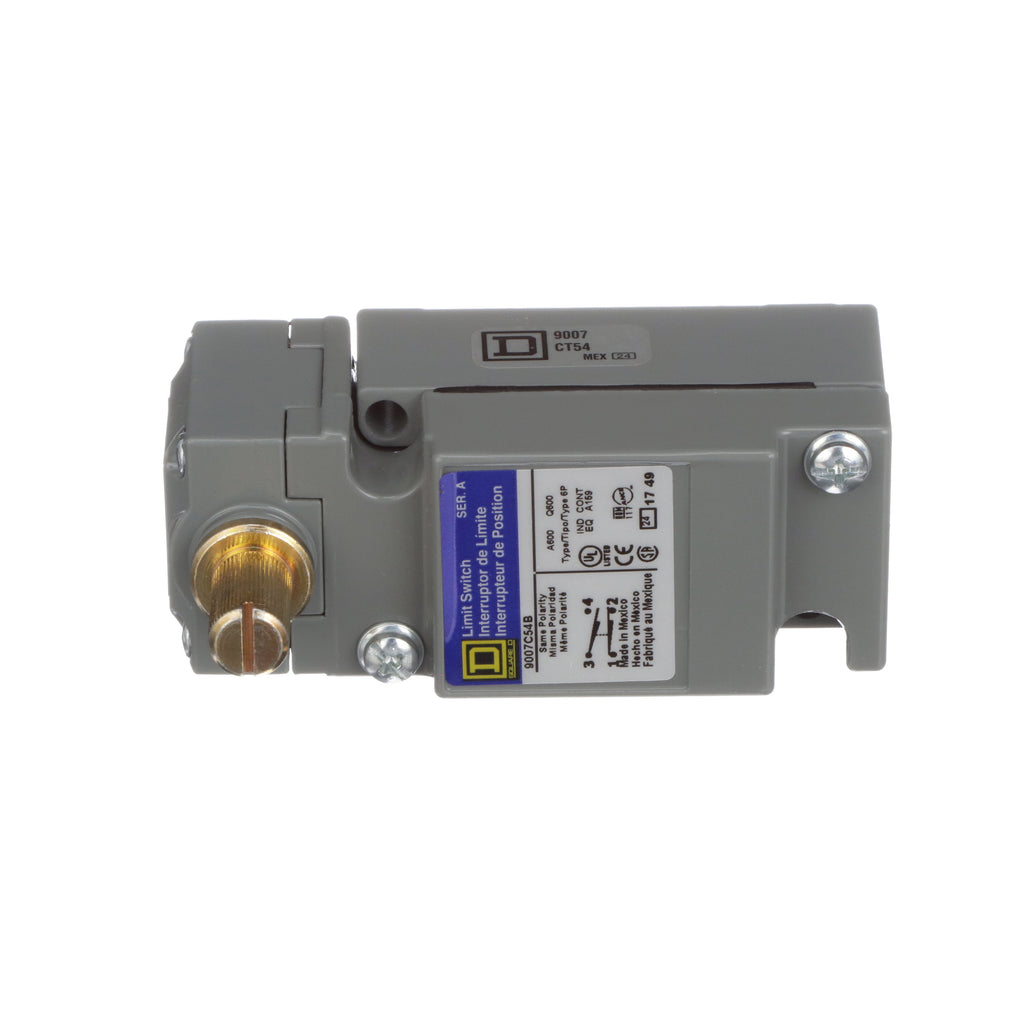

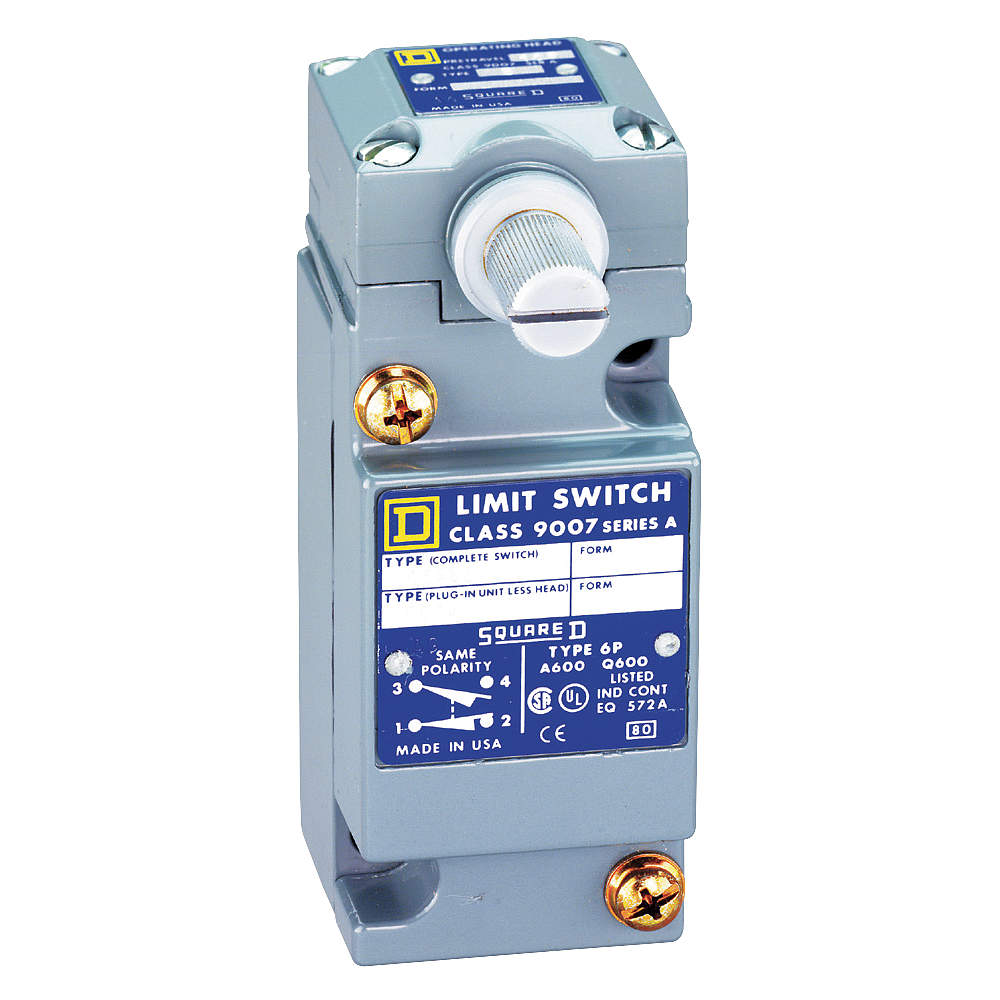

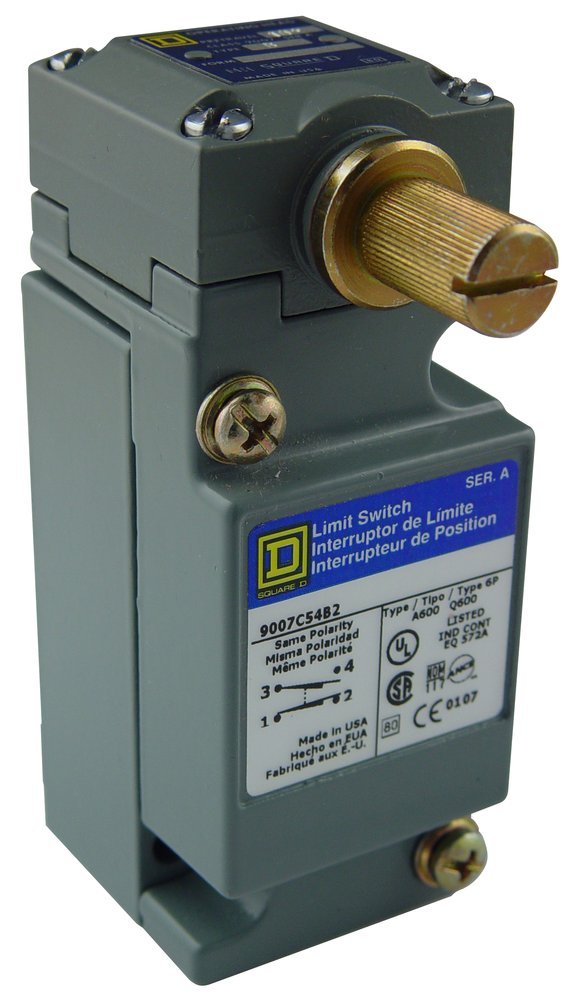

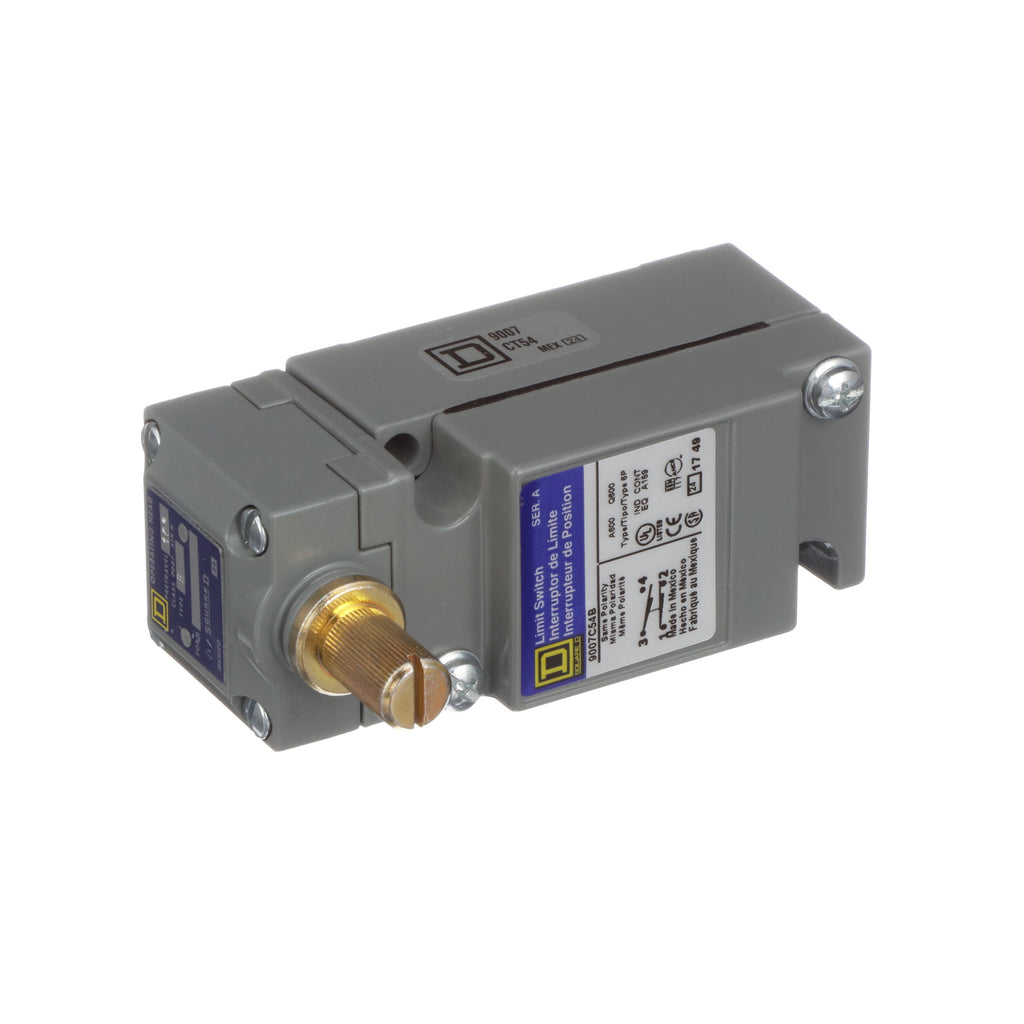

9007C54B is a heavy duty limit switch from Telemecanique's 9007 series designed for motor control applications.9007C54B features a zinc alloy housing and is rated for 10 amps at 600 volts AC. It includes a spring lever actuator with 1 normally open (NO) and 1 normally closed (NC) contact configuration. The switch supports screw clamp terminals for wire sizes from 22 to 12 AWG and has a 1/2 to 14 NPT conduit entry. It is suitable for harsh environments with NEMA ratings 1, 2, 4, 6, 6P, 12, and 13, and an IP67 rating. Certified by UL, CSA, and CE, this limit switch is built for reliable industrial use.
- Manufacturer: Telemecanique
- Part Number: 9007C54B
- Series: 9007
- Current Rating: 10 A
- Voltage Rating: 600 V AC
- Contact Configuration: 1 NO / 1 NC
- Actuator Type: Spring Lever
- Housing Material: Zinc Alloy
- Terminal Type: Screw Clamp (22 to 12 AWG)
- Conduit Entry: 1/2 to 14 NPT
- NEMA Ratings: 1, 2, 4, 6, 6P, 12, 13
- Ingress Protection: IP67
- Certifications: UL, CSA, CE
Specifications
- Part Number: 9007C54B
- Manufacturer : Telemecanique
- Brand : Telemecanique
- Category : Motor Control
- Item Subcategory : Automation Switch
- Family : 9007C
- Voltage : 600
- Amperage : 10
- Temp Rating : -13–158 °F (-25–70 °C)
Product Data
- UPC : 078590150073
- GTIN : 00785901500735
- Country of Origin : Mexico
- Dimensions : 1.55" x 4.02"
- Weight : 1.15 lb
- Temp Rating : -13–158 °F (-25–70 °C)
- Certification : CE, CSA, UL
