Product Info
- Manufacturer:Telemecanique
- Sub-Category:Limit Switch
Description
9007C54A2

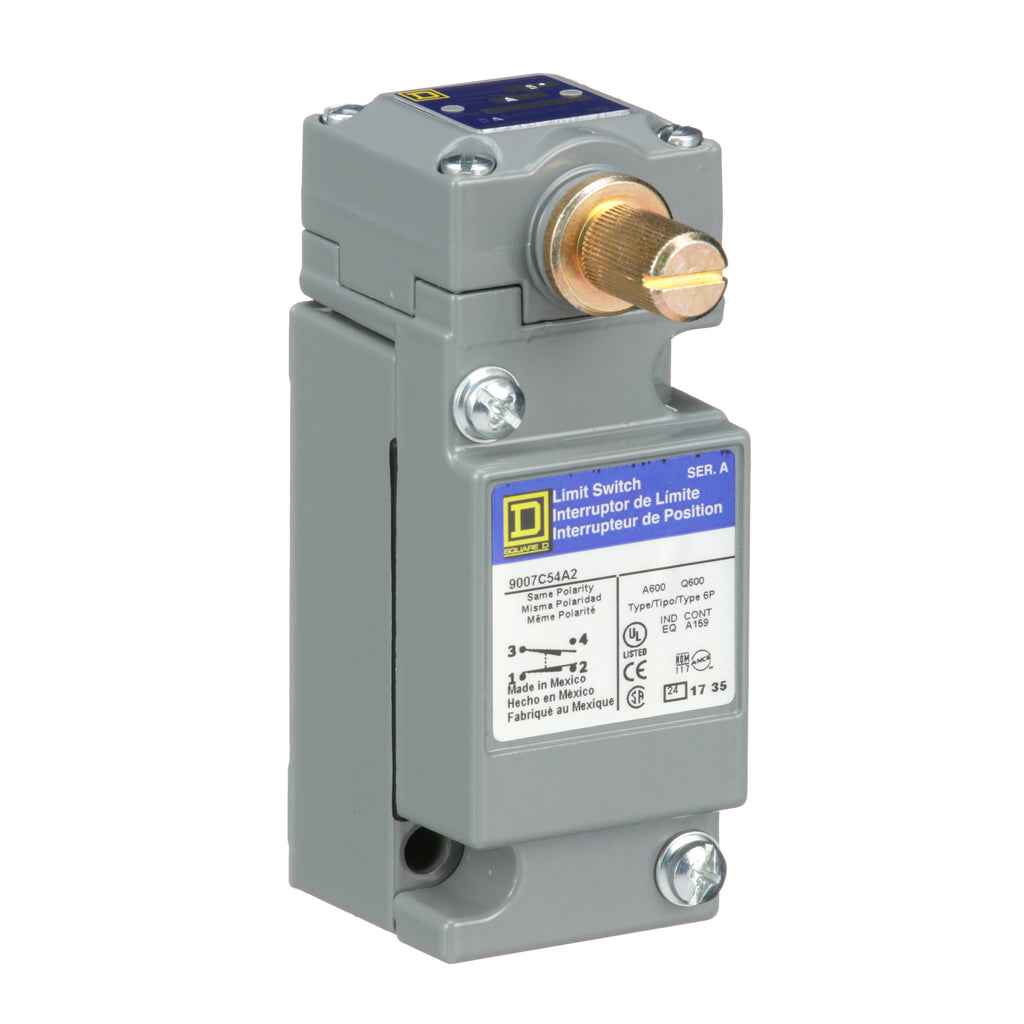

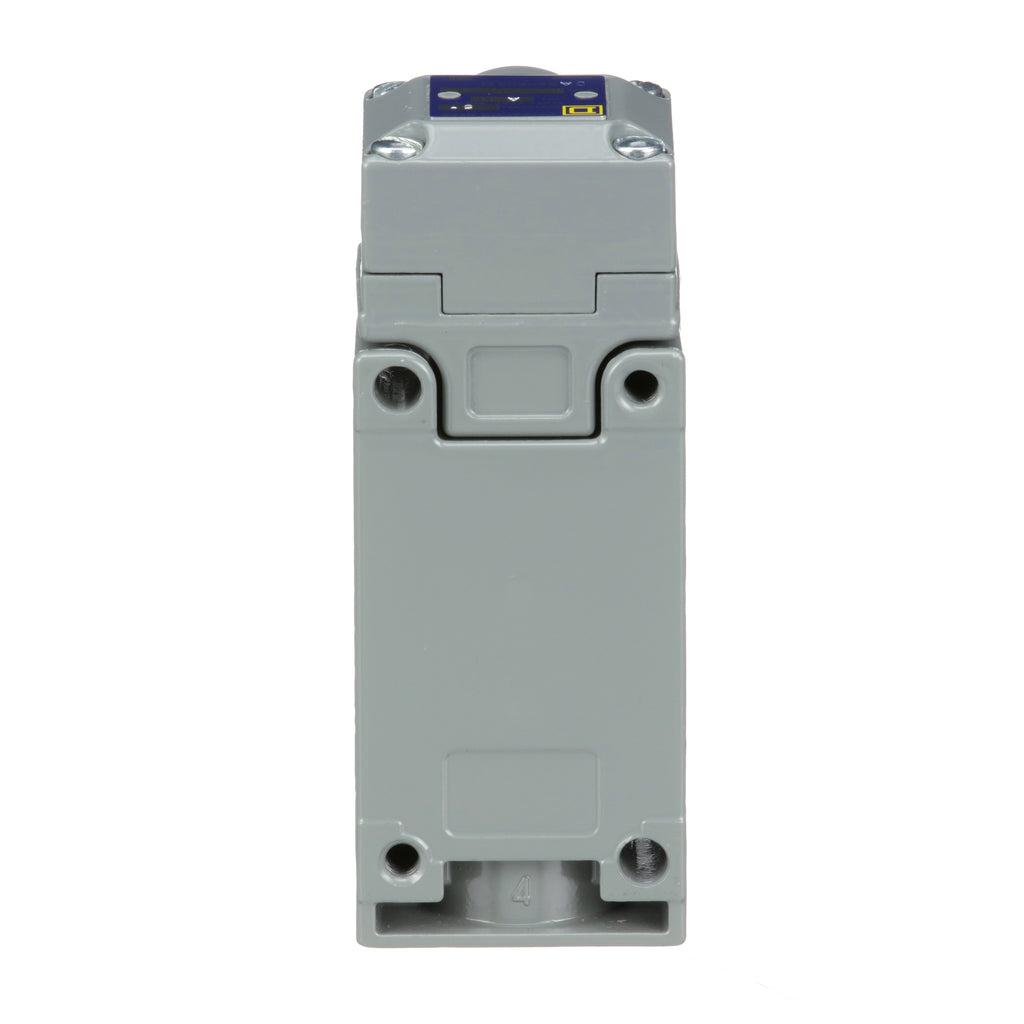

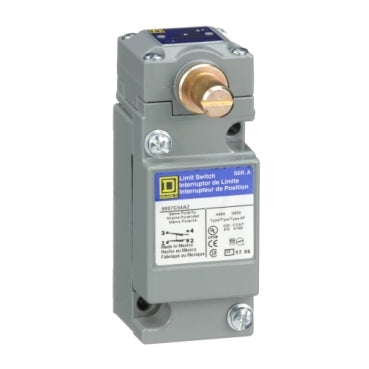

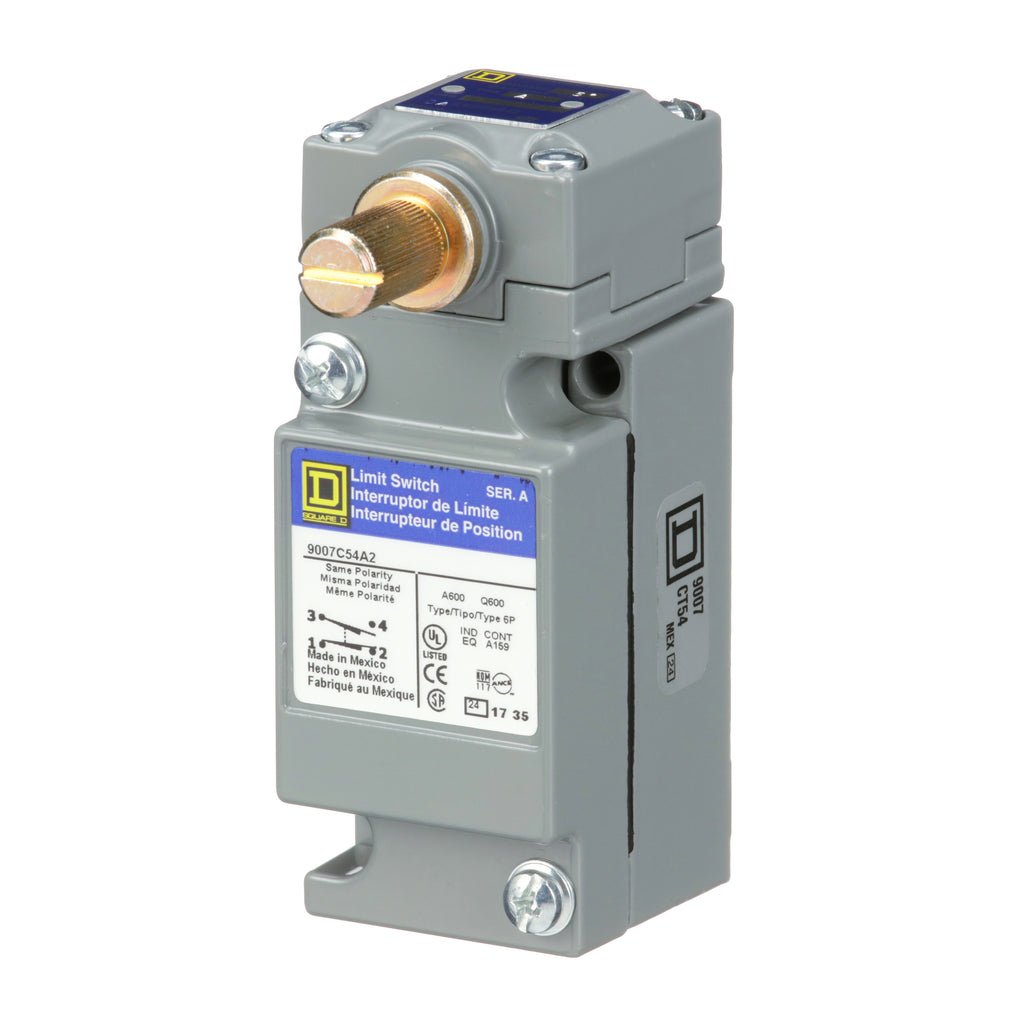

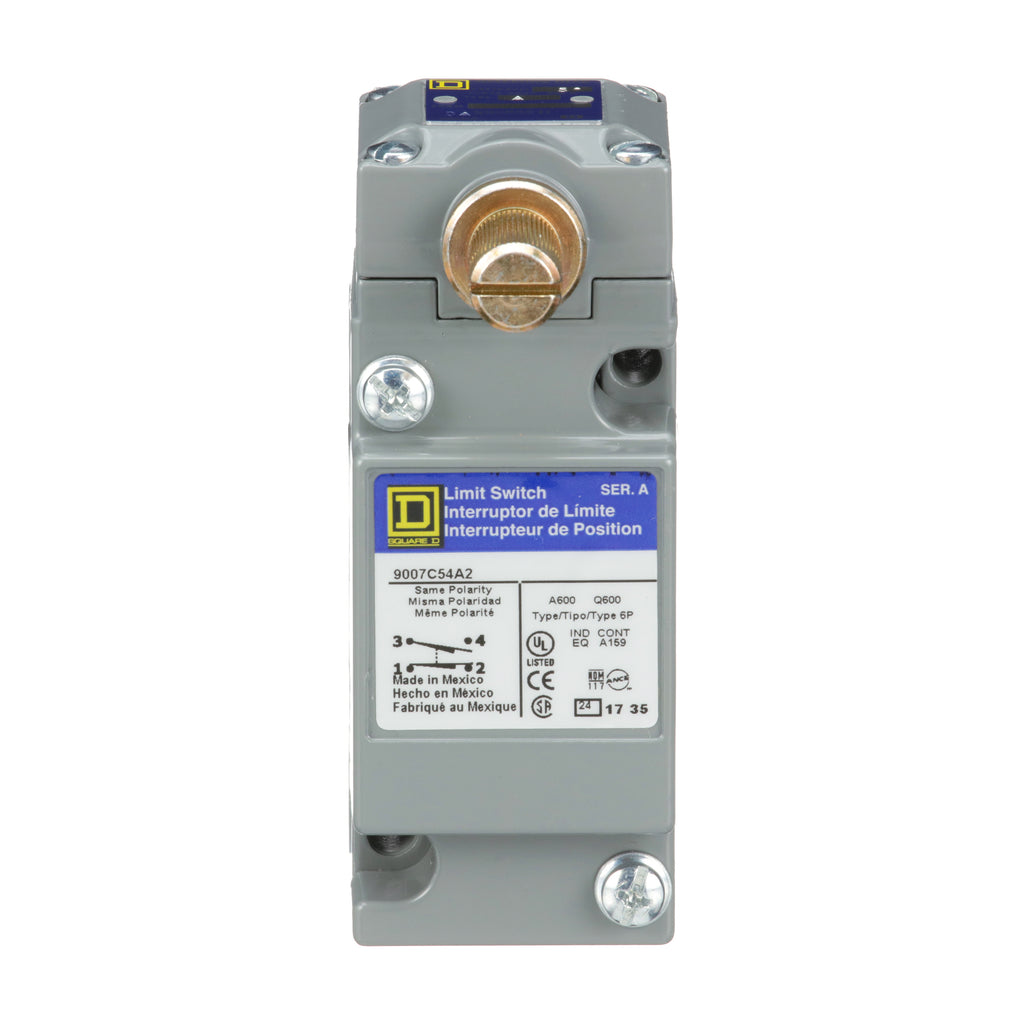

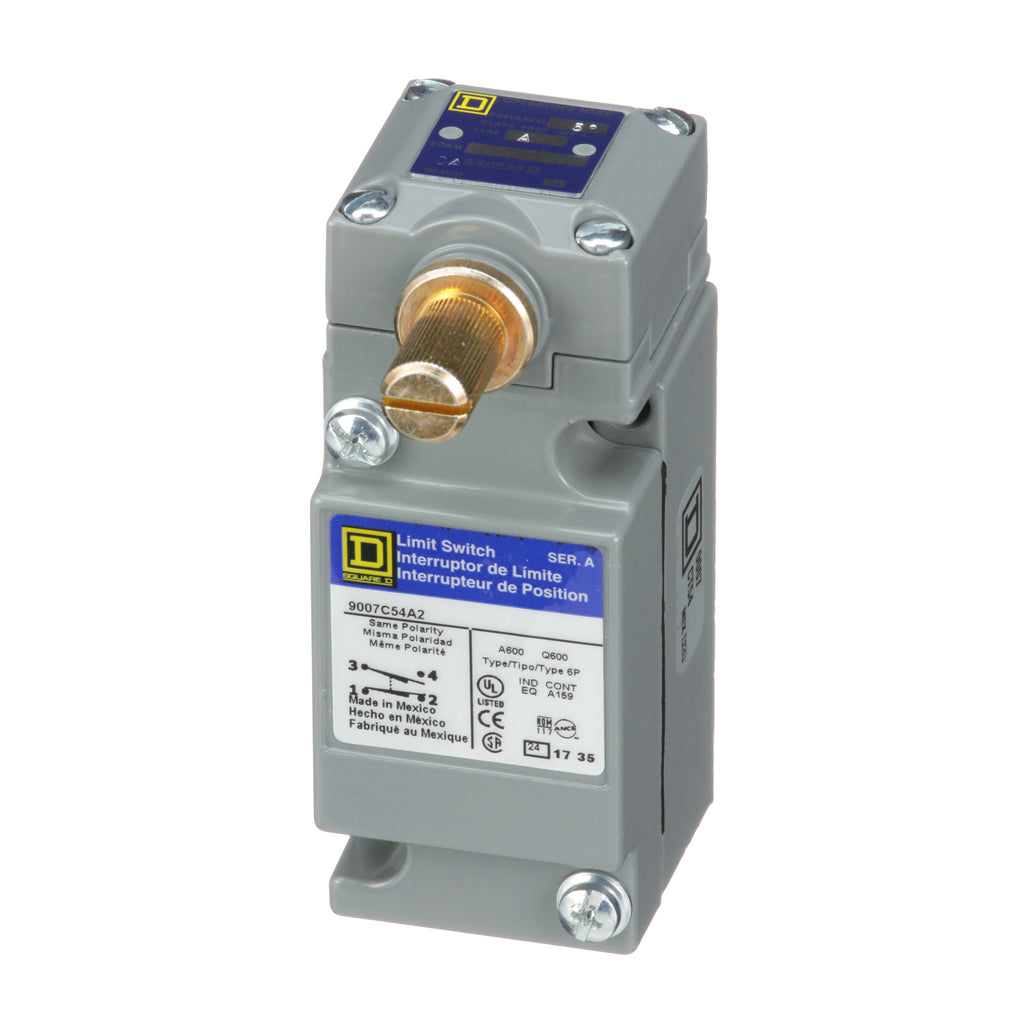

9007C54A2 is a heavy duty limit switch from Telemecanique designed for industrial applications requiring reliable switching at up to 600 volts and 10 amperes.This 9007 series limit switch features a metal plug-in body with a rotary zinc spring return head, capable of clockwise and counterclockwise actuation from left and right. It has a single pole SPDT contact configuration with silver contacts, suitable for standard box mounting and 1/2 inch-14 NPT cable entry. The switch supports lateral approach in one or two programmable directions and is rated for heavy duty use with NEMA 1/2/4/6/6P/12/13 protection. It complies with RoHS and REACh environmental standards and offers an 18-month warranty.
- Amperage: 10A
- Voltage: 600V AC/DC
- Poles: 1
- Contact Configuration: SPDT (1 NO, 1 NC)
- Head Type: Rotary zinc spring return
- Mounting: Plug-in, standard box
- Cable Entry: 1/2 inch-14 NPT threaded
- Body Material: Metal (Zinc)
- Duty Rating: Heavy Duty
- NEMA Ratings: 1/2/4/6/6P/12/13
- Operating Temperature: -29 to 85°C
- Certifications: RoHS, REACh compliant
Specifications
- Part Number: 9007C54A2
- Manufacturer : Telemecanique
- Brand : Telemecanique
- Category : Switch
- Item Subcategory : Limit Switch
- Type : 9007C Series
- Voltage : 600
- Aux Contacts : 1 NC + 1 NO
Product Data
- UPC : 78590150072
- GTIN : 00785901500728
- Country of Origin : Mexico
- Dimensions : 1.55" x 4.02"
- Weight : 1.25
- Certification : CE, CSA, UL
