Product Info
- Manufacturer:Telemecanique
- Sub-Category:Limit Switch
Description
9007AW12

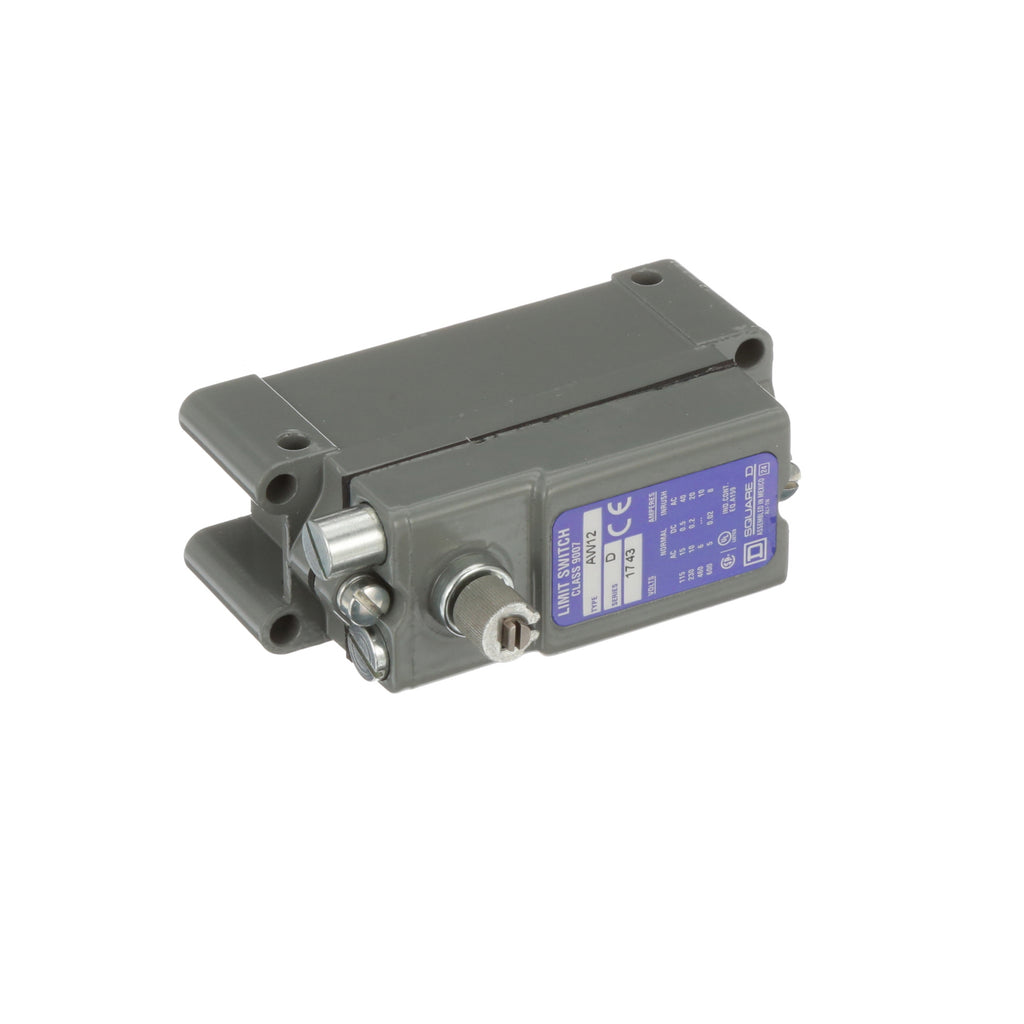

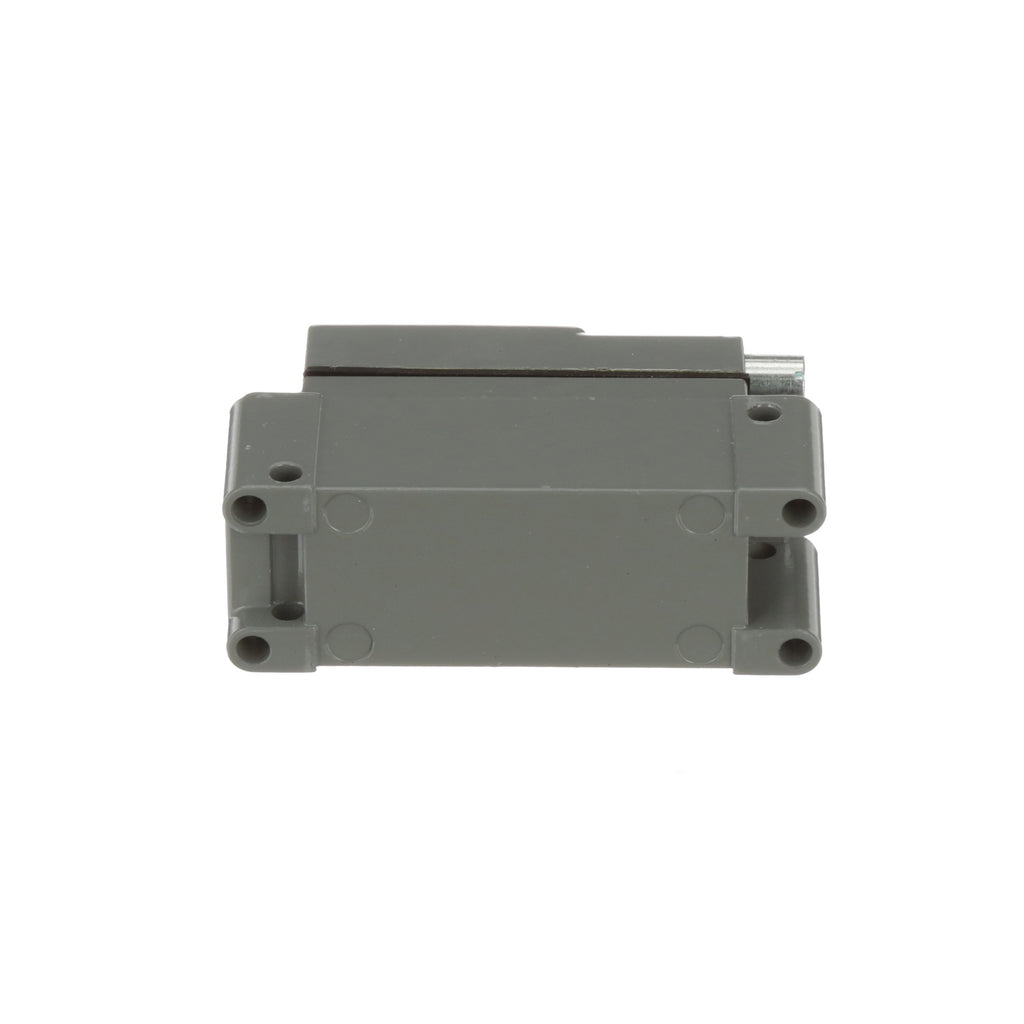

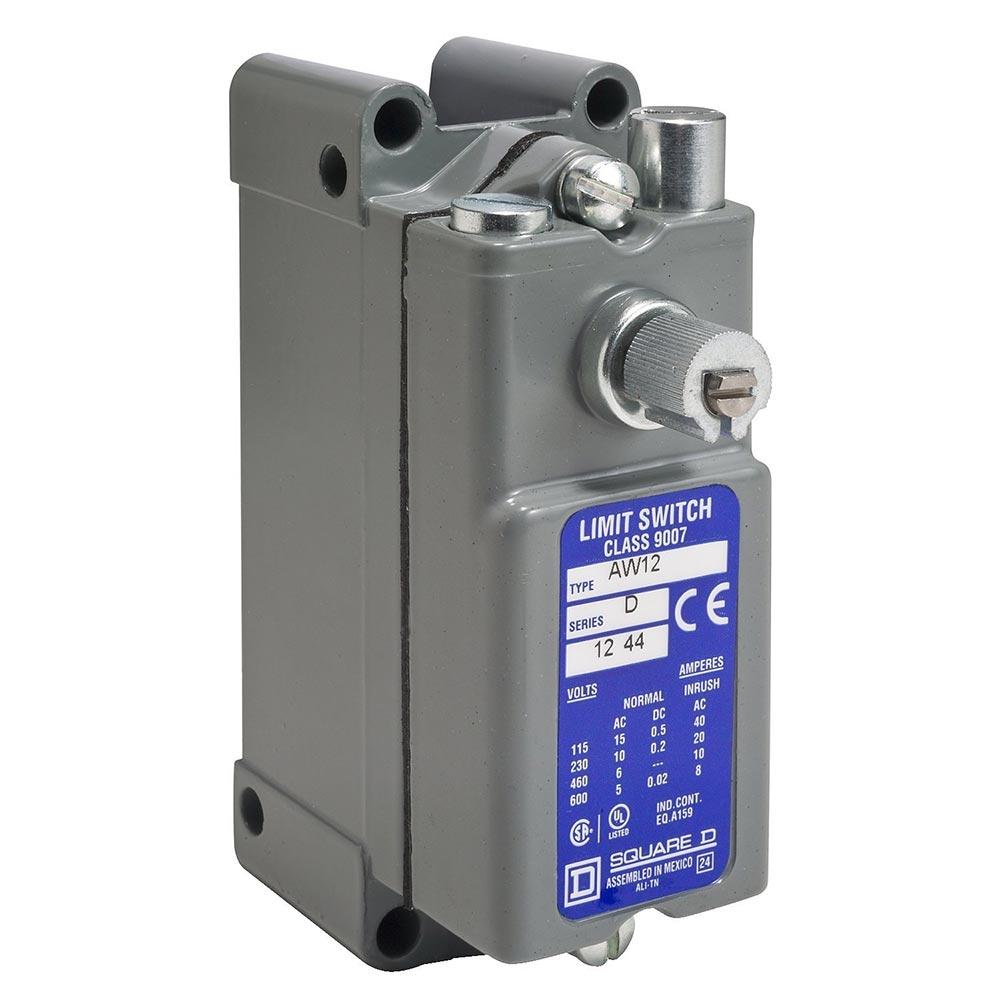

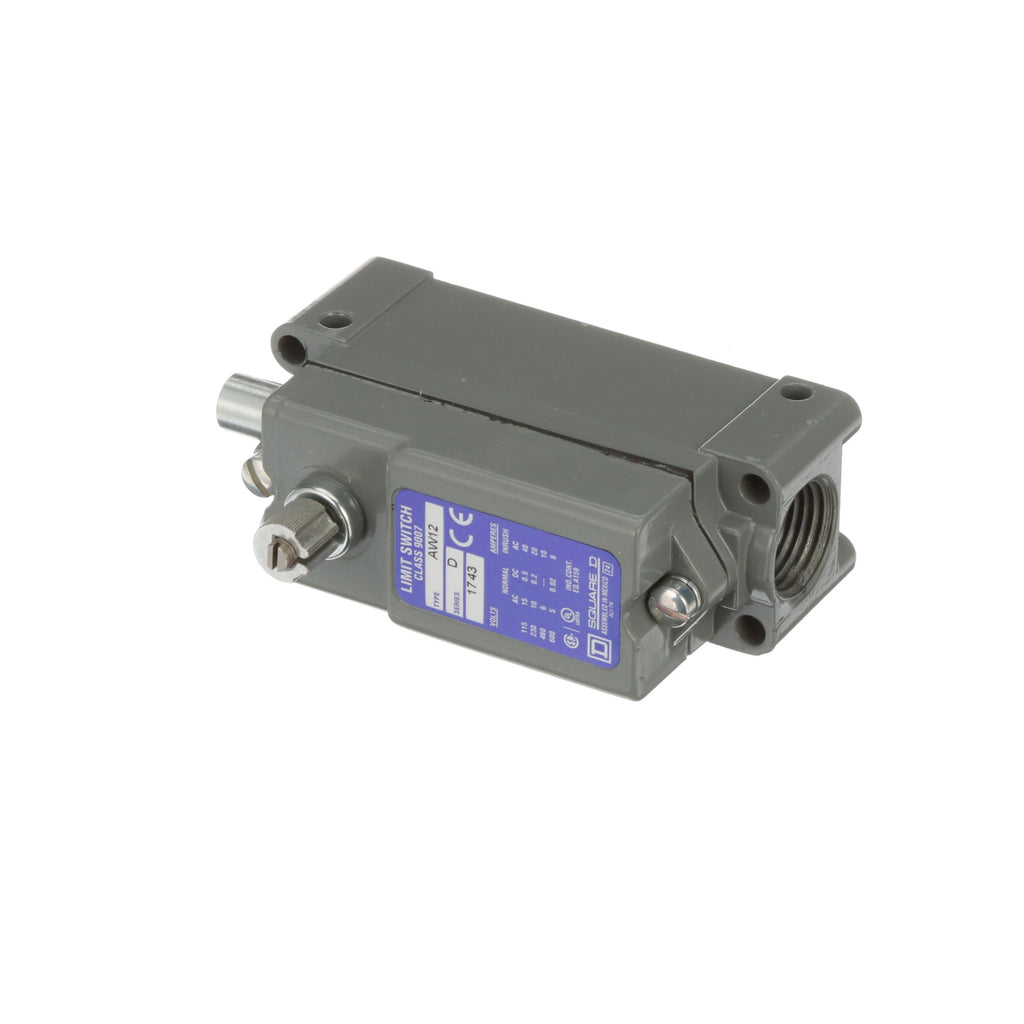

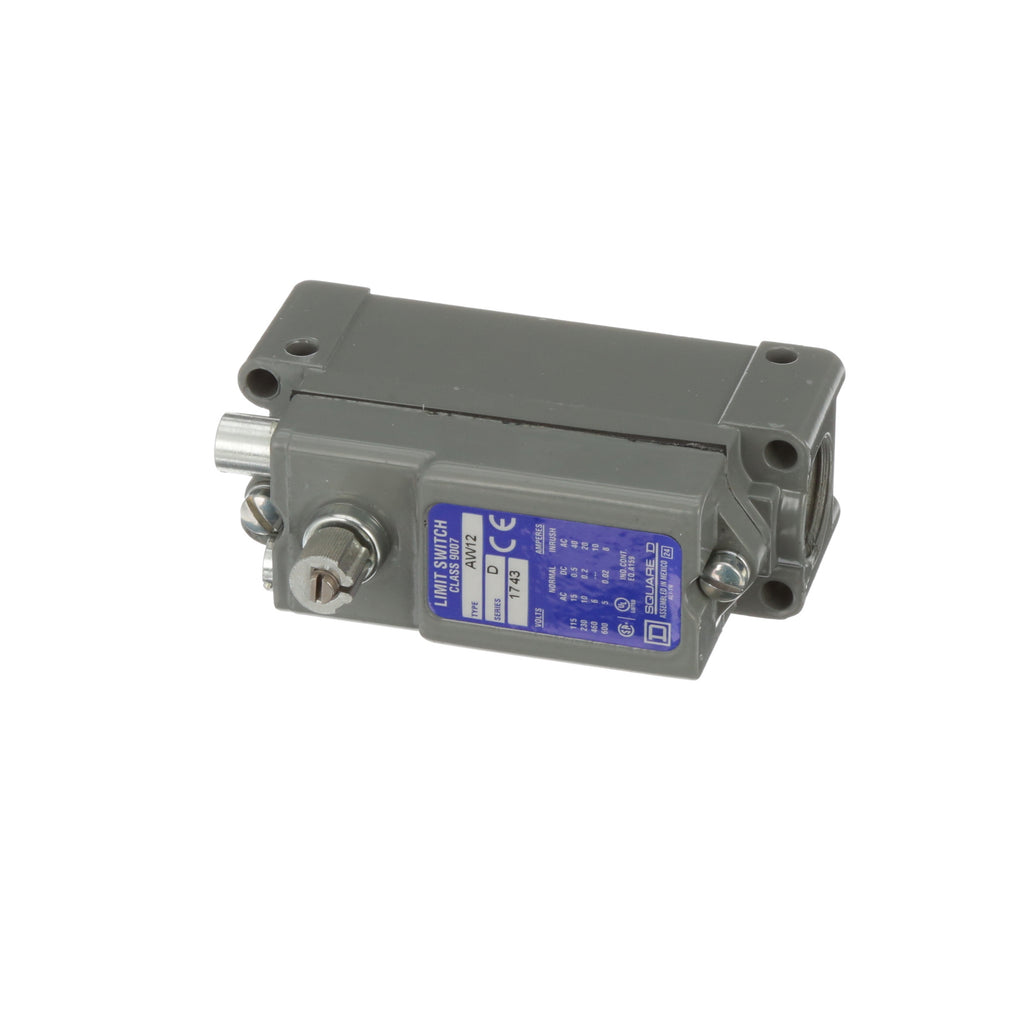

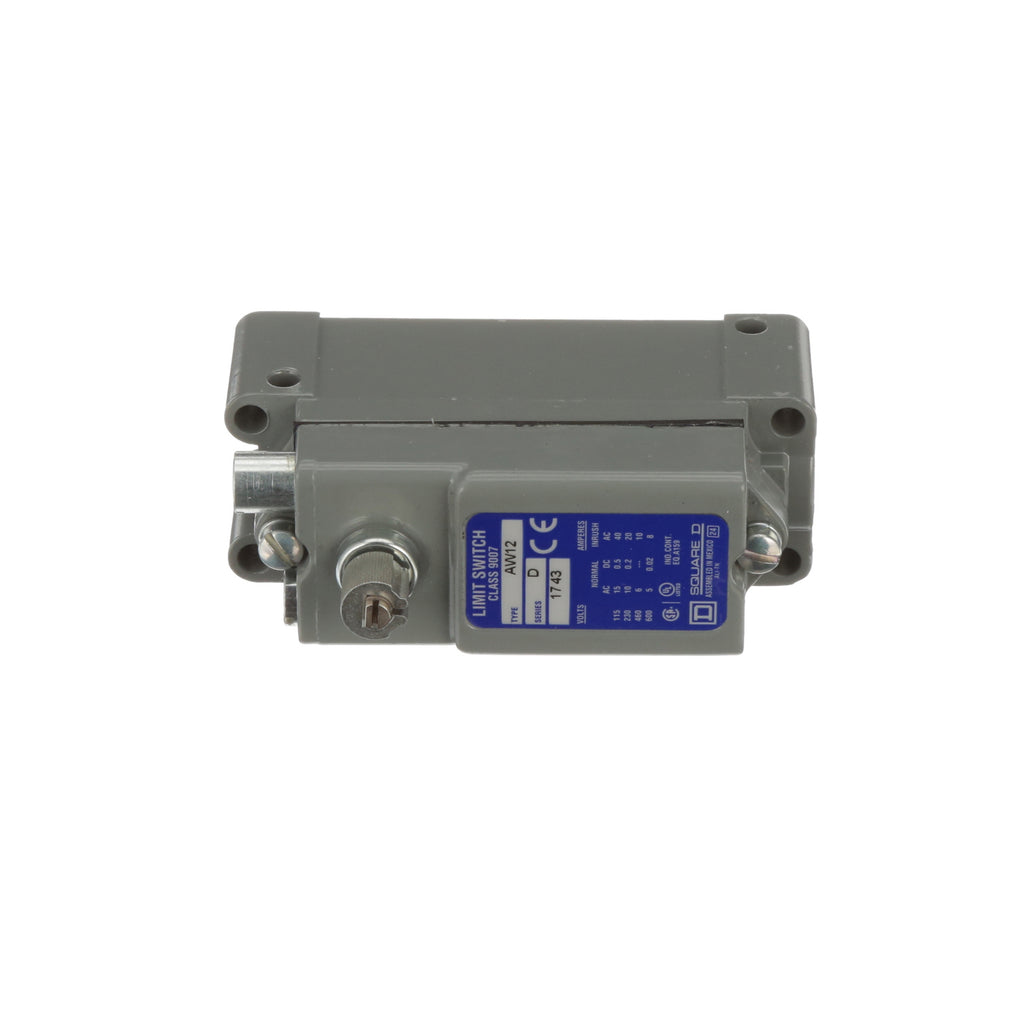

9007AW12 is a Telemecanique rotary actuated limit switch designed for heavy-duty industrial applications.
This precision limit switch features a robust zinc body, spring return mechanism without an operating lever, and is convertible from left to right (CCW/CW). It offers micrometer adjustability, oil-tight enclosure for durability, and is rated for demanding environments. The switch is suitable for side mounting and provides reliable operation with screw clamp terminals for easy electrical connection.
Key Specifications
- Amperage: 15A
- Voltage: 600VAC
- Poles: 1NO/1NC (SPDT)
- Mounting Type: Fixed body, side actuator
- Interrupt Rating: 15A at 600VAC
- Series/Frame: 9007AW
- Trip Unit: Rotary/snap action, spring return, no lever
- Certifications: NEMA 1, 2, 4, 12, 13
- Body Material: Zinc
- Electrical Connection: Screw clamp terminals (22–12 AWG)
- Operating Temperature: -65°F to +185°F
- Enclosure: Oil-tight
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: 9007AW12
- Manufacturer : Telemecanique
- Brand : Telemecanique
- Category : Sensors
- Item Subcategory : Limit Switch
- Family : 9007 9007AW
- Voltage : 600 600
Product Data
- UPC : 785901807629
- GTIN : 785901807629
- Country of Origin : Mexico
- Dimensions : 3.00" x 3.91"
- Weight : 1.3 lb
- Certification : CE, CSA, UL
