Product Info
- Manufacturer:Telemecanique
- Sub-Category:Limit Switch
Description
9007AO12

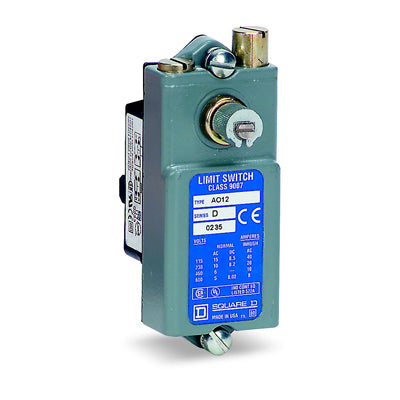

9007AO12 is a heavy duty rotary actuated limit switch from Telemecanique designed for industrial applications.This switch features a 15 ampere rating at 600 VAC, with a single pole and snap action contacts configured as 1 normally open and 1 normally closed (SPDT). It has a spring return lever actuator and screw clamp connection type. The enclosure is rated IP20/NEMA 1 with an open type mounting. Constructed from cast zinc with an epoxy powder coated finish, it operates reliably in temperatures from 0 to 185 degrees Fahrenheit.
- Amperage: 15 A
- Voltage Rating: 600 VAC
- Number of Poles: 1
- Contact Configuration: 1NO-1NC (SPDT Double Break)
- Actuator: Rotary, Spring Return Lever Arm
- Mounting Type: Open Type
- Connection Type: Screw Clamp
- Enclosure Rating: IP20 / NEMA 1
- Material: Cast Zinc with Epoxy Powder Coating
- Operating Temperature: 0 to 185 °F
- Series: 9007, 9007AW
- Certifications: Schneider Electric Manufacturer
Specifications
- Part Number: 9007AO12
- Manufacturer : Telemecanique
- Brand : Telemecanique
- Category : Switch
- Item Subcategory : Limit Switch
- Type : 9007A Series
- Voltage : 600
- Temp Rating : -13–158 °F (-25–70 °C)
Product Data
- UPC : 78590180752
- GTIN : 00785901807520
- Country of Origin : Mexico
- Dimensions : 2.40" x 3.91"
- Weight : 1 lb
- Temp Rating : -13–158 °F (-25–70 °C)
- Certification : CE, CSA, UL
