- Manufacturer:Telemecanique
- Sub-Category:Snap switch
Description
9007AC1

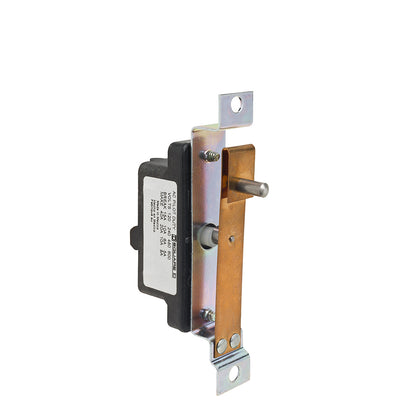

9007AC1 is a Telemecanique snap limit switch designed for industrial motor control applications with a 600 VAC voltage rating and 15 amp AC capacity.9007AC1 features a heavy-duty metal cast zinc body with a lever arm operator profile, providing reliable snap action switching with 1 normally open and 1 normally closed contact. It is rated for 15 amps at 125 VAC and 10 amps at 250 VAC, suitable for cabinet door mounting and harsh environments.
- Voltage rating: 600 VAC
- Current rating: 15 amps AC
- Contact configuration: SPDT (1NO/1NC)
- Operator type: Lever arm
- Body material: Cast zinc metal
- Mounting type: Cabinet door
- Heavy duty industrial design
- Spring return mechanism
- Temperature range: -20 to 185°F
- Interrupt rating: 15 amps at 125 VAC, 10 amps at 250 VAC
- Series: 9007C
- Certifications: NEMA 1
Specifications
- Part Number: 9007AC1
- Manufacturer : Telemecanique
- Brand : Telemecanique
- Category : Motor Control
- Item Subcategory : Snap switch
- Family : 9007AO/CO
- Voltage : 120 to 240 to 480 to 600 /125 to 250 to 600 DC 120/240/480/600 , 125/250/600 DC
Product Data
- UPC : 785901758921
- GTIN : 00785901758921
- Weight : 0.15 lb
