Product Info
- Manufacturer:Square D
- Sub-Category:Automation Switch
Description
9007AB22

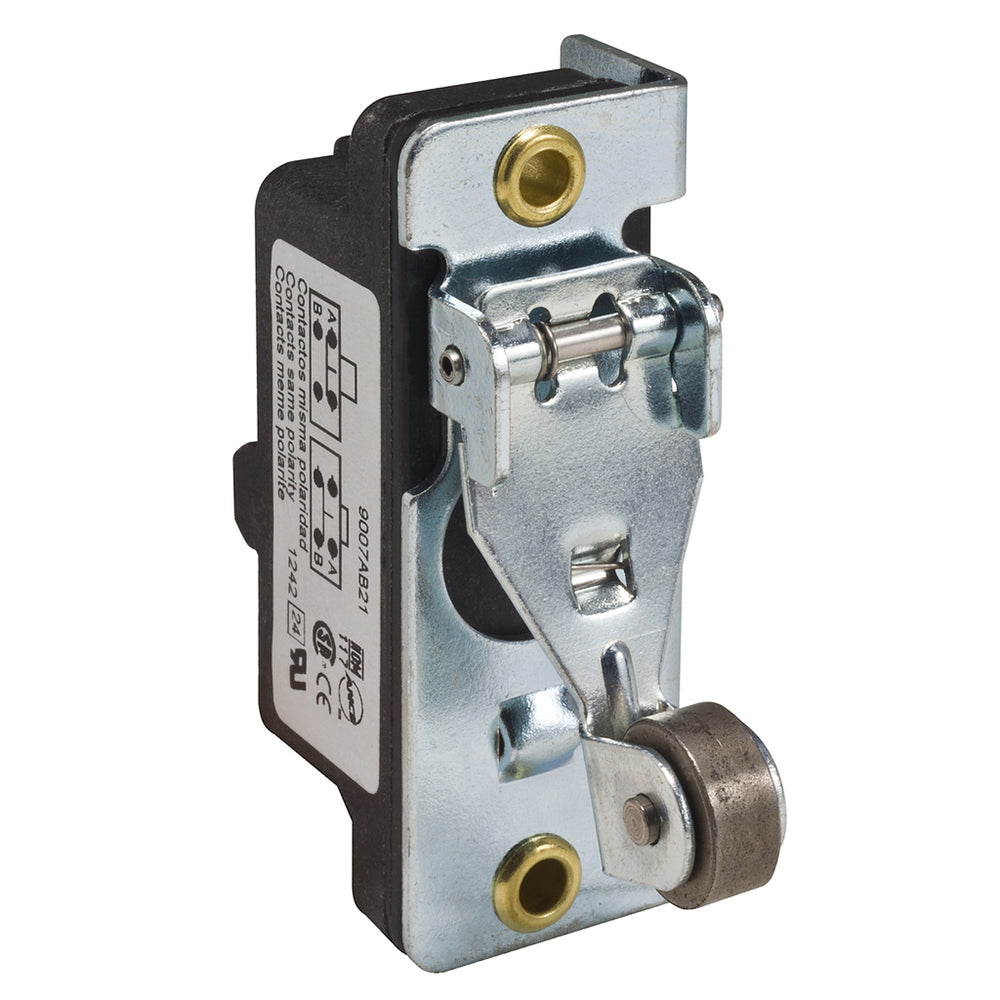

9007AB22 is a heavy-duty snap limit switch designed for industrial control applications requiring reliable electrical signaling from mechanical motion. This switch features a spring return roller plunger lever operator and is rated for 600VAC and 15A, making it suitable for a wide range of industrial environments. The 9007AB22 snap limit switch is built with a cast zinc body and metal operator, providing durability and long service life. It operates with a linear movement and utilizes a 30° cam actuation for precise switching. The device is mounted by the body and features screw clamp terminals for secure wiring connections. The switch has a single pole with a SPDT-DB (Form Z) contact configuration, offering both normally open (NO) and normally closed (NC) contacts.
- Manufacturer: Square D
- Series: 9007
- Product Type: Snap Limit Switch
- Rated Voltage: 600VAC
- Rated Current: 15A
- Number of Poles: 1
- Mounting Type: By the Body
- Operator Type: Spring Return Roller Plunger Lever
- Actuation: By 30° Cam
- Electrical Connection: Screw Clamp Terminals
- Contact Configuration: SPDT-DB (Form Z), NC-NO
- Temperature Range: -29°C to 85°C
Specifications
- Part Number: 9007AB22
- Manufacturer : Square D
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Automation Switch
Product Data
- UPC : 078590172272
- GTIN : 00785901722724
- Country of Origin : Mexico
- Dimensions : 0.95 in x 2.5" x 0.828"
- Weight : 0.17
- Certification : C22-2-14, CE, CSA, UL Listed
