9001SKS34B - Square D Harmony 2-Position 30mm Selector Switch 600V

9001SKS34B

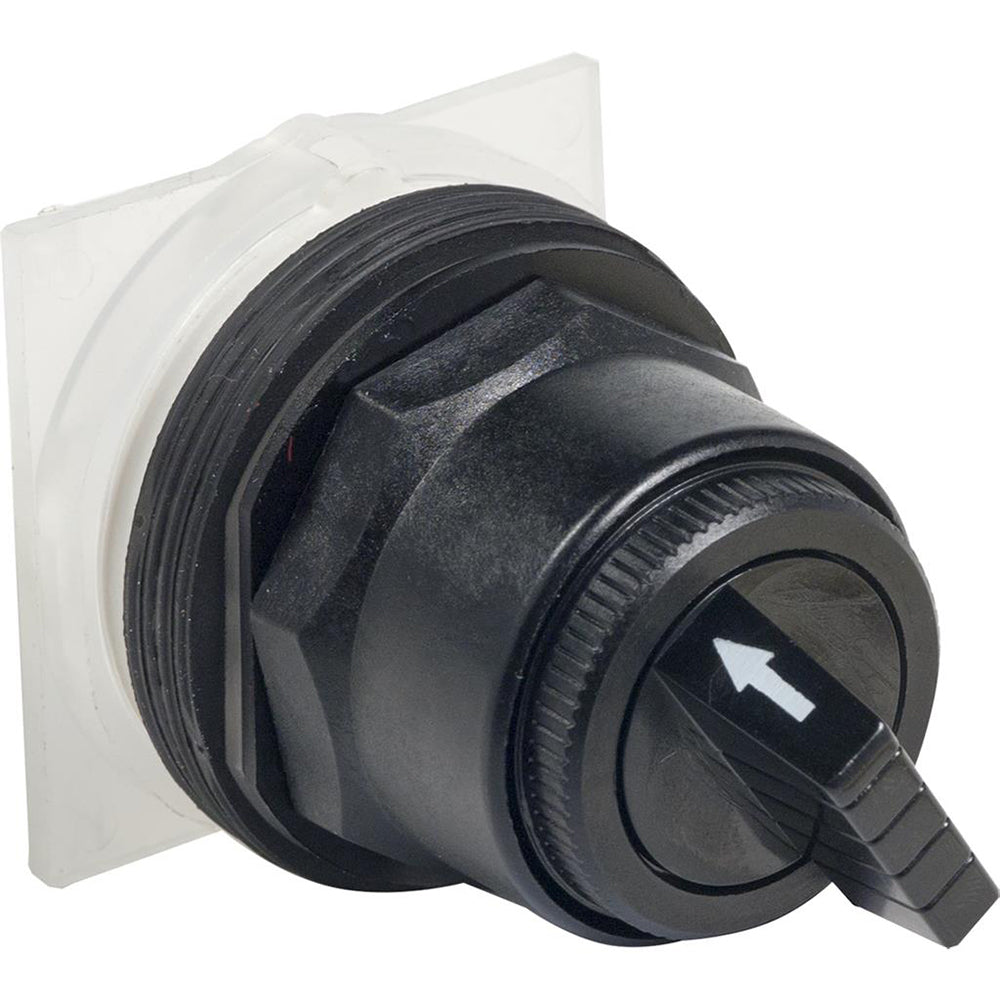

9001SKS34B is a Square D Harmony 30mm selector switch designed for industrial motor control applications with 2-position operation and 600V rated voltage.

This non-illuminated selector switch features a chromium-plated metal bezel and nonmetallic operator construction. The 30mm operator size provides reliable switching and indication for panel-mounted control stations. Operating temperature range spans from -27 to 70 degrees Celsius with 70-degree rotation capability in both left and right directions. Type K construction offers corrosion-resistant, dusttight, and oiltight performance suitable for demanding industrial environments.

• Part Number: 9001SKS34B
• Manufacturer: Square D (Schneider Electric)
• Series: 9001SK Harmony
• Operator Size: 30mm
• Positions: 2-Position
• Voltage Rating: 600V
• Material: Nonmetallic
• Mounting Type: Panel
• Illumination: Non-Illuminated
• Operating Temperature: -27 to 70 degrees Celsius
• Rotation: 70 degrees Left/Right
• Enclosure Type: Type K Corrosion-Resistant, Dusttight, Oiltight

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 9001SKS34B
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Motor Control Part And Accessory
• Voltage : 600
• Amperage : 4000
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : Draw-Out
• Functions : LSHG - Long-Time, Short-Time, High-Range Instantaneous and Ground Fault
• Protection : Solid State

Product Data

• UPC : 785901043652
• Country of Origin : Mexico
• Weight : 0.14
