Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Pilot Device
Description
9001SKS11BH13

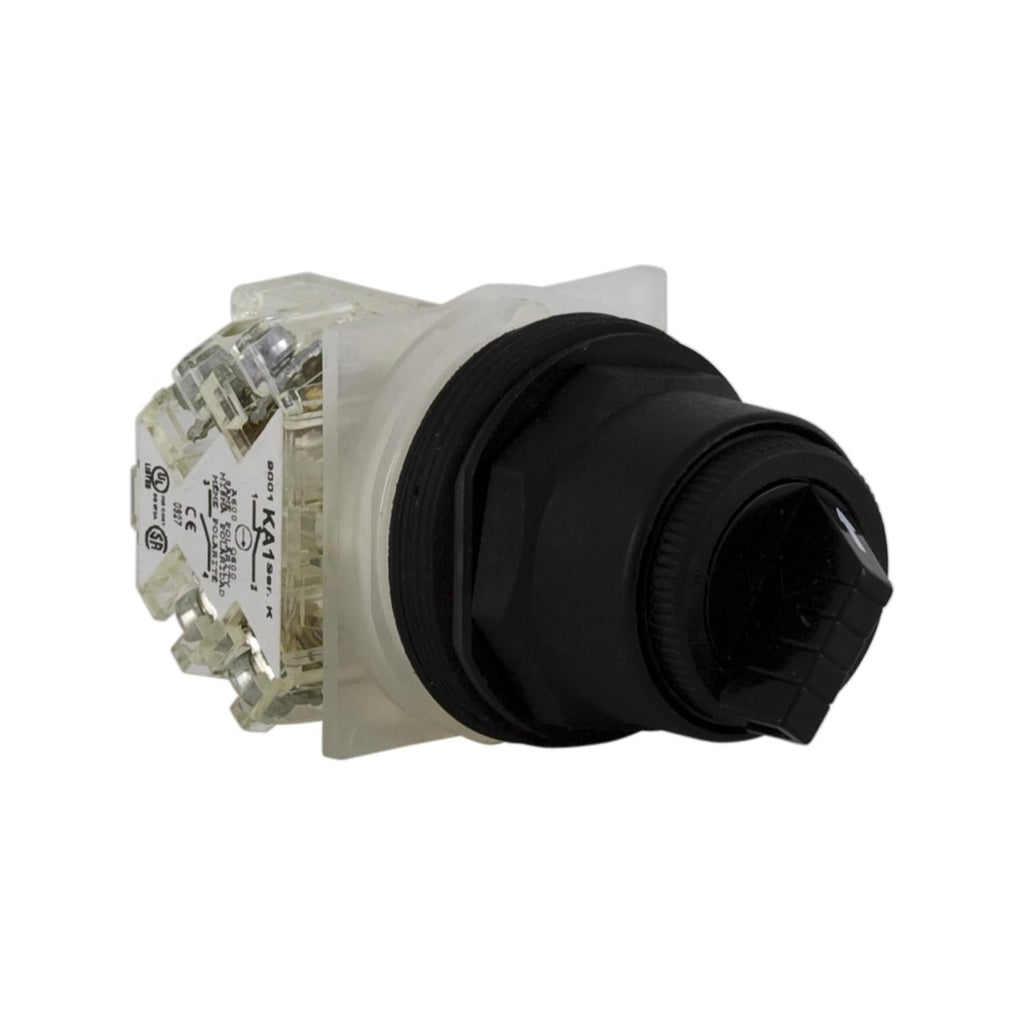

9001SKS11BH13 is a Square D plastic selector switch from the Harmony 9001SK series featuring a 30 mm diameter black standard handle and 2 maintained positions.This selector switch offers a 10 Amp rating at 600 VAC/VDC with a 1NO-1NC contact configuration and stay-put operation. It includes a robust plastic bezel with double insulation, is IP66 rated for harsh environments, and is compatible with 9001KA1 contact blocks. The switch provides easy, secure mounting and automatic self-grounding operators without additional wiring.
- Amperage: 10 Amp
- Voltage: 600 VAC/VDC
- Poles: 1NO-1NC (1 normally open, 1 normally closed)
- Mounting Type: 30 mm panel mount
- Operation: 2-position maintained (stay-put)
- Handle: Black plastic standard knob
- Series/Frame: Harmony 9001SK
- Contact Block Compatibility: 9001KA1
- Ingress Protection: IP66 rated
- Construction: Double insulated plastic bezel
- Environmental: Suitable for harsh environments
Specifications
- Part Number: 9001SKS11BH13
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Motor Control
- Item Subcategory : Pilot Device
- Section : Push button switch
- Family : 9001SK
Product Data
- UPC : 785901043393
- GTIN : 785901043393
- Country of Origin : Mexico
- Weight : 0.188 lb
- Certification : CE, CSA LR24590 Class 3211 03, UL E42259 CCN NKCR
