9001SKRU5 - Square D 5-Speed Momentary Interlocked Push Button 30mm 600VAC 10A

9001SKRU5

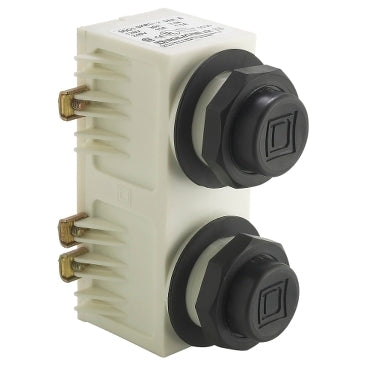

9001SKRU5 is a 5-speed, momentary interlocked push button designed for reliable motor control applications. This Square D Harmony 9001SK series unit features a 30mm plastic housing, non-illuminated extended profile, and is rated for 600VAC at 10A. Engineered for durability, the 9001SKRU5 offers robust performance in demanding environments. Its momentary operation and interlocked design ensure safe and precise control, while the screw clamp terminal connection provides secure wiring. The unit is suitable for use in NEMA 1, 3, 4, 4X, and 13 enclosures, and is UL, CSA, and CE approved.

• Part Number: 9001SKRU5
• Manufacturer: Square D
• Series: Harmony 9001SK
• Mounting Type: 30mm Panel
• Operation: Momentary, Interlocked
• Speeds: 5-Speed
• Current Rating: 10A
• Voltage Rating: 600VAC
• Bezel Material: Plastic
• Terminal Type: Screw Clamp
• Approvals: UL, CSA, CE
• Enclosure Ratings: NEMA 1, 3, 4, 4X, 13

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 9001SKRU5
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Motor Control Part And Accessory
• Family : Harmony 9001SK
• Type : 9001SK
• Temp Rating : -13–158 °F (-25–70 °C)

Product Data

• UPC : 785901525547
• GTIN : 00785901525547
• Country of Origin : Mexico
• Dimensions : Depth 7.13 in (181 mm) Width 12.64 in (321 mm) Height 14.69 in (373 mm)
• Weight : 0.62
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C4520, JIS C852, REACH, RoHS, UL 508
