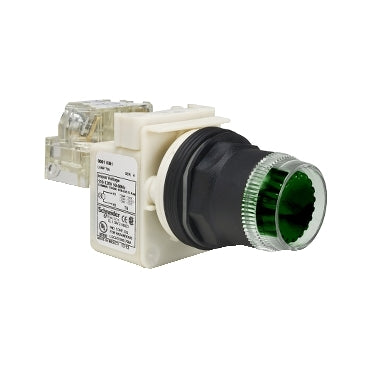

9001SK2L38LGGH13 - Schneider Electric 30mm Illuminated Push Button, 1 C/O, 120V AC/DC, Spring Return, Green LED

9001SK2L38LGGH13

9001SK2L38LGGH13 is a Schneider Electric illuminated push button featuring a 30 mm mounting diameter and green LED indicator.This push button is part of the Harmony 9001SK series, designed with a plastic projecting operator and spring return mechanism. It includes a 1 changeover (1 C/O) contact configuration with screw clamp terminals suitable for wire sizes 1 x 0.22 to 2 x 1.5 mm². The device operates at 120 V AC/DC with a rated insulation voltage of 250 V and a conventional free air thermal current of 10 A. It is rated for NEMA 1, 2, 3, 3R, 4, 4X, 12, and 13 environments and offers IP66 protection. The green LED lamp module is full voltage type, ensuring clear indication.

Key Specifications
• Mounting Diameter: 30 mm
• Contact Configuration: 1 C/O (Changeover)
• Operating Voltage: 120 V AC/DC
• Rated Insulation Voltage: 250 V
• Conventional Thermal Current: 10 A
• Operator Type: Plastic projecting, spring return
• LED Lamp Color: Green, full voltage
• Terminal Connection: Screw clamp terminals
• IP Degree of Protection: IP66
• NEMA Ratings: 1, 2, 3, 3R, 4, 4X, 12, 13
• Operating Position: Any position
• Certifications: IEC 60947-1 compliant
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: 9001SK2L38LGGH13
• Manufacturer : Schneider Electric
• Brand : Schneider Electric



Product Data

• UPC : 78590169687
• GTIN : 00785901696872
• Country of Origin : Mexico
• Weight : 0.5
