9001SK1L1RH13 - Square D 30mm Illuminated Momentary Push Button Switch 1NO 1NC 110-120V AC

9001SK1L1RH13

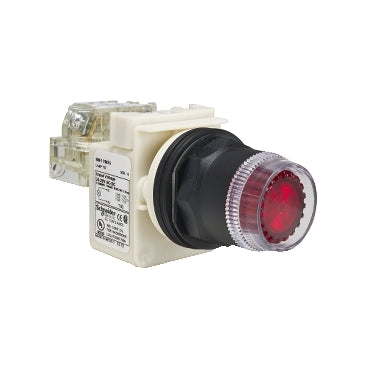

9001SK1L1RH13 is a Square D 30mm illuminated momentary push button switch designed for motor control applications.This push button features a red body with a plastic bezel and operates at 110 to 120 volts AC, 50/60 Hz. It includes one normally open (1NO) and one normally closed (1NC) contact, providing single-pole double-throw (SPDT) functionality with a momentary spring return action. The device is rated for up to 600 VAC and 10 amps, suitable for industrial control panels.

• Manufacturer: Square D
• Part Number: 9001SK1L1RH13
• Type: Illuminated Momentary Push Button Switch
• Contact Configuration: 1 Normally Open (1NO), 1 Normally Closed (1NC)
• Size: 30 mm
• Voltage Rating: 110-120 V AC, 50/60 Hz
• Current Rating: 10 Amps
• Contact Type: SPDT (Single-Pole Double-Throw)
• Body Color: Red
• Bezel Material: Plastic
• Operation: Momentary with Spring Return
• Maximum Voltage: 600 VAC

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 9001SK1L1RH13
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Motor Control Part And Accessory
• Section : Pushbuttons
• Family : Type SK
• Type : SK
• Voltage : 110 to 120

Product Data

• UPC : 785901040378
• GTIN : 00785901040378
• Country of Origin : Mexico
• Weight : 0.46
• Certification : CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C4520, JIS C852, REACH, RoHS, UL 508, WEEE
