Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Motor Control Part And Accessory
Description
9001KYSS1

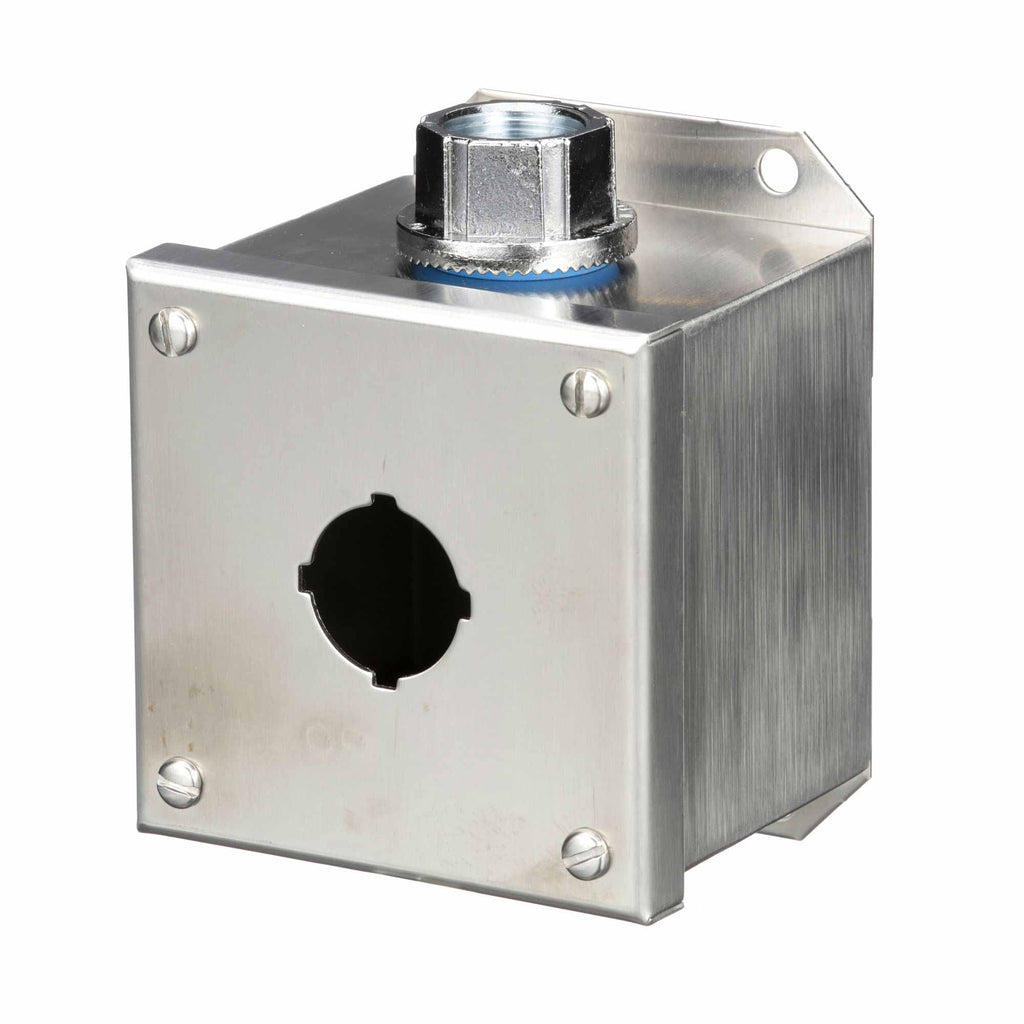

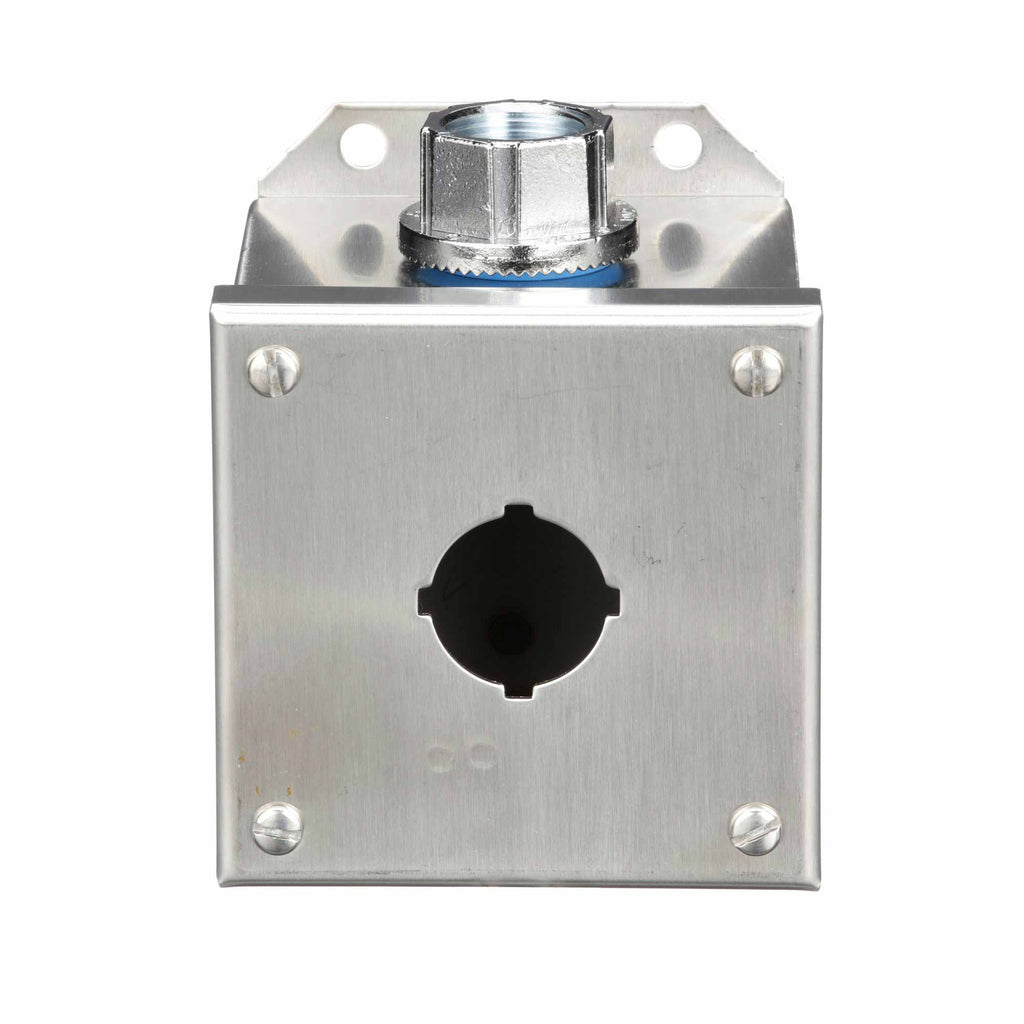

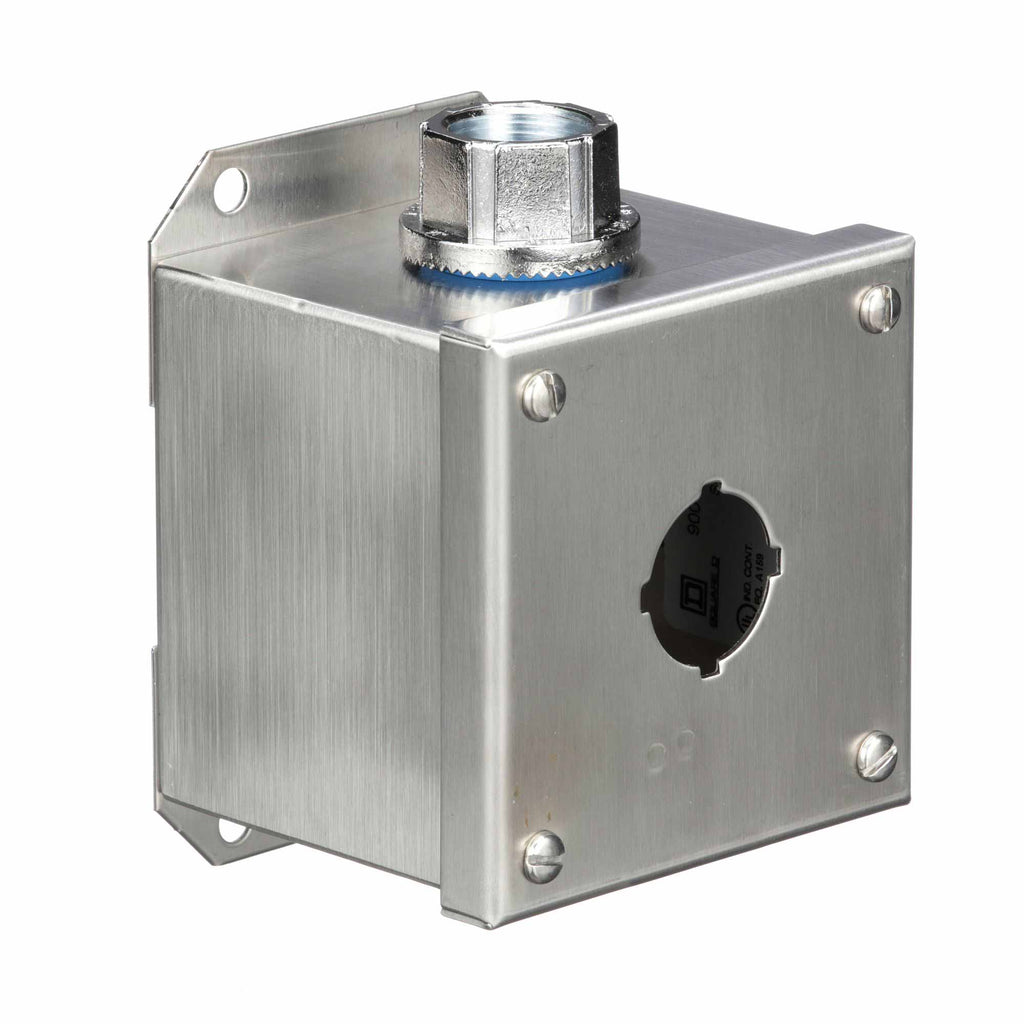

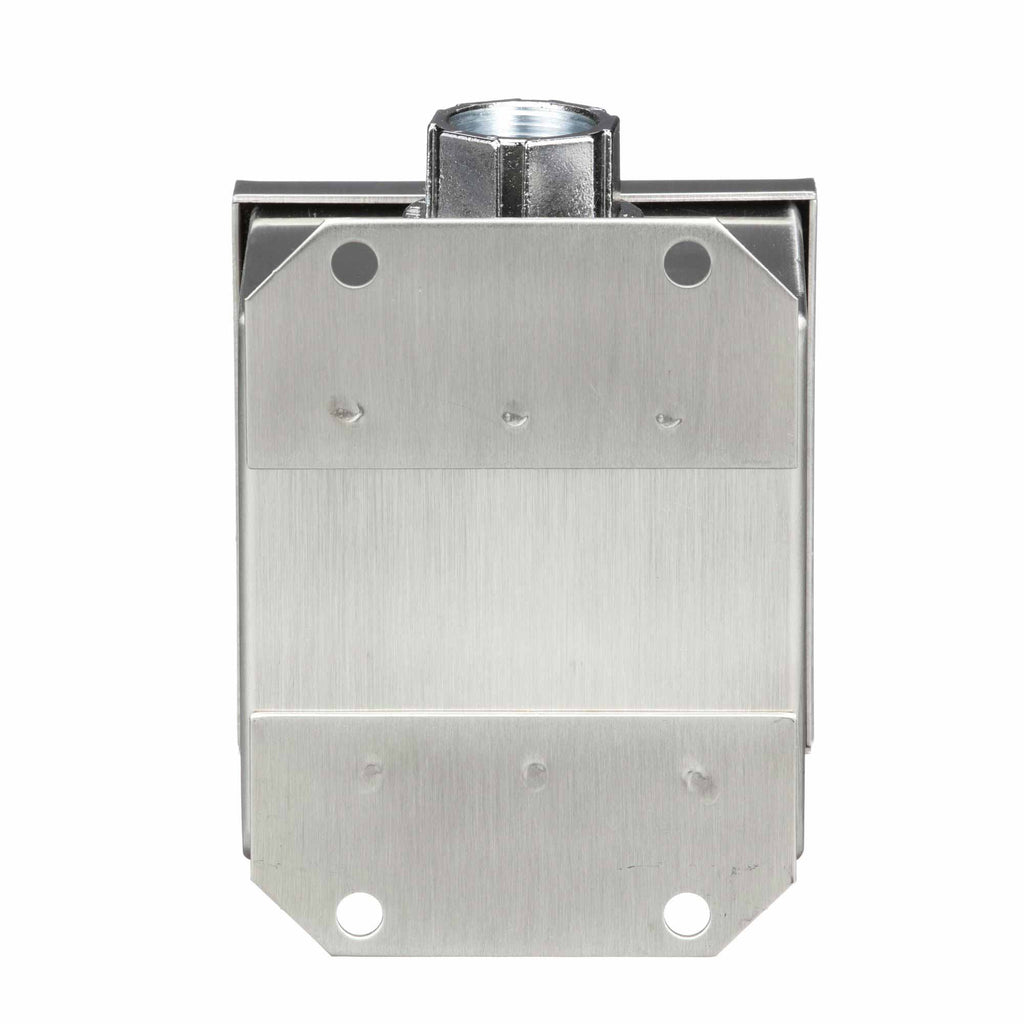

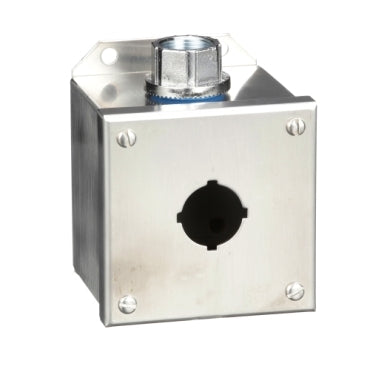

9001KYSS1 is a 30mm stainless steel push button enclosure from Schneider Electric Square D designed for robust industrial motor control applications.This enclosure features a single 30mm hole and is rated NEMA 4, 4X, and 13, providing heavy-duty protection against oil, water, dust, and corrosion. It supports Types K or SK push button operators with an automatic self-grounding metal base requiring no additional wiring. The enclosure is suitable for harsh environments and complies with IEC, UL, CSA, EN, and NOM standards.
- Key Specifications
- Part Number: 9001KYSS1
- Manufacturer: Schneider Electric Square D
- Mounting Type: 30mm push button enclosure, 1 hole
- Material: Stainless steel
- NEMA Rating: 4, 4X, 13
- Compatible with: Harmony 9001K and 9001SK operators
- Dimensions (HxWxD): 5.2 x 6.0 x 5.5 inches
- Weight: 2.33 lb
- Certifications: IEC, UL, CSA, EN, NOM, ABS Certified
- Environmental: Recycled cardboard packaging
Specifications
- Part Number: 9001KYSS1
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Motor Control
- Item Subcategory : Motor Control Part And Accessory
- Section : Enclosures
- Family : Harmony 9001K
- Type : 9001KY
- Temp Rating : -13–158 °F (-25–70 °C)
Product Data
- UPC : 078590101748
- GTIN : 00785901017486
- Country of Origin : Mexico
- Dimensions : 4.18 in x 5.24 in
- Weight : 2.38
- Temp Rating : -13–158 °F (-25–70 °C)
- Certification : RoHS
