Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Pilot Device
Description
9001KXRG117

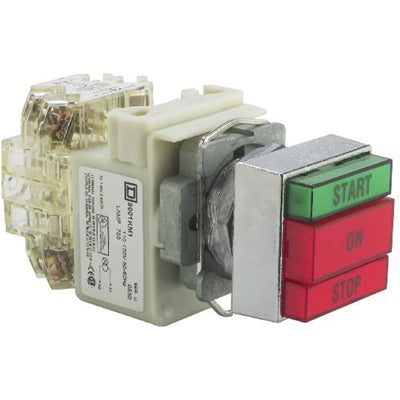

9001KXRG117 is a Square D 30mm illuminated push button switch designed for motor control applications.This push button features a metal head and operator with a 2 normally open (NO) and 2 normally closed (NC) contact configuration. It is rated for 10A at 600V AC and includes an incandescent lamp module operating at 120V AC. The device is panel mounted with a 30mm cutout and offers NEMA 4, 4X, and 13 enclosure ratings along with an IP65 ingress protection rating, making it suitable for harsh environments. It is part of the 9001K series and is UL, CSA, and CE listed.
- Key Specifications
- Contact Configuration: 2NO/2NC
- Contact Rating: 10A @ 600V AC
- Mounting Type: Panel Mount, 30mm cutout
- Operator Material: Metal
- Head Material: Metal
- Lamp Type: Incandescent, 120V AC
- Enclosure Rating: NEMA 4, 4X, 13
- Ingress Protection: IP65
- Series: 9001K
- Certifications: UL Listed, CSA, CE
- Country of Origin: Mexico
Specifications
- Part Number: 9001KXRG117
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Pilot Device
- Section : Push button switch
- Family : 9001KX
Product Data
- UPC : 785901524557
- Country of Origin : Mexico
- Weight : 0.61
- Certification : CE, CSA, UL Listed
