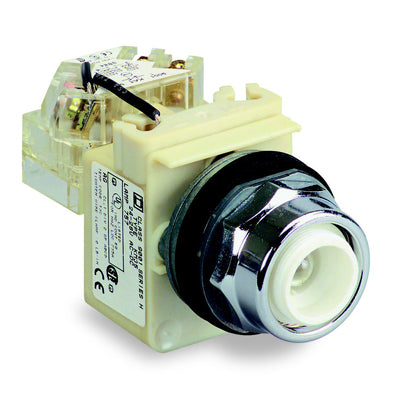

9001KT38 - Square D Harmony 120V 30mm Push-to-Test Pilot Light

9001KT38

9001KT38 is a Square D Harmony push-to-test pilot light designed for industrial signalling and control applications. This heavy-duty illuminated pilot light features a 30mm metal bezel with spring return mechanism and full voltage operation at 120 VAC/VDC. The incandescent light source provides reliable visual indication in motor control and industrial automation systems. Key Specifications

• Part Number: 9001KT38
• Manufacturer: Square D (Schneider Electric)
• Rated Supply Voltage: 120 VAC/VDC
• Size: 30mm
• Bezel Material: Chromium Plated Metal
• Light Source: Incandescent Bulb
• Function: Push-to-Test, Spring Return
• Power Rating: 3 VA
• Mounting: Panel Mount
• Contact Type: 1 C/O
• Enclosure Rating: NEMA 4/13, Class I Div 2 Group A B C D, Class II
• UPC: 78590117852

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 9001KT38
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Motor Control Part And Accessory
• Voltage : 120 AC
• Amperage : 4000
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : Draw-Out
• Functions : LIG - Long-Time, Instantaneous and Ground Fault
• Protection : Solid State

Product Data

• UPC : 3389118039148
• GTIN : 03389118039148
• Country of Origin : Mexico
• Weight : 0.39
• Certification : CE, CSA LR25490 Class 3211 03, REACH, RoHS, UL E42259 CCN NKCR, WEEE
