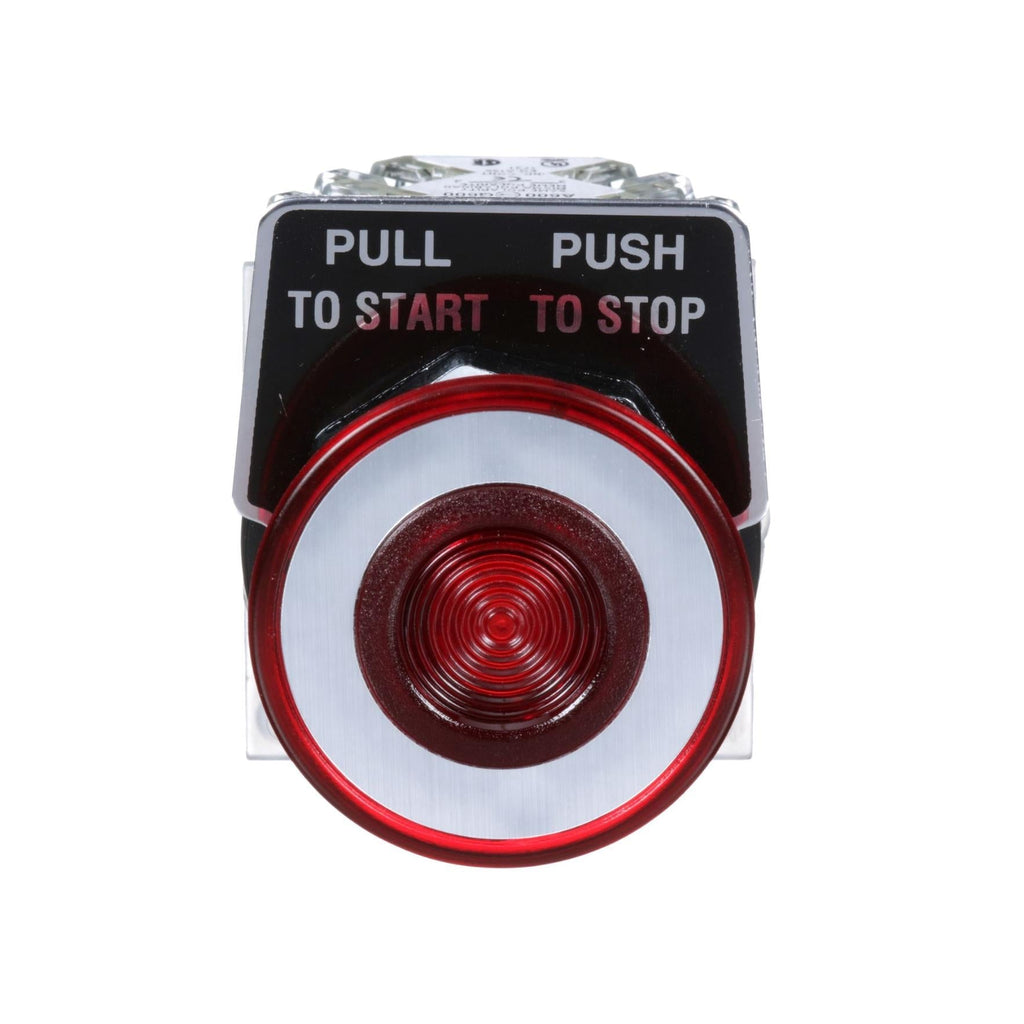

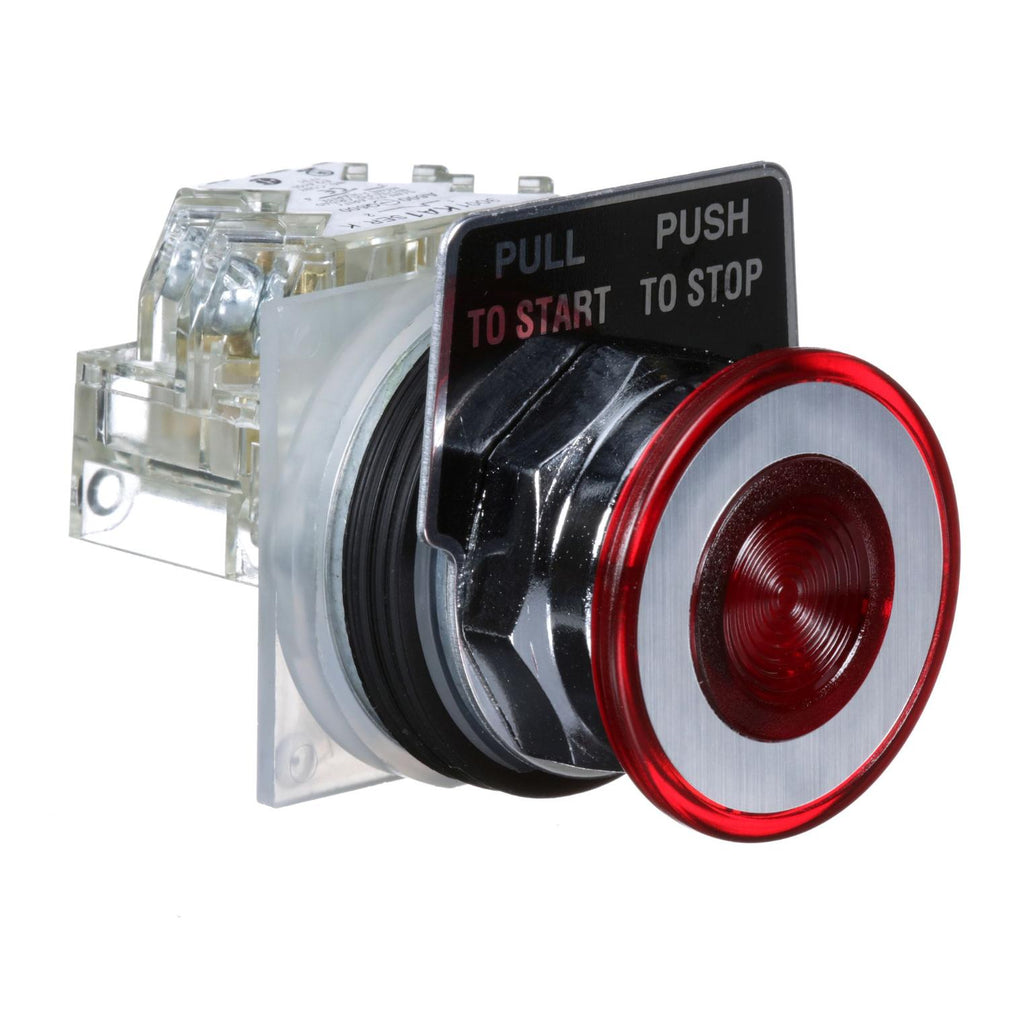

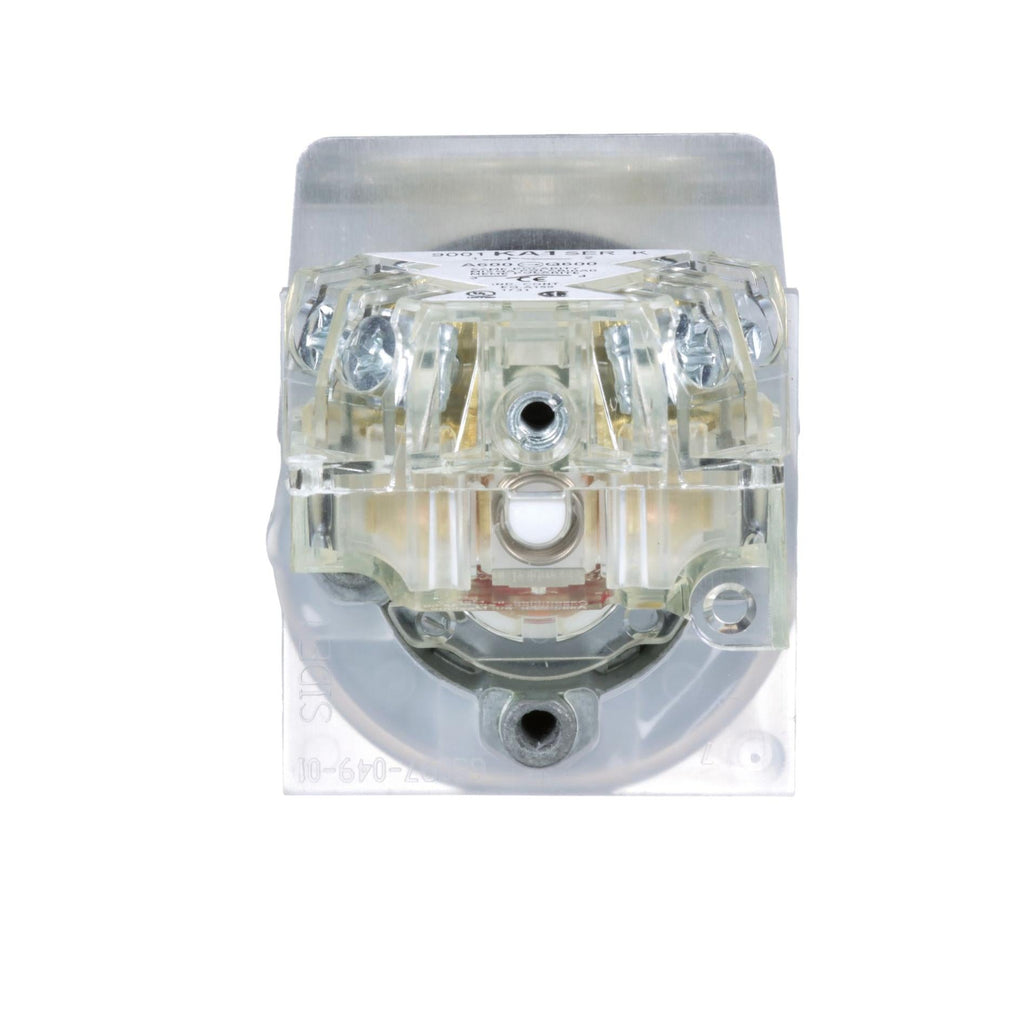

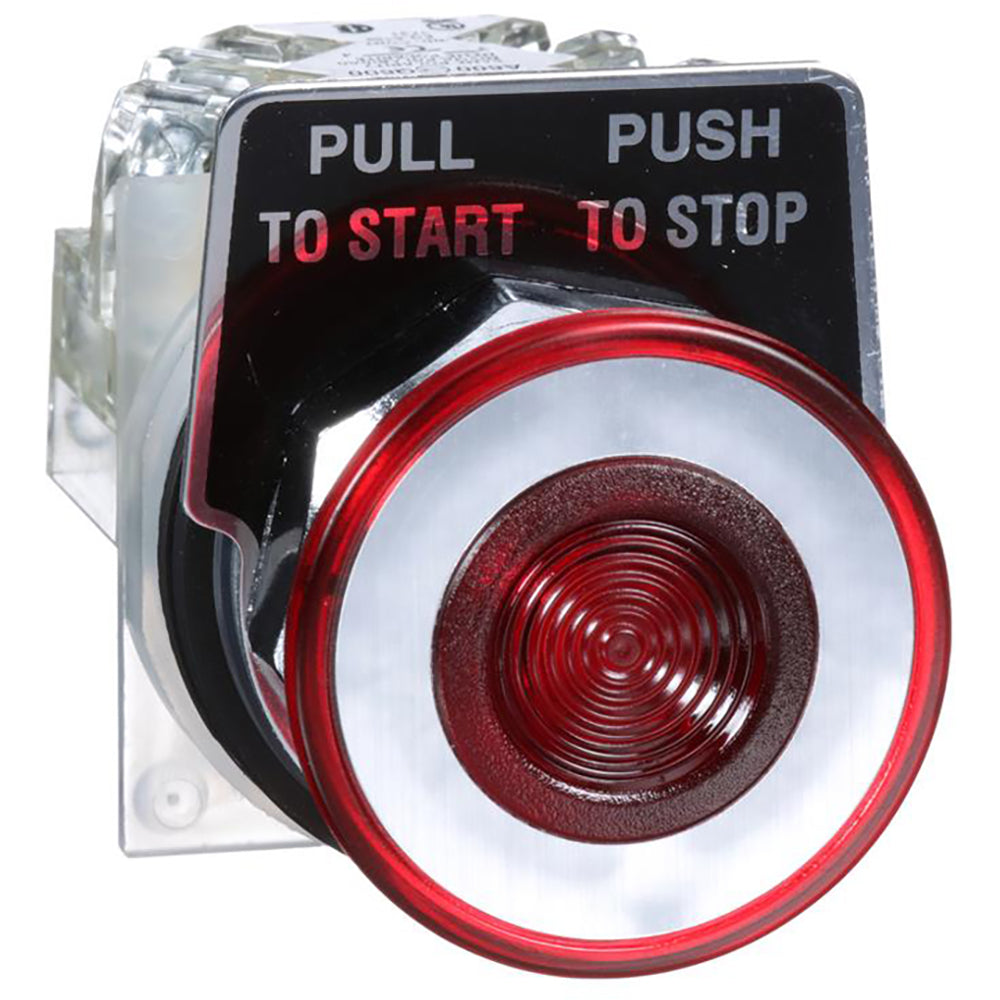

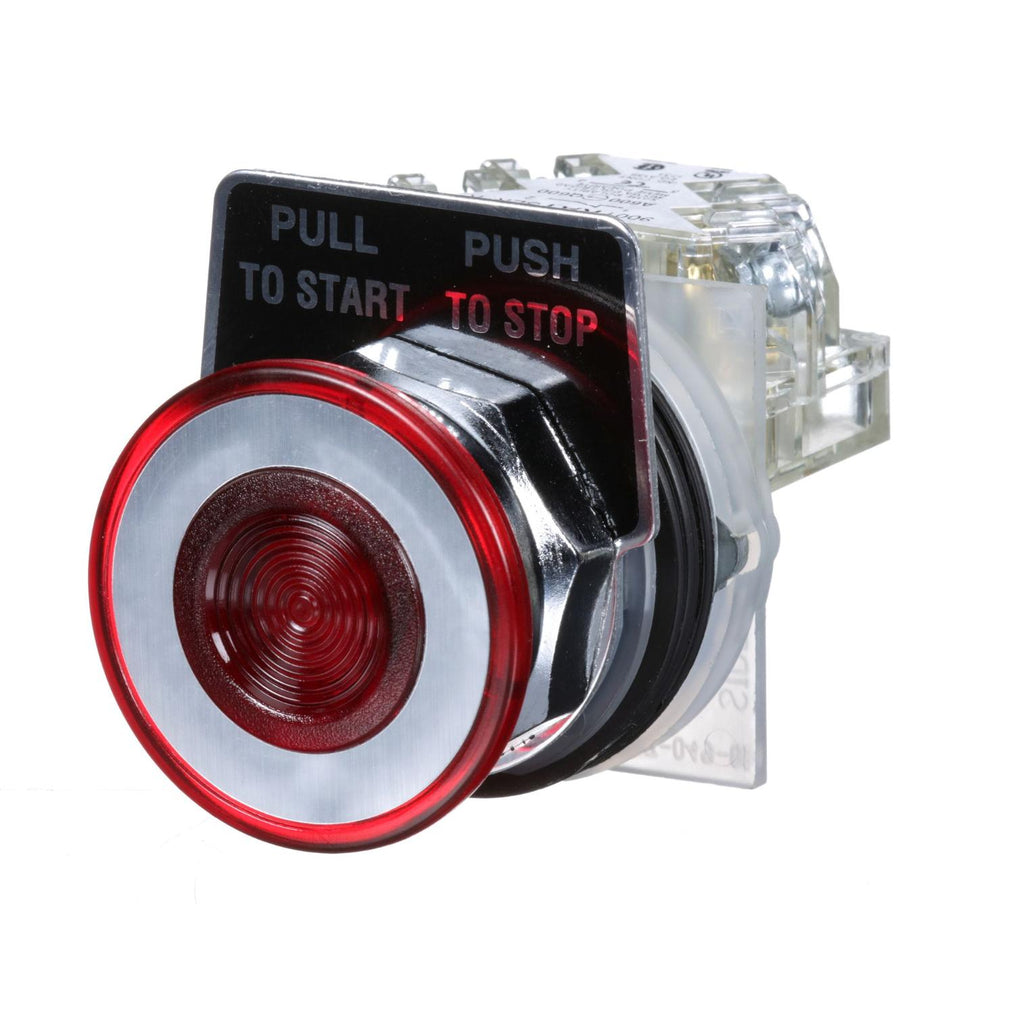

9001KR9RH13 - Square D 30mm Push-Pull Maintained Push Button 600VAC 10A 1NO 1NC

9001KR9RH13

9001KR9RH13 is a Square D 30mm push-pull maintained push button designed for reliable motor control applications.This robust 9001K series operator features a metal 30mm push-pull design with 1 normally open (NO) and 1 normally closed (NC) contact block, rated for 600 VAC and 10A. It is suitable for harsh industrial environments, offering watertight, dust-tight, and oil-tight protection with compatibility for NEMA 1/2/3/3R/4/6/12/13 enclosures. The operator includes screw clamp terminals and automatic self-grounding, requiring no additional wiring.

Key Specifications
• Type: Push-Pull Maintained Push Button
• Size: 30 mm
• Voltage Rating: 600 VAC
• Current Rating: 10 A
• Contacts: 1 Normally Open (NO), 1 Normally Closed (NC)
• Terminal Type: Screw Clamp
• Mounting: Panel Mount
• Series: 9001K
• Environmental Ratings: Watertight, Dust-tight, Oil-tight
• NEMA Enclosure Compatibility: 1/2/3/3R/4/6/12/13
• Certification: ABS Certified
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: 9001KR9RH13
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Pilot Device
• Section : Push button switch
• Family : 9001K 9001KR
• Temp Rating : -13–158 °F (-25–70 °C)



Product Data

• UPC : 785901821090
• GTIN : 785901848776
• Country of Origin : Mexico
• Weight : 0.32 lb
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C4520, JIS C852, REACH, RoHS, UL 508, WEEE
