Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Pilot Device
Description
9001KR9P1R

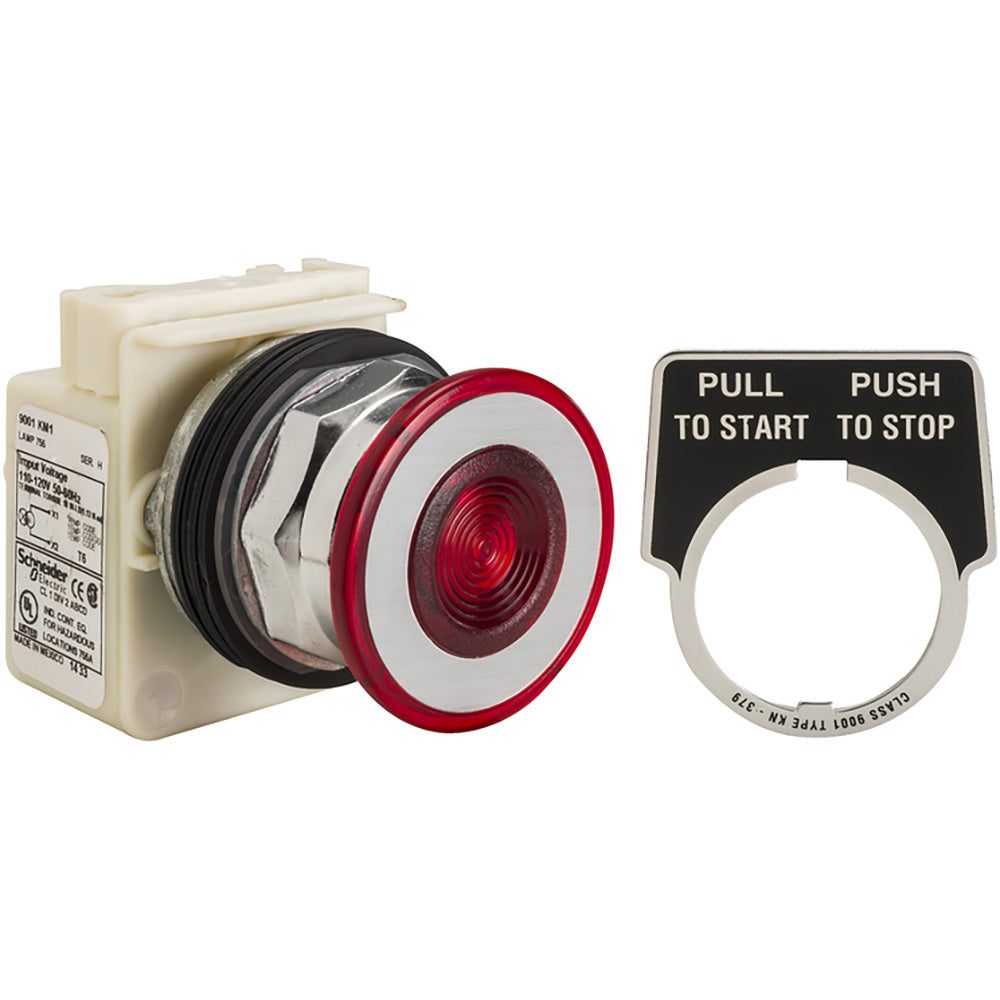

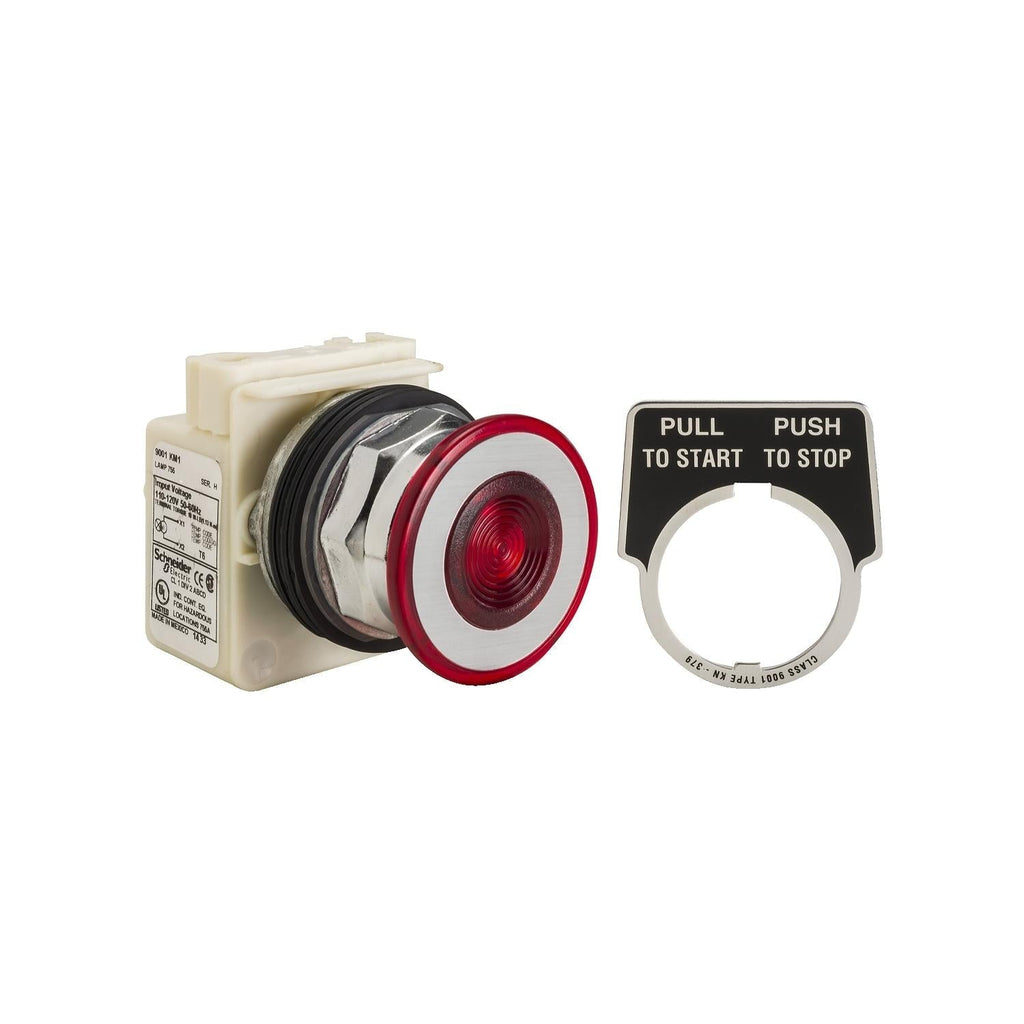

9001KR9P1R is a Square D illuminated mushroom push button operator designed for motor control applications.This 30 mm push-pull operator features a red flush mushroom head with a 2-position maintained contact mode and spring return. It is constructed with a metal bezel and is compatible with standard 30 mm panel cut-outs. The push button is rated for 600 volts AC and includes an LED lamp module powered by a 6V AC transformer.
- Key Specifications
- Manufacturer: Square D
- Part Number: 9001KR9P1R
- Operator Type: Illuminated Mushroom Push Button
- Head Diameter: 30 mm
- Color: Red
- Voltage Rating: 600 V AC
- Contact Mode: Maintained (2 positions)
- Mounting: Standard 30 mm panel cut-out
- Material: Metal bezel
- Lamp Type: LED with 6V AC transformer
- Actuator: Push-pull with spring return
- Part Number: 9001KR9P1R
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Motor Control
- Item Subcategory : Pilot Device
- Section : Push button switch
- Family : 9001K
- Voltage : 600 600
- UPC : 785901384373
- GTIN : 00785901384373
- Country of Origin : Mexico
- Weight : 0.54
- Certification : CE, UL, CSA
