Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Pilot Device
Description
9001KR9P1GH13

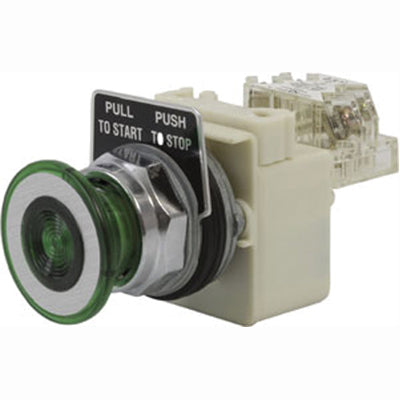

9001KR9P1GH13 is a Harmony 9001K illuminated green mushroom push button switch designed for industrial motor control applications. This push button features a 30mm panel cutout and a stay-put mechanism for reliable operation.Engineered for durability and ease of use, the 9001KR9P1GH13 offers a two-position push-pull action with a 1 CO (1NO-1NC) contact configuration. The illuminated green lens provides clear status indication, and the mushroom actuator is ideal for emergency or frequent use scenarios. The switch is compatible with standard 30mm mounting panels and is suitable for a wide range of industrial control systems.
- Part Number: 9001KR9P1GH13
- Manufacturer: Square D
- Series: Harmony 9001K
- Mounting Type: 30mm Panel Cutout
- Actuator Type: Mushroom, Round
- Switch Function: On-On (Push-Pull, Stay-Put)
- Current Rating: 10A (AC/DC)
- Voltage Rating: 110-120V
- Contact Configuration: 1 CO (1NO-1NC)
- Lens Color: Green
- Operation Type: Maintained Pull/Maintained Push
- Application: Motor Control
Specifications
- Part Number: 9001KR9P1GH13
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Motor Control
- Item Subcategory : Pilot Device
- Section : Push button switch
- Family : 9001K
- Voltage : 120 AC
Product Data
- UPC : 785901034155
- GTIN : 785901034155
- Country of Origin : Mexico
- Weight : 0.59
- Certification : CE, CSA LR25490 Class 3211 03, REACH, RoHS, UL E42259 CCN NKCR, WEEE
