Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Motor Control Part And Accessory
Description
9001KP35LGG31

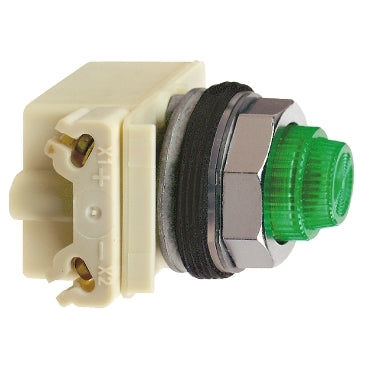

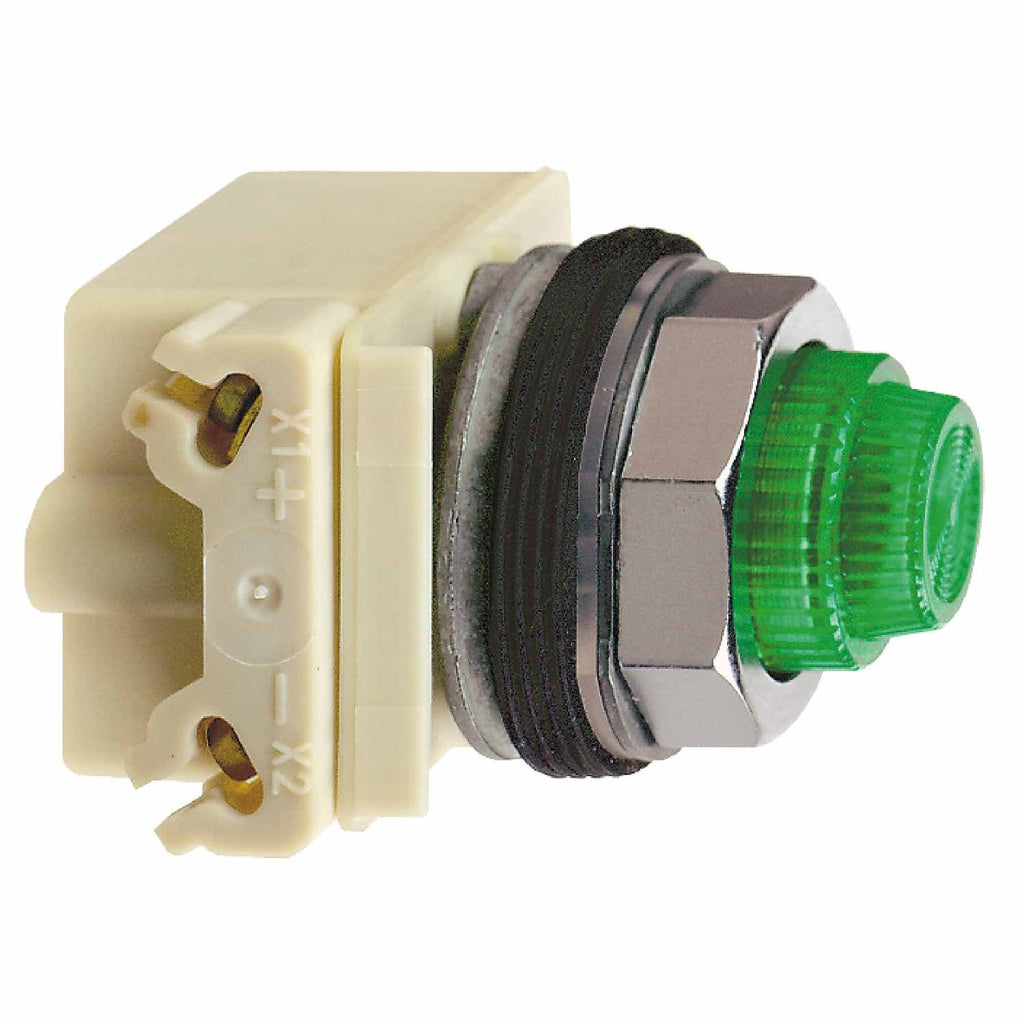

9001KP35LGG31 is a Harmony 9001K pilot light from Square D designed for industrial control applications with a green LED indicator and direct light block supply. This illuminated pushbutton features a metal and glass fresnel lens construction rated for 250V AC at 10A, making it suitable for harsh industrial environments. The 30mm mounting diameter and screw clamp electrical connection provide flexible installation options across standard control panels.
- Series: Harmony 9001K
- Light Source: Green LED
- Coil Voltage: 24-28V AC/VDC
- Rated Insulation Voltage: 250V AC
- Current Rating: 10A
- Mounting Diameter: 30mm
- Lens Material: Metal and Glass with Fresnel Design
- Electrical Connection: Screw Clamp
- IP Rating: IP66
- Operating Temperature: -25 to 70 degrees Celsius
- Vibration Resistance: 7 gn (f=2-500 Hz) per IEC 60068-2-6
- Safety Class: Class II per IEC 61140
Specifications
- Part Number: 9001KP35LGG31
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Motor Control
- Item Subcategory : Motor Control Part And Accessory
Product Data
- UPC : 785901032786
- GTIN : 03389110916638
- Country of Origin : Mexico
- Weight : 0.31
