9001KA53 - Square D Harmony Contact Block 3A 240V 1NC Power Reed

SKU: 9001KA53-New
Condition: New
Price:
$103.64
Stock:
3 in stock
Limited availability — we'll confirm stock immediately after your order.

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

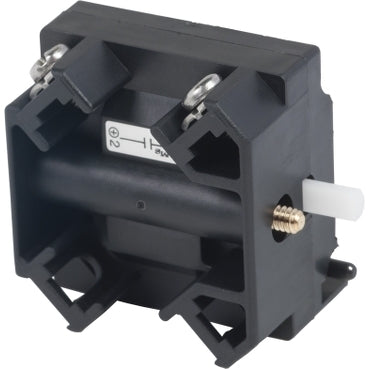

9001KA53 - Essential Electric Supply

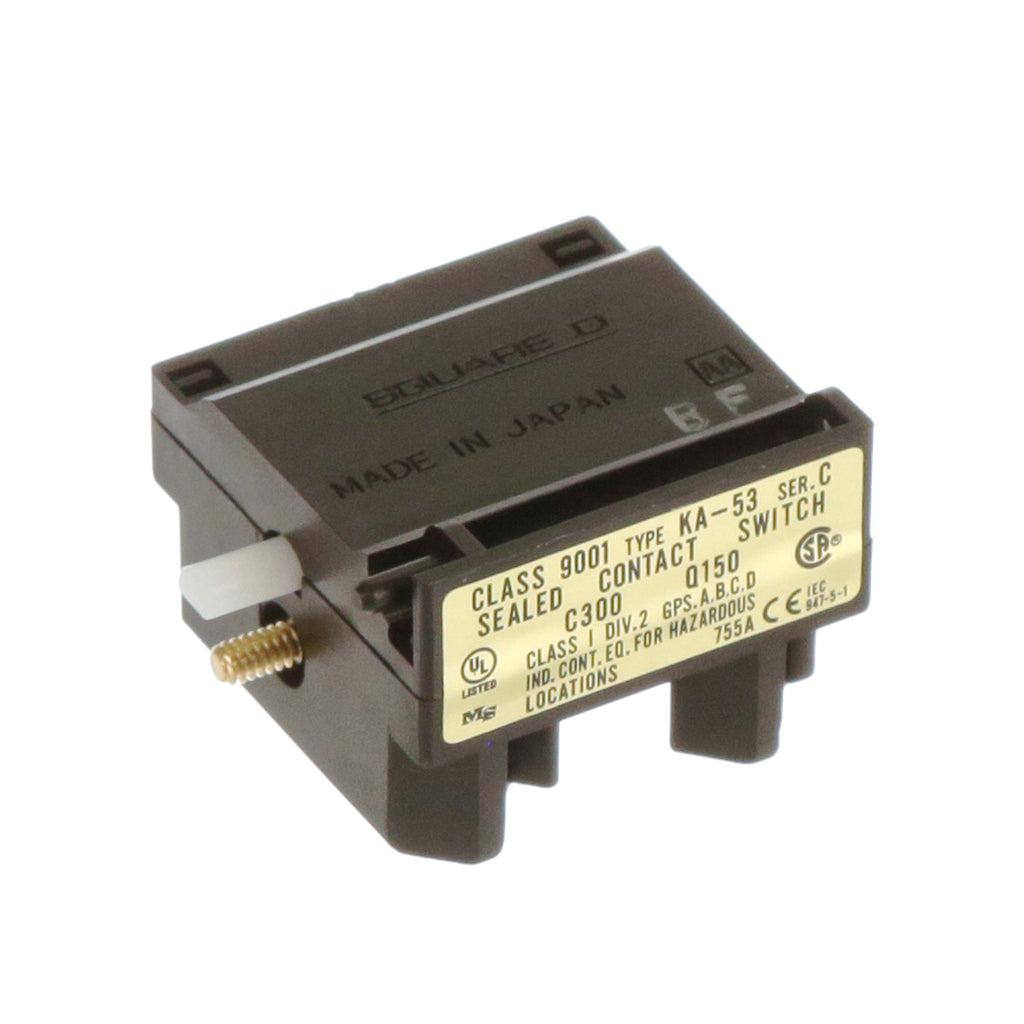

9001KA53 - Square D Class 9001 Contacts - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
9001KA53 - Essential Electric Supply
9001KA53 - Square D Class 9001 Contacts - Essential Electric Supply

Description

9001KA53


9001KA53 is a Square D Harmony Class 9001K motor control contact block designed for push button and selector switch applications. This power reed contact block features hermetically sealed contacts with positive opening action and is compatible with Harmony 9001K and 9001SK 30mm control units.Technical Specifications: The contact block operates with a momentary action and includes 1 normally closed (1NC) contact configuration. It is rated for 3 amperes at 240V AC or 115V DC, with a rated insulation voltage of 250V and impulse withstand voltage of 2.5 kV. The screw clamp terminals accommodate wire sizes from 24 to 12 AWG (0.22 to 2.5 mm² IEC 60947-1) with a tightening torque of 0.8 N.m. The contact material is silver alloy, and the enclosure type is IP20. Operating temperature range is -13 to 158 degrees Fahrenheit. The unit includes an amorphous nylon housing, stainless steel spring, and steel mounting hardware. Short-circuit protection is provided by a 10A cartridge fuse per IEC 60947-5-1.
  • Part Number: 9001KA53
  • Manufacturer: Square D
  • Series: 9001K
  • Contact Configuration: 1NC (1 Normally Closed)
  • Contact Rating: 3A at 240V AC / 115V DC
  • Contact Material: Silver Alloy
  • Operator Type: Power Reed, Hermetically Sealed
  • Terminal Type: Screw Clamp
  • Wire Size: 24 to 12 AWG
  • Rated Insulation Voltage: 250V
  • Impulse Withstand Voltage: 2.5 kV
  • Operating Temperature: -13 to 158 degrees Fahrenheit
  • Certifications: UL 508 File No. E42259, RoHS Compliant
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: 9001KA53
  • Manufacturer : Schneider Electric
  • Brand : Schneider Electric
  • Category : Motor Control
  • Item Subcategory : Motor Control Part And Accessory
  • Section : Contacts
  • Family : Class 9001
  • Type : KA

Product Data

  • UPC : 785901827511
  • GTIN : 03389118042520
  • Country of Origin : Mexico
  • Weight : 0.088
  • Certification : CSA C22.2 No.14, EN, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, JIS C4520, JIS C852, UL 508
