2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Parts & Accessories
Description
9001KA51

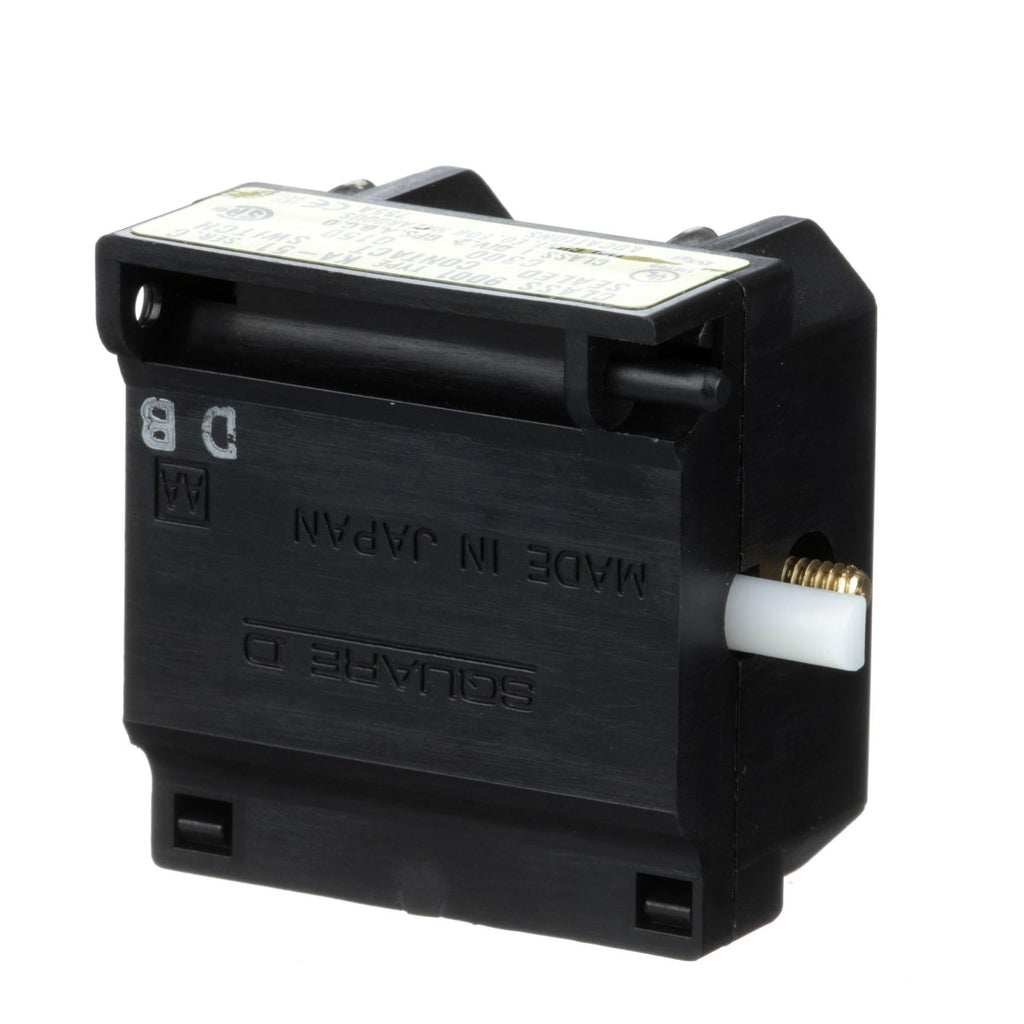

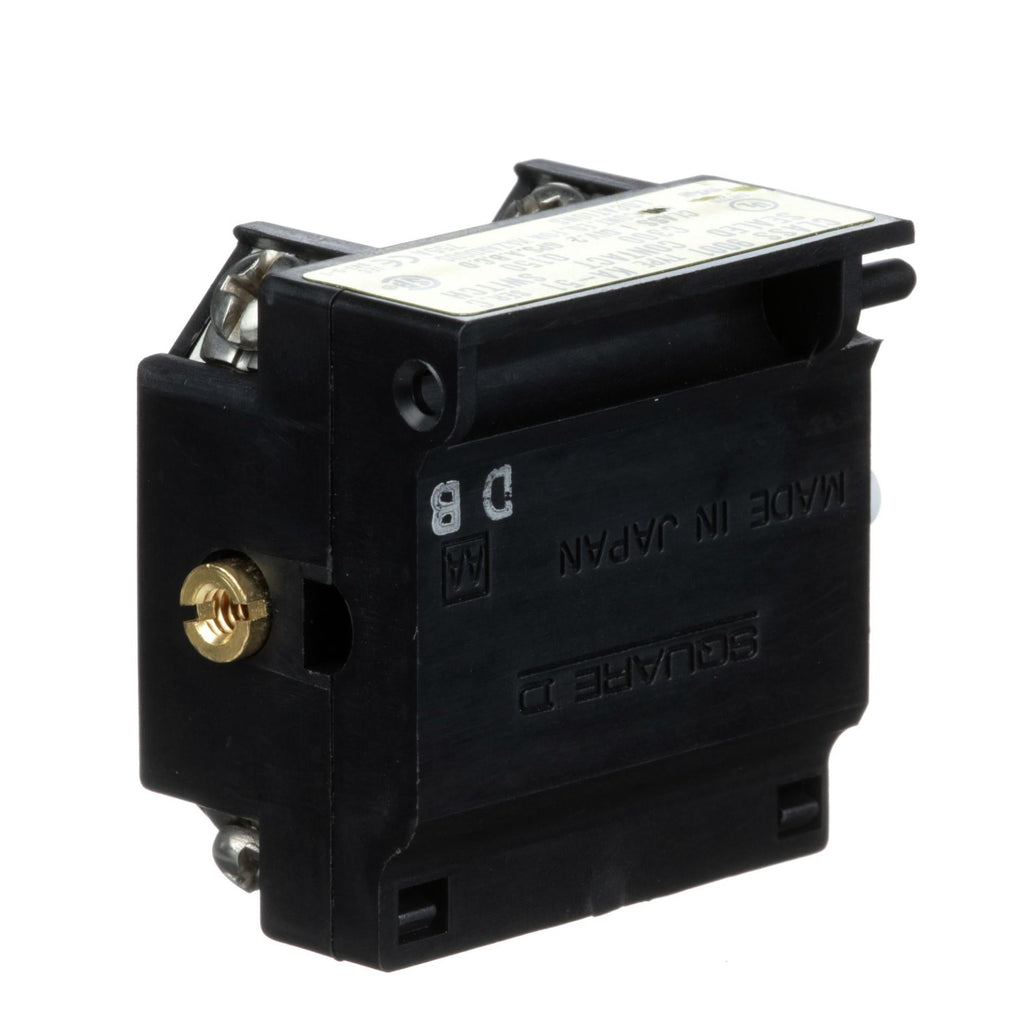

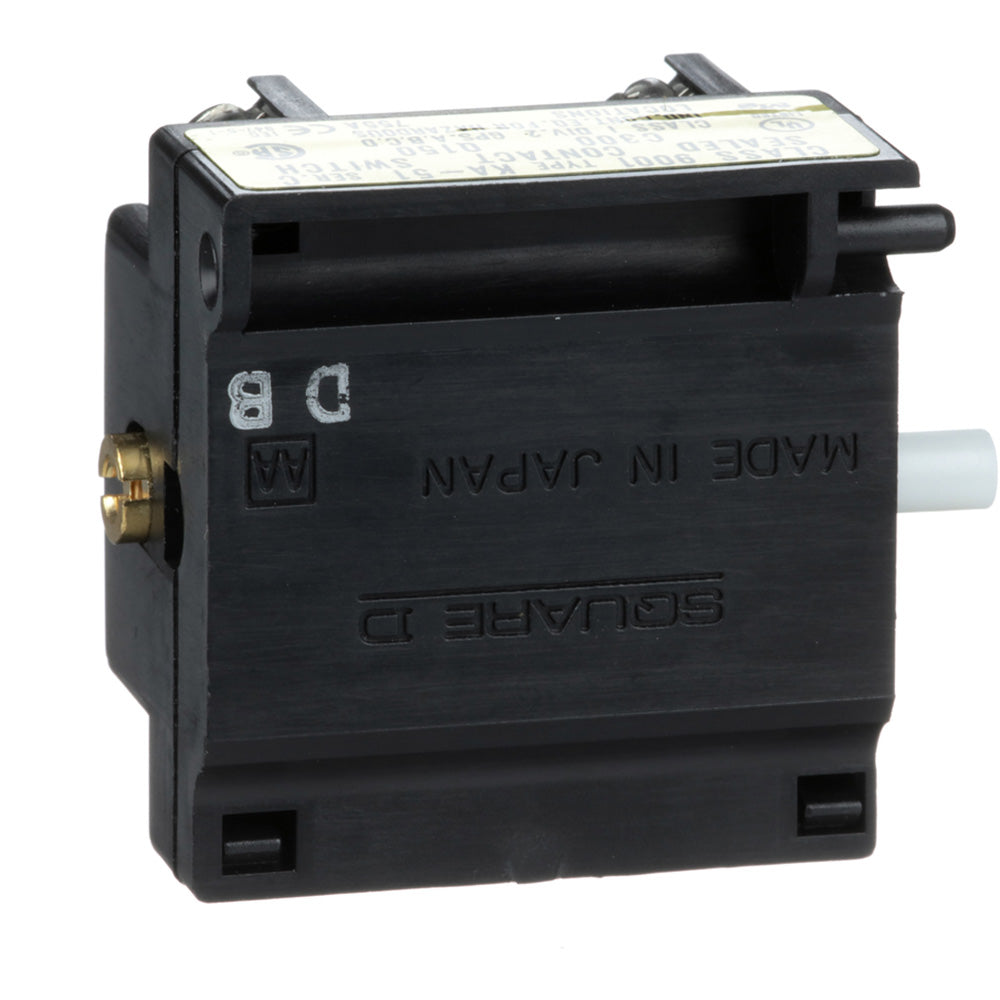

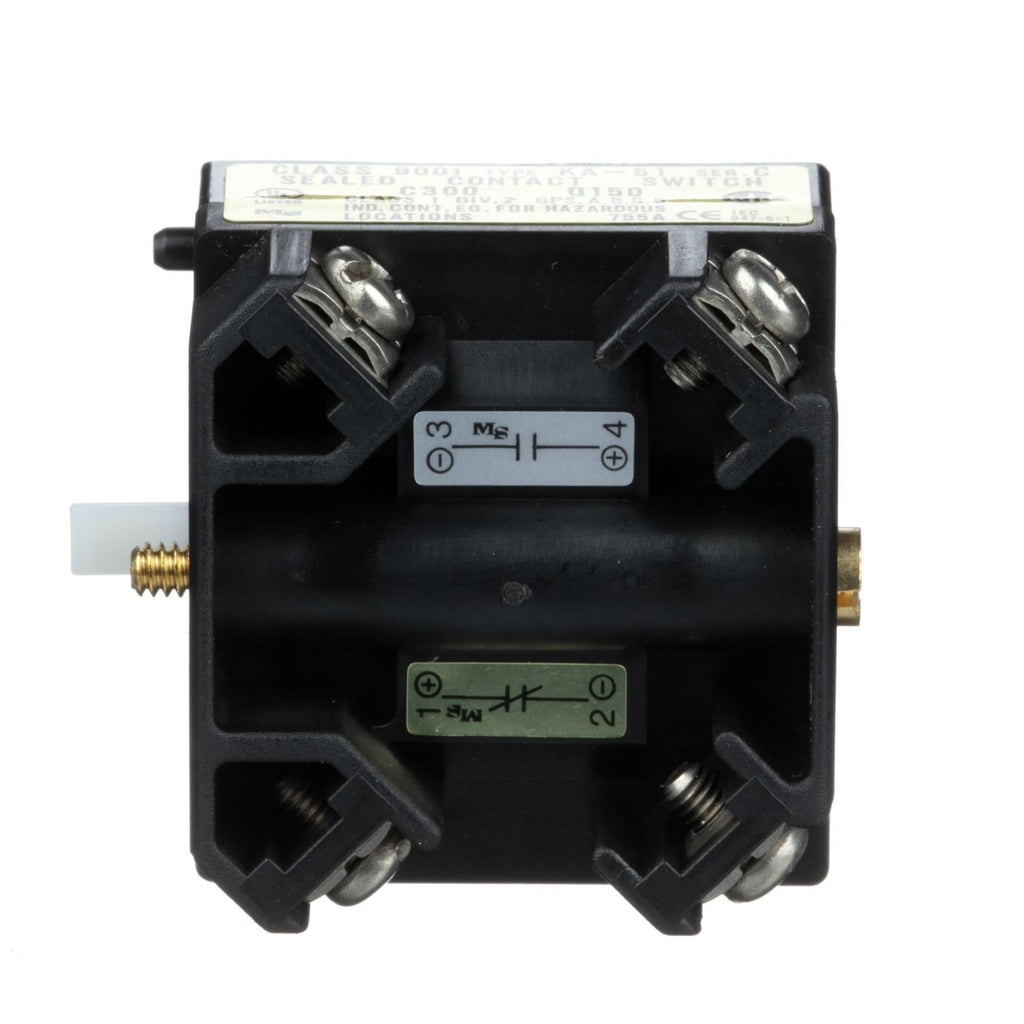

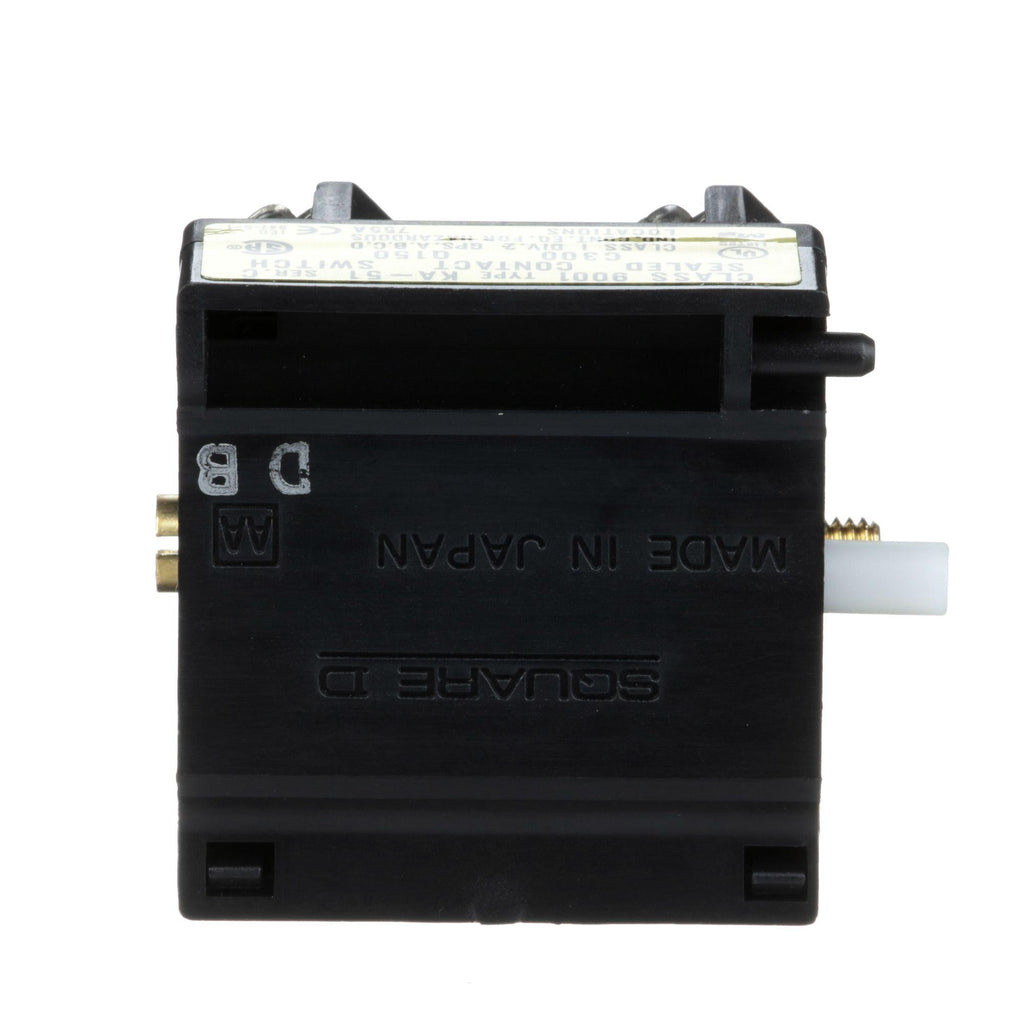

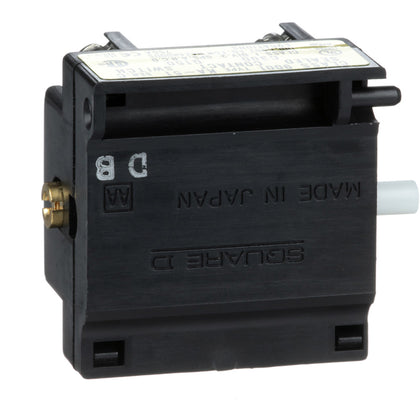

9001KA51 is a Square D contact block designed for 30mm pushbutton switches, providing reliable switching with a 3 ampere rating.This contact block features a 1 normally open (NO) and 1 normally closed (NC) contact configuration with silver alloy contacts and screw clamp terminals. It is rated for 240VAC and 115VDC operation and is part of the Harmony 9001K series. The compact 30mm size and hermetically sealed reed type contacts ensure durability and long service life. It is UL, CSA, and CE approved for safety and performance.
- Key Specifications
- Amperage: 3A
- Voltage Rating: 240VAC / 115VDC
- Contact Configuration: 1NO / 1NC
- Contact Material: Silver Alloy
- Terminal Type: Screw Clamp
- Size: 30mm
- Series: Harmony 9001K
- Approvals: UL, CSA, CE
- Contact Type: Hermetically Sealed Reed
- Mounting: For 30mm Pushbutton Switches
Specifications
- Part Number: 9001KA51
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Switch
- Item Subcategory : Parts & Accessories
- Section : Contact Blocks
- Type : Harmony 9001K Series
- Voltage : 240 ; 115
- Temp Rating : -13–158 °F (-25–70 °C)
Product Data
- UPC : 78590182749
- GTIN : 00785901827498
- Country of Origin : Mexico
- Weight : 0.106 lb
- Temp Rating : -13–158 °F (-25–70 °C)
- Certification : UL 508
