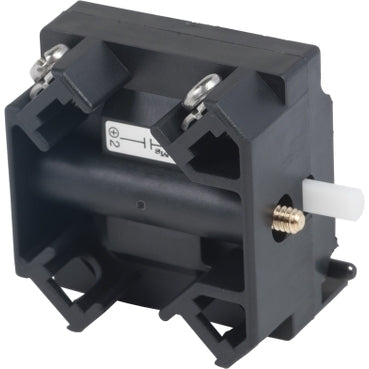

9001KA43 - Square D 30mm Hermetically Sealed Logic Reed Contact Block, 1NC, 0.5A at 120VAC, Screw Clamp Terminal

9001KA43

9001KA43 is a Square D 30mm hermetically sealed logic reed contact block with 1 normally closed (1NC) contact configuration and 0.5 A contact rating at 120 VAC/100 VDC.This contact block features a slow break operator, copper/silver contacts, and screw clamp terminals compatible with 18 to 14 AWG wire. It is designed for use with 9001K series pushbuttons and switches, offering robust performance in heavy industrial applications. The block is rated NEMA 1/2/3/3R/4/12/13 and IP66 for enclosure protection, made with amorphous nylon housing, and UL, CSA, and CE certified.

• Brand: Square D
• Part Number: 9001KA43
• Size: 30 mm
• Contact Configuration: 1 Normally Closed (1NC)
• Contact Rating: 0.5 A at 120 VAC/100 VDC
• Contact Type: Hermetically Sealed Logic Reed
• Terminal Type: Screw Clamp
• Operator Type: Slow Break
• Material: Amorphous Nylon Housing
• NEMA Rating: 1/2/3/3R/4/12/13
• Enclosure Protection: IP66
• Certifications: UL Listed, CSA Certified, CE Marked

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 9001KA43
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Motor Control Part And Accessory
• Section : Contacts
• Family : Class 9001
• Type : KA
• Voltage : 120

Product Data

• UPC : 785901498568
• GTIN : 03389118042575
• Country of Origin : Mexico
• Weight : 0.09
• Certification : CSA C22.2 No.14, EN, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, JIS C4520, JIS C852, UL 508
