9001K1L35GH13 - Square D Harmony 9001K Illuminated Push Button Switch, Green Flush, 10A, 24-28V AC/DC, 30mm, Spring Return

9001K1L35GH13

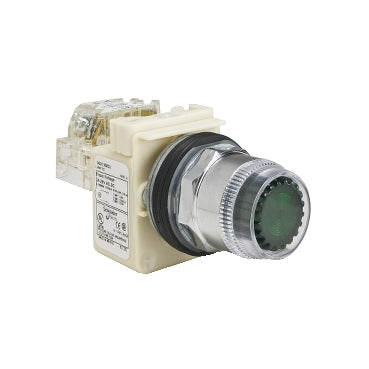

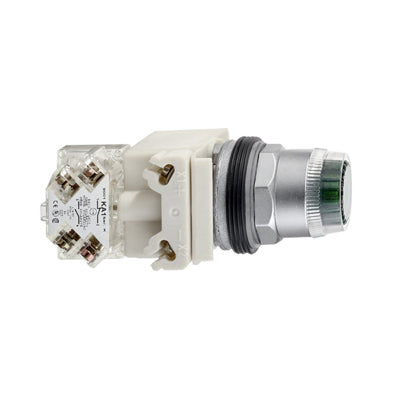

9001K1L35GH13 is a Square D Harmony 9001K series illuminated push button switch featuring a green flush operator and spring return mechanism.

This push button switch is rated for 10 Amps and operates at 24 to 28 Volts AC/DC. It has a 30mm mounting size and includes a plastic guard for protection. The operator profile is flush with a spring return type, suitable for various industrial control applications. It is designed for full voltage light block supply and is compatible with NEMA 1/2/3/3R/4/6/12/13 degree of protection environments.

• Manufacturer: Square D
• Series: Harmony 9001K
• Part Number: 9001K1L35GH13
• Operator Profile: Green flush
• Current Rating: 10 Amps
• Voltage Rating: 24-28 V AC/DC
• Mounting Size: 30 mm
• Type of Operator: Spring return
• Light Source: Incandescent
• Operator Additional Info: Plastic guard
• NEMA Degree of Protection: 1/2/3/3R/4/6/12/13

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 9001K1L35GH13
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Pilot Device
• Section : Push button switch
• Family : 9001K
• Voltage : 24 to 28 AC/DC
• Temp Rating : -13–158 °F (-25–70 °C)

Product Data

• UPC : 785901027294
• GTIN : 00785901027294
• Country of Origin : Mexico
• Dimensions : Depth 5.20 in (132 mm) Width 6.34 in (161 mm) Height 15.87 in (403 mm)
• Weight : 0.4
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : CE, CSA LR25490 Class 3211 03, REACH, RoHS, UL E42259 CCN NKCR, WEEE
