Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Control Stations
Description
9001BW94Y

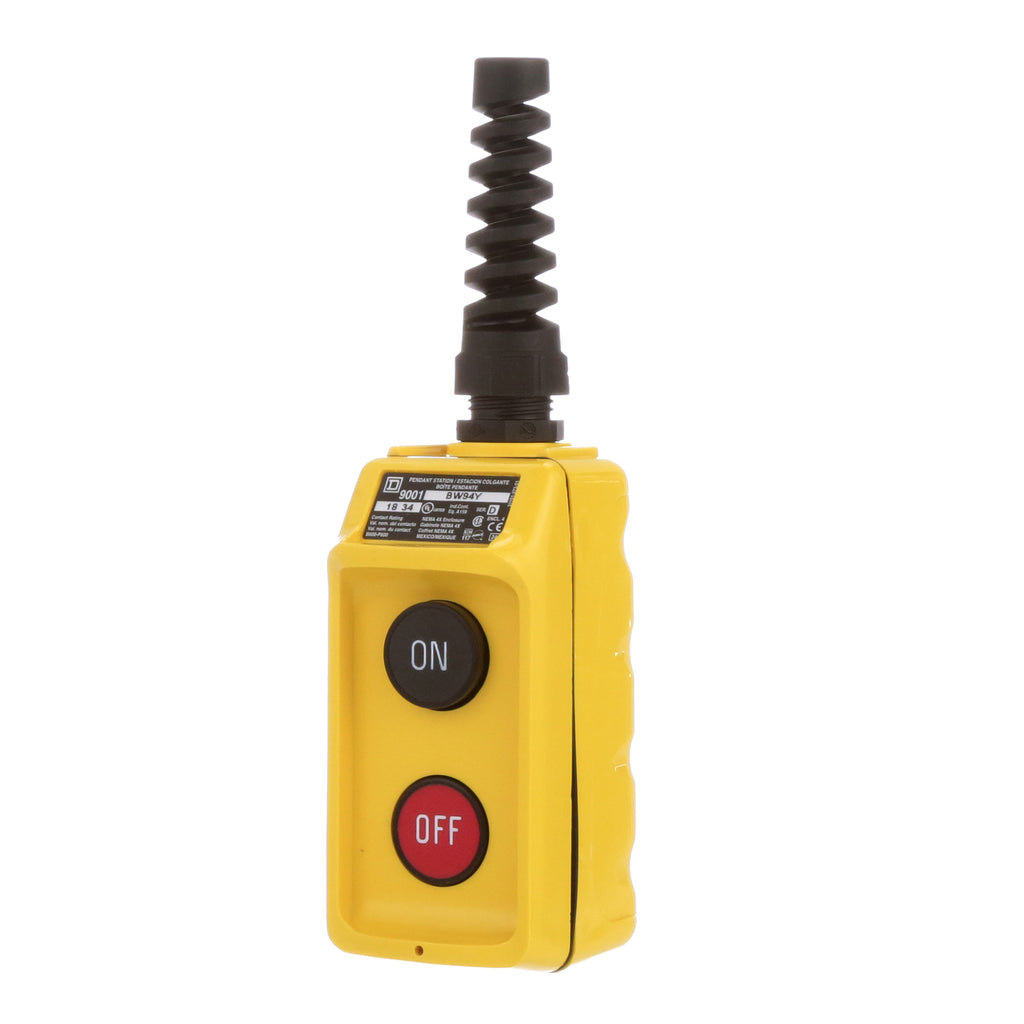

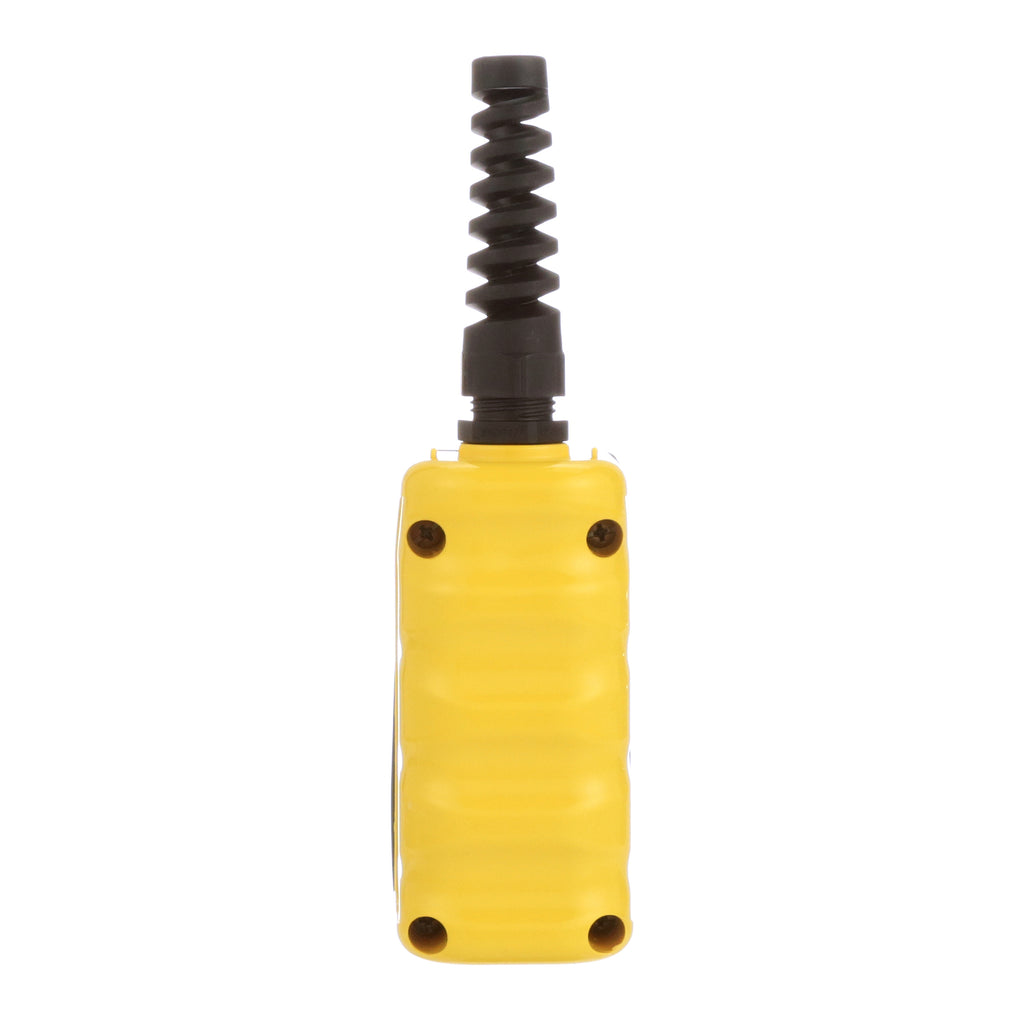

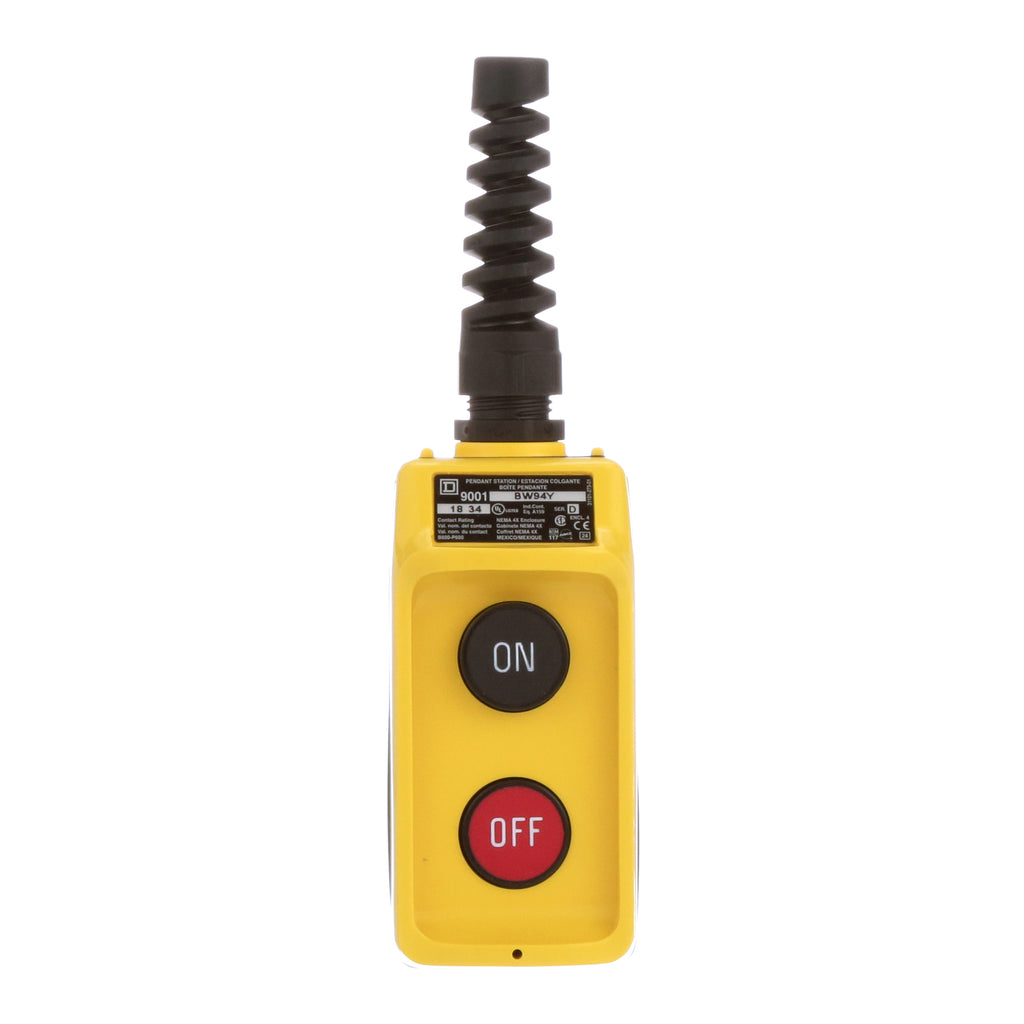

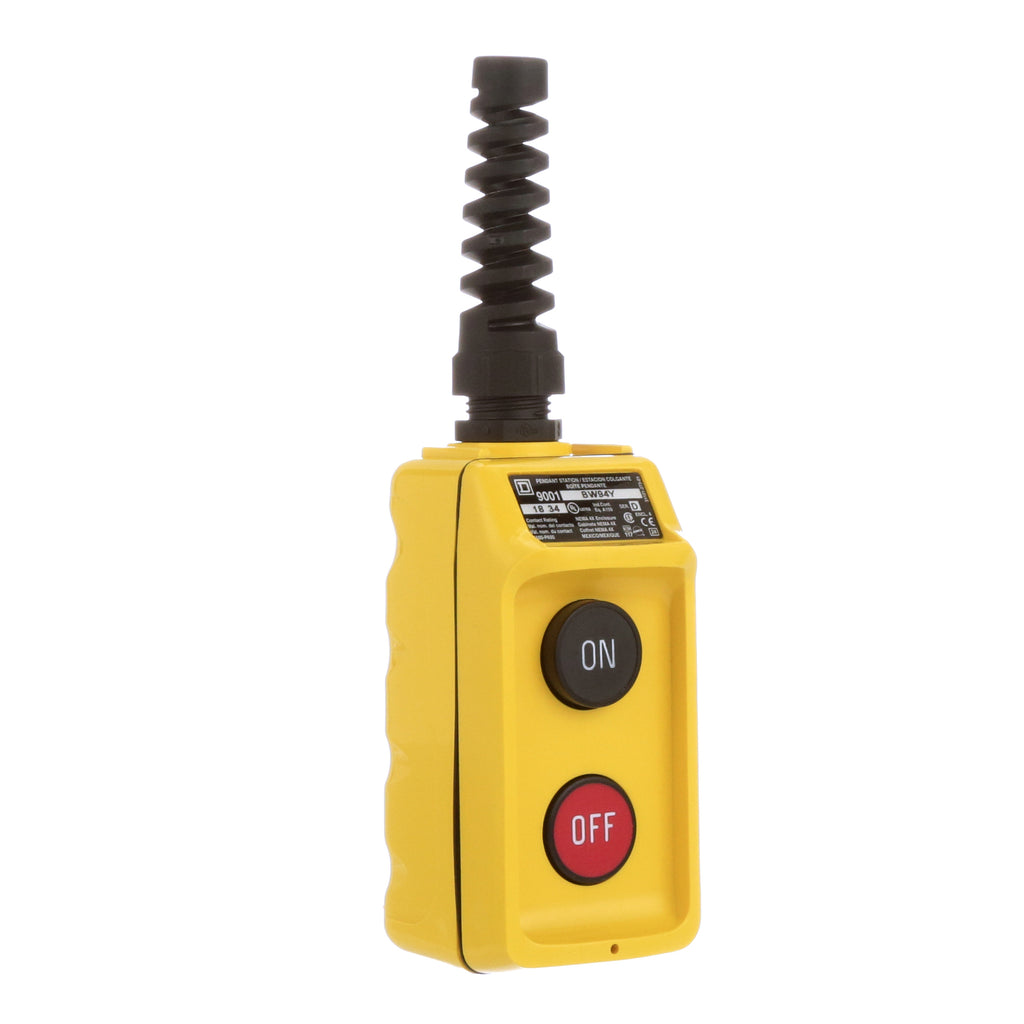

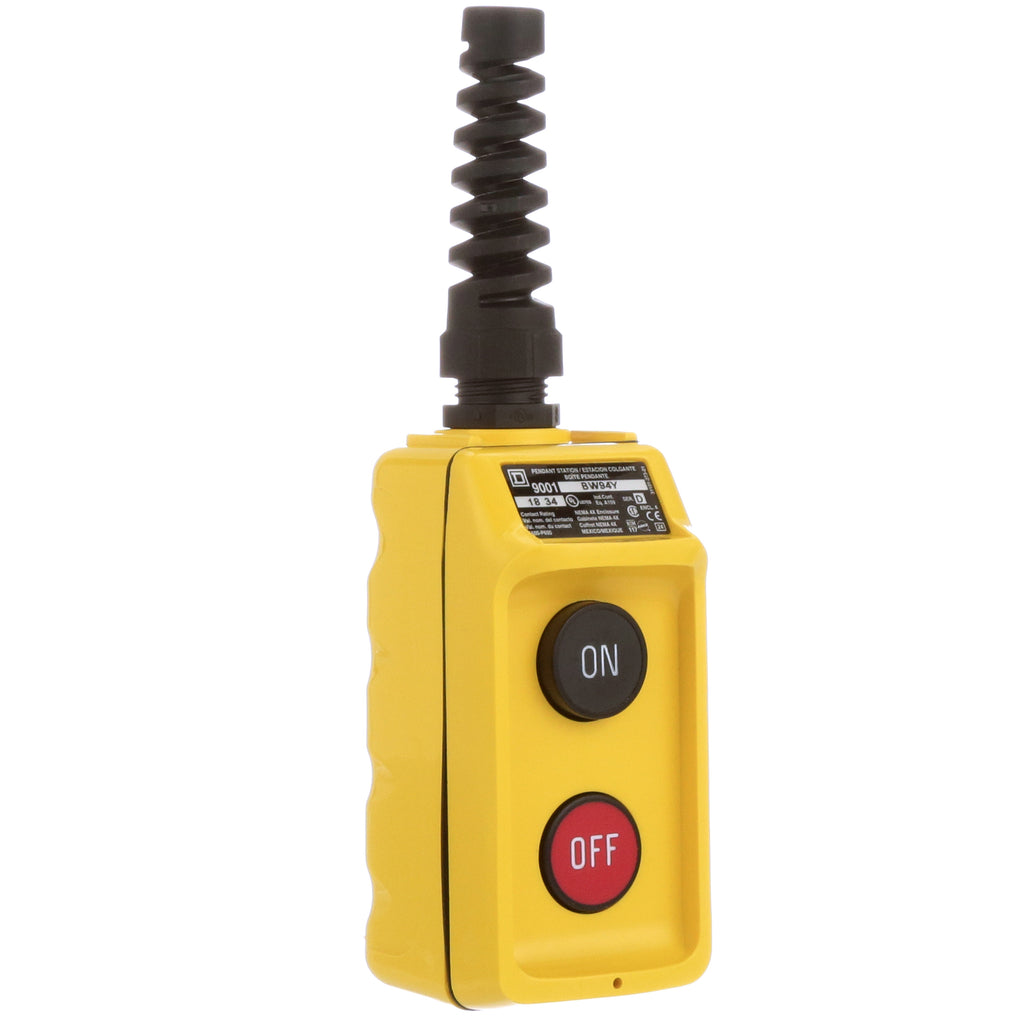

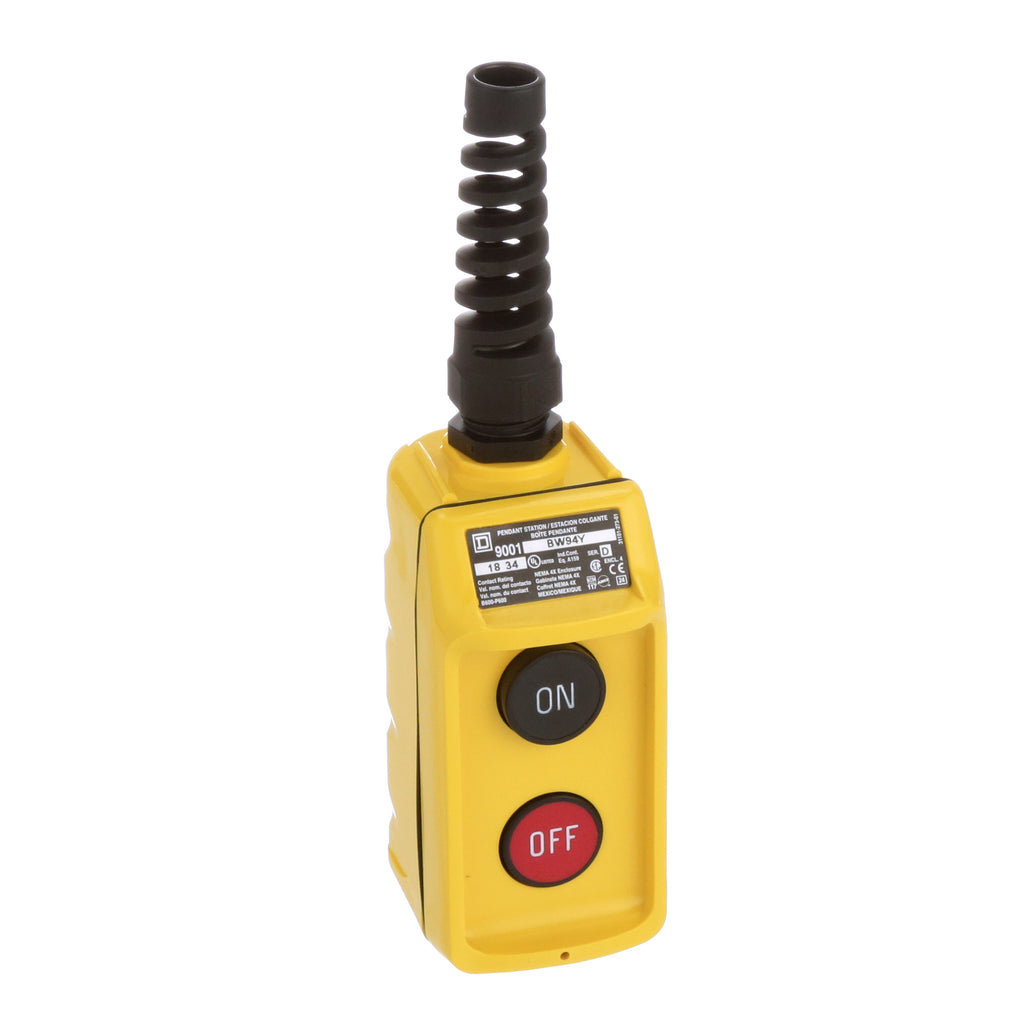

9001BW94Y is a Square D pendant station designed for motor control applications with a 5 amp, 600 volt AC rating and 3 poles.This pendant station features a mechanical interlock and is part of the Harmony 9001B series. It is constructed with a durable die-cast zinc enclosure, suitable for harsh environments, and offers double insulation for safety. The control station includes 1 normally open and 1 normally closed contact configuration, marked with an ON/OFF legend for easy operation.
- Key Specifications
- Manufacturer: Square D
- Part Number: 9001BW94Y
- Series: Harmony 9001B
- Current Rating: 5 Amps
- Voltage Rating: 600 VAC
- Poles: 3
- Mounting Type: Pendant Station
- Material: Die-cast zinc enclosure
- Contact Configuration: 1 NO / 1 NC
- Mechanical Interlock: Yes
- Insulation: Double insulated
- Environmental Rating: Suitable for harsh environments
- Part Number: 9001BW94Y
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Motor Control
- Item Subcategory : Control Stations
- Section : Control Station
- Family : Harmony 9001B
- Type : 9001B Series
- Voltage : 600
- Amperage : 4000
- Phase : 3
- Poles : 3
- UPC : 78590107664
- GTIN : 00785901076643
- Country of Origin : Mexico
- Dimensions : 2.19 in x 4.69 in
- Weight : 0.75
- Certification : CE, CSA, UL Listed
