2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Control Stations
Description
9001BW91YU

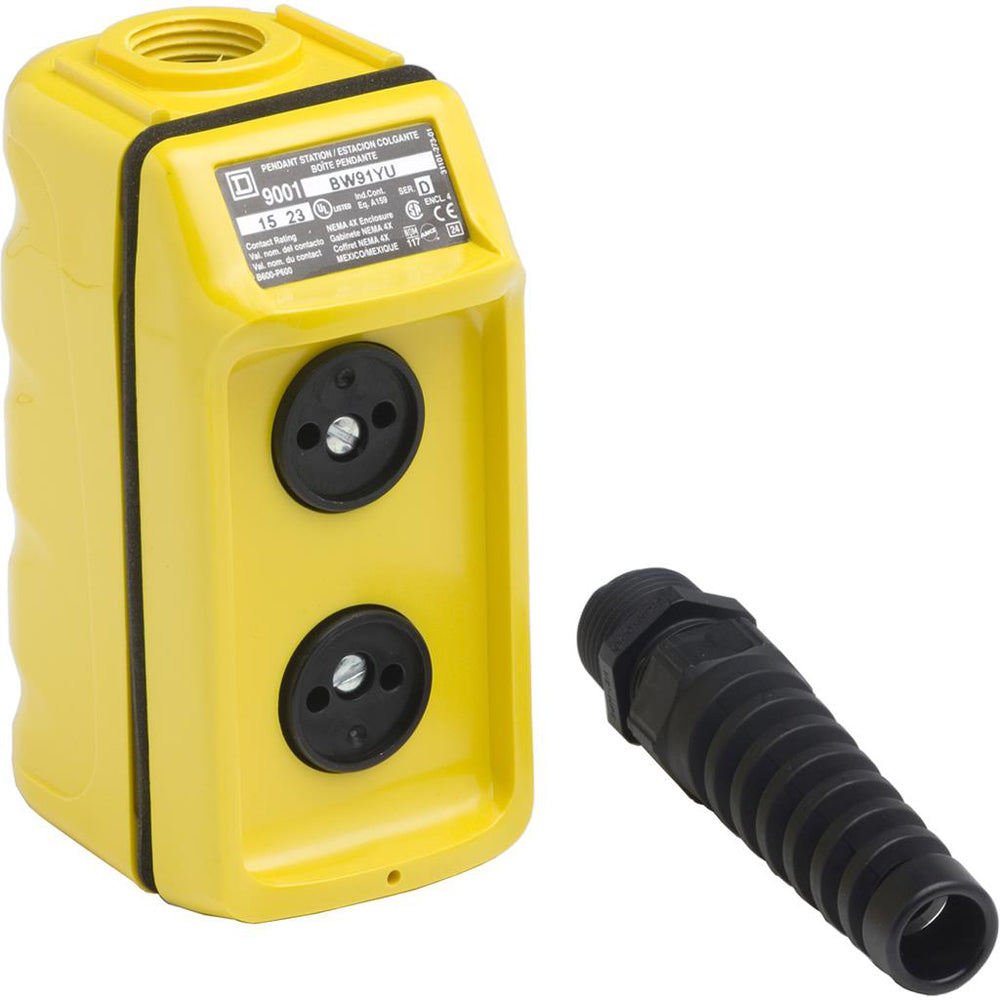

9001BW91YU is a Square D pendant control station featuring two push buttons with 2 normally open (NO) and 2 normally closed (NC) contacts, rated for 5 amps and 600 volts AC in a yellow enclosure.9001BW91YU offers robust control for motor applications with a durable die-cast zinc housing designed for harsh environments. It supports single-speed operation with momentary contact action, complies with UL and CSA certifications, and meets NEMA 1, 3, 3R, 4, 4X, and 13 standards for water, dust, oil, and corrosion resistance.
- Key Specifications
- Manufacturer: Square D
- Part Number: 9001BW91YU
- Control Type: Pendant Control Station
- Contact Configuration: 2NO/2NC
- Rated Current: 5 Amps
- Rated Voltage: 600V AC
- Enclosure Color: Yellow
- Mounting Type: Pendant
- Housing Material: Die-cast Zinc
- Standards: UL Listed, CSA Approved, CE Marked
- NEMA Ratings: 1, 3, 3R, 4, 4X, 13
- Contact Action: Momentary
Specifications
- Part Number: 9001BW91YU
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Motor Control
- Item Subcategory : Control Stations
- Family : 9001B
- Voltage : 600 600
Product Data
- UPC : 785901578079
- GTIN : 785901578079
- Country of Origin : Mexico
- Dimensions : 4.25 in H x 2.76 in W x 3.6 in D
- Weight : 0.76 lb
- Certification : CE, CSA, UL Listed
