Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Motor Control Part And Accessory
Description
9001BR204

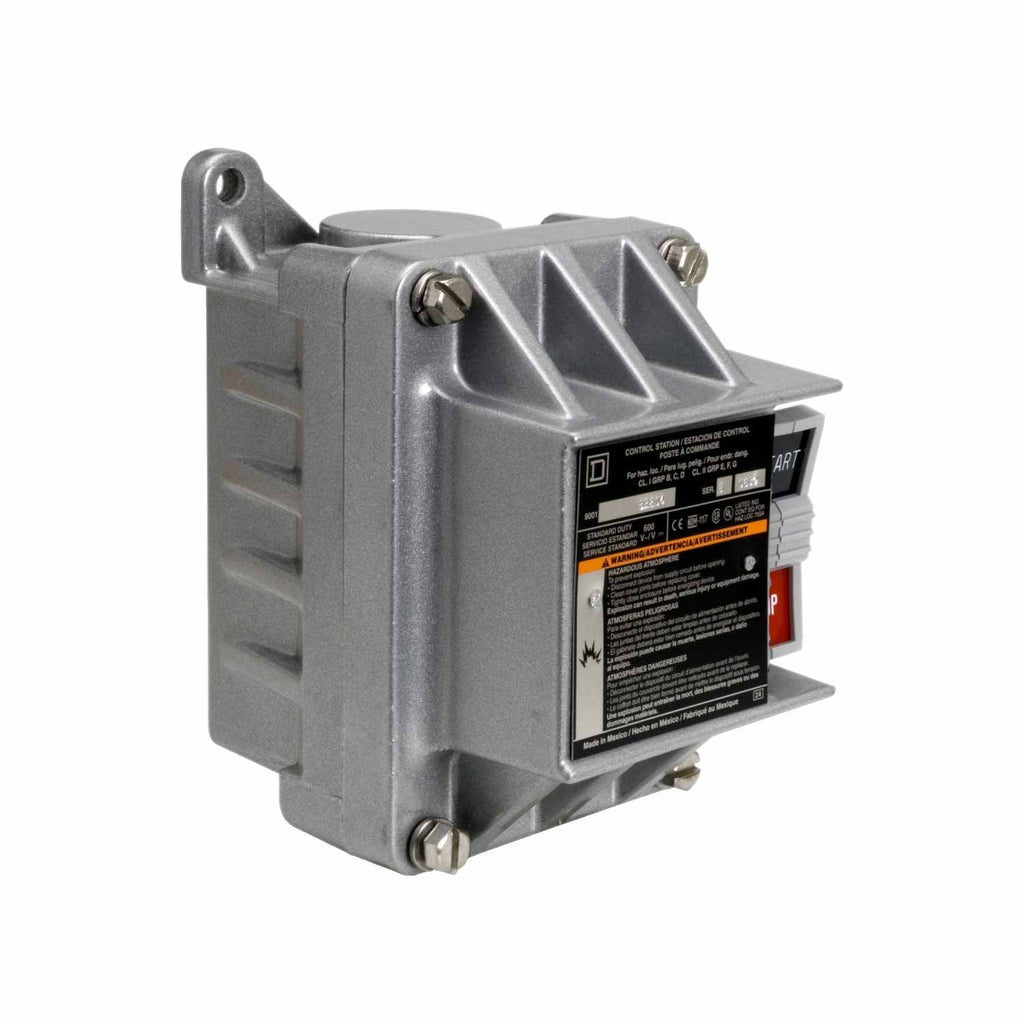

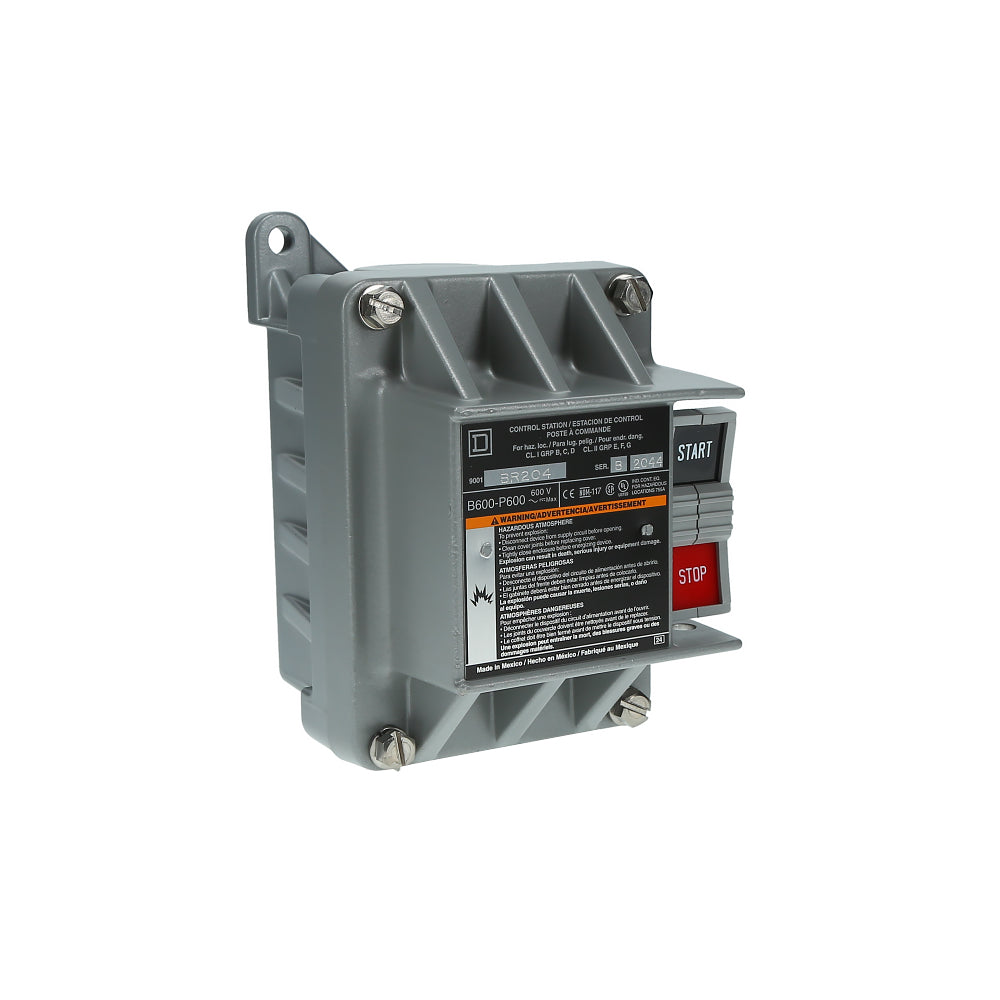

9001BR204 is a Square D Type B Control Station designed for industrial motor control applications. This control station features a 1 NO + 1 NC contact configuration and is rated for 5 Amps at 600 Volts AC. The rugged cast aluminum enclosure provides durability and protection in demanding environments, making it suitable for use in hazardous locations. The 9001BR204 is part of the 9001B Series and is built to meet UL, CSA, and CE standards. It is ideal for standard duty applications and offers reliable performance in both Class I and Class II hazardous locations. The surface mounting design allows for easy installation and integration into existing control systems.
- Part Number: 9001BR204
- Manufacturer: Square D
- Series: 9001B
- Amperage: 5 Amps
- Voltage: 600 VAC
- Contact Configuration: 1 NO + 1 NC
- Enclosure: NEMA 7/9, Cast Aluminum
- Mounting Type: Surface
- Interrupt Rating: 360 VA (Inductive Load, 35% PF)
- Approvals: UL, CSA, CE
- Hazardous Location: Class I Div 1/2 Group B C D, Class II Div 1/2 Group E F G
- Application: Standard Duty Motor Control
Specifications
- Part Number: 9001BR204
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Motor Control
- Item Subcategory : Motor Control Part And Accessory
- Section : Control Station
- Type : 9001B Series
Product Data
- UPC : 78590160088
- GTIN : 00785901600886
- Country of Origin : Mexico
- Weight : 3.569
- Certification : CE || CSA LR25490 class 3211 03 || UL listed file
