Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Motor Control Part And Accessory
Description
9001BG303

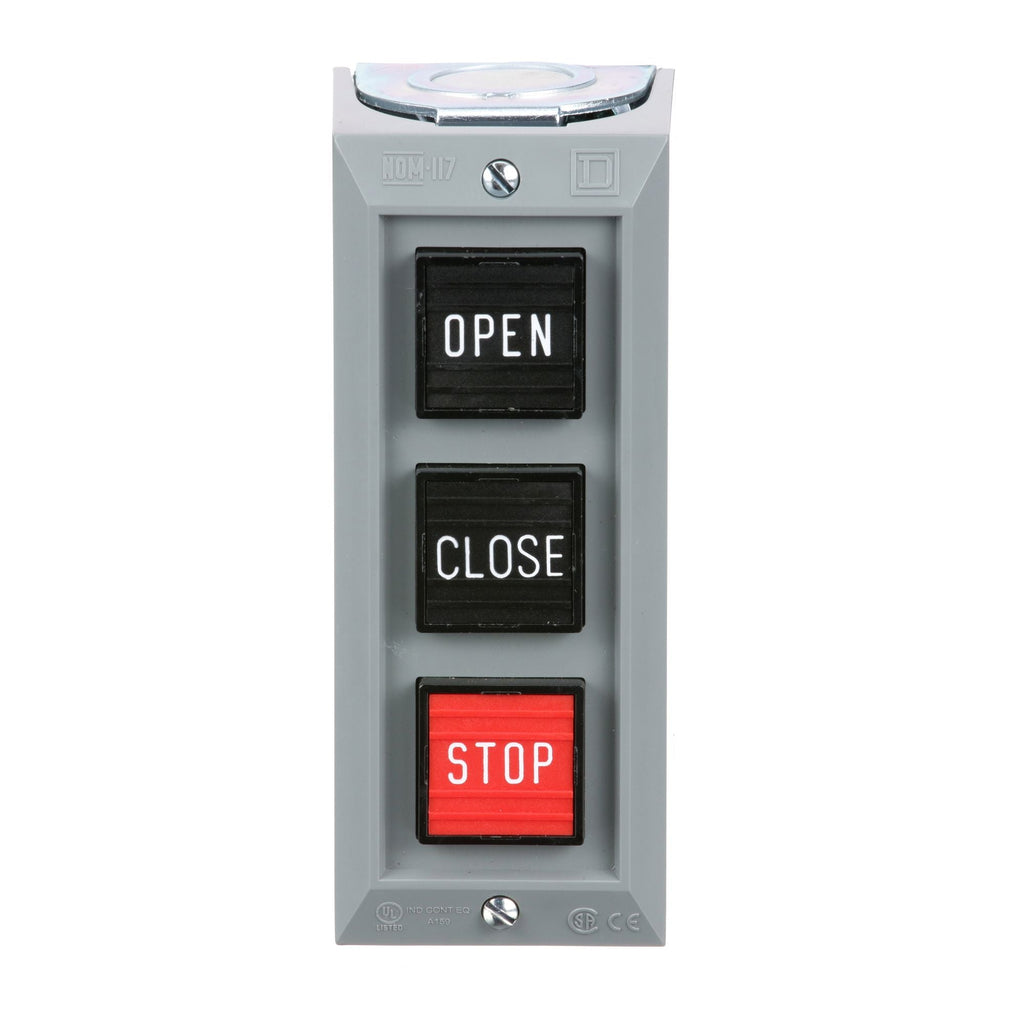

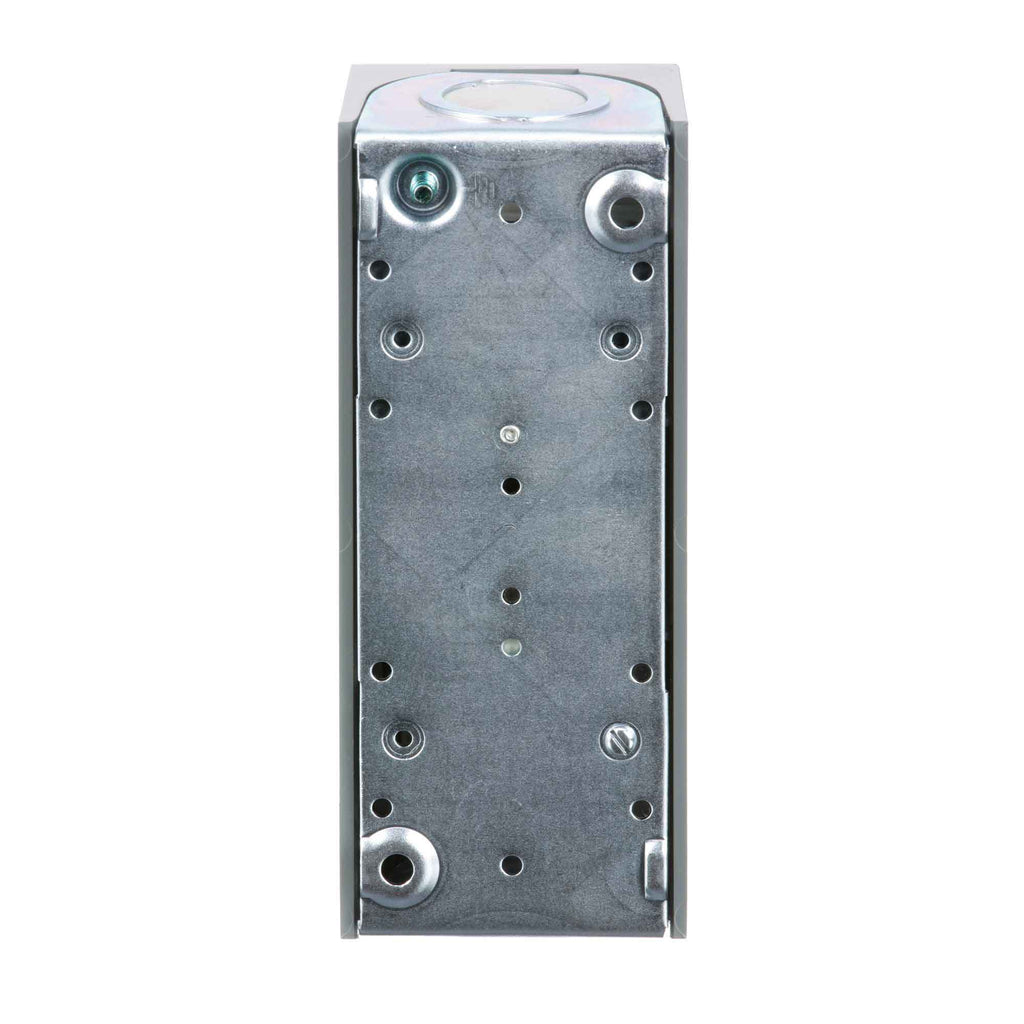

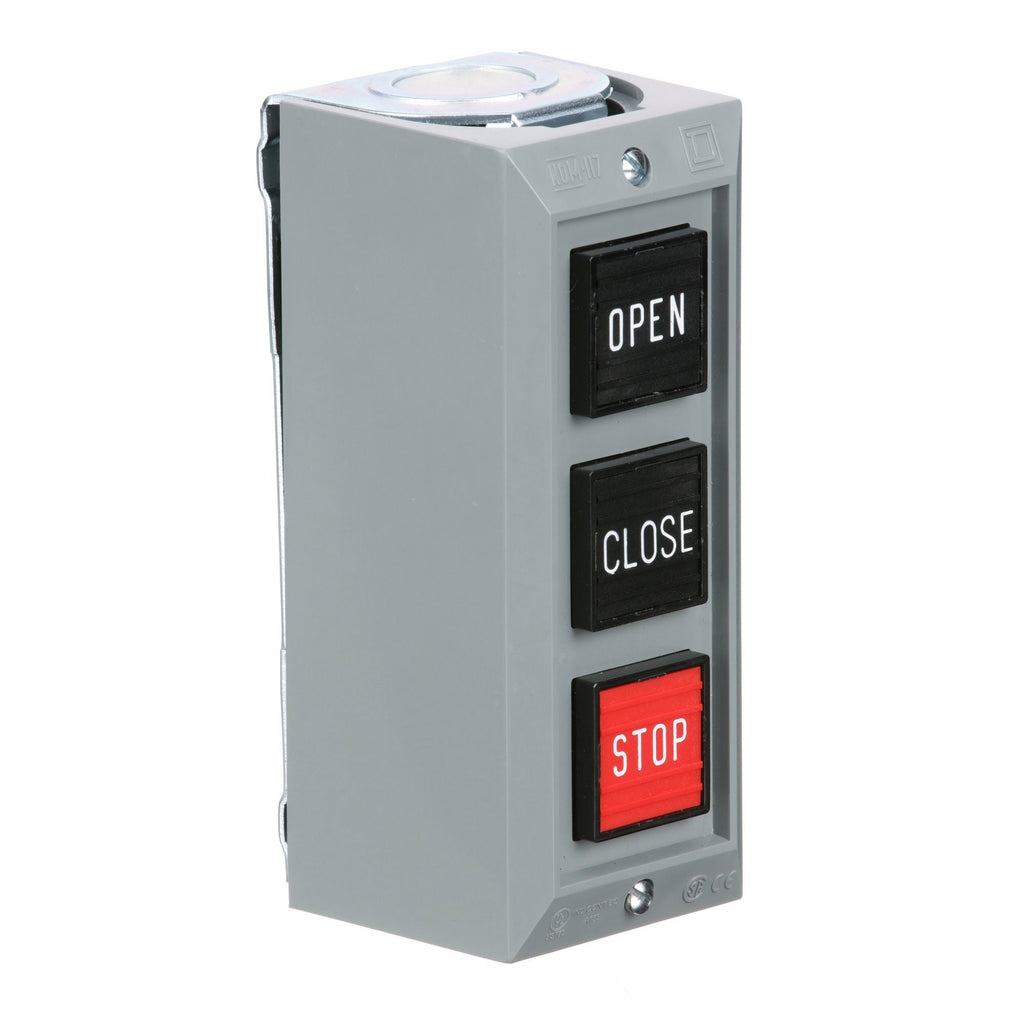

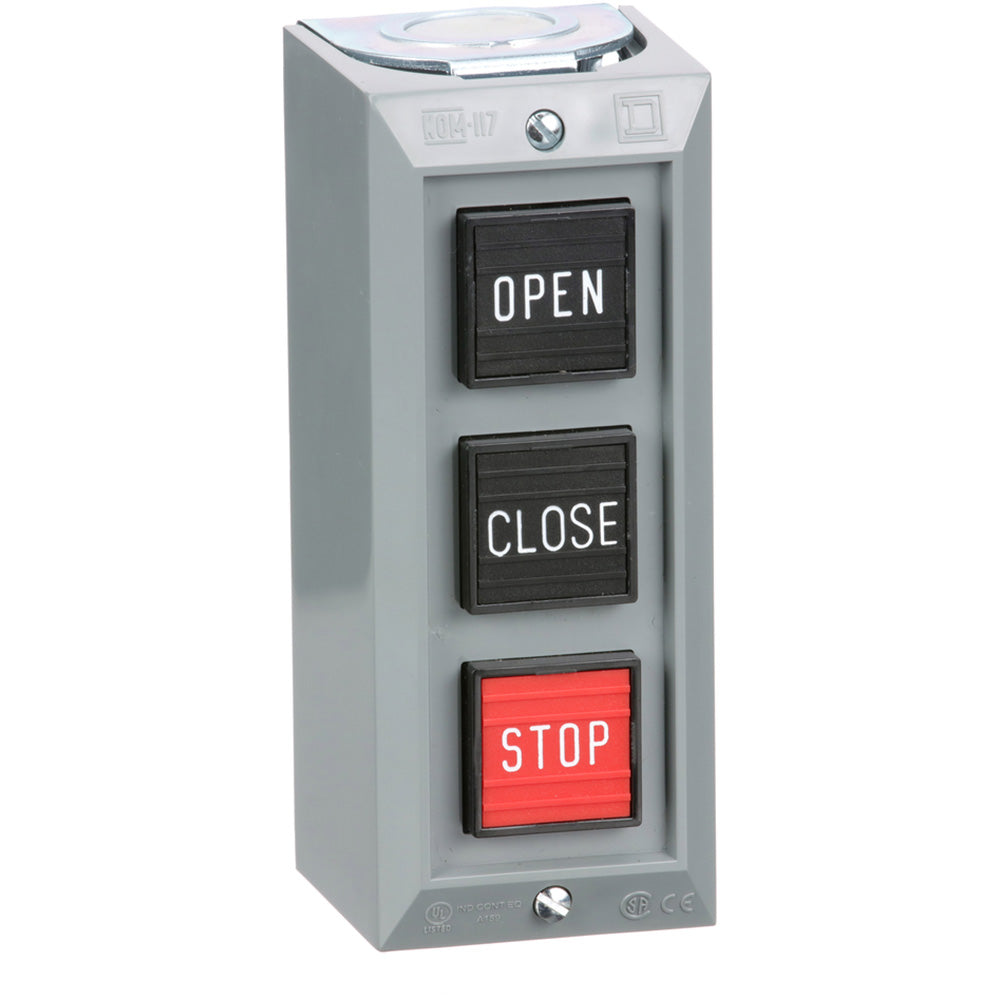

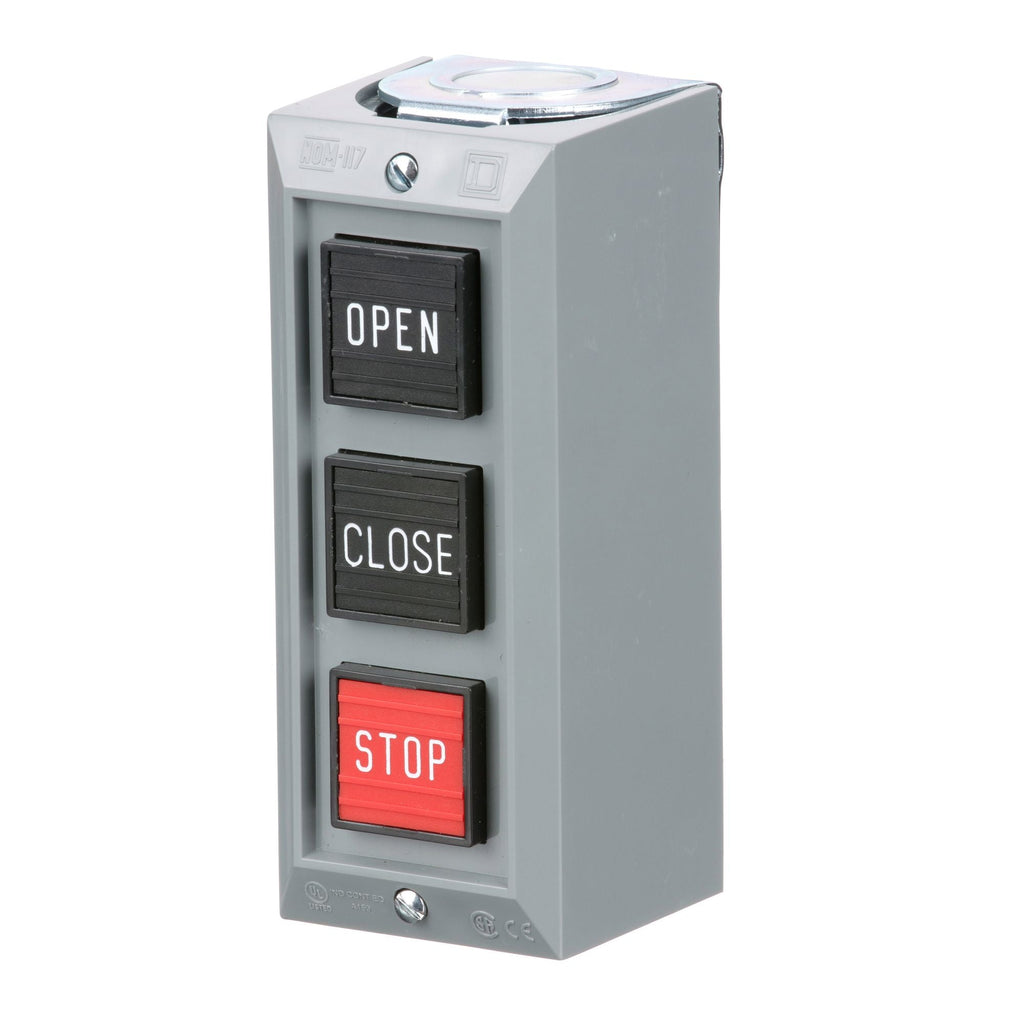

9001BG303 is a Square D push button control station featuring 3 momentary push buttons for motor control applications.This control station is rated for 5 Amps at 600 Volts AC, designed with a 3-pole configuration and a NEMA 1 surface mounting enclosure. It includes 2 normally open (NO) and 3 normally closed (NC) contacts with screw clamp terminal connections, suitable for industrial and commercial motor control. The unit is UL listed and CSA certified, ensuring compliance with safety standards.
- Manufacturer: Square D
- Part Number: 9001BG303
- Type: Push Button Control Station
- Number of Poles: 3
- Voltage Rating: 600 VAC
- Current Rating: 5 Amps
- Enclosure Type: NEMA 1
- Mounting Type: Surface Mount
- Contact Configuration: 2 NO + 3 NC
- Terminal Type: Screw Clamp
- Certifications: UL Listed, CSA Certified
- Operator Size: 30 mm
Specifications
- Part Number: 9001BG303
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Motor Control
- Item Subcategory : Motor Control Part And Accessory
- Section : Pushbuttons
- Family : Harmony 9001B
- Type : 9001BG
- Voltage : 600
- Amperage : 4000
- Phase : 3
- Poles : 3
Product Data
- UPC : 078590179420
- GTIN : 00785901794202
- Country of Origin : Mexico
- Weight : 0.838
- Certification : CE, CSA LR25490 Class 3211 03, UL E42259 CCN NKCR
