9001BG208 - Schneider Electric 5A 600VAC 2-Pole NEMA 1 Pushbutton Control Station

9001BG208

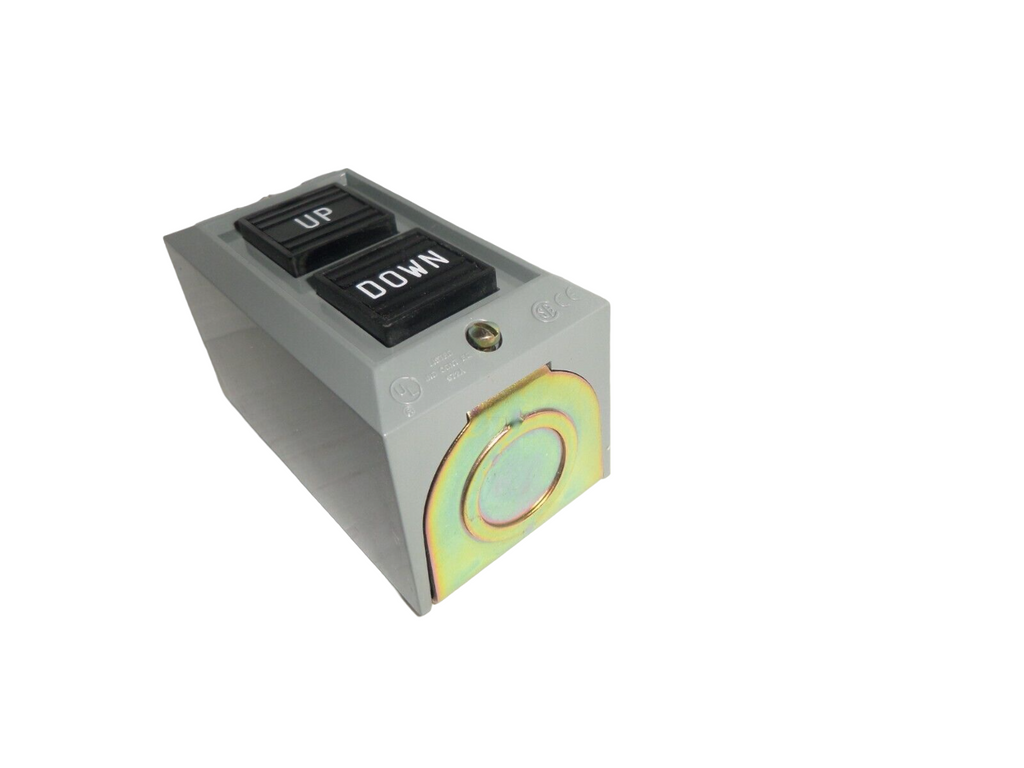

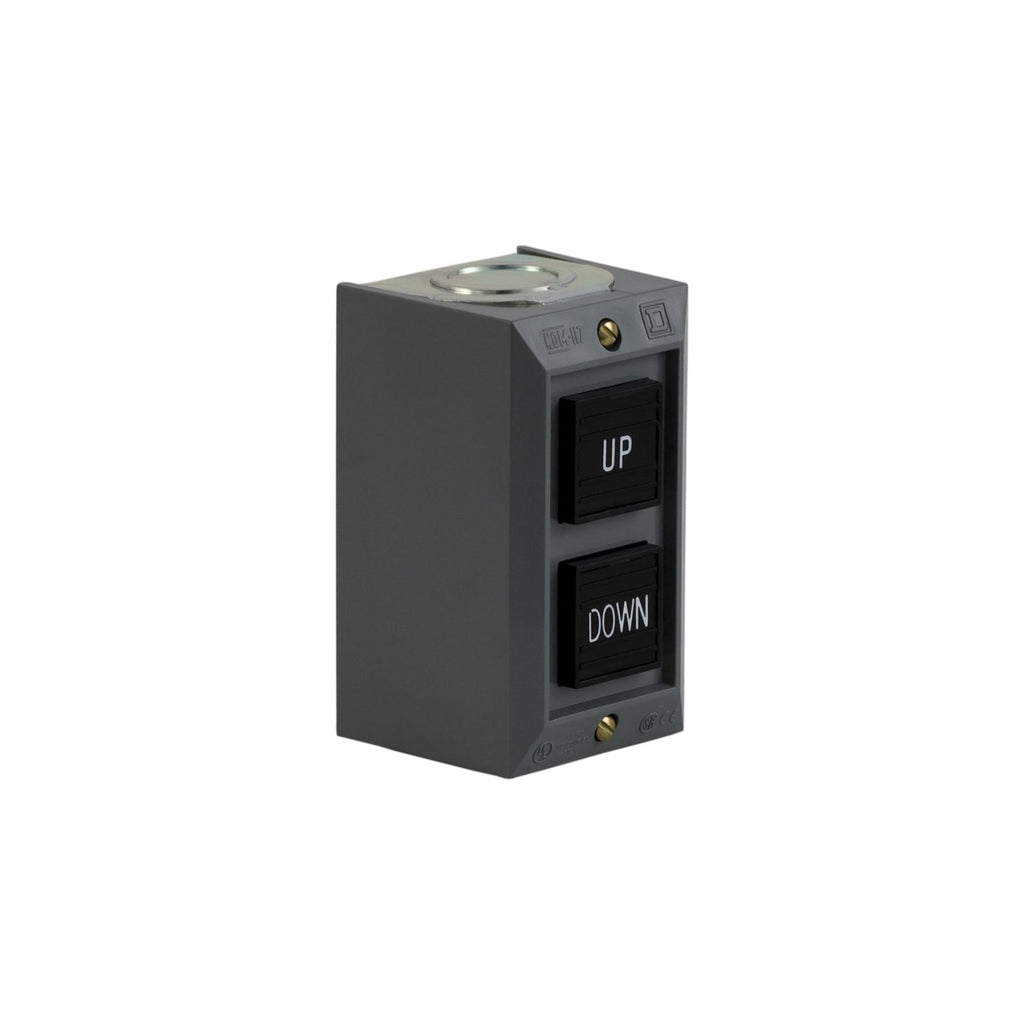

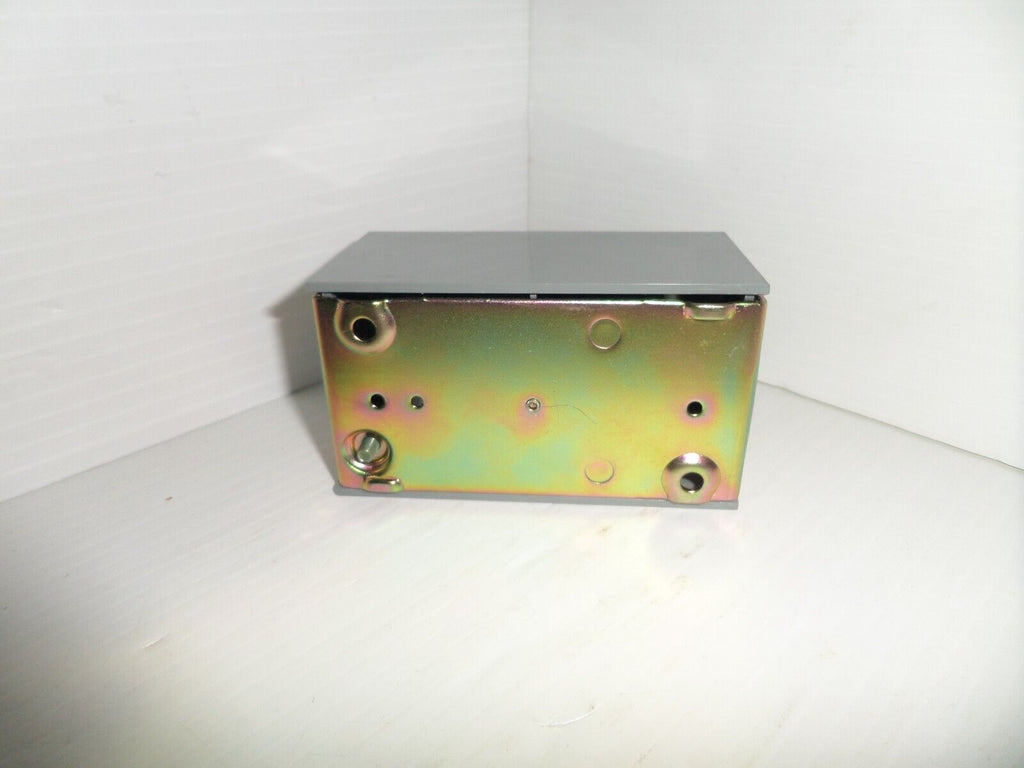

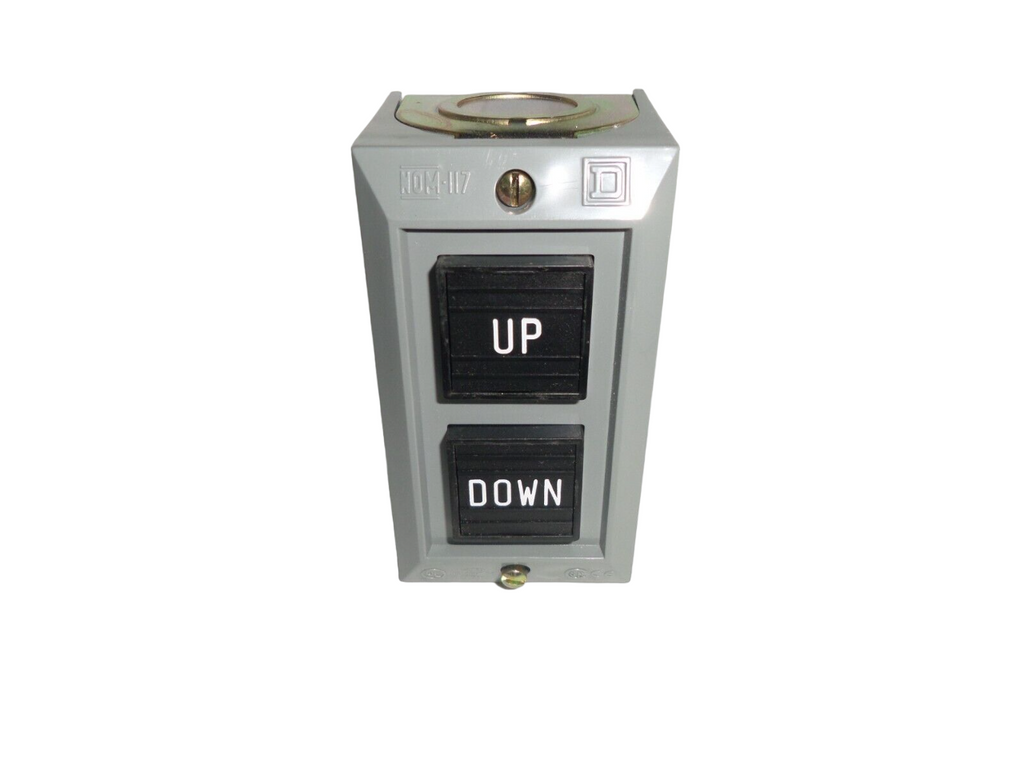

9001BG208 is a Schneider Electric pushbutton control station designed for motor control applications with a 5 amp, 600 VAC rating.This control station features two normally open (NO) momentary pushbuttons labeled UP and DOWN, housed in a NEMA 1 surface-mount enclosure. It has a B600 contact rating suitable for inductive loads up to 360 VA at 35% power factor and a P600 rating for DC loads. The metal bezel and body provide impact resistance, making it ideal for severe environments. It uses classic screw clamp connections and is UL Listed and CSA certified.

• Amperage: 5 Amps AC
• Voltage Rating: 600 VAC
• Contact Configuration: 2 Normally Open (NO)
• Enclosure Type: NEMA 1 (General Purpose)
• Mounting Type: Surface mount
• Contact Rating: B600 (360 VA inductive), P600 (DC)
• Actuator Type: Rectangular pushbuttons (UP and DOWN)
• Standards: UL Listed, CSA Certified, RoHS Compliant
• Body and bezel: Impact resistant metal
• Dimensions: Approximately 2.09" x 2.52" x 4.02"

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 9001BG208
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Motor Control Part And Accessory
• Section : Control Station
• Family : Harmony 9001B
• Type : 9001B

Product Data

• UPC : 785901390220
• GTIN : 00785901390220
• Country of Origin : Mexico
• Dimensions : 2.09" X 2.52" X 4.02"
• Weight : 0.613 lb
• Certification : CE, CSA LR25490 Class 3211 03, UL E42259 CCN NKCR
