Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage Fuse
Description
8RBA2-200E

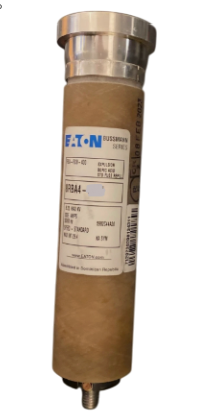

8RBA2-200E is a medium voltage expulsion fuse refill unit designed for use in Eaton RBA series fuse systems. This fuse is engineered for reliable protection in high-voltage electrical distribution applications. The Eaton 8RBA2-200E is a single barrel, standard speed expulsion fuse refill with a maximum voltage rating of 8.3 kV and a current rating of 200 A. It is constructed with glass epoxy and is suitable for indoor and outdoor installations. The fuse is designed to provide fast-acting protection and is compatible with Eaton RBA fuse holders and mounting systems.
- Part Number: 8RBA2-200E
- Manufacturer: Eaton
- Series: RBA
- Mounting Type: Single Barrel
- Amperage Rating: 200 A
- Maximum Voltage: 8.3 kV
- Interrupt Rating: 16.6 kA @ 7.2 kV
- Speed: Standard (Fast Acting)
- Material: Glass Epoxy
- Certification: IEEE Std. C37.41
- Application: Medium Voltage Expulsion Fuse Refill
- UPC: 786670229384
Specifications
- Part Number: 8RBA2-200E
- Manufacturer : Eaton
- Brand : Eaton
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Section : Fuse Refills
- Family : RBA
- Type : RBA2
- Voltage : 7200
- Amperage : 200
- AIC rating : [email protected]
- Class Rating : E
- Barrels : 1
- Velocity : Standard
Product Data
- UPC : 786670229384
- GTIN : 00786670229384
- Country of Origin : Dominican Republic
- Dimensions : 9.3 in x 2 in x 2 in (Length/Depth x Height x Width)
- Weight : 0.95
- Certification : IEEE Std. C37.41
