8MES700T - Eaton 700A Fixed Rating Plug for Series C MDL Frame Circuit Breakers

8MES700T

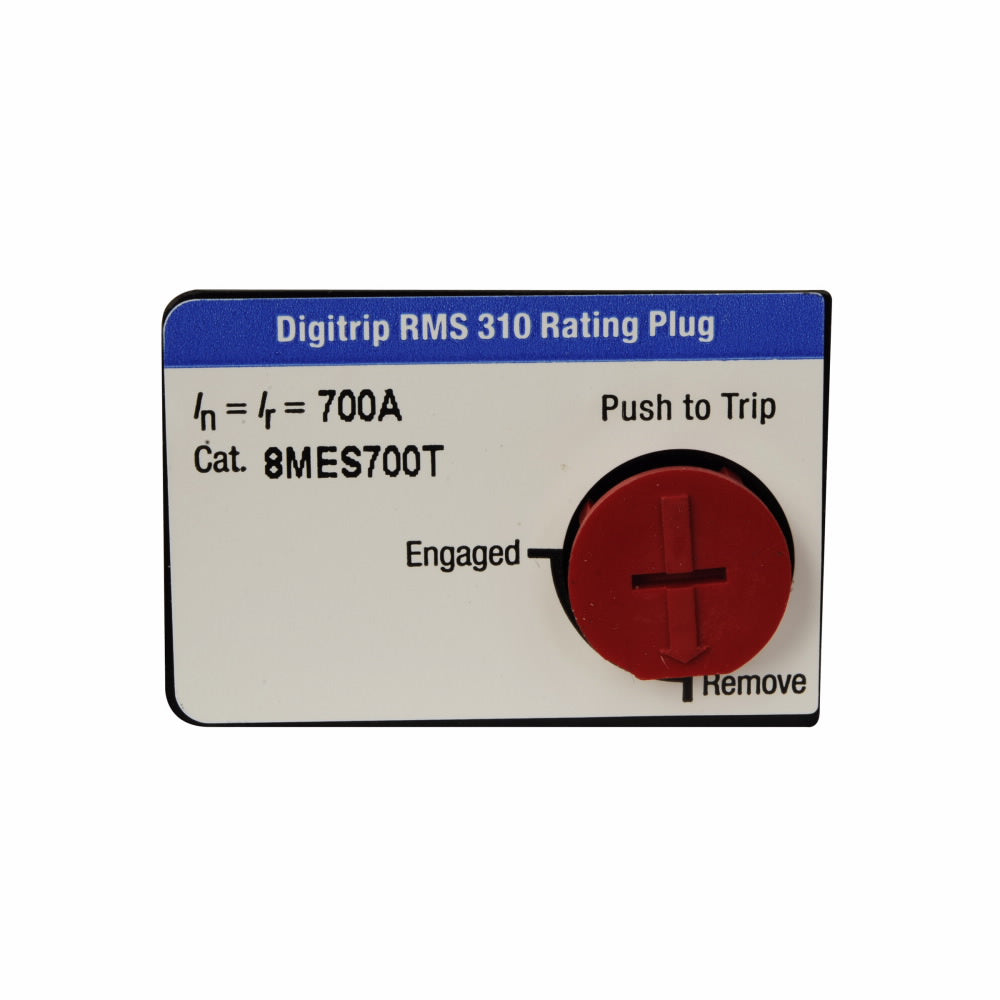

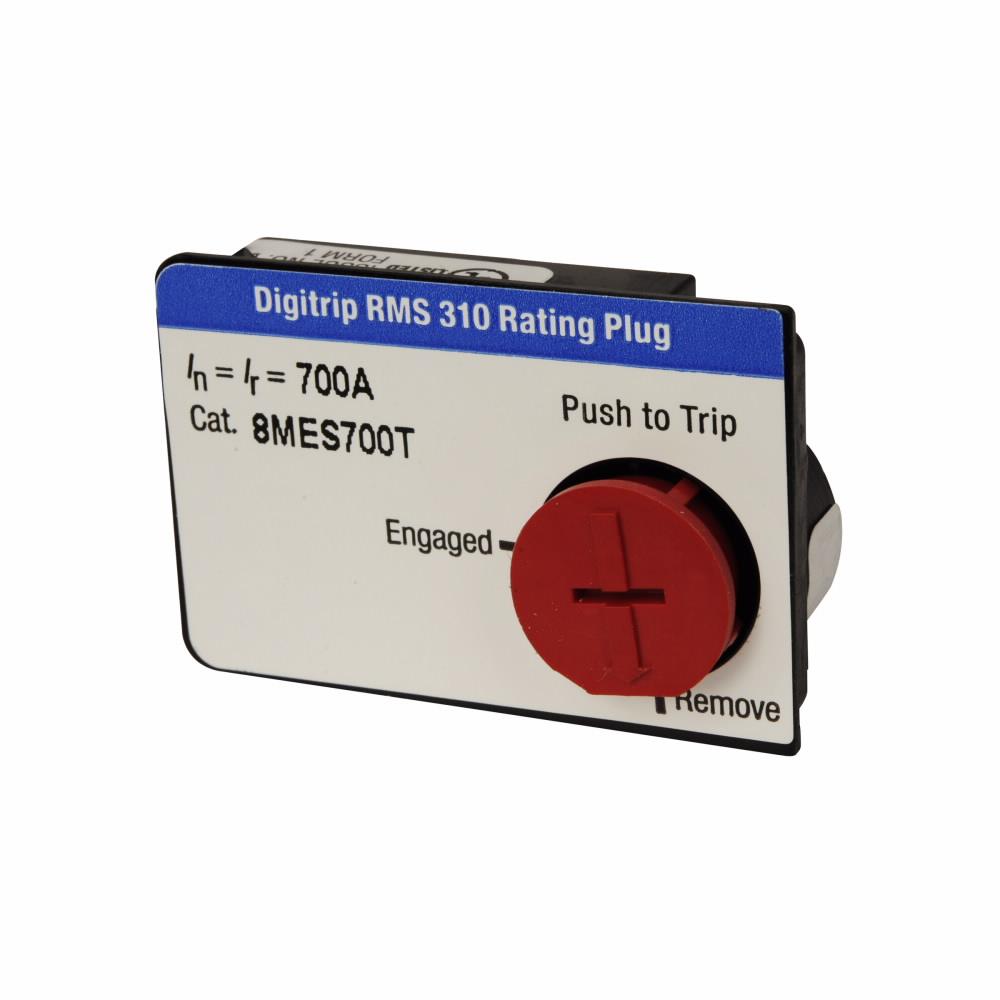

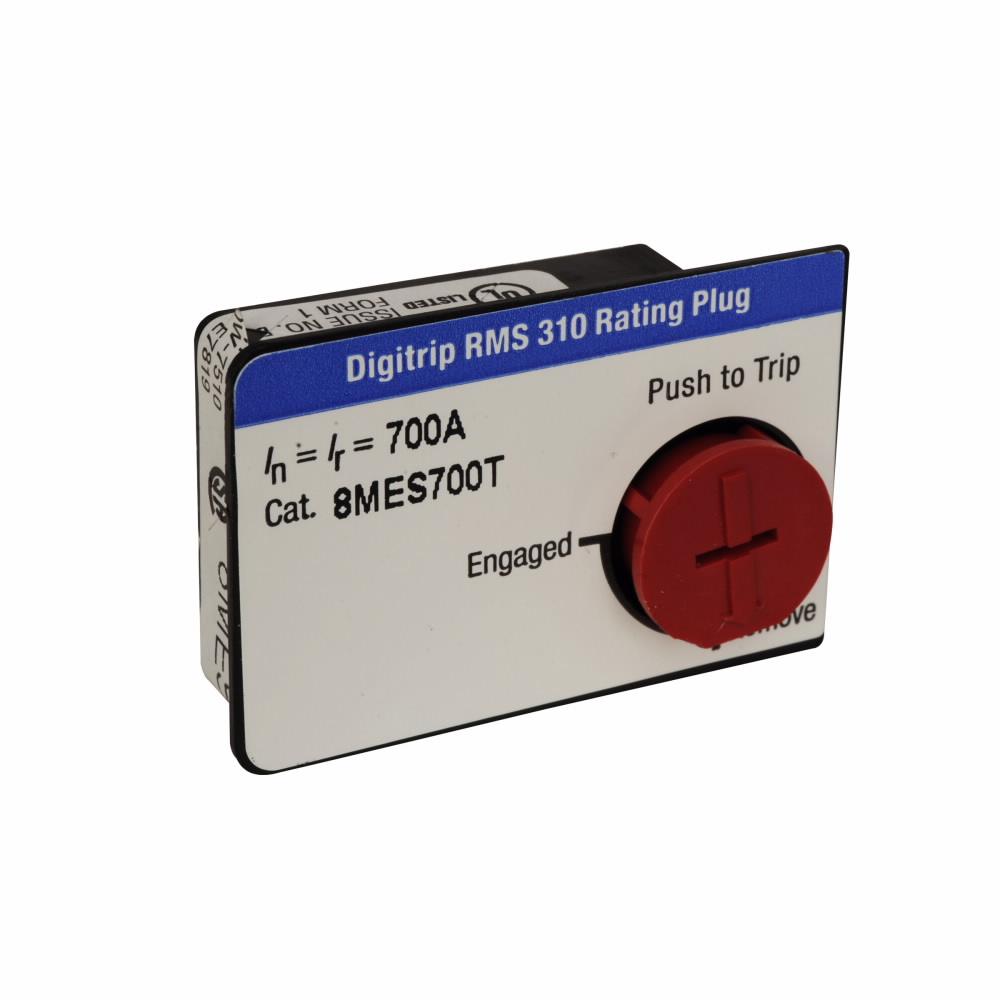

8MES700T is a 700 Amp fixed rating plug designed for Eaton Series C MDL frame circuit breakers with Digitrip RMS 310 trip units.This Eaton rating plug is compatible with MDL, HMDL, CMDL, and CHMDL breakers, Frame J-K, Series C. It provides a fixed 700A amperage rating and installs easily in electronic Digitrip RMS 310 trip units. The plug supports instantaneous pickup settings from 200% to 800% of trip current and is UL listed for safety and reliability.

• Manufacturer: Eaton
• Part Number: 8MES700T
• Amperage Rating: 700A
• Frame Size: J-K (M-Frame style)
• Series: Series C
• Trip Unit Compatibility: Digitrip RMS 310
• Type: Fixed Rating Plug
• Mounting: Plug-in
• Interrupt Rating: Per breaker specifications
• Certifications: UL Listed
• Dimensions: Approx. 2.3 in W x 1.5 in H x 1.5 in D
• Weight: 0.04 lb

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Digitrip RMS 310; MDL / HMDL / CMDL / CHMDL; JD / JDC / LD / LDC / HLD / CLD / CHLD Series C frames

Specifications

• Part Number: 8MES700T
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Rating Plugs
• Family : Series C Accessories
• Type : Fixed Rating Plug
• Amperage : 700
• Frame Size : 700
• Amperage Maximum : 700
• Amperage Minimum : 700
• Trip Type : DIGITRIP,RMS310,MES

Product Data

• UPC : 786679085318
• GTIN : 00786679085318
• Country of Origin : United States
• Dimensions : 1.5 in x 1.5 in x 2.3 in (Length/Depth x Height x Width)
• Weight : 0.04
• Certification : UL Listed
