Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage Fuse
Description
8CLT-12

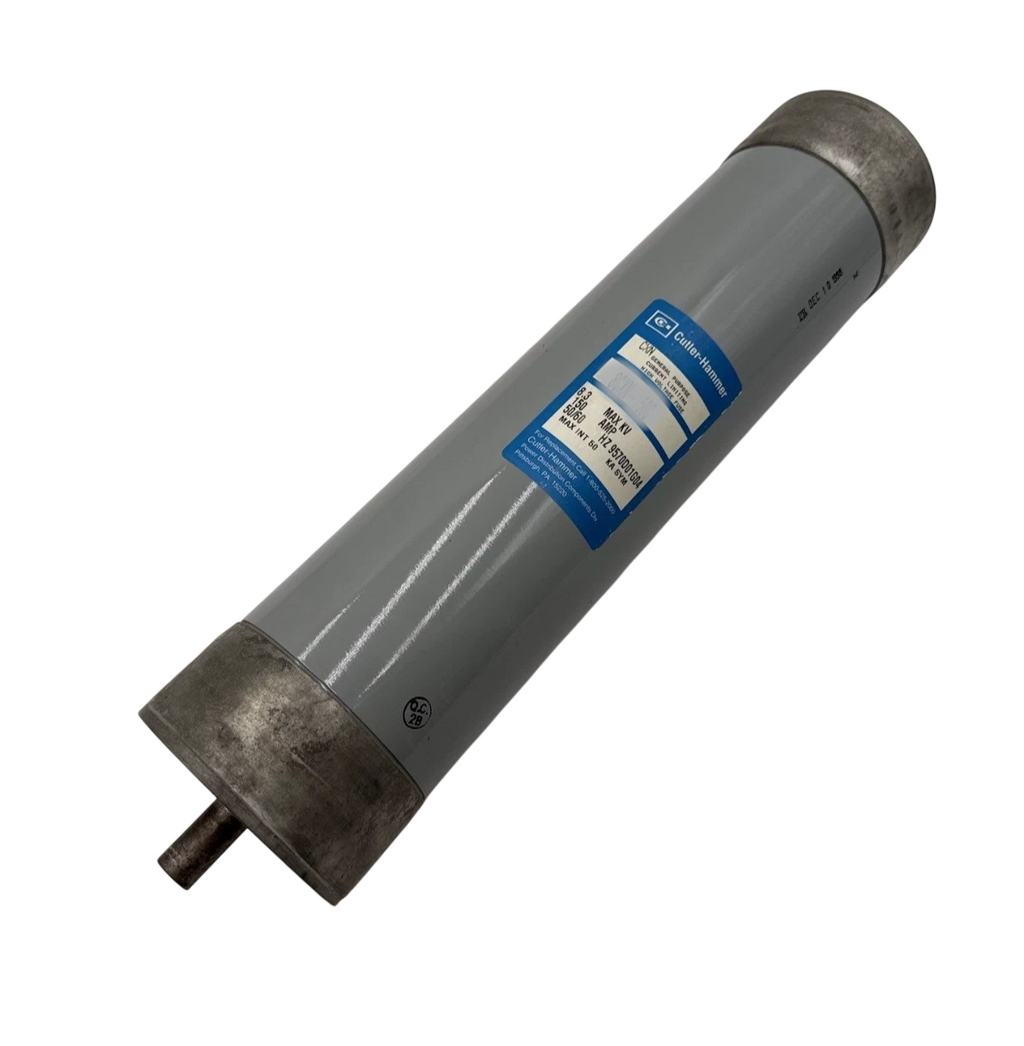

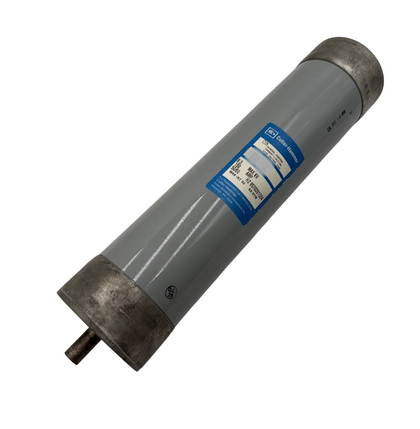

8CLT-12 is an Eaton medium voltage current limiting fuse designed for general purpose applications in power distribution systems. This single barrel cartridge fuse provides reliable overcurrent protection with a compact design suitable for standard clip mounting arrangements. The fuse delivers consistent performance in medium voltage circuits up to 8.3 kV, making it ideal for industrial and utility applications requiring dependable fault protection. Key Specifications
- Part Number: 8CLT-12
- Manufacturer: Eaton
- Amperage Rating: 12A
- Maximum Voltage: 8.3 kV
- Interrupt Rating: 25 kAIC
- Configuration: Single Barrel
- Fuse Type: Current Limiting
- Diameter: 1.60 inches
- Length: 9.70 inches
Specifications
- Part Number: 8CLT-12
- Manufacturer : Eaton
- Brand : Eaton
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Type : CLT
- Voltage : 8300
- Amperage : 12
- AIC rating : [email protected]
- Connection : Threaded
- Diameter : 1.5
- Barrels : 1
- Clip Center : 9.7
Product Data
- UPC : 78667022284
- GTIN : 00786670222842
- Country of Origin : Dominican Republic
- Dimensions : 13.9 in x 2.2 in x 1.55 in (Length/Depth x Height x Width)
- Weight : 1.54999995
- Certification : IEEE Std. C37.41
