Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage Fuse
Description
8CLE-100E

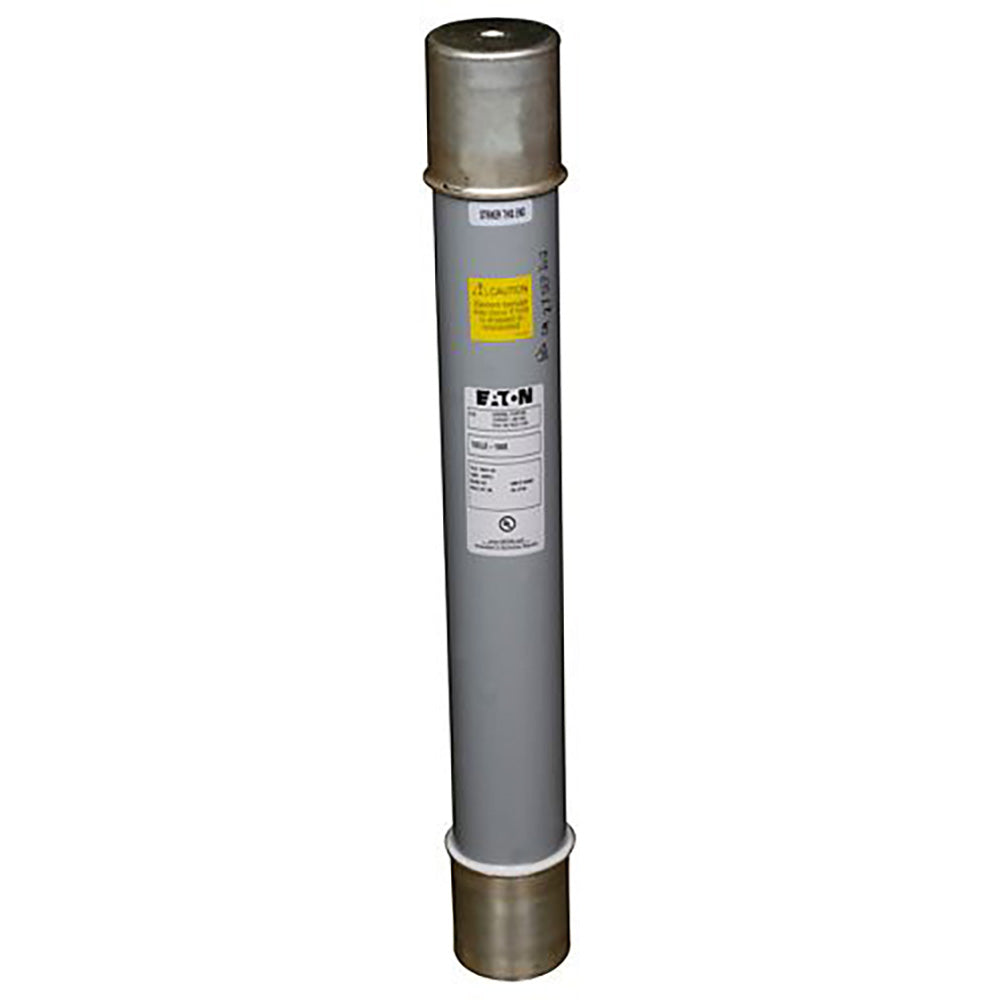

8CLE-100E is an Eaton Bussmann series CLE medium voltage fuse rated for 8.3kV at 100 amperes with a 50 kAIC interrupting rating. This single barrel, E-Rated power fuse is designed for indoor and outdoor use in transformer protection, feeder circuit, and metal-enclosed switchgear applications. The fuse features a 3-inch diameter barrel and conforms to Westinghouse dimensional standards for reliable performance in utility and industrial power distribution systems. Key Specifications
- Part Number: 8CLE-100E
- Manufacturer: Eaton Bussmann
- Voltage Rating: 8.3 kVAC
- Amperage Rating: 100A
- Interrupting Rating: 50 kAIC RMS Symmetrical
- Fuse Type: Cartridge, Single Barrel
- Barrel Diameter: 3 inches
- Installation: Indoor/Outdoor
- Rating Class: E-Rated Power Fuse
- Applications: Transformer Protection, Feeder Circuit, Switchgear
- Overall Length: 17.9 inches
Specifications
- Part Number: 8CLE-100E
- Manufacturer : Eaton
- Brand : Eaton
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Family : CLE
- Type : CLE
- Voltage : 8300
- Amperage : 100
- AIC rating : [email protected]
- Diameter : 3
- Class Rating : E
- Barrels : 1
- Clip Center : 14
Product Data
- UPC : 005171253059
- GTIN : 00051712530590
- Dimensions : 15.9 in x 3 in x 3 in (Length/Depth x Height x Width)
- Weight : 0.001
