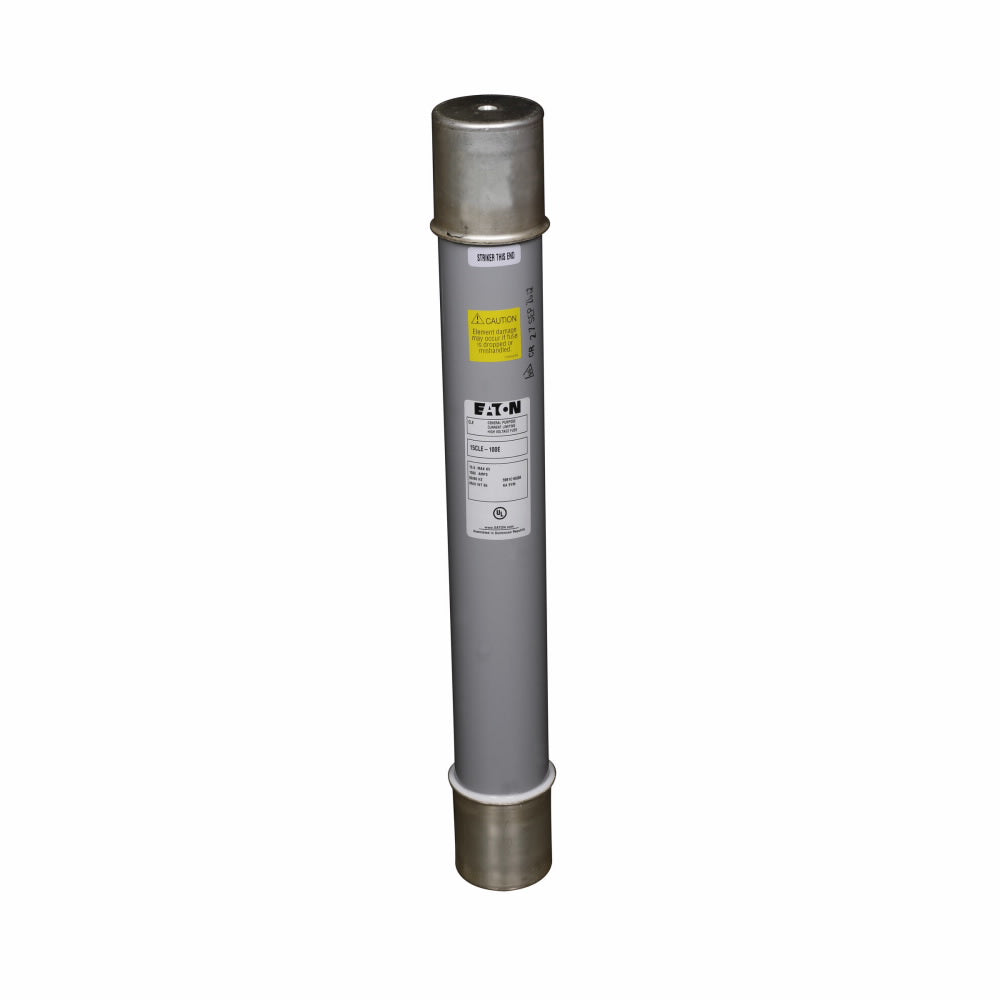

8AHLE-50E - Eaton AHLE Medium Voltage Fuse 7.2 kV 50A 50 kAIC Class E Single Barrel

8AHLE-50E

8AHLE-50E is an Eaton AHLE medium voltage fuse designed for reliable circuit protection in industrial and commercial applications. This fuse features a single barrel construction and is rated for 7.2 kV and 50A, providing robust protection for feeder circuits, switchgear, and transformers. The 8AHLE-50E is part of the Eaton Bussmann AHLE series and is classified as a Class E fuse, suitable for use in 800 amp AMPGARD motor starting assemblies. It offers an interrupting rating of 50 kAIC, ensuring safe operation under high fault current conditions. The 8AHLE-50E is engineered for indoor installation and is built to meet the demanding requirements of medium voltage systems. Its compact design and high interrupting capacity make it ideal for applications where space and reliability are critical. The fuse is E-Rated, providing predictable performance and compliance with industry standards for medium voltage protection.

• Part Number: 8AHLE-50E
• Manufacturer: Eaton
• Series: AHLE
• Amperage: 50A
• Voltage: 7.2 kV
• Interrupt Rating: 50 kAIC
• Mounting Type: Single Barrel
• Application: Indoor
• Fuse Type: Class E
• Frame: AHLE
• Indicator Style: Open Fuse
• Compliance: E-Rated

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 8AHLE-50E
• Manufacturer : Eaton
• Brand : Eaton
• Category : Fuse
• Item Subcategory : Medium Voltage Fuse
• Family : AHLE
• Type : AHLE
• Voltage : 8300
• Amperage : 50
• AIC rating : [email protected]
• Diameter : 3
• Class Rating : E
• Barrels : 1

Product Data

• UPC : 782114891230
• GTIN : 00782114891230
• Country of Origin : Dominican Republic
• Dimensions : 15.9 in x 4.2 in x 3 in (Length/Depth x Height x Width)
• Weight : 9
• Certification : ,IEEE Std. C37.41
