8965RO10V01 - Square D 3 Pole Reversing Hoist Contactor 3HP 24VAC Coil Open Surface Mount

8965RO10V01

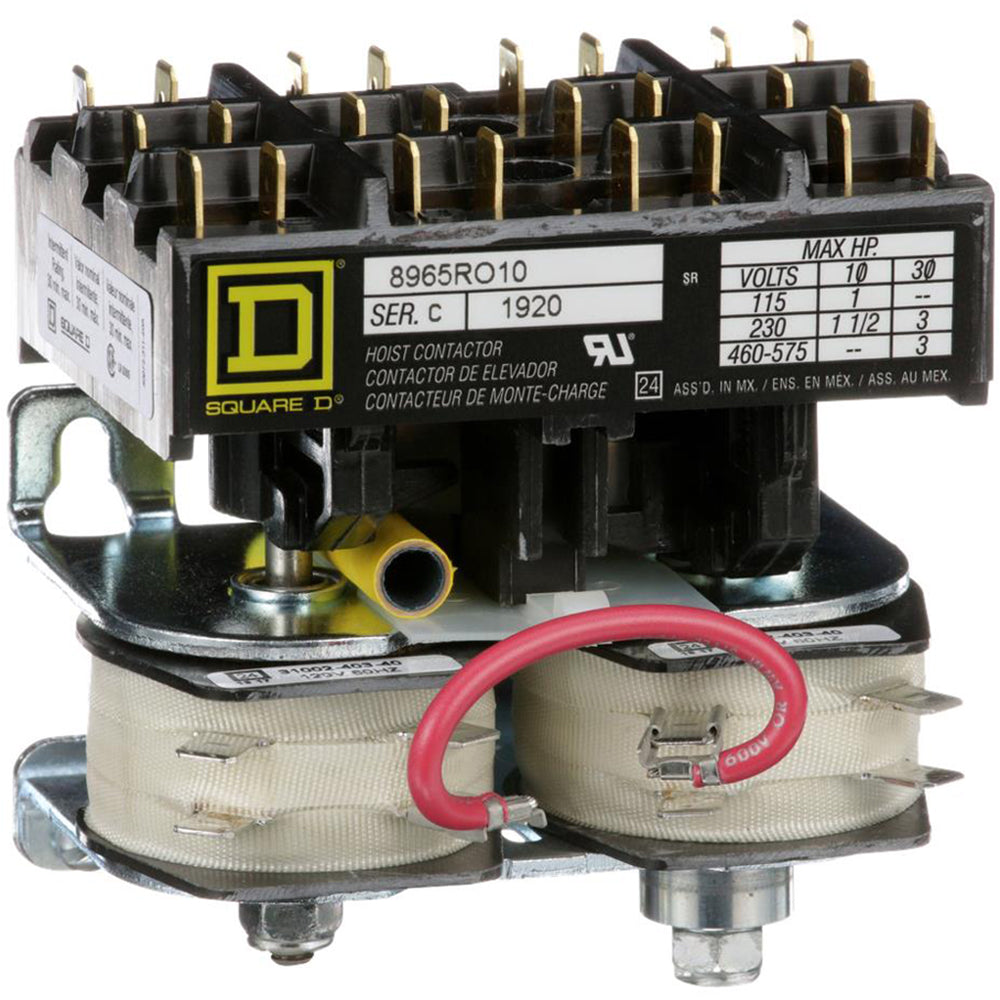

8965RO10V01 is a Square D reversing hoist contactor designed for motor control applications with a 3 pole configuration and 24 VAC coil voltage.

This contactor supports up to 3 horsepower at 230 VAC three-phase and is rated for use at 600 VAC contact voltage. It features quick-connect terminals and an open enclosure suitable for surface mounting. The device operates at 50 or 60 Hz frequencies and can handle line voltages from 85% to 110% of rated voltage. It is UL listed and CSA certified for safety and reliability. Coils are easily replaceable, and auxiliary contacts are field installable.

• Manufacturer: Square D (Schneider Electric)
• Part Number: 8965RO10V01
• Type: Reversing Hoist Contactor
• Number of Poles: 3
• Coil Voltage: 24 VAC, 60 Hz
• Horsepower Ratings: 3 HP @ 230 VAC 3-phase, 1.5 HP @ 230 VAC 1-phase, 1 HP @ 115 VAC 1-phase
• Contact Voltage Rating: 600 VAC
• Mounting Type: Surface mount
• Enclosure Type: Open
• Connection Type: Quick-connect terminals
• Certifications: UL Listed, CSA Certified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This includes a 24 VAC coil.

Specifications

• Part Number: 8965RO10V01
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Contactor
• Voltage : 600
• Amperage : 4000
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : Draw-Out
• Functions : LI - Long-Time and Instantaneous
• Coil Voltage Maximum : 24
• Protection : Solid State

Product Data

• UPC : 785901032175
• GTIN : 785901
• Country of Origin : Mexico
• Dimensions : 3.31 in x 3.31 in
• Weight : 1.79 lb
• Certification : CSA, UL Listed
