2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Motor Starter
Description
8911DPSG32V09

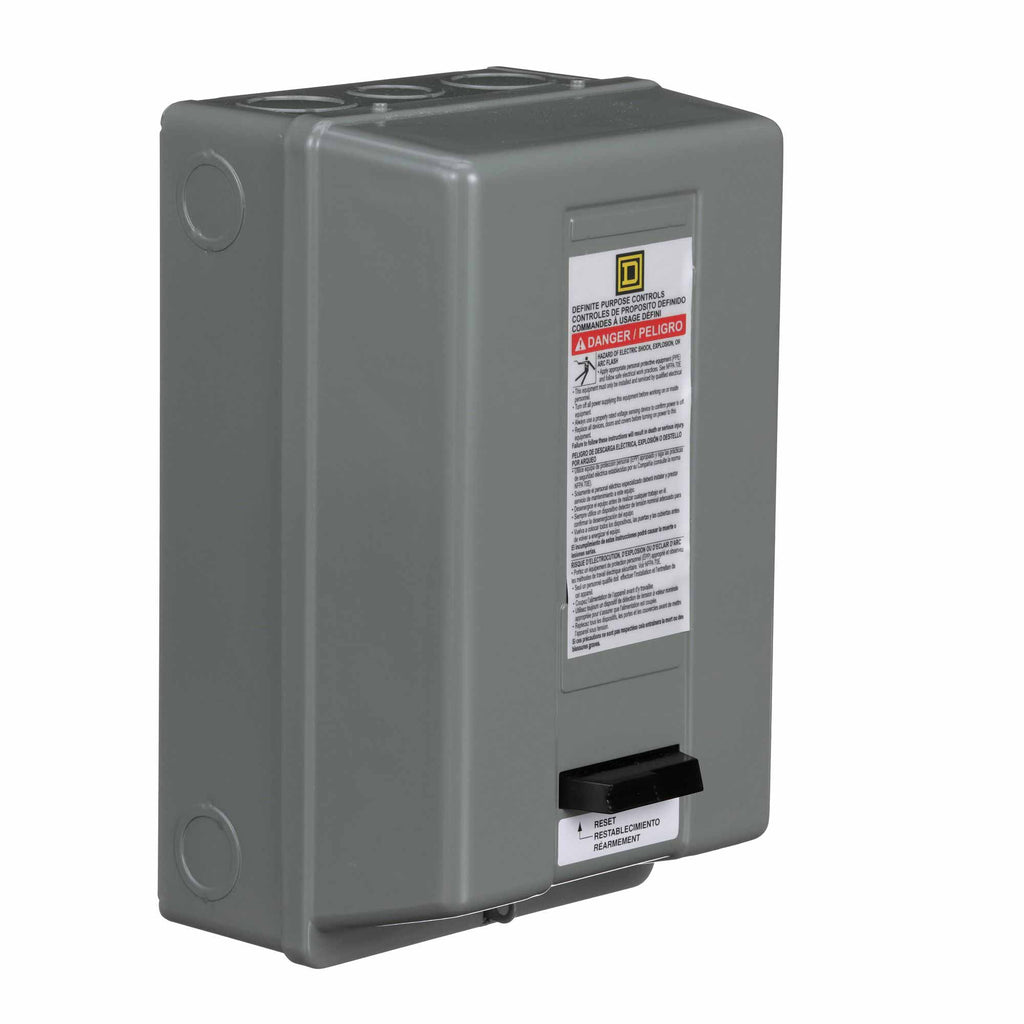

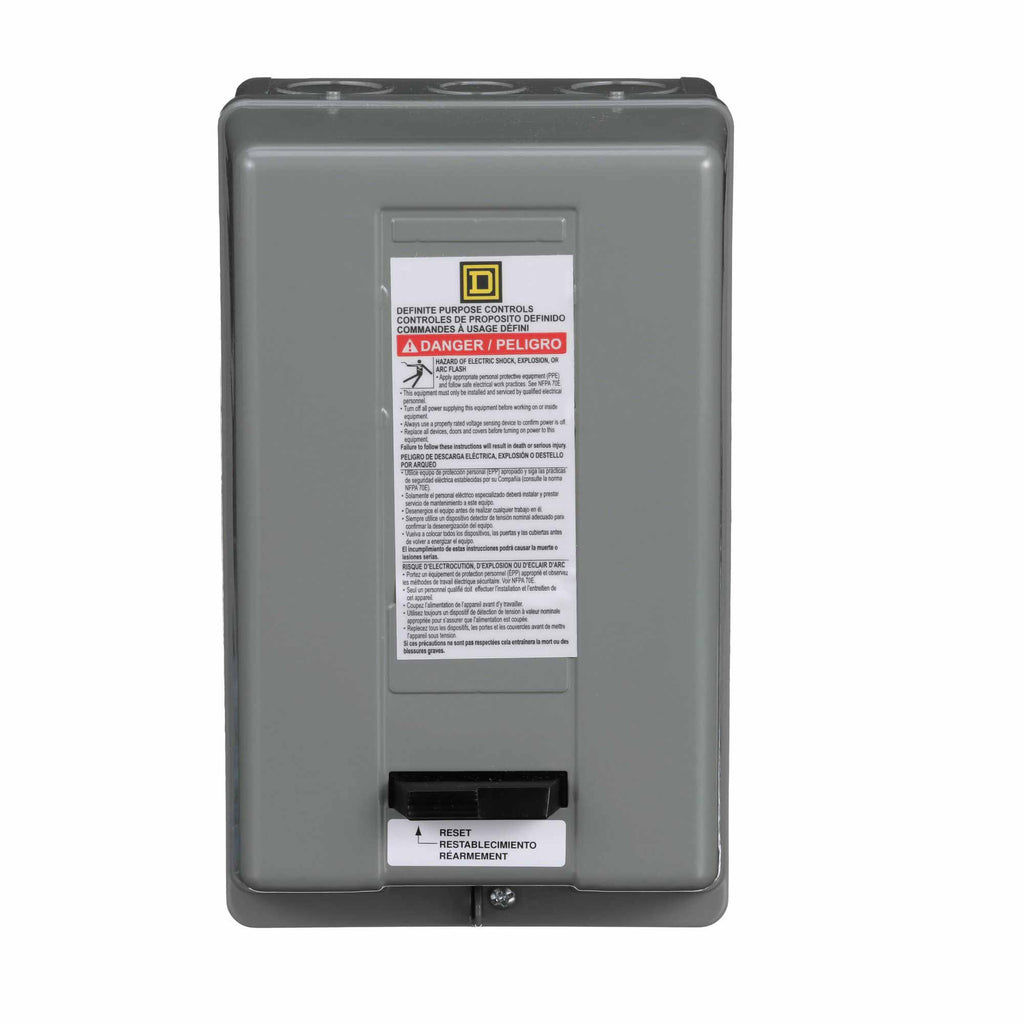

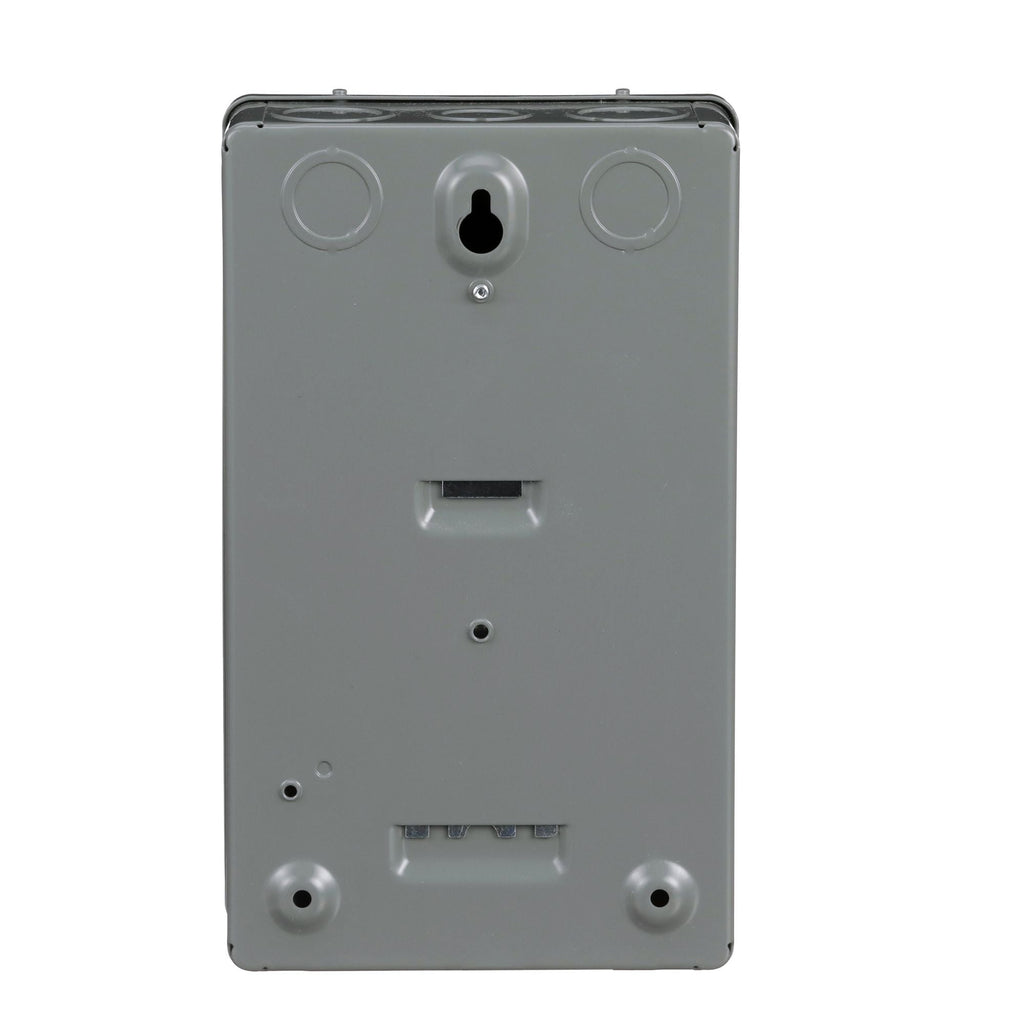

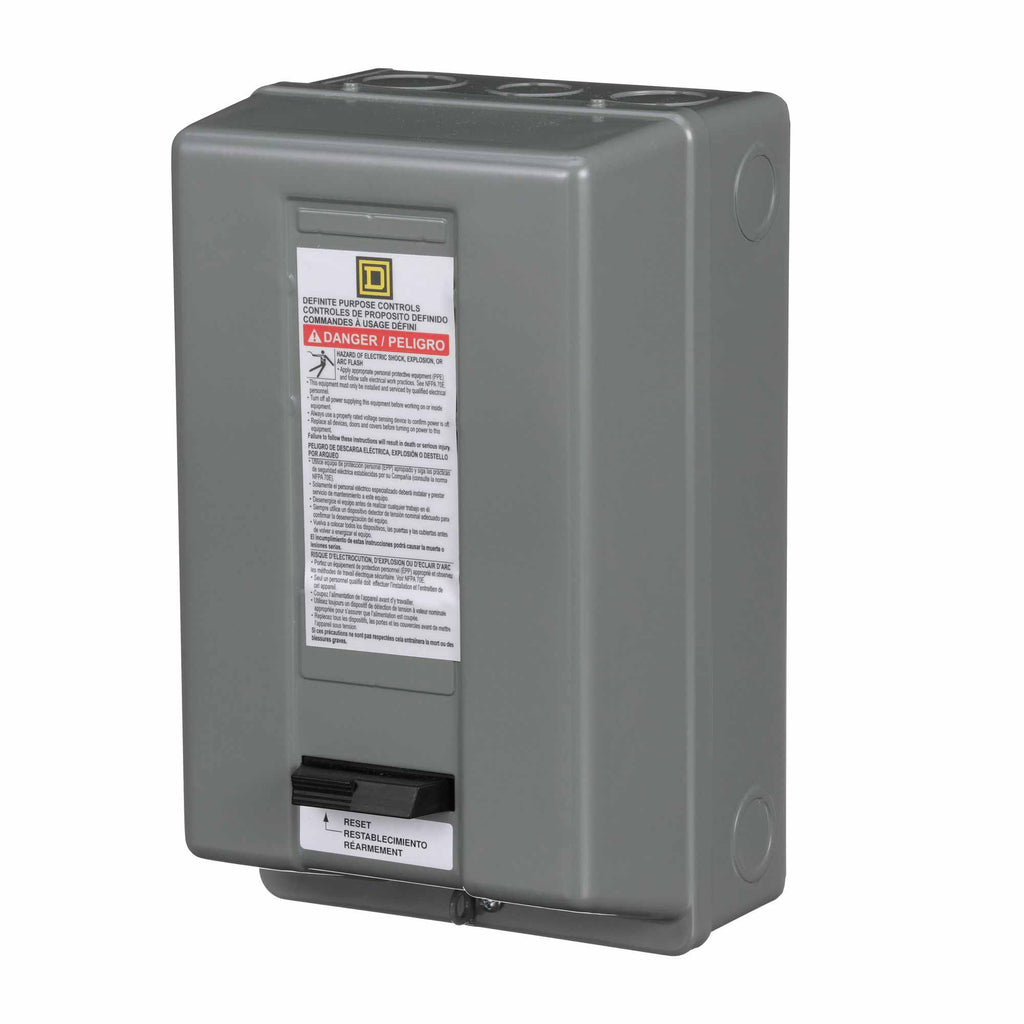

8911DPSG32V09 is a Square D Class 8911 definite purpose motor starter designed for single-phase motor control applications. This compact, non-reversing starter features a 2-pole configuration and a 30A current rating, making it suitable for light-duty industrial and commercial uses such as compressors, pumps, and HVAC equipment. The 8911DPSG32V09 includes a 208-240VAC coil for reliable operation at 50/60Hz, a NEMA 1 enclosure for indoor use, and a melting alloy overload for motor protection. Its surface mounting design allows for easy installation in control panels and enclosures.
- Part Number: 8911DPSG32V09
- Manufacturer: Square D
- Series/Frame: 8911
- Amperage: 30A
- Maximum Voltage: 600VAC
- Poles: 2
- Phase: Single
- Mounting Type: Surface
- Coil Voltage: 208-240VAC, 50/60Hz
- Enclosure: NEMA 1
- Overload Type: Melting Alloy
- Certifications: UL, CSA, RoHS
Specifications
- Part Number: 8911DPSG32V09
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Motor Starter
- Family : Class 8911
- Type : DPS
- Voltage : 6
- Amperage : 30
- Phase : 1
- Coil Voltage Maximum : 220 VAC
- Coil Voltage Minimum : 208
Product Data
- UPC : 78590102469
- GTIN : 00785901024699
- Country of Origin : United States
- Dimensions : 6.0 in x 10.0 in
- Weight : 5.62
- Certification : REACH, RoHS, UL Listed
