8910DPA93V14 - Square D 90A 600V 3 Pole Definite Purpose Contactor 24VAC Coil 50/60Hz

8910DPA93V14

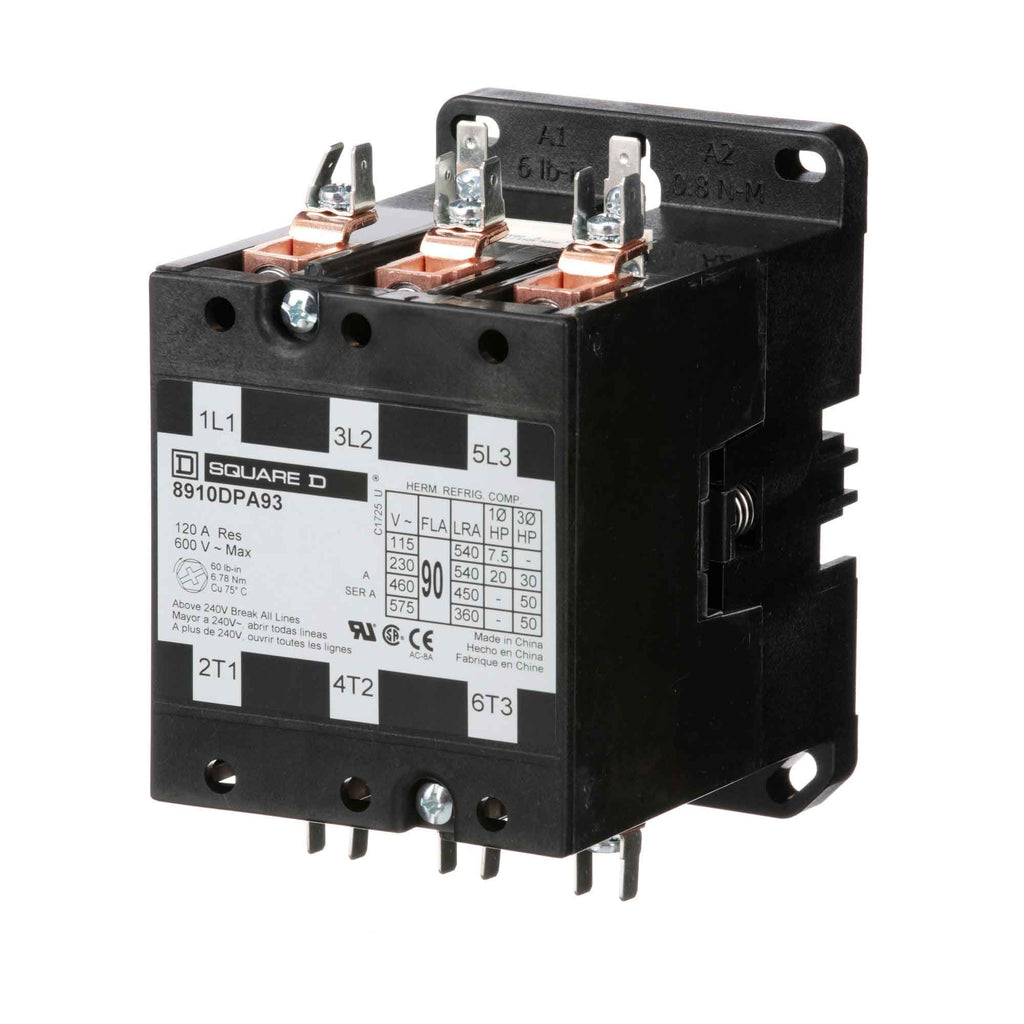

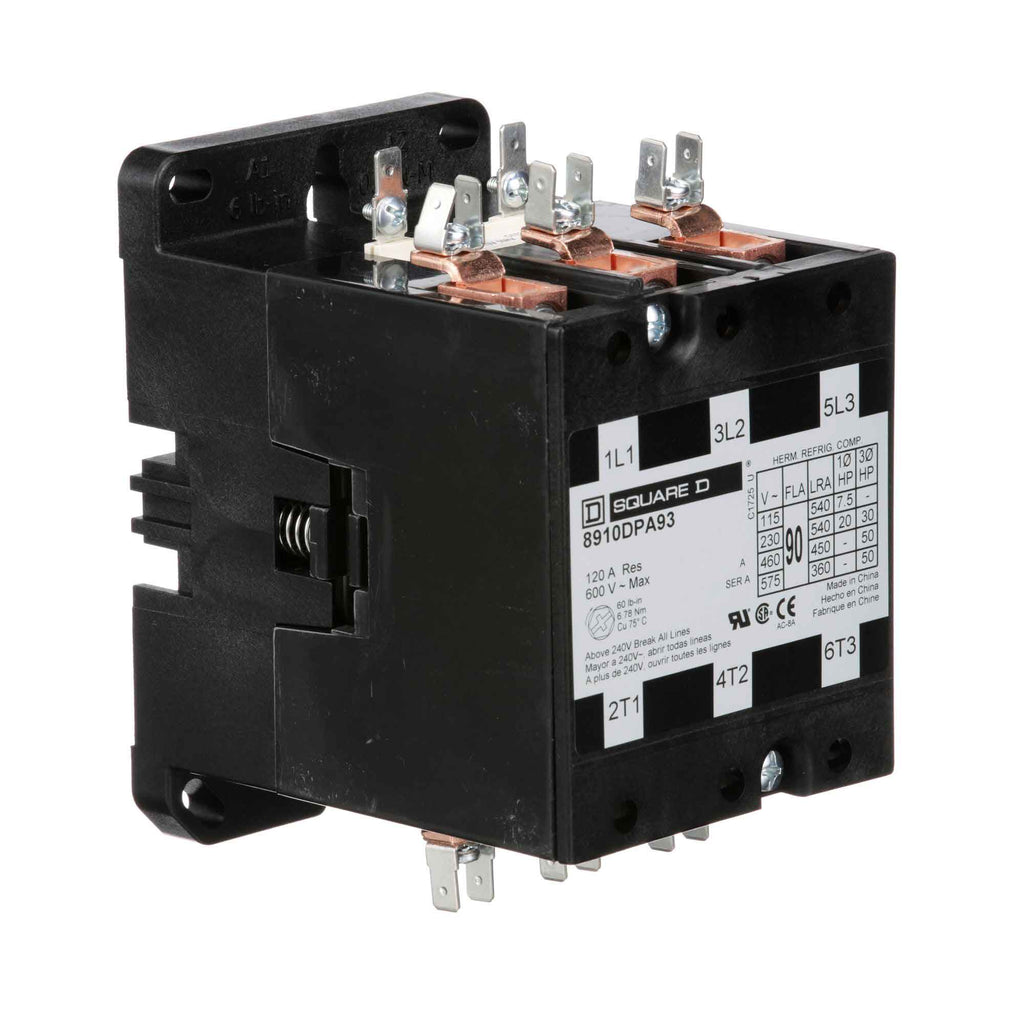

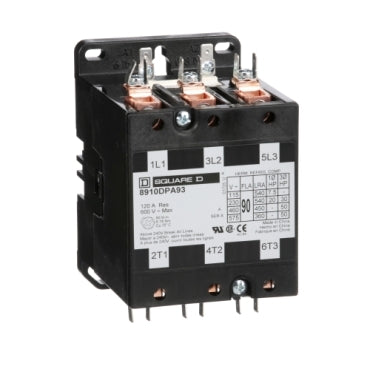

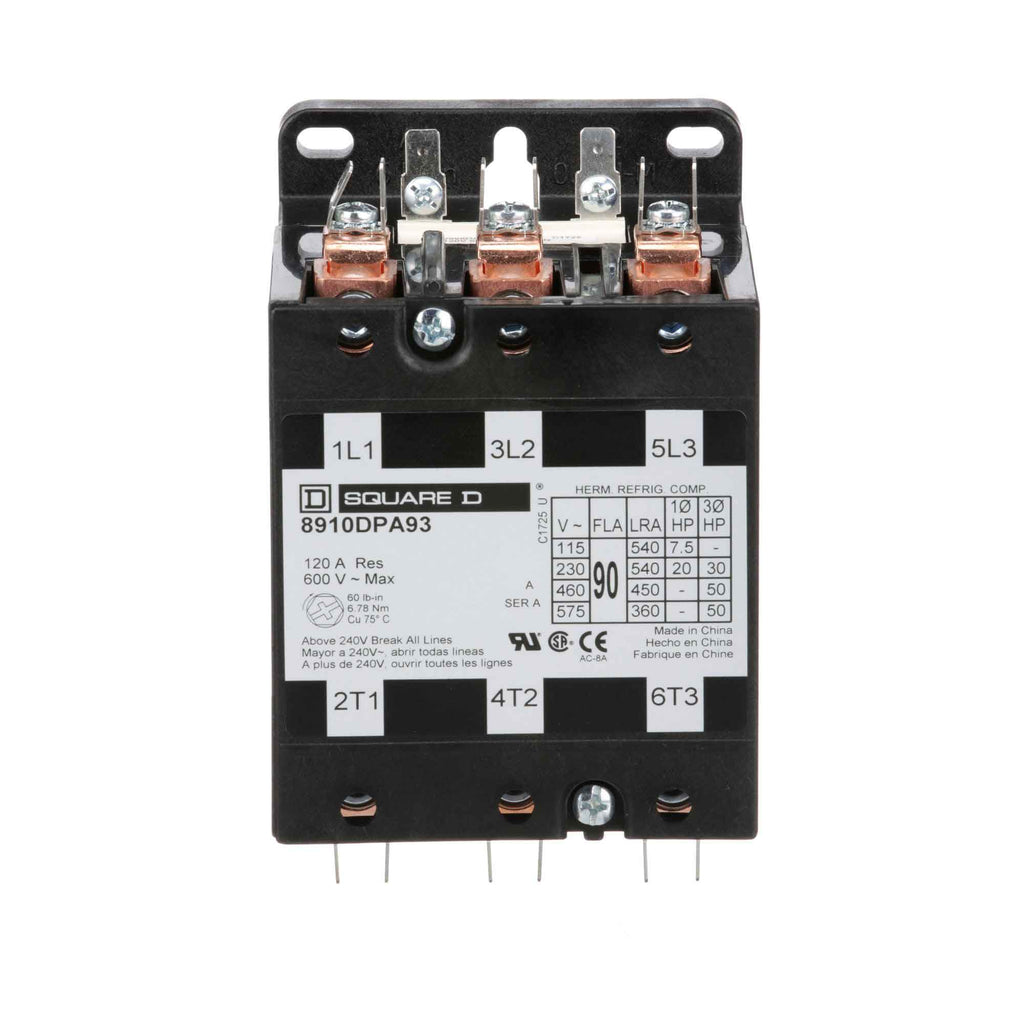

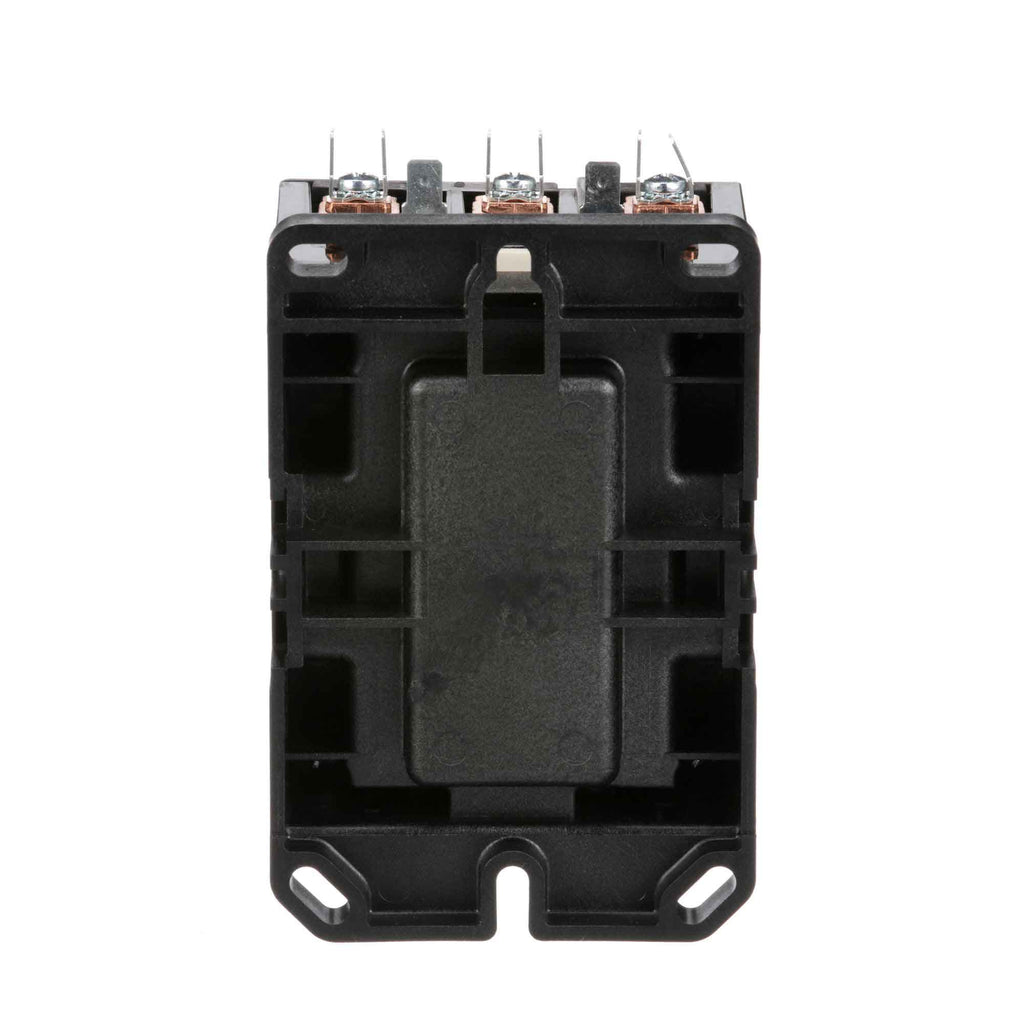

8910DPA93V14 is a Square D Class 8910 definite purpose contactor designed for motor control applications with a 90 ampere rating and 3 poles.This contactor supports up to 600 volts AC and is suitable for 3-phase systems. It features a 24 VAC coil operating at 50/60 Hz frequency. The device is rated for motor horsepower up to 7.5 HP at 115 VAC single phase, 20 HP at 230 VAC single phase, and 50 HP at 460/575 VAC three phase. It is a normally open contactor with a resistive rating of 120 amperes, ideal for heating, air conditioning, refrigeration, and other industrial equipment. The compact design includes quick connect terminals and DIN mounting options for easy installation.

Key Specifications
• Manufacturer: Square D
• Part Number: 8910DPA93V14
• Amperage: 90A
• Voltage Rating: 600 VAC
• Poles: 3
• Coil Voltage: 24 VAC, 50/60 Hz
• Horsepower Ratings: 7.5 HP @ 115 VAC, 20 HP @ 230 VAC, 50 HP @ 460/575 VAC
• Type: Definite Purpose Contactor
• Phase: 3 Phase
• Mounting: DIN Rail Compatible
• Contact Configuration: Normally Open
• Resistive Rating: 120A

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This Definite Purpose Contactor includes a 600 VAC coil.

Specifications

• Part Number: 8910DPA93V14
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Contactor
• Family : Class 8910
• Type : DPA9
• Voltage : 600
• Amperage : 90
• Phase : 3
• Poles : 3
• Horse Power : 7.5 hp 115 V AC, 1 phase-20 hp 230 V AC, 1 phase-30 hp 230 V AC, 3 phases-50 hp 460 V AC, 3 phases-50 hp 575 V AC, 3 phases
• Aux Contacts : 3 NO
• Coil Voltage Maximum : 24V
• Full Load Amps : Full Load Amps-Inductive 90A Full Load Amps-Resistive 120A
• Coil Voltage Minimum : 24V
• Frequency : 50/60 Hz

Product Data

• UPC : 785901024583
• GTIN : 00785901024583
• Country of Origin : China
• Dimensions : 3.39 in x 5.2 in
• Weight : 3.653
• Certification : CSA, RoHS, UL Listed
