8910DPA93V06 - Square D 90A 3 Pole Definite Purpose Contactor 440/480V Coil Class 8910

8910DPA93V06

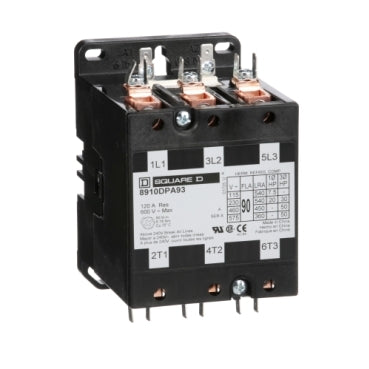

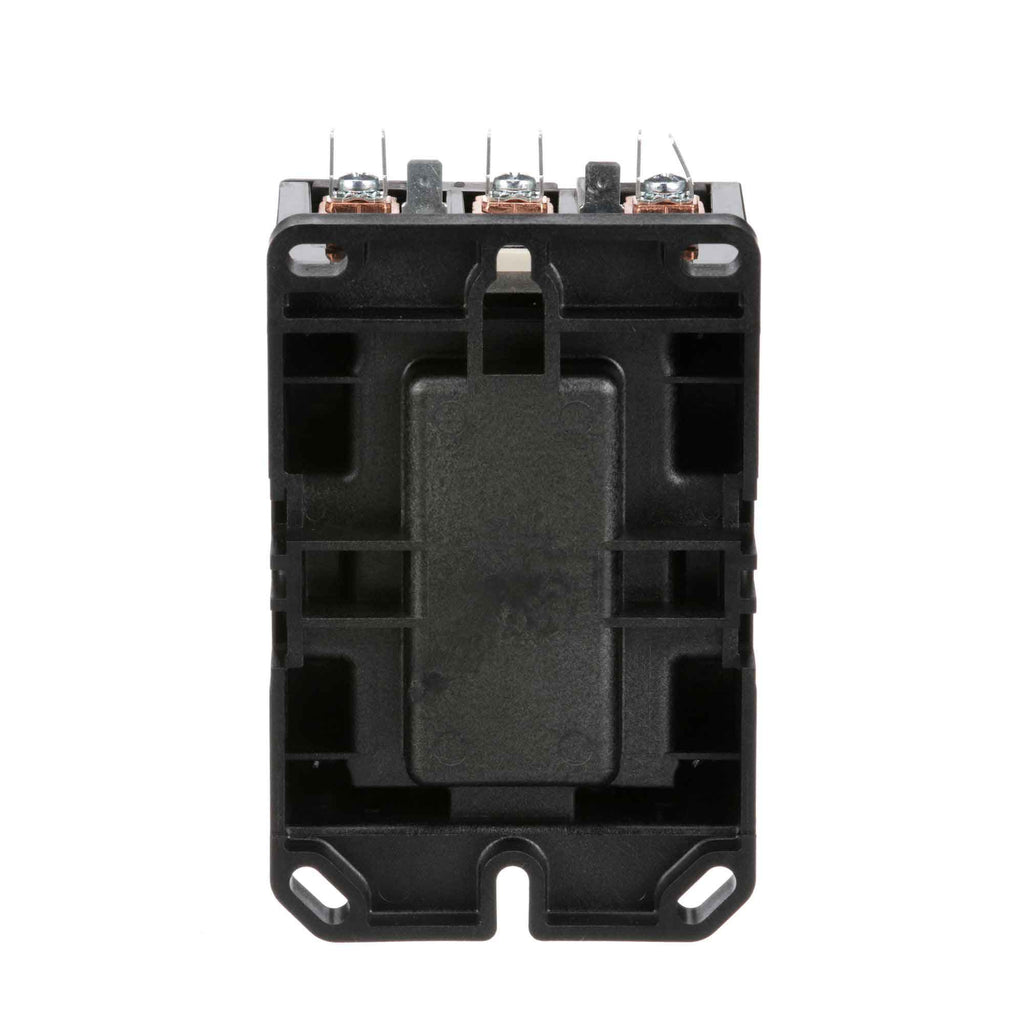

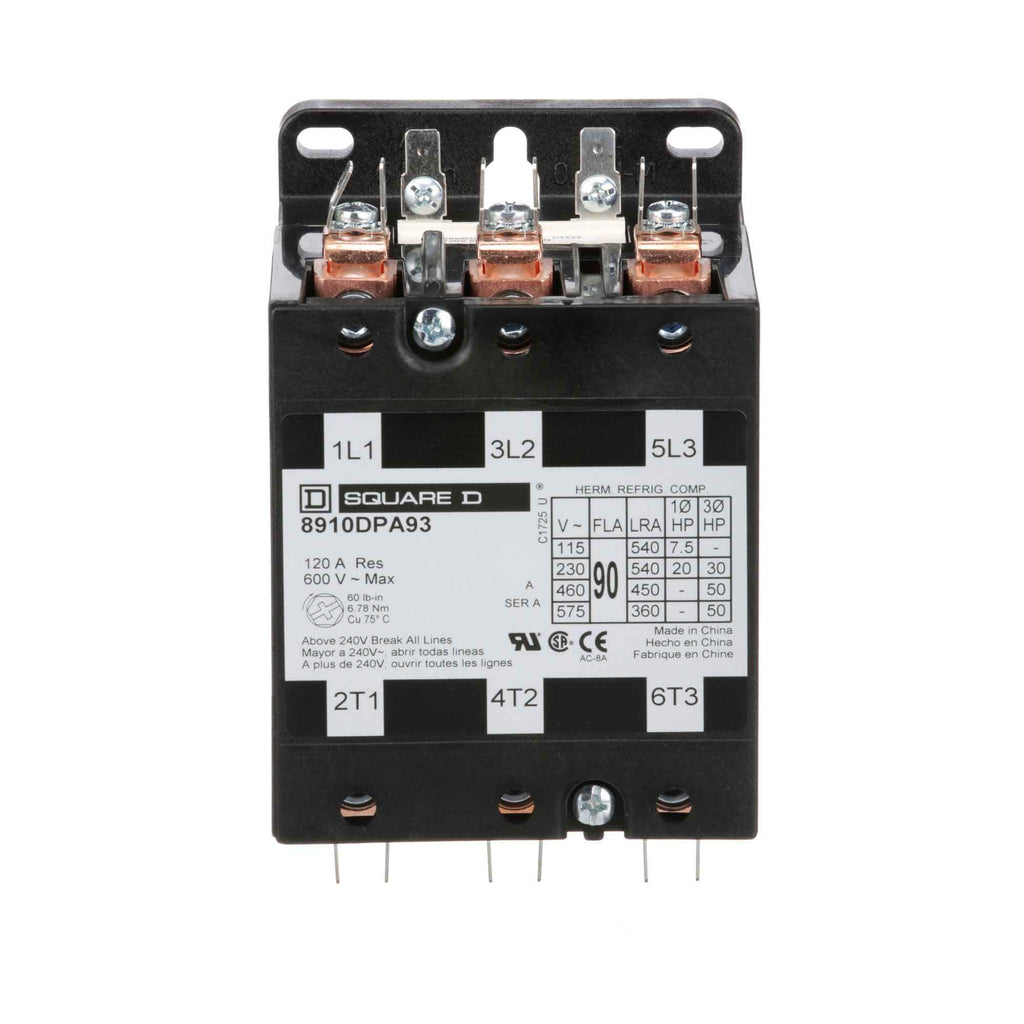

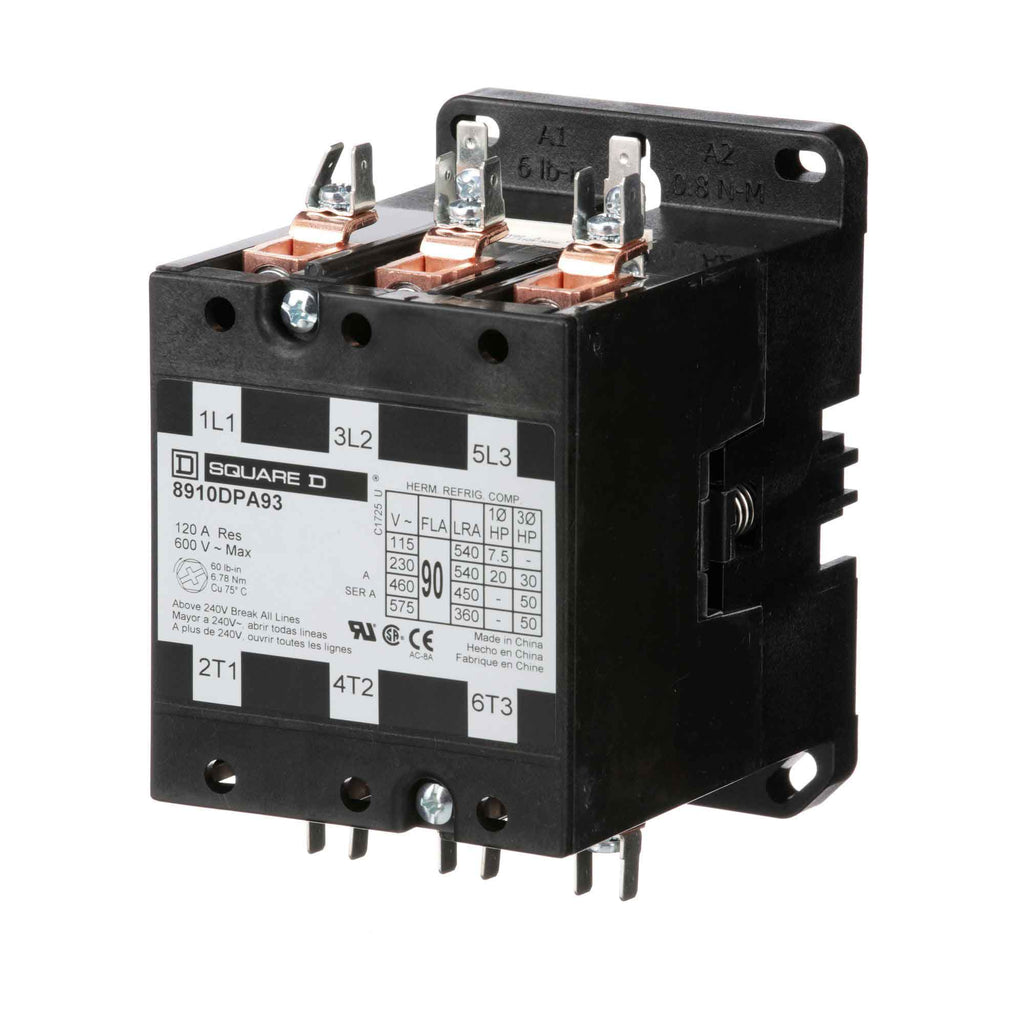

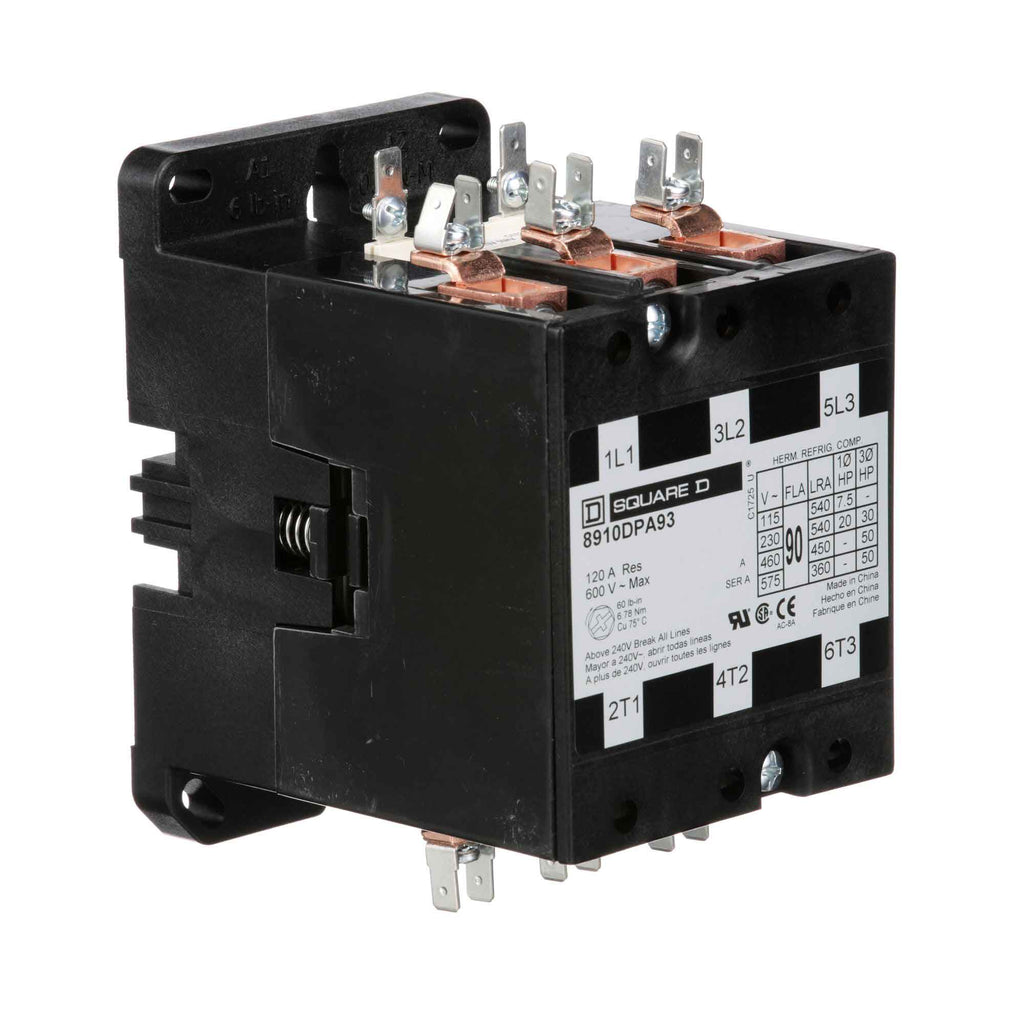

8910DPA93V06 is a Square D Class 8910 definite purpose contactor designed for motor control applications.This 3 pole contactor supports 90 amperes with a coil voltage rating of 440/480 VAC at 50/60 Hz. It is rated for 600V maximum system voltage and suitable for 3-phase motor loads up to 50 HP at 575 VAC. The contactor features 3 normally open contacts and is UL recognized and CSA certified for safety and reliability.

• Manufacturer: Square D
• Part Number: 8910DPA93V06
• Class: 8910
• Poles: 3
• Amperage: 90 A
• Coil Voltage: 440/480 VAC 50/60 Hz
• Maximum Voltage: 600 V AC
• Horsepower Ratings: 7.5 HP at 115 V AC (1 phase), 20 HP at 230 V AC (1 phase), 50 HP at 575 V AC (3 phase)
• Contact Configuration: 3 Normally Open (3NO)
• Certifications: UL Recognized, CSA Certified
• Mounting Type: Open

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This Definite Purpose Contactor includes a 440 VAC coil.

Specifications

• Part Number: 8910DPA93V06
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Contactor
• Family : Class 8910
• Type : DPA9
• Voltage : 600
• Amperage : 90
• Phase : 3
• Poles : 3
• Horse Power : 7.5 hp 115 V AC, 1 phase-20 hp 230 V AC, 1 phase-30 hp 230 V AC, 3 phases-50 hp 460 V AC, 3 phases-50 hp 575 V AC, 3 phases
• Aux Contacts : 3 NO
• Coil Voltage Maximum : 480V
• Full Load Amps : Full Load Amps-Inductive 90A Full Load Amps-Resistive 120A
• Coil Voltage Minimum : 440V
• Frequency : 50/60 Hz

Product Data

• UPC : 785901024576
• GTIN : 00785901024576
• Country of Origin : United States
• Dimensions : 5.3 in (134 mm) x 3.4 in (86 mm) x 4.8 in (121 mm) (Height x Width x Depth)
• Weight : 3.68
• Certification : CSA, REACH, RoHS, UL Listed
