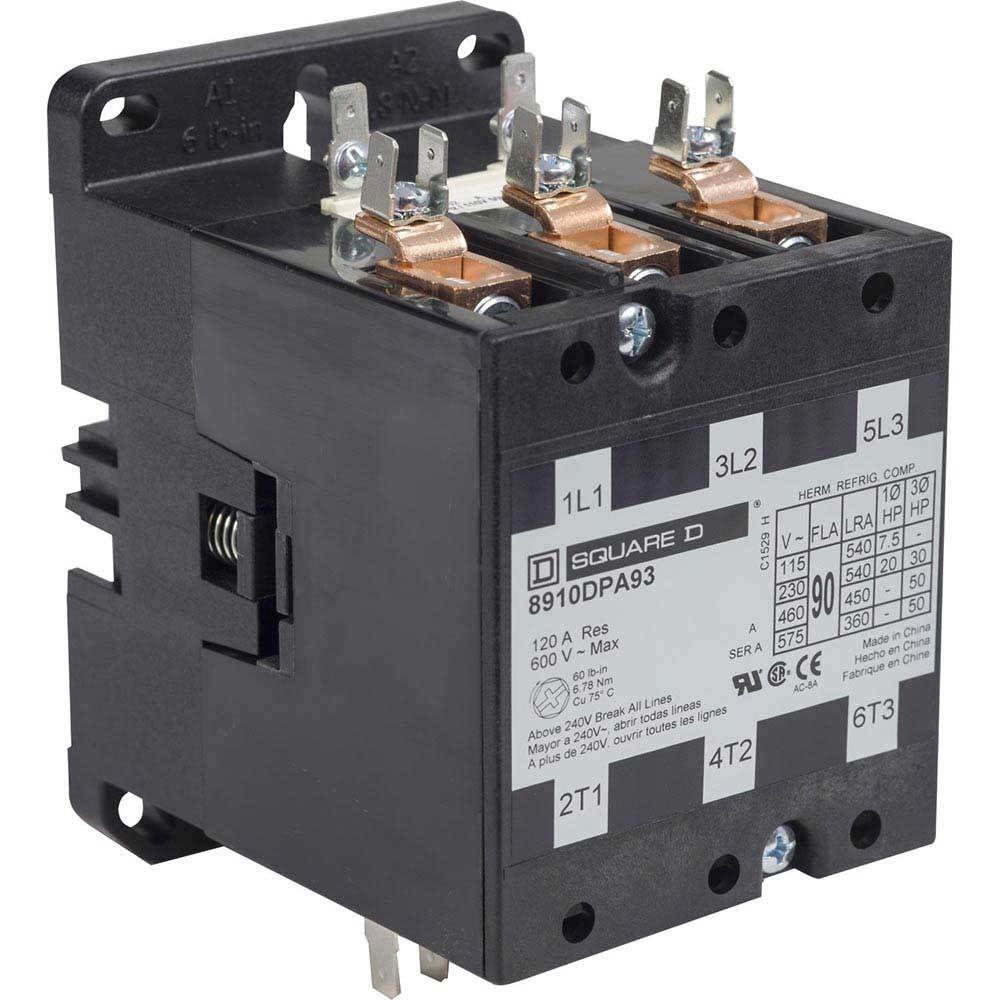

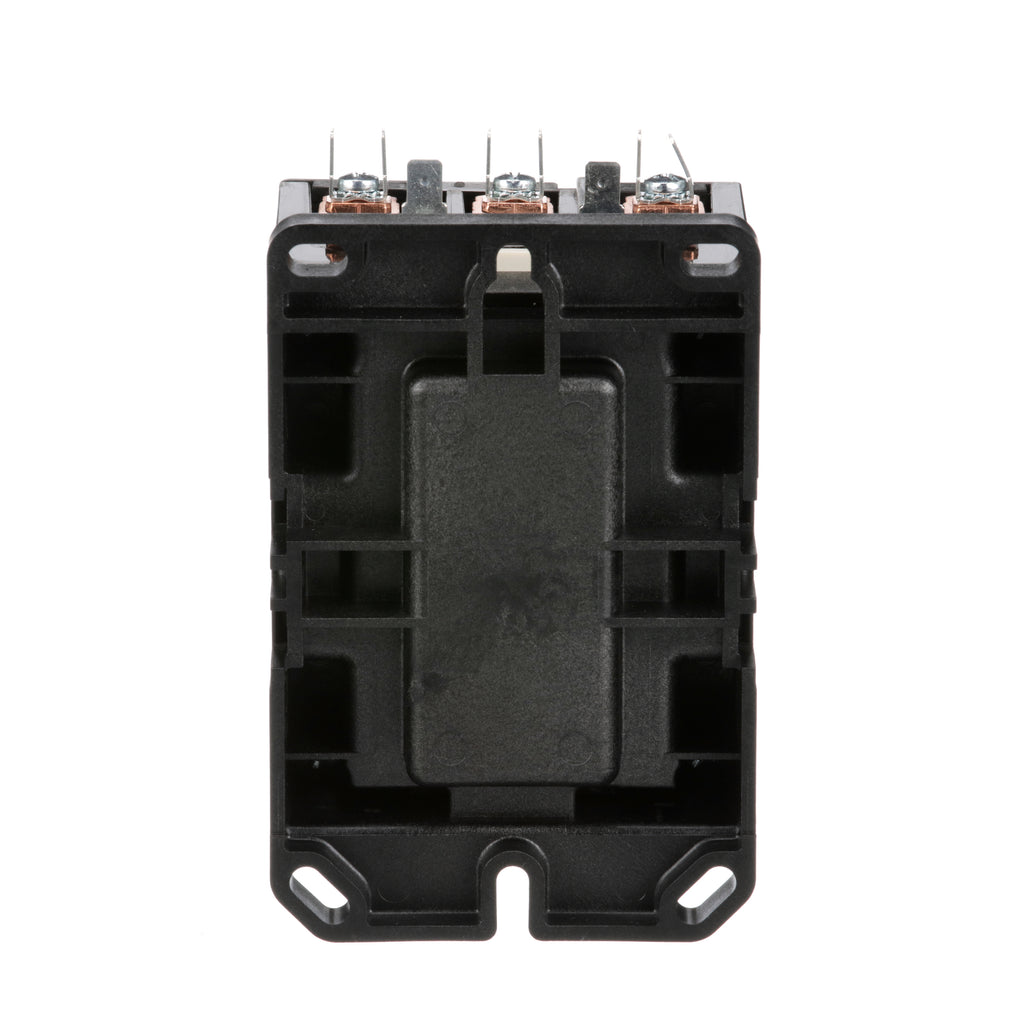

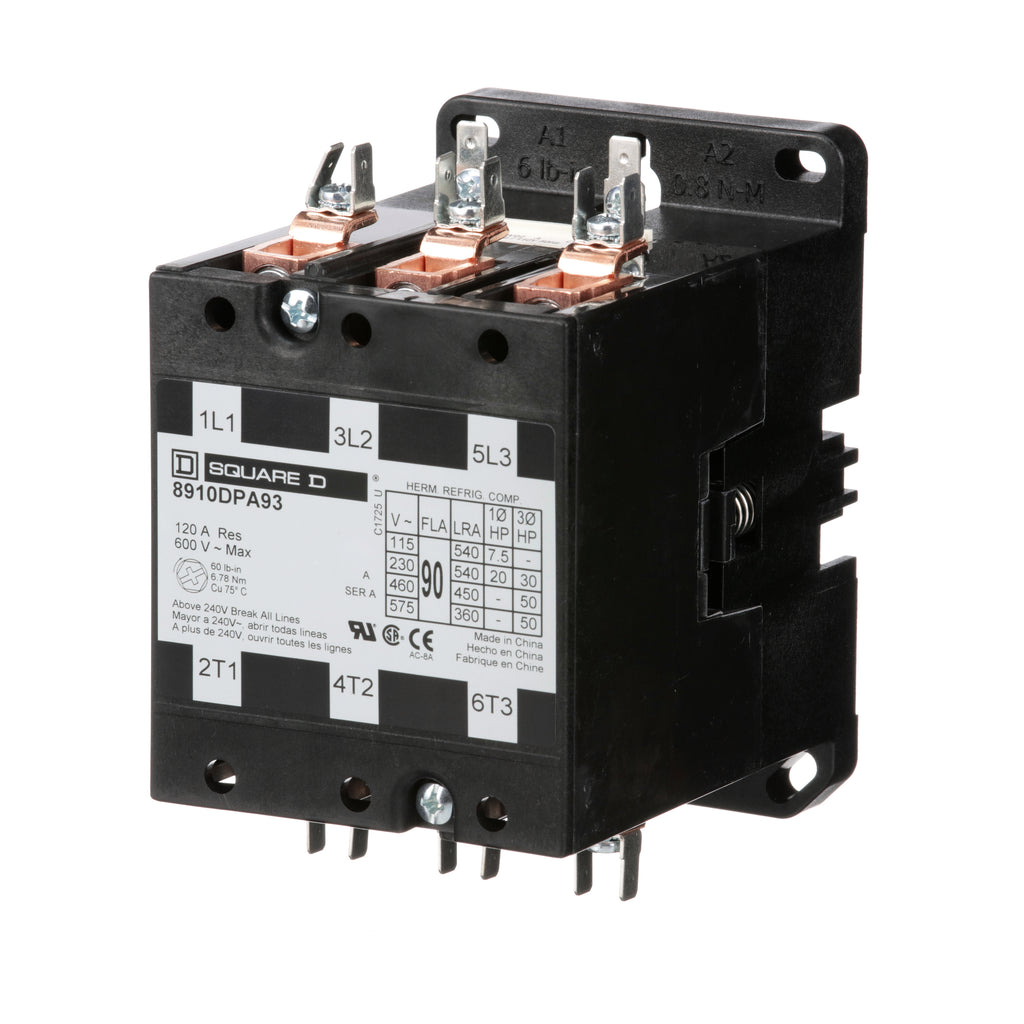

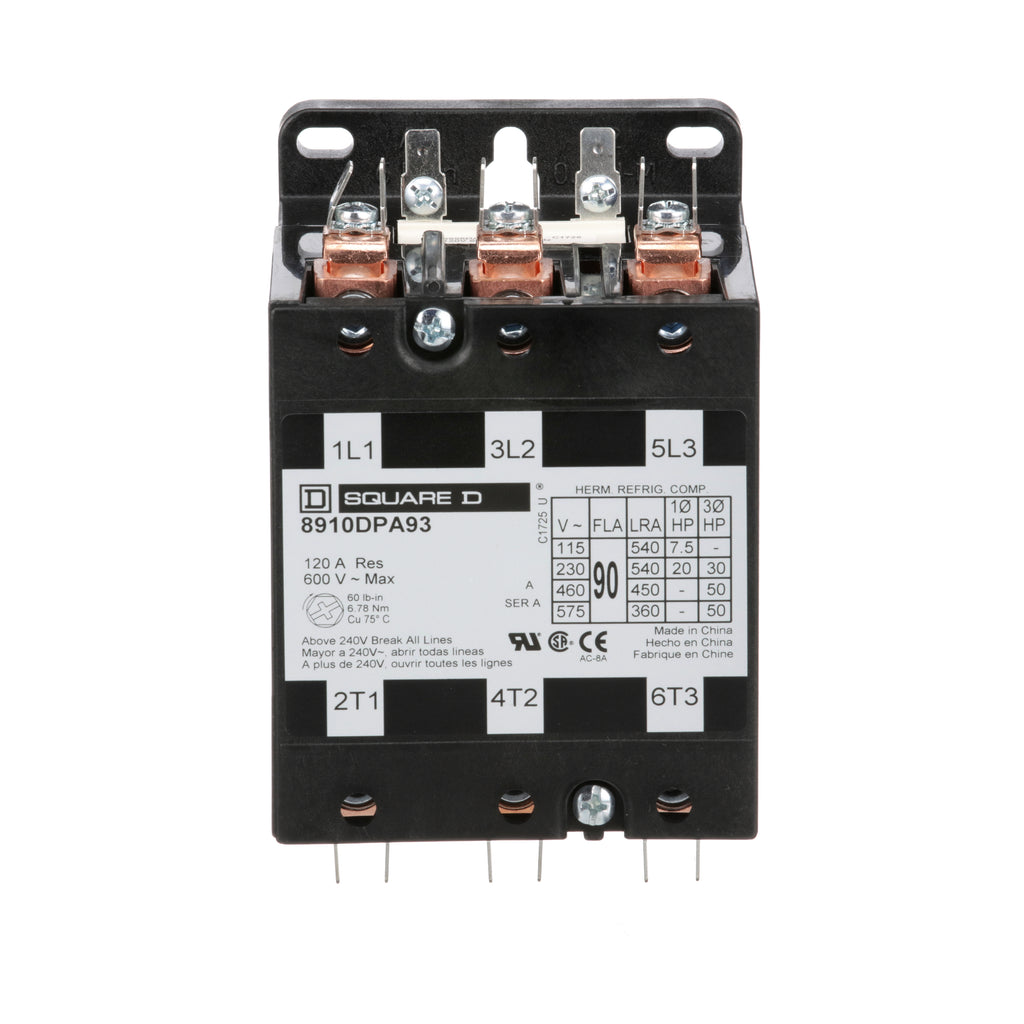

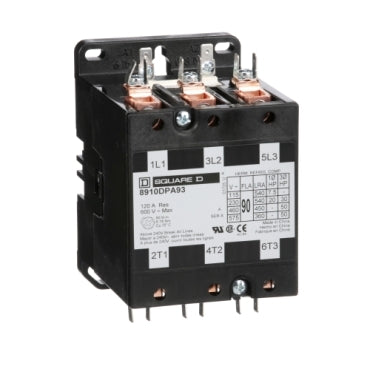

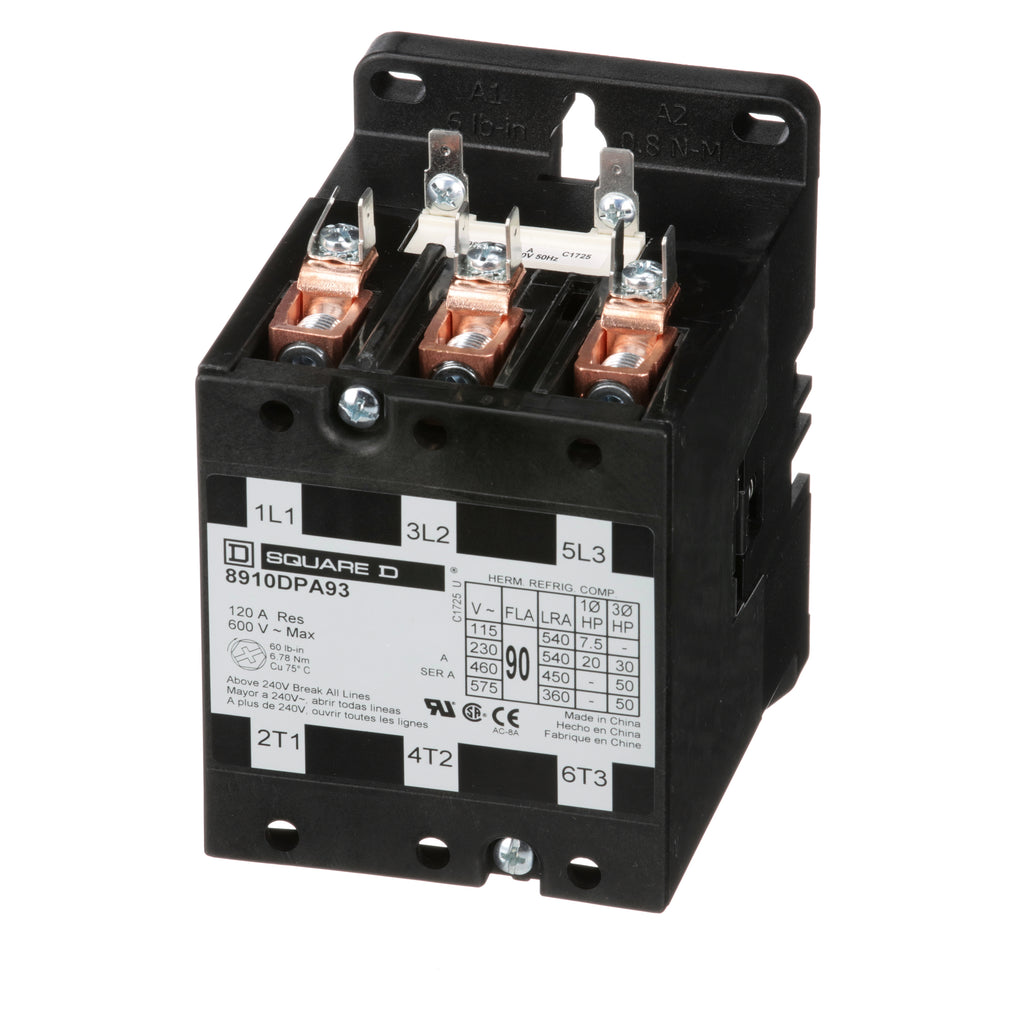

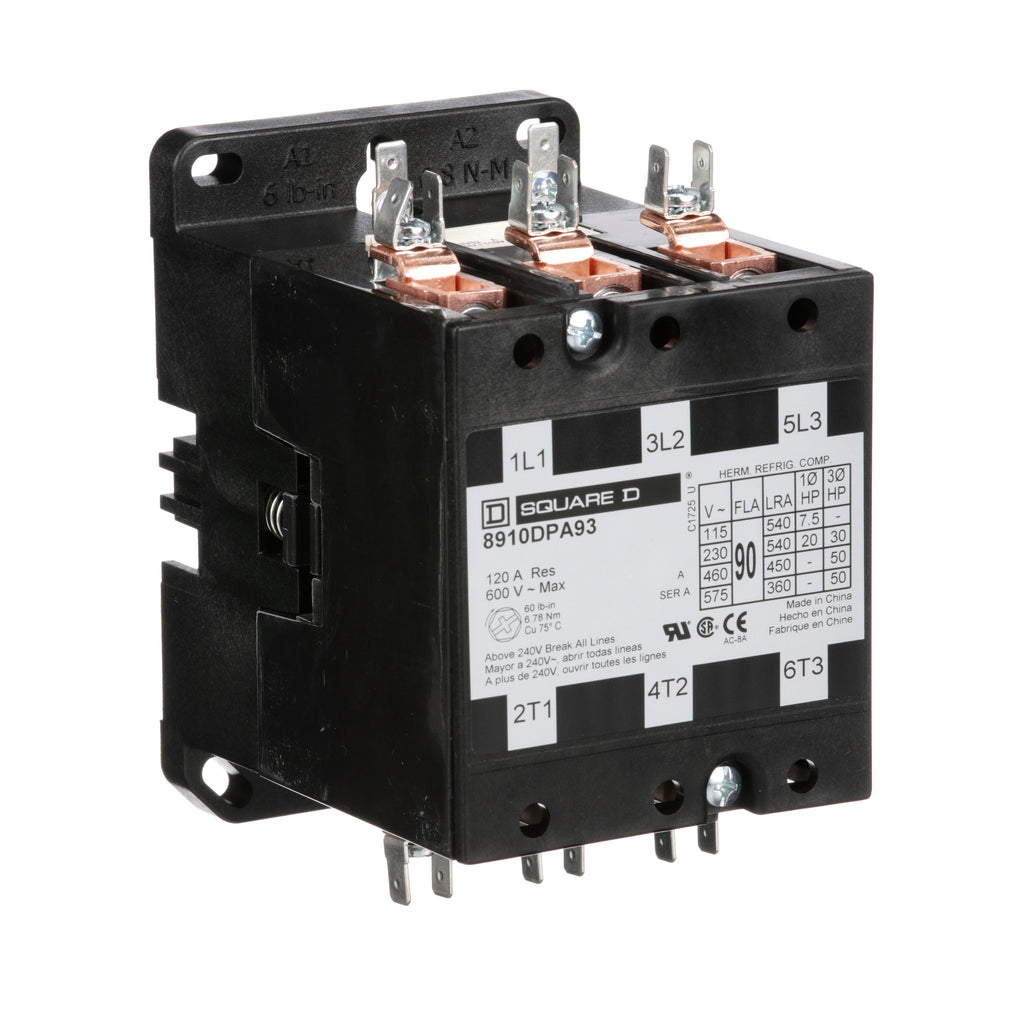

8910DPA93V02 - Square D 90A 600V 3-Pole Definite Purpose Contactor with 120V Coil

8910DPA93V02

8910DPA93V02 is a Square D definite purpose contactor designed for motor control applications with a 90 amp full load rating and 120 amp resistive rating.This 3-pole, 3-phase contactor operates at up to 600V AC and features a coil voltage of 120V AC at 60 Hz (110V AC at 50 Hz). It supports motor horsepower ratings of 7.5 hp at 115V single phase, 20 hp at 230V single phase, and up to 50 hp at 460/575V three phase. The contactor includes quick connect binder head screws and box lug electrical connections, suitable for panel mounting. It is UL listed, CSA certified, and CE marked, ensuring compliance with industry safety standards.

Key Specifications
• Amperage: 90A full load, 120A resistive
• Voltage: 600V AC operational
• Poles: 3
• Phase: 3-phase
• Coil Voltage: 120V AC @ 60 Hz, 110V AC @ 50 Hz
• Mounting Type: Panel mount
• Horsepower Ratings: 7.5 hp @ 115V 1-phase, 20 hp @ 230V 1-phase, 30 hp @ 230V 3-phase, 50 hp @ 460/575V 3-phase
• Contact Type: 3 Normally Open (NO)
• Electrical Connection: Box lugs and quick connect terminals
• Certifications: UL Listed, CSA Certified, CE Marked
• Series/Frame: DPA

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This Definite Purpose Contactor includes a 110 VAC coil.

Specifications

• Part Number: 8910DPA93V02
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Contactor
• Family : Class 8910
• Type : DPA9
• Voltage : 600
• Amperage : 90
• Phase : 3
• Poles : 3
• Horse Power : 7.5 hp 115 V AC, 1 phase-20 hp 230 V AC, 1 phase-30 hp 230 V AC, 3 phases-50 hp 460 V AC, 3 phases-50 hp 575 V AC, 3 phases
• Aux Contacts : 3 NO
• Coil Voltage Maximum : 120V
• Full Load Amps : Full Load Amps-Inductive 90A Full Load Amps-Resistive 120A
• Coil Voltage Minimum : 110V
• Frequency : 50/60 Hz

Product Data

• UPC : 785901118398
• GTIN : 00785901118398
• Country of Origin : China
• Dimensions : 5.26 in x 3.39 in x 4.67 in (Height x Width x Depth)
• Weight : 3.68
• Certification : CSA, RoHS, UL Listed
