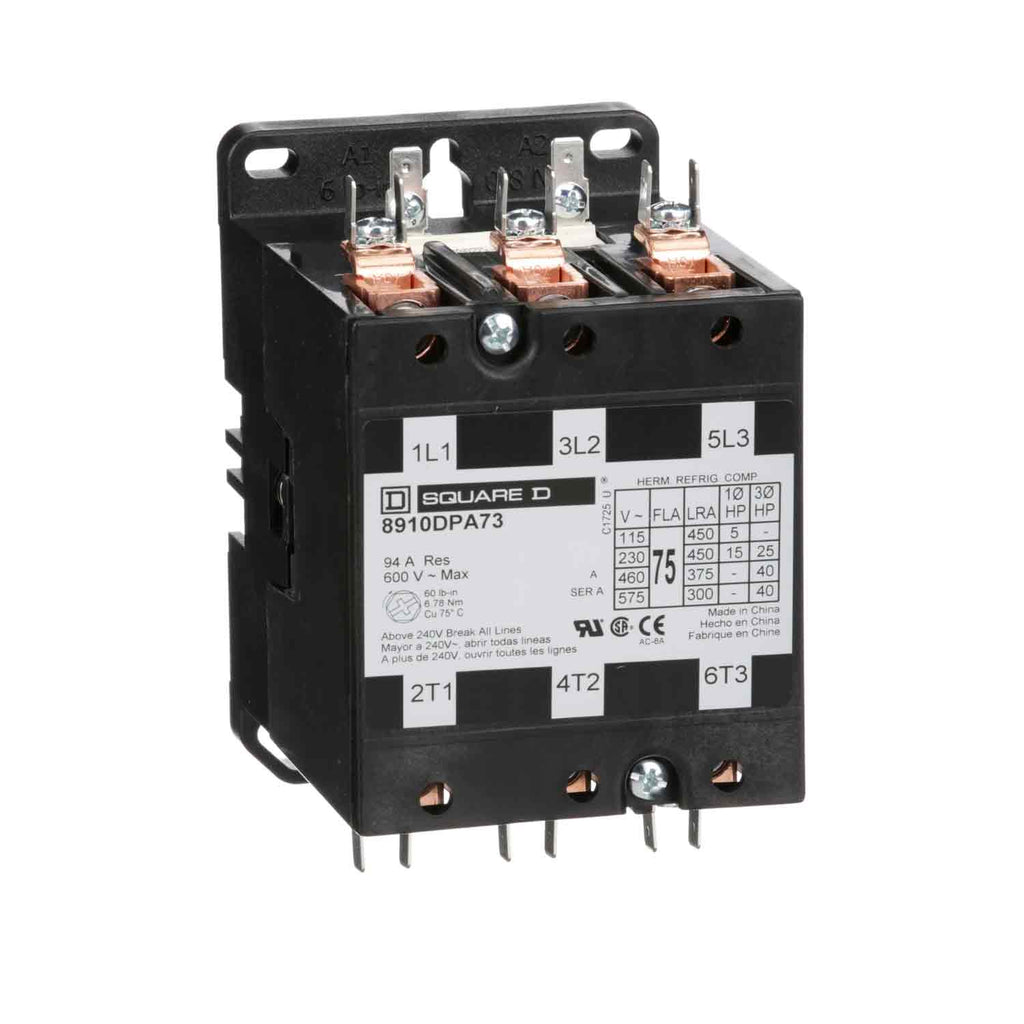

8910DPA73V09 - Square D 75A 3-Pole 600V Definite Purpose Contactor, Panel Mount, Class 8910 DPA Series

8910DPA73V09

8910DPA73V09 is a Square D definite purpose contactor designed for motor control applications with a 75 amp rating and 3 poles at 600 volts.This contactor features a 3-phase, 3-pole configuration with a 75A line rated current and supports voltages up to 600V. It is panel mounted and part of the Class 8910 DPA series. The device has a locked rotor rated current of up to 450A at 277V AC and a horsepower rating of 5 HP at 115V AC single phase and up to 40 HP at 460/575V. It is suitable for heating, air conditioning, refrigeration, and other motor control applications.

• Amperage: 75A
• Voltage: 600V max
• Poles: 3
• Mounting Type: Panel mount
• Series/Frame: Class 8910 DPA
• Horsepower Rating: 5 HP at 115V AC, 15 HP at 230V AC, 40 HP at 460/575V
• Locked Rotor Current: 450A at 277V AC
• Phase: 3-phase
• Coil Voltage: 208-240V AC, 60Hz (also 220V 50Hz)
• Contactor Type: Definite purpose

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 8910DPA73V09
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Contactor
• Family : Class 8910
• Type : DPA
• Voltage : 600
• Amperage : 75
• Phase : 3
• Poles : 3
• Horse Power : 5 hp 115 V AC, 1 phase-15 hp 230 V AC, 1 phase-25 hp 230 V AC, 3 phases-40 hp 460 V AC, 3 phases-40 hp 575 V AC, 3 phases
• Aux Contacts : 3 NO
• Coil Voltage Maximum : 220V
• Full Load Amps : Full Load Amps-Inductive 75A Full Load Amps-Resistive 94A
• Coil Voltage Minimum : 220V

Product Data

• UPC : 785901118374
• GTIN : 00785901118374
• Country of Origin : Mexico
• Dimensions : Depth 4.37 in (111 mm) Width 4.02 in (102 mm) Height 2.64 in (67 mm)
• Weight : 3.66
• Certification : UL RECOGNIZED-CSA
