2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Description
8910DPA73V02

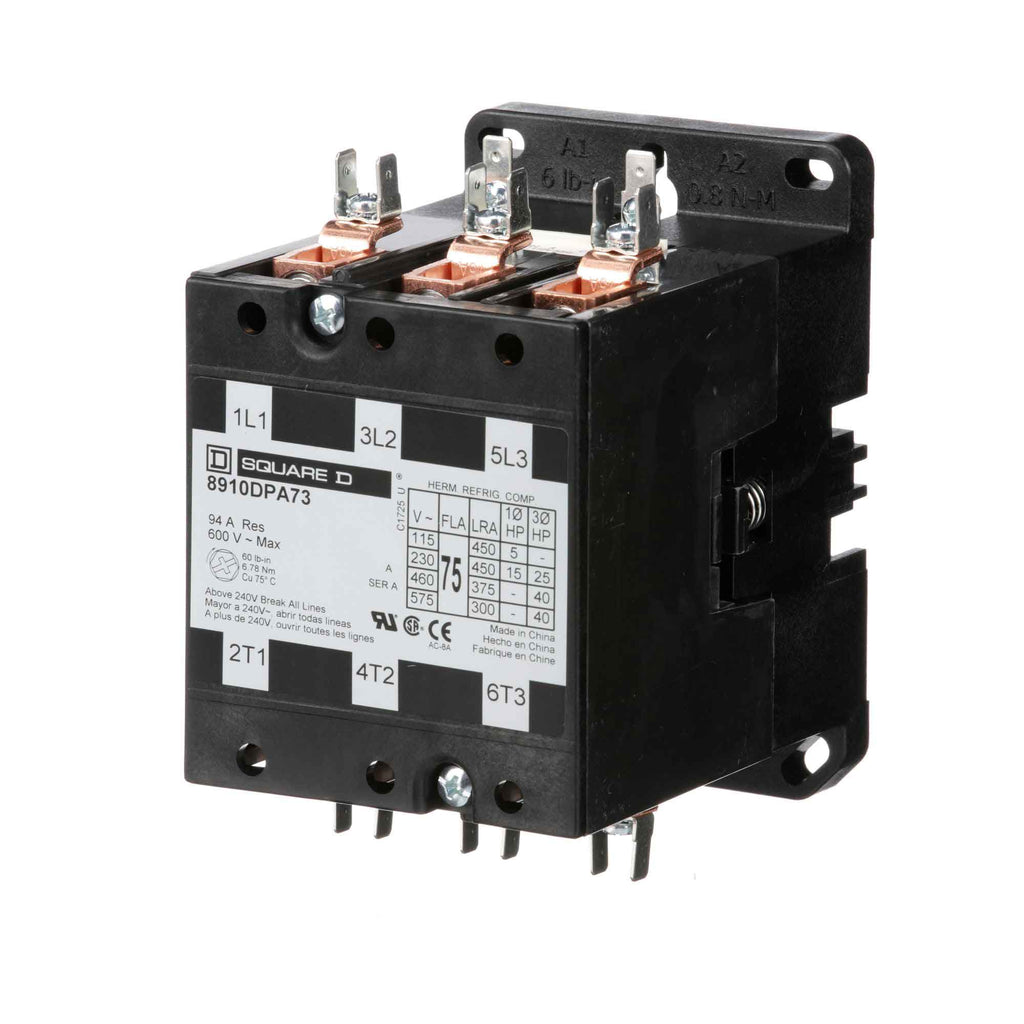

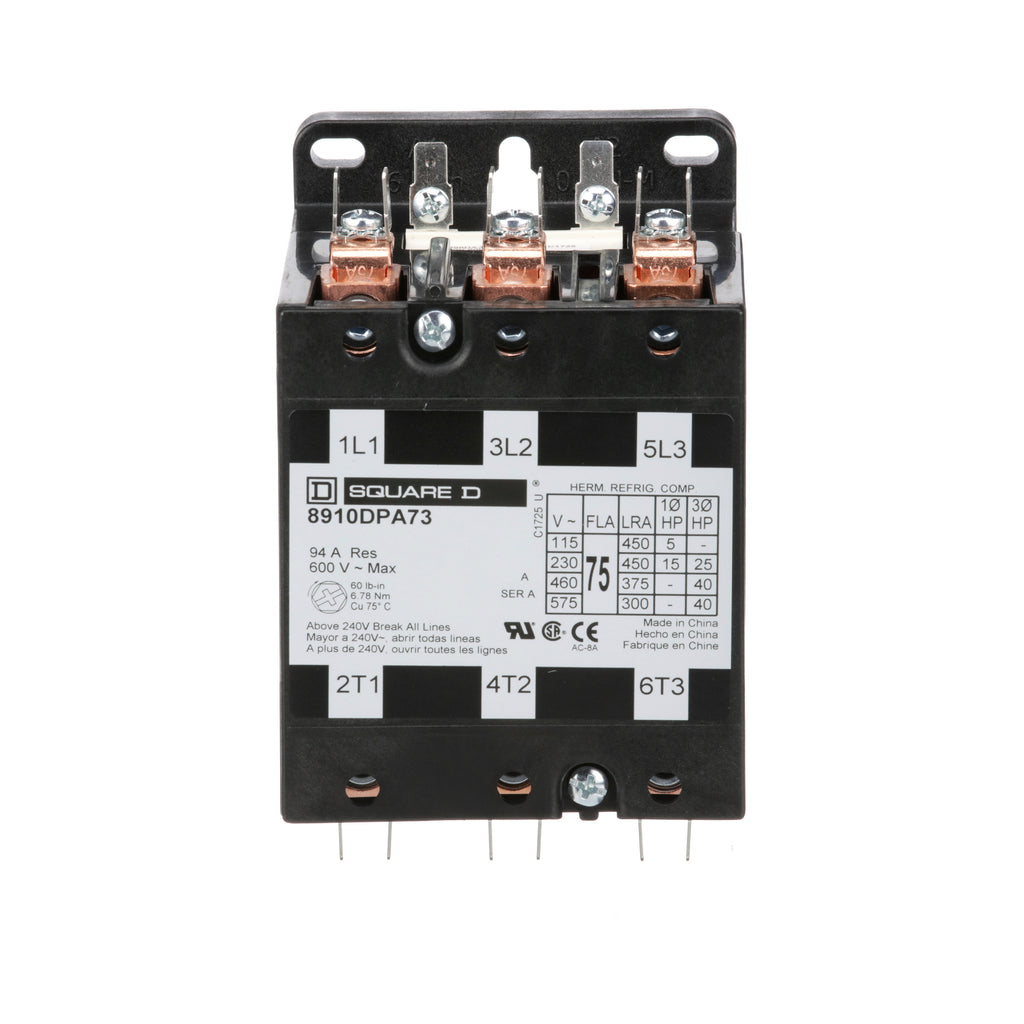

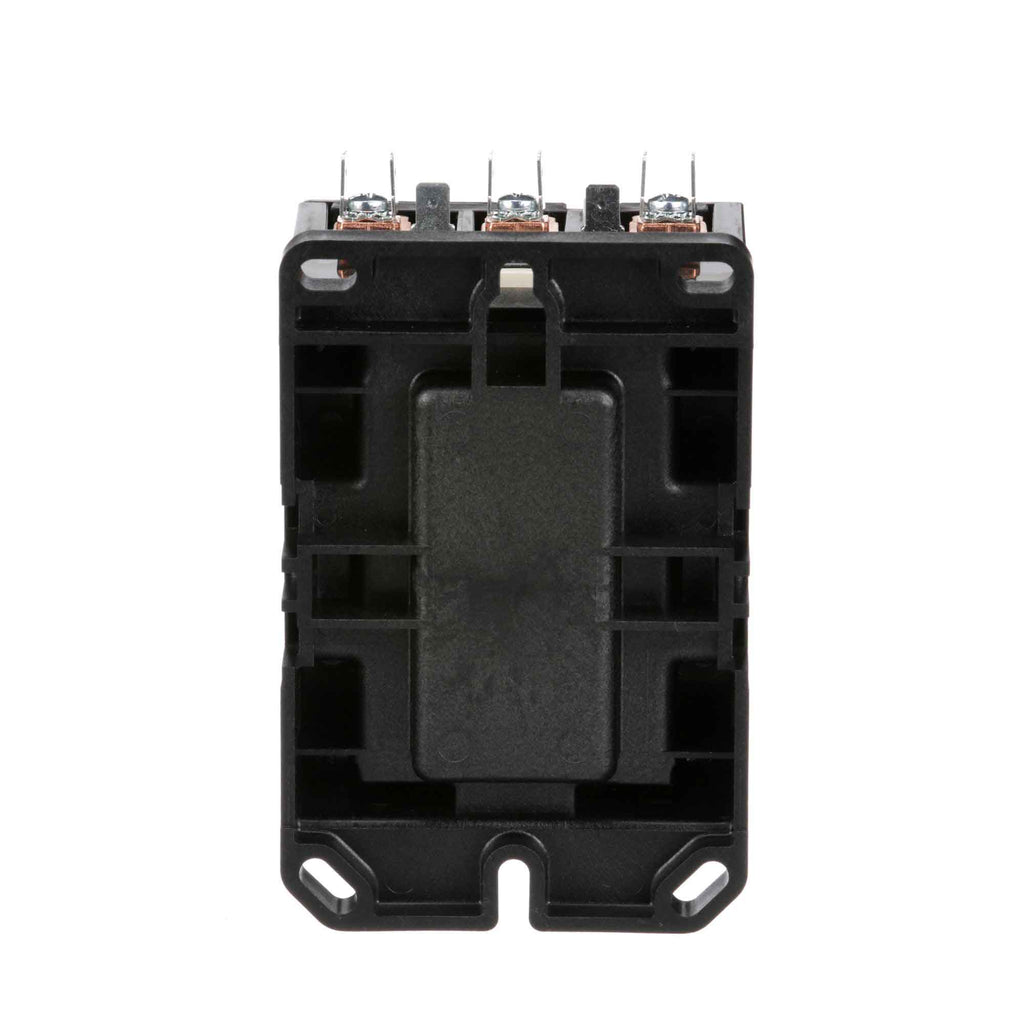

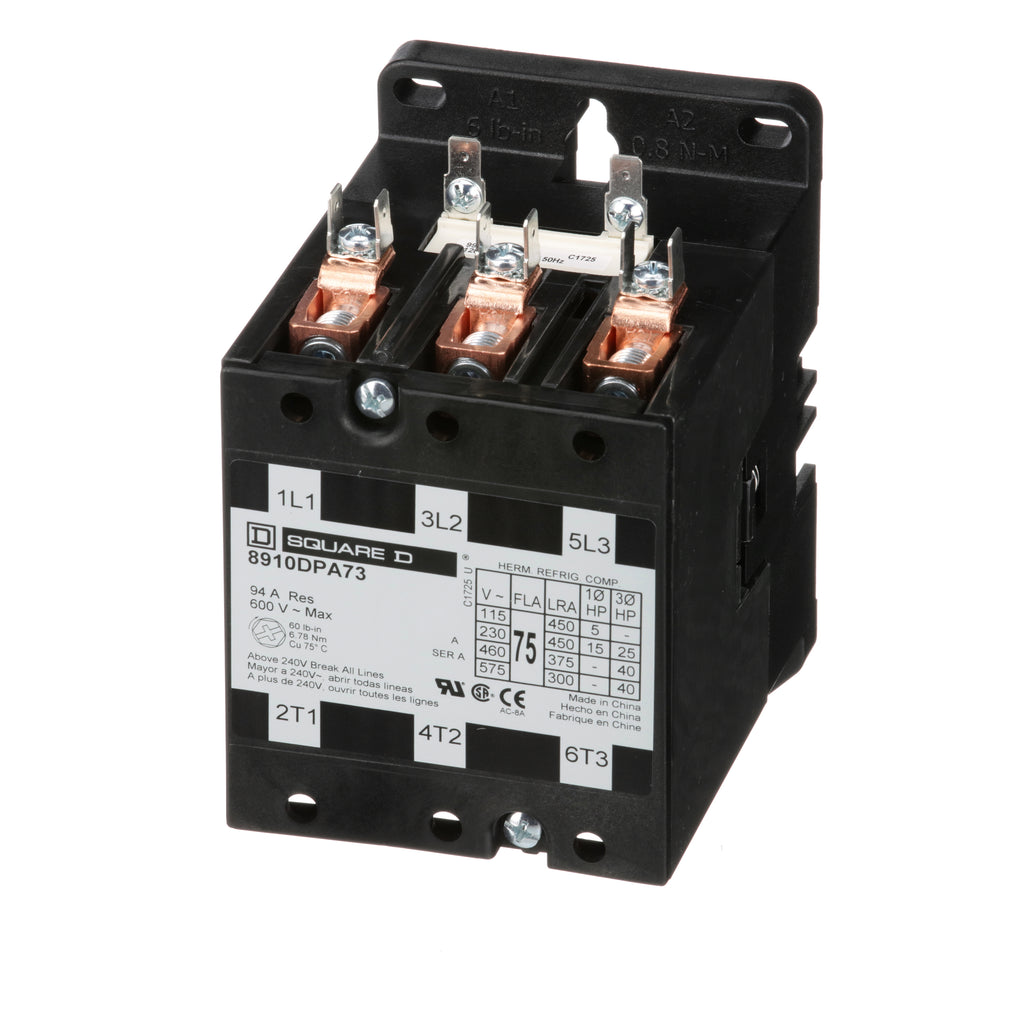

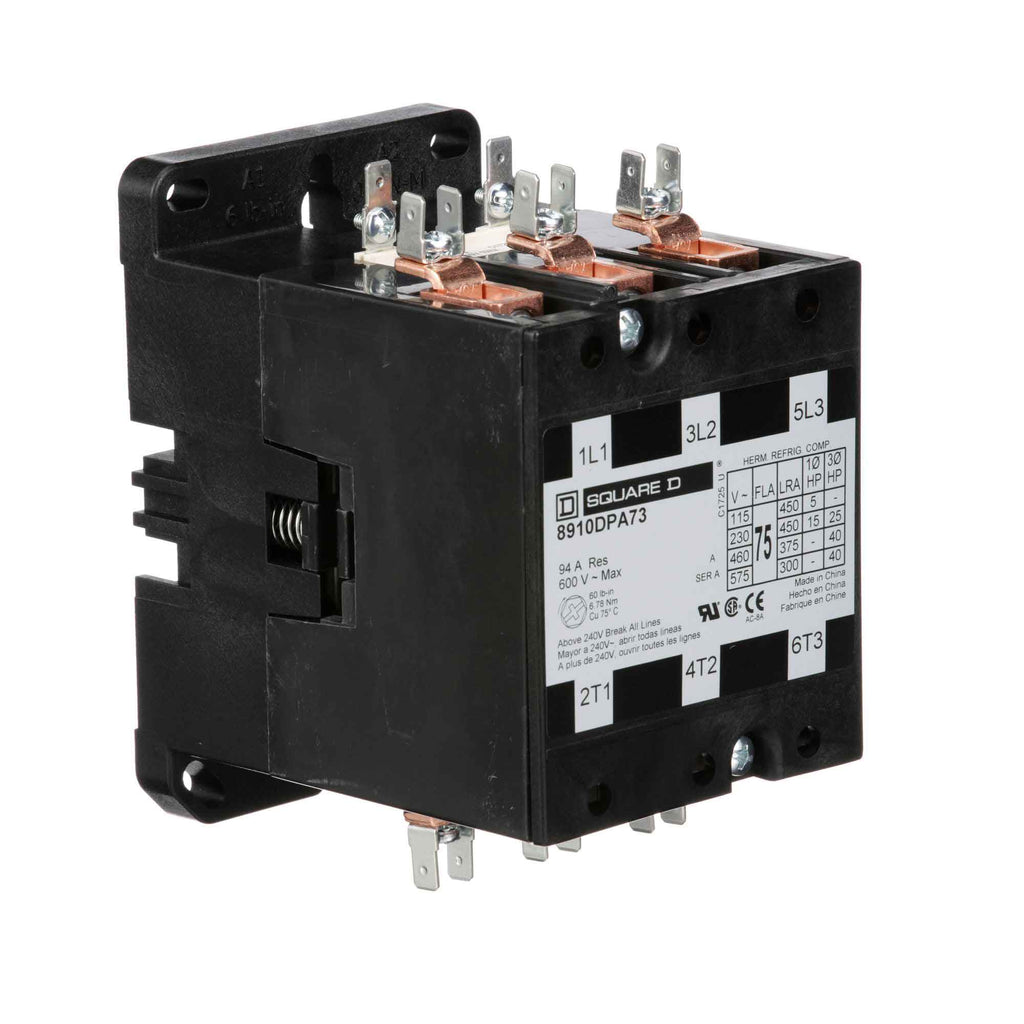

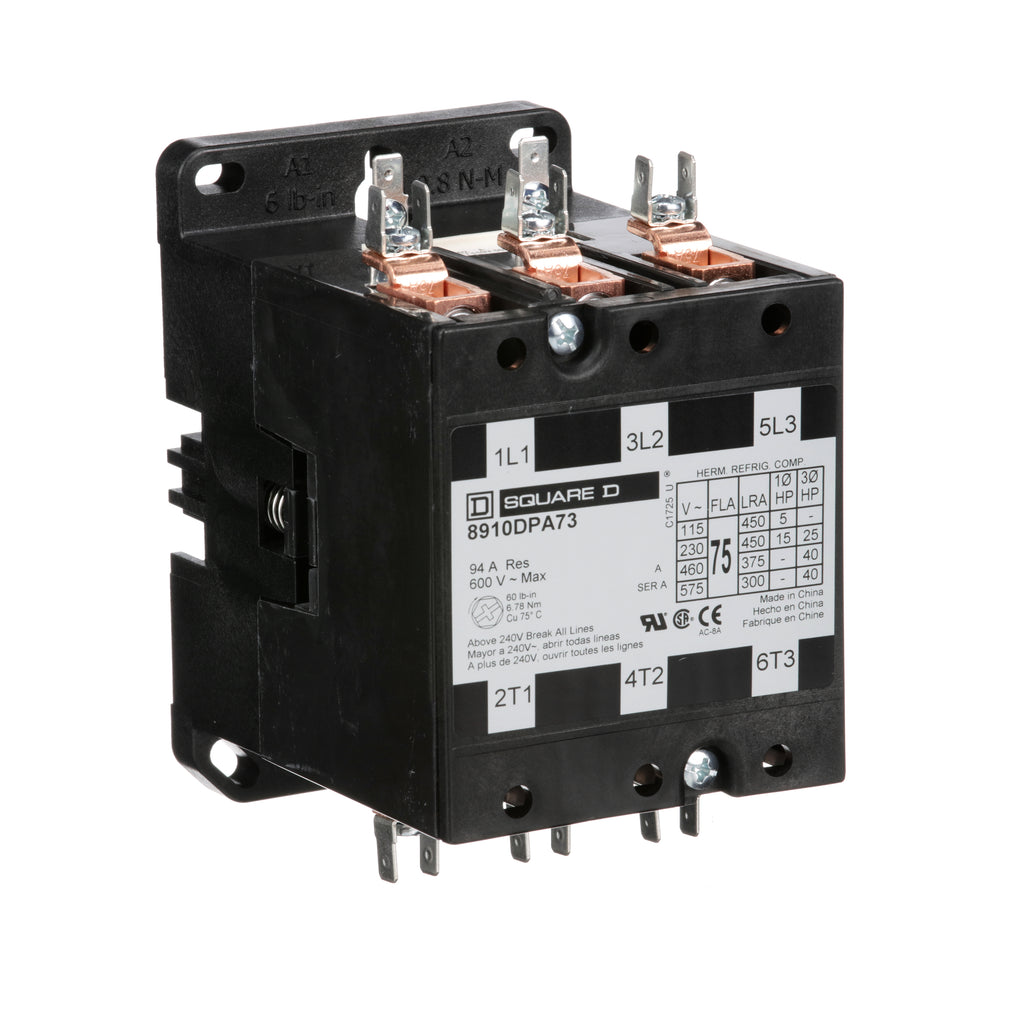

8910DPA73V02 is a Square D Class 8910 Definite Purpose Contactor designed for reliable motor control in industrial applications. This 3 pole, 3 phase contactor features a 75A current rating and is rated for up to 600V, making it suitable for a wide range of motor loads. Engineered for durability and performance, the 8910DPA73V02 is panel mountable and built to meet the demands of commercial and industrial environments. Its robust construction ensures long service life and dependable operation.
- Part Number: 8910DPA73V02
- Manufacturer: Square D
- Series: Class 8910, DPA
- Amperage: 75A
- Voltage: 600V
- Poles: 3
- Phase: 3
- Mounting Type: Panel
- Contactor Type: Definite Purpose
- Interrupt Rating: 100,000A
- Frame: 3 Pole
- Certifications: UL Listed, CSA Certified
Specifications
- Part Number: 8910DPA73V02
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Class 8910
- Type : DPA
- Voltage : 600
- Amperage : 75
- Phase : 3
- Poles : 3
- Horse Power : 5 hp 115 V AC, 1 phase-15 hp 230 V AC, 1 phase-25 hp 230 V AC, 3 phases-40 hp 460 V AC, 3 phases-40 hp 575 V AC, 3 phases
- Aux Contacts : 3 NO
- Coil Voltage Maximum : 120V
- Full Load Amps : Full Load Amps-Inductive 75A Full Load Amps-Resistive 94A
- Coil Voltage Minimum : 110V
Product Data
- UPC : 785901118367
- GTIN : 00785901118367
- Dimensions : Depth 4.37 in (111 mm) Width 4.02 in (102 mm) Height 2.64 in (67 mm)
- Weight : 3.75 lb
- Certification : UL recognized CSA
