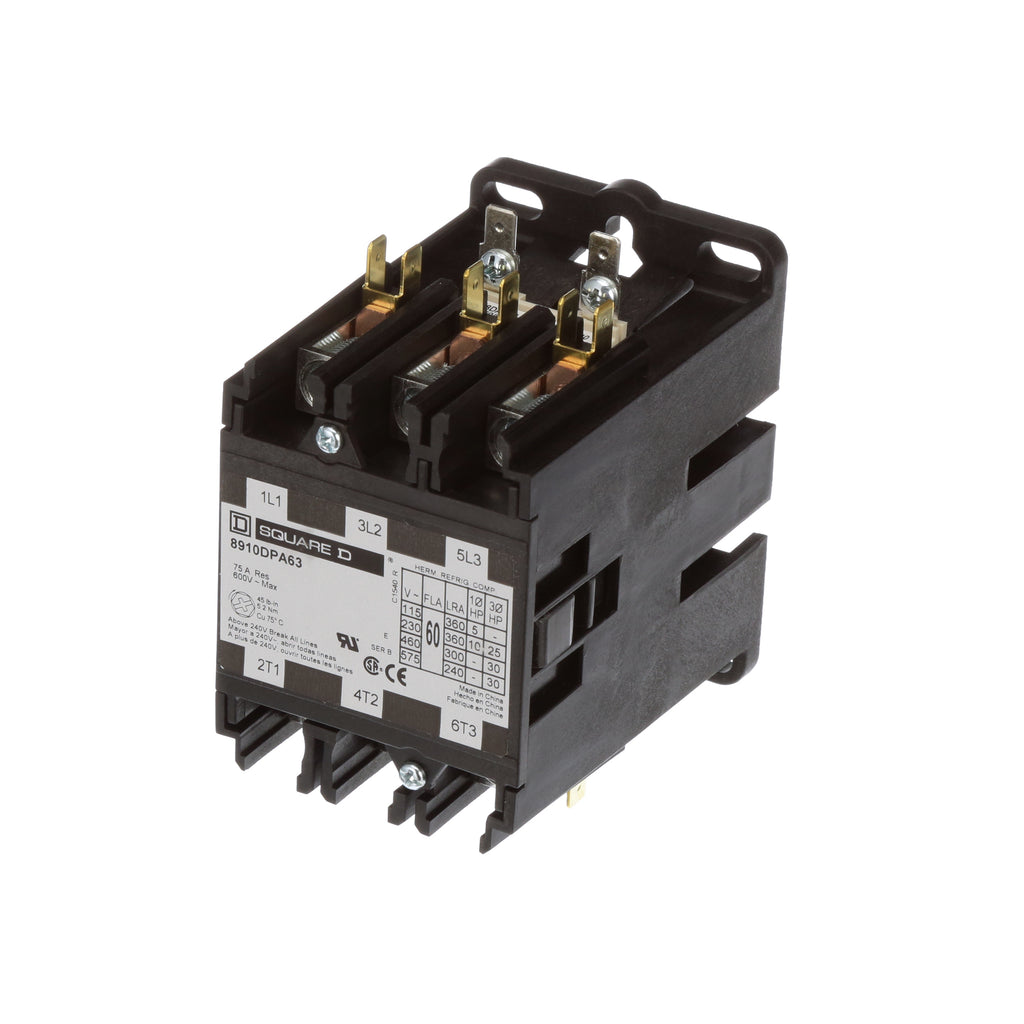

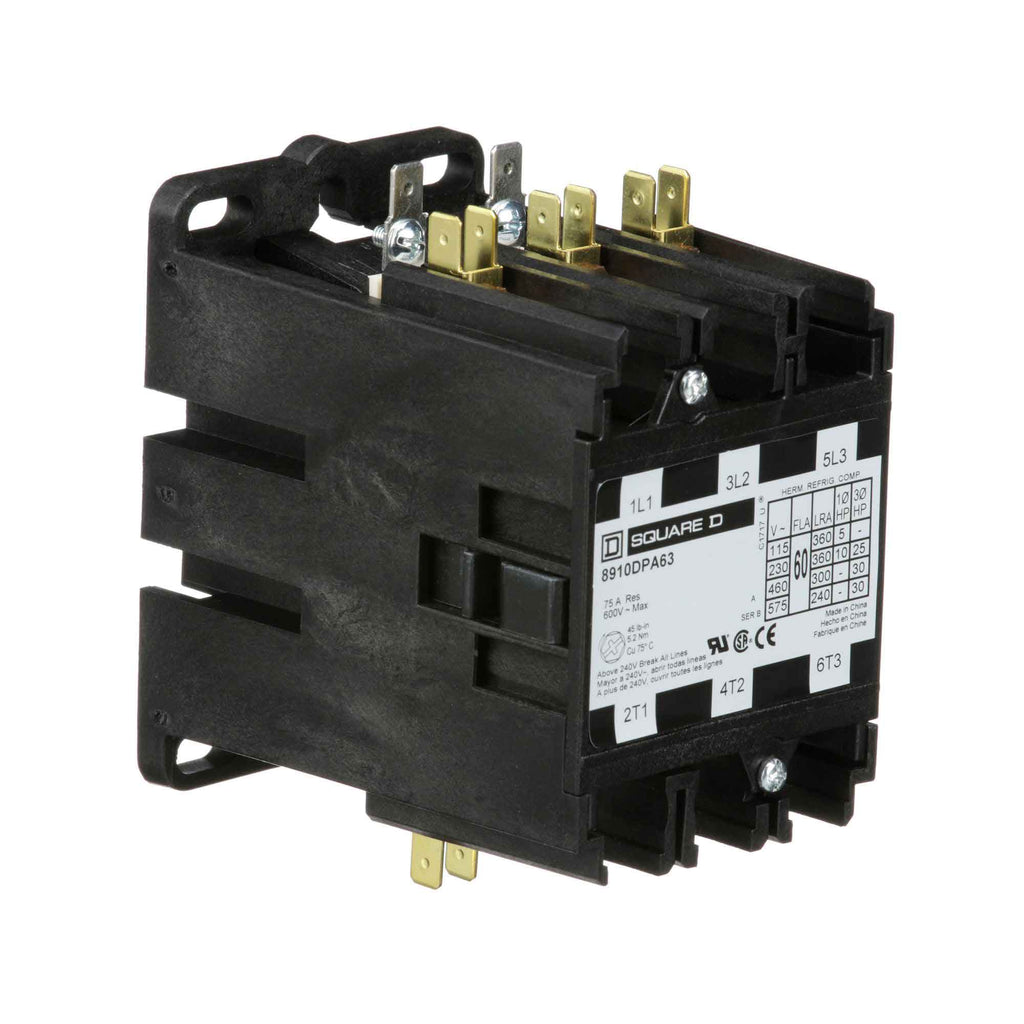

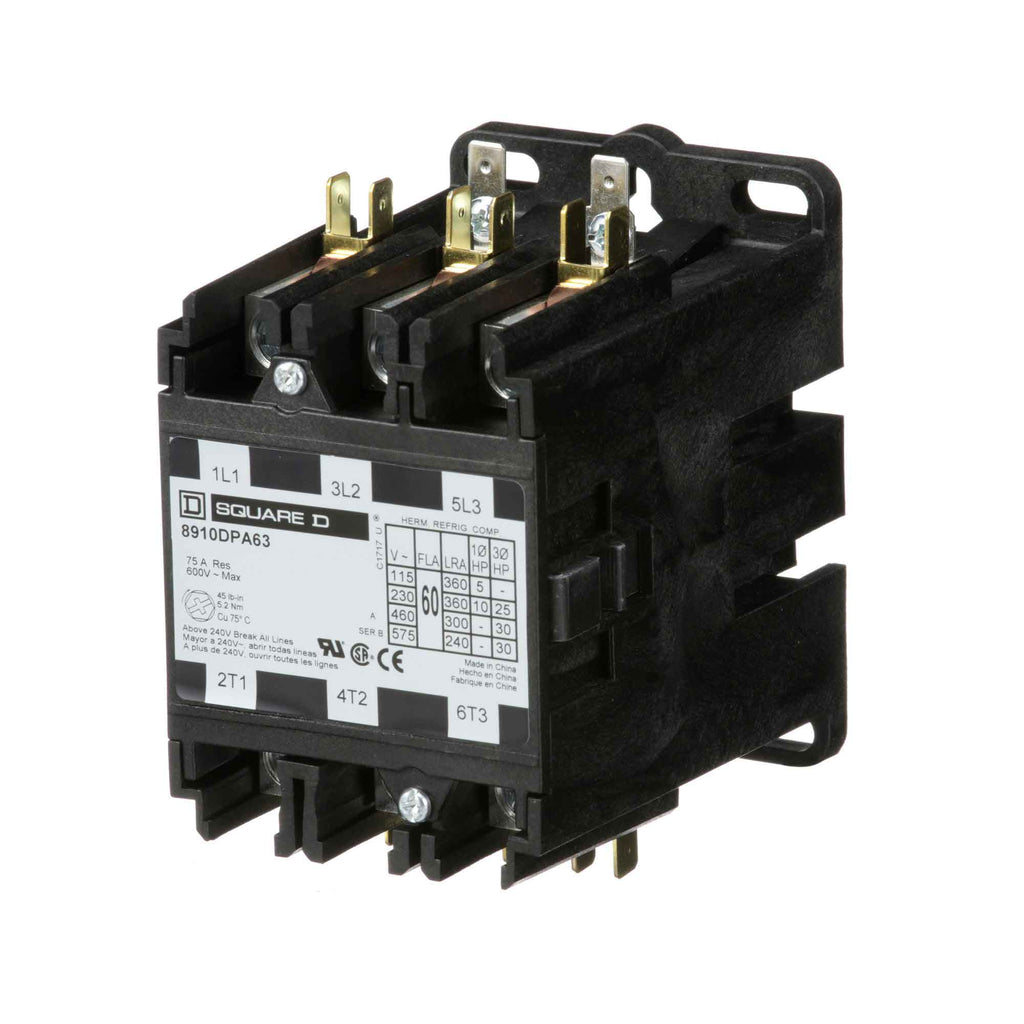

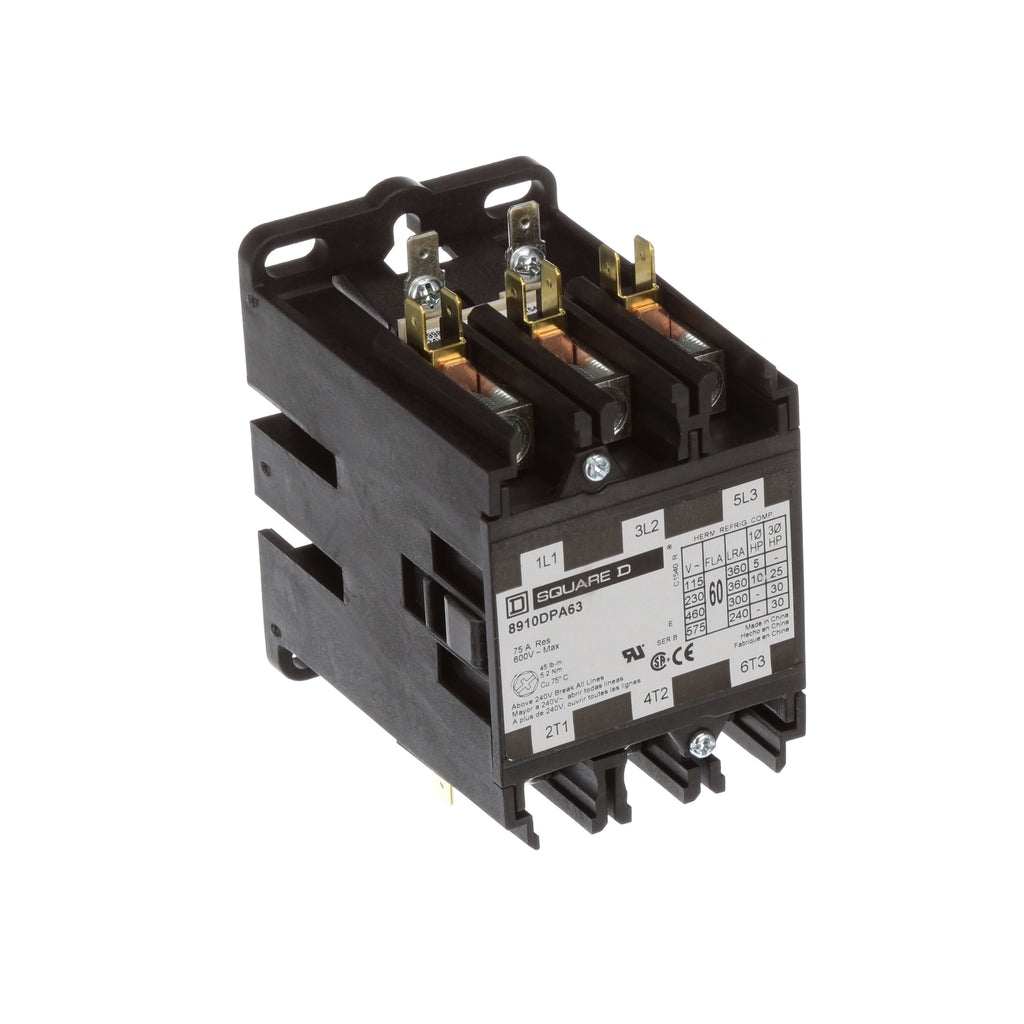

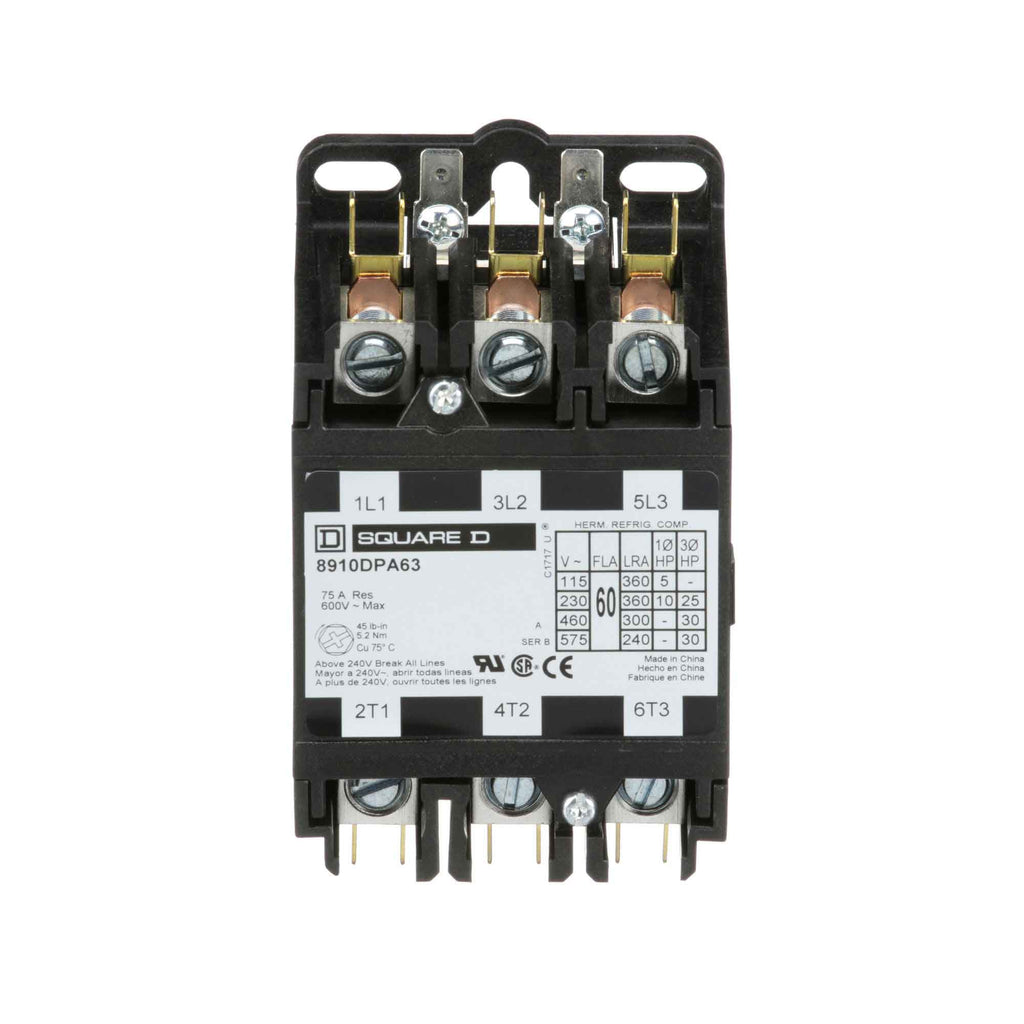

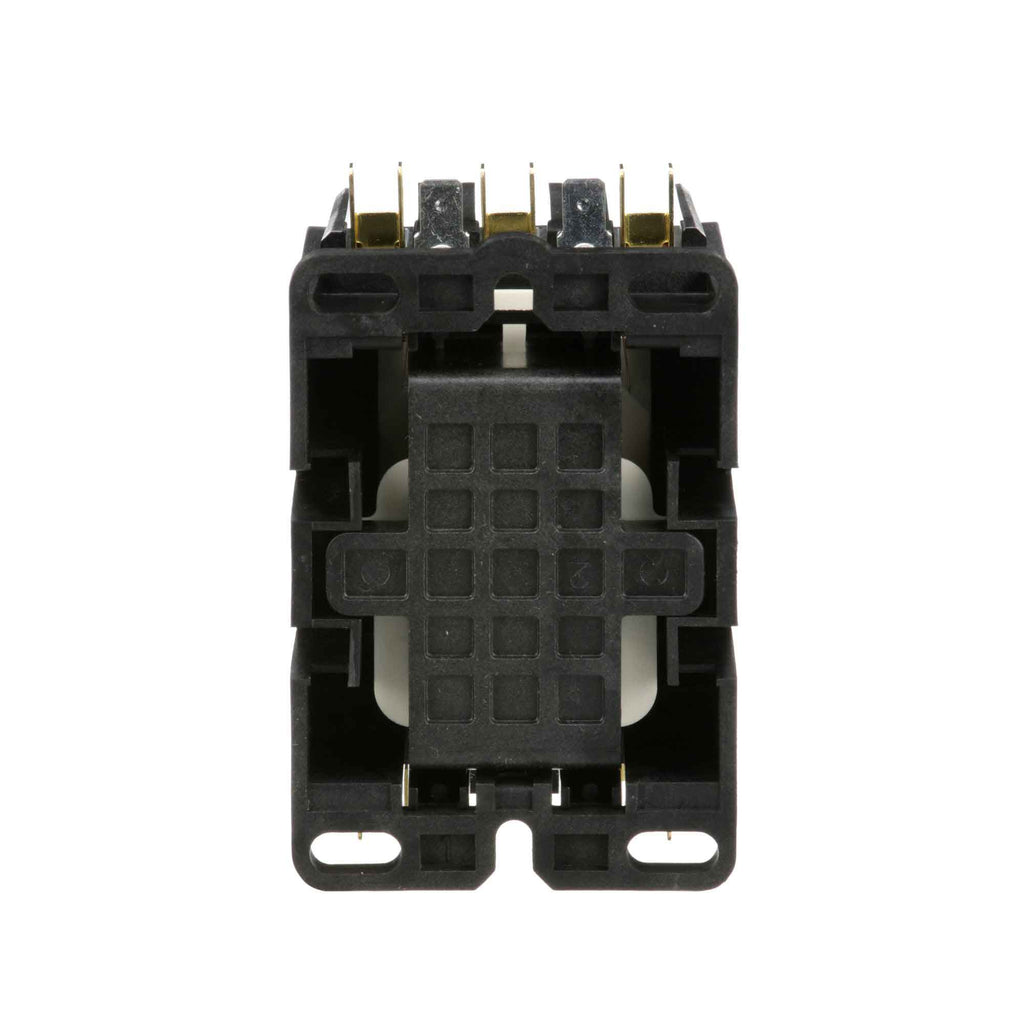

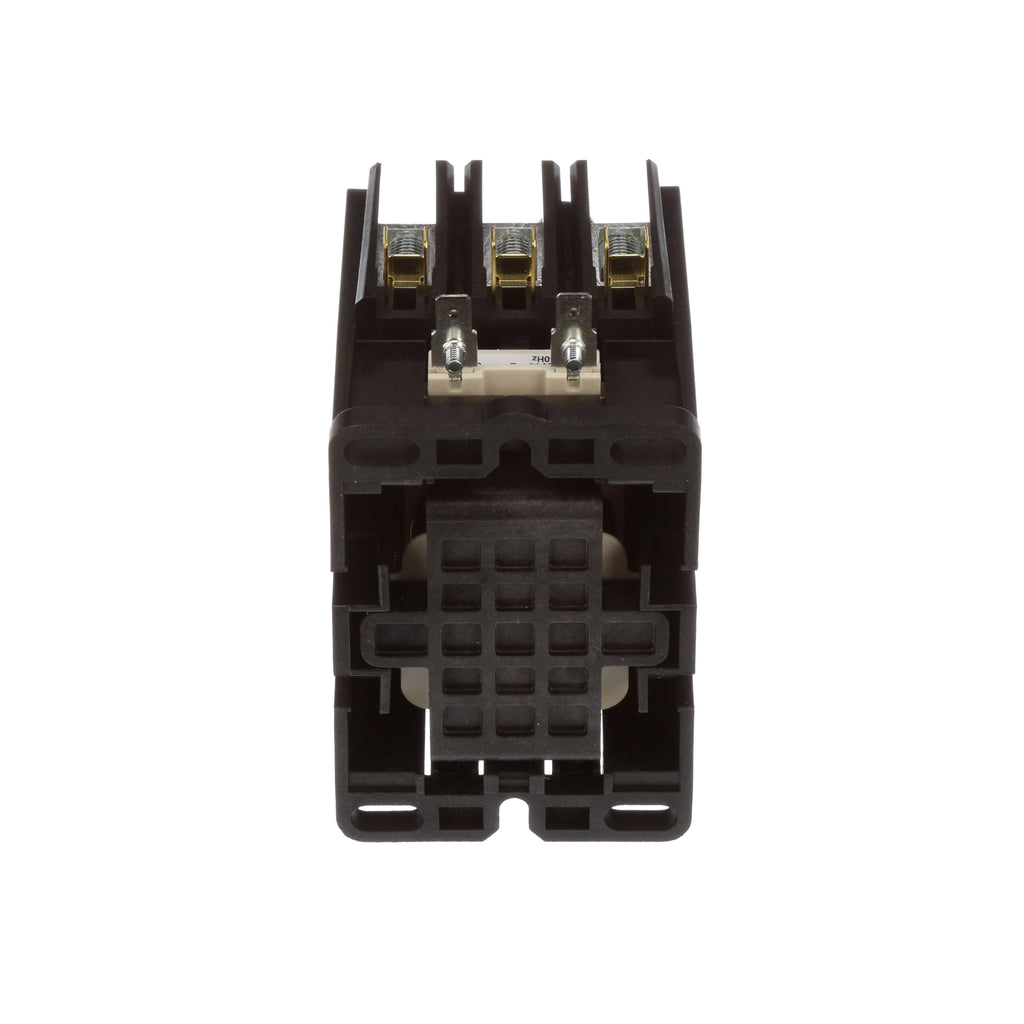

8910DPA63V14 - Square D 60A 600V 3-Pole Definite Purpose Contactor 24VAC Coil Panel Mount

8910DPA63V14

8910DPA63V14 is a Square D definite purpose contactor designed for motor control applications with a 60 amp rating and 3 poles.This contactor features a 24 VAC 50/60 Hz coil voltage, supports up to 600V system voltage, and is suitable for 3-phase motors. It is rated for 25 HP at 230 VAC and 30 HP at 460/575 VAC. The device includes quick connect terminals and panel mounting for easy installation. It is UL recognized and CSA certified, making it ideal for heating, air conditioning, refrigeration, and food service equipment.

Key Specifications
• Amperage: 60A
• Voltage: 600V system voltage
• Coil Voltage: 24 VAC 50/60 Hz
• Number of Poles: 3
• Phase: 3-phase
• Mounting Type: Panel mount
• Horsepower Ratings: 25 HP at 230 VAC, 30 HP at 460/575 VAC
• Interrupt Rating: Locked rotor 360A @ 230 VAC, 300A @ 460 VAC, 240A @ 575 VAC
• Terminals: Quick connect and binder head screws
• Series/Frame: DPA
• Certifications: UL recognized, CSA certified
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Additional Information

This Definite Purpose Contactor includes a 600 VAC coil.




Specifications

• Part Number: 8910DPA63V14
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Contactor
• Family : Class 8910
• Type : DPA6
• Voltage : 600
• Amperage : 60
• Phase : 3
• Poles : 3
• Horse Power : 5 hp 115 V AC, 1 phase-10 hp 230 V AC, 1 phase-30 hp 460 V AC, 3 phases-30 hp 575 V AC, 3 phases-25 hp 230 V AC, 3 phases
• Aux Contacts : 3 NO
• Coil Voltage Maximum : 24V
• Full Load Amps : Full Load Amps-Inductive 60A Full Load Amps-Resistive 75A
• Coil Voltage Minimum : 24V
• Frequency : 50/60 Hz



Product Data

• UPC : 785901080831
• GTIN : 00785901080831
• Country of Origin : China
• Dimensions : 2.56 in x 4.06 in
• Weight : 1.49
• Certification : CSA, RoHS, UL Listed
